330902-00-15-10-02-05 Bently Nevada 3300 NSv Proximity Sensors

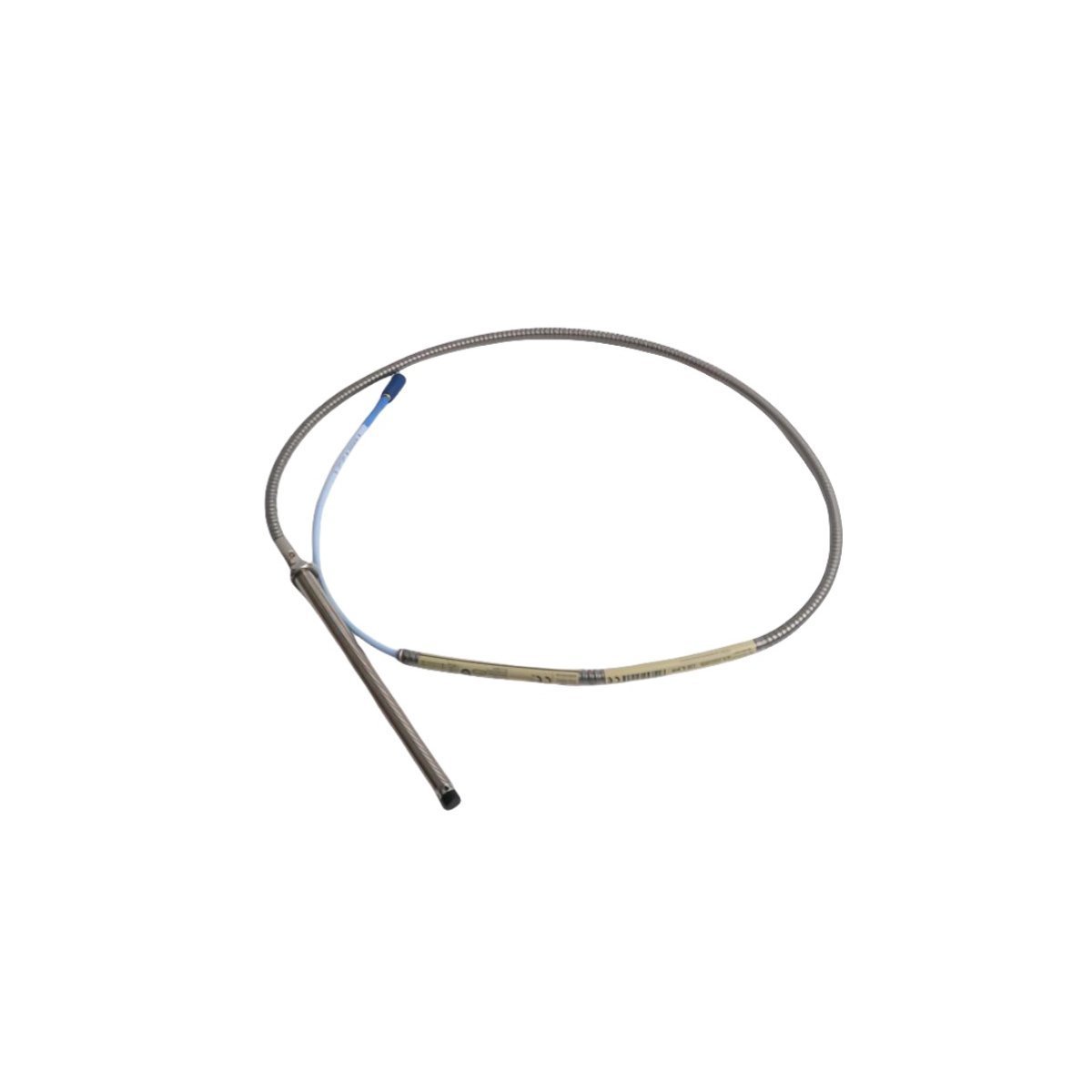

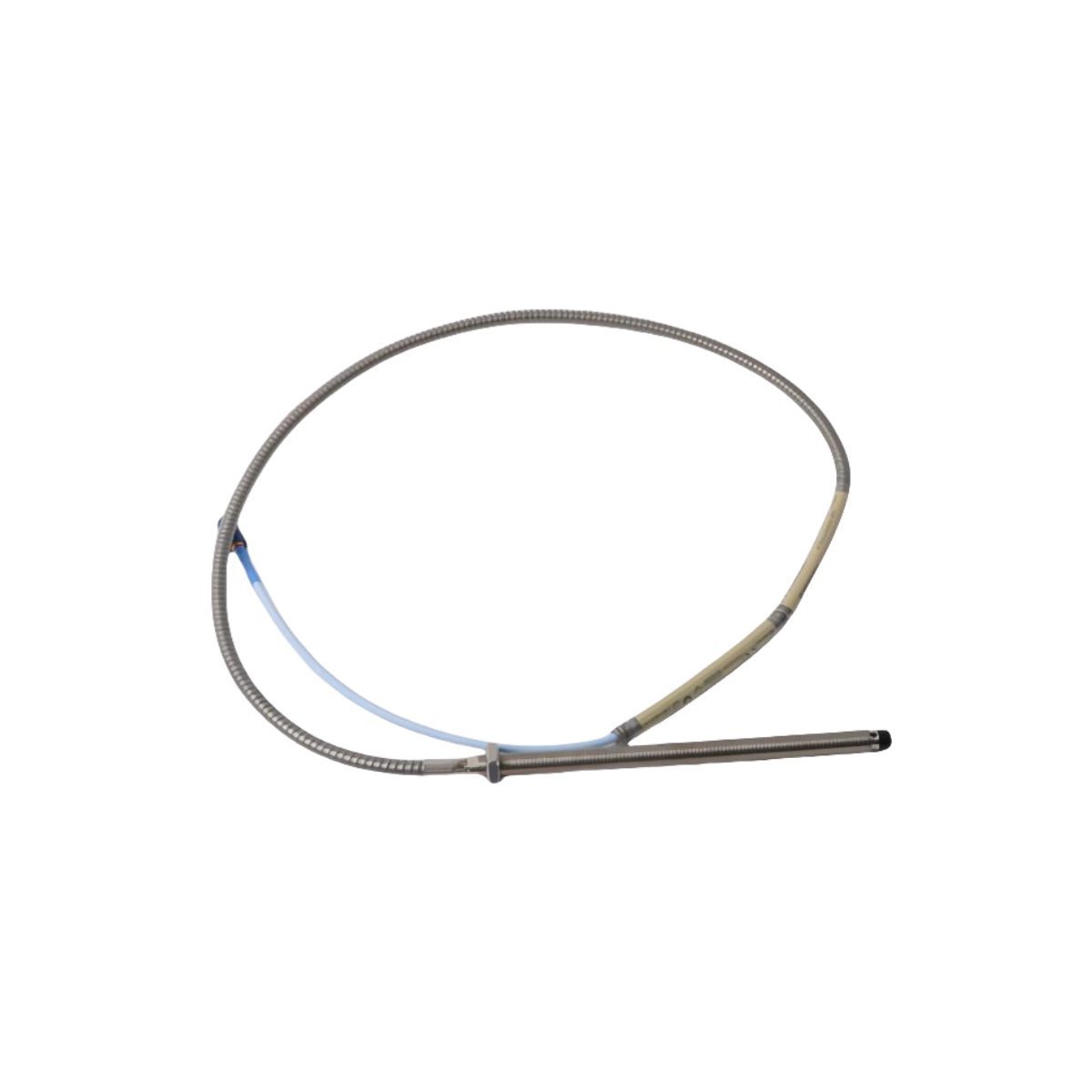

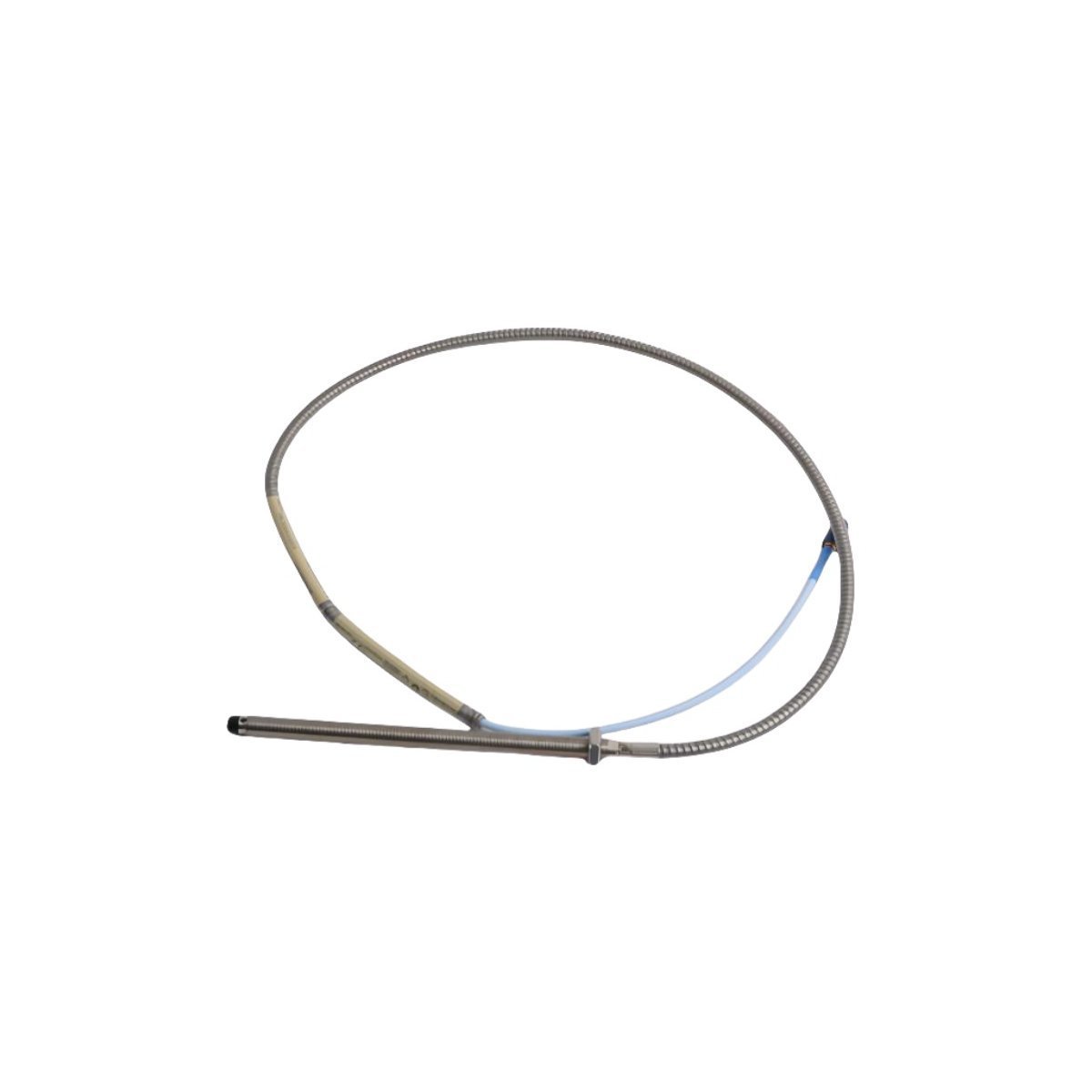

Bently Nevada 330902-00-15-10-02-05 3300 NSv Proximity Probe

Configured for high-precision vibration monitoring and shaft position measurements in confined machinery locations, the Bently Nevada 330902-00-15-10-02-05, also cataloged as the 330902-00-15-10-02-05 Proximity Probe, provides direct physical/electrical execution within Bently Nevada 3300 NSv Transducer System setups. This compact sensor converts mechanical gap distance into proportional voltage output, enabling machinery protection systems to track rotor dynamics accurately.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Gap Voltage Validation

The 330902-00-15-10-02-05 probe operates under strict eddy-current probe scaling protocols to deliver linear millivolt output proportional to target distance. Field engineers validate physical probe position by targeting gap voltage (-10 VDC baseline) during zero-point installation, which places the sensor in the center of its linear dynamic range. Proper mechanical gap configuration ensures cross-talk suppression between adjacent high-density sensor channels, preventing signal distortion while monitoring fine rotor dynamics in small rotating machinery.

Frequently Asked Questions

Q: How do technicians confirm correct gap voltage during installation of the 330902-00-15-10-02-05?

A: Technicians set up a multimeter across the Proximitor Sensor output terminals, adjust the mechanical thread position until the reading reaches -10 VDC nominal gap voltage, and then secure the locknut to fix the physical gap.

Q: Can the ClickLoc coaxial connector handle tight bends or high vibration environments?

A: Yes, the Miniature ClickLoc connector maintains positive engagement under operational vibration, although field engineers must respect the minimum cable bend radius requirements to prevent internal coaxial conductor fatigue.

Field Installation Guidelines

Technicians install the probe into tapped 1/4-28 UNF holes using hand tools, ensuring thread engagement depth does not exceed 0.375 in. Operators apply a recommended installation torque of 5.1 N m to prevent casing distortion. Field teams route the armored cable away from moving machine parts, avoiding sharp edges that exceed minimum bend limits. Installers secure the armored sheath cable armor directly to external conduit junction boxes, while maintaining isolation along intermediate routing runs to prevent unwanted ground loops.
