330101-00-32-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Sensors Probe

Bently Nevada 330101-00-32-05-02-00 3300 XL 8 mm Probe

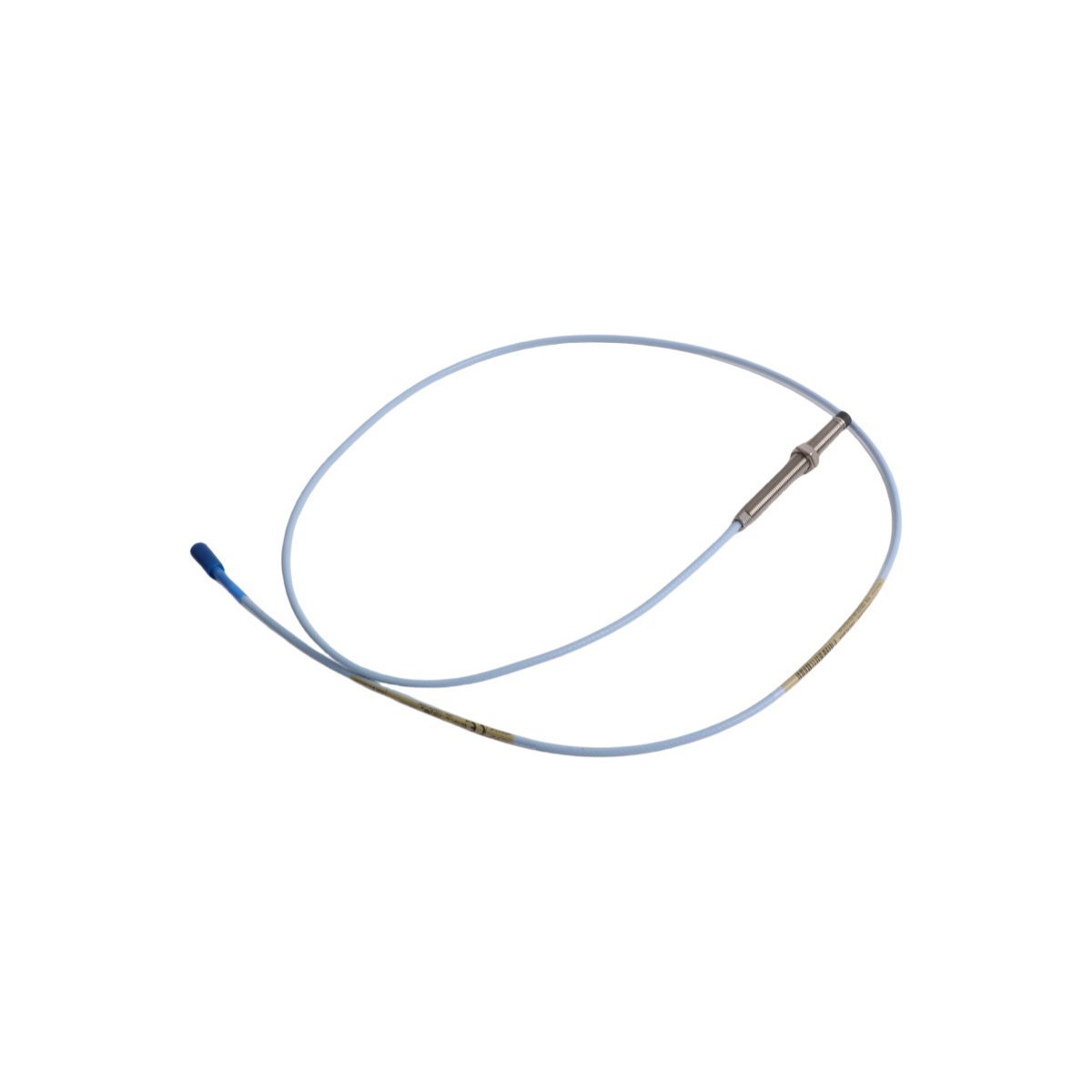

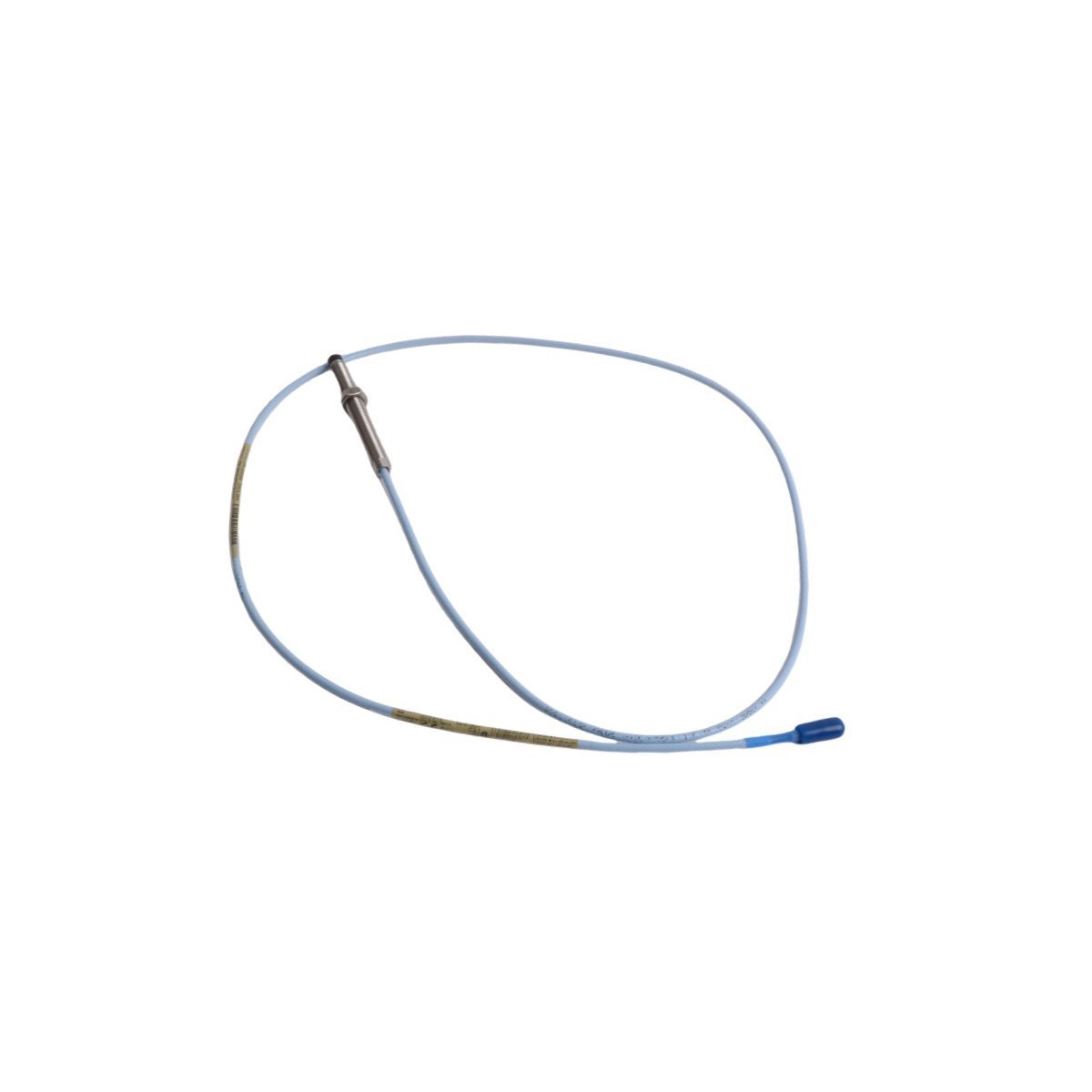

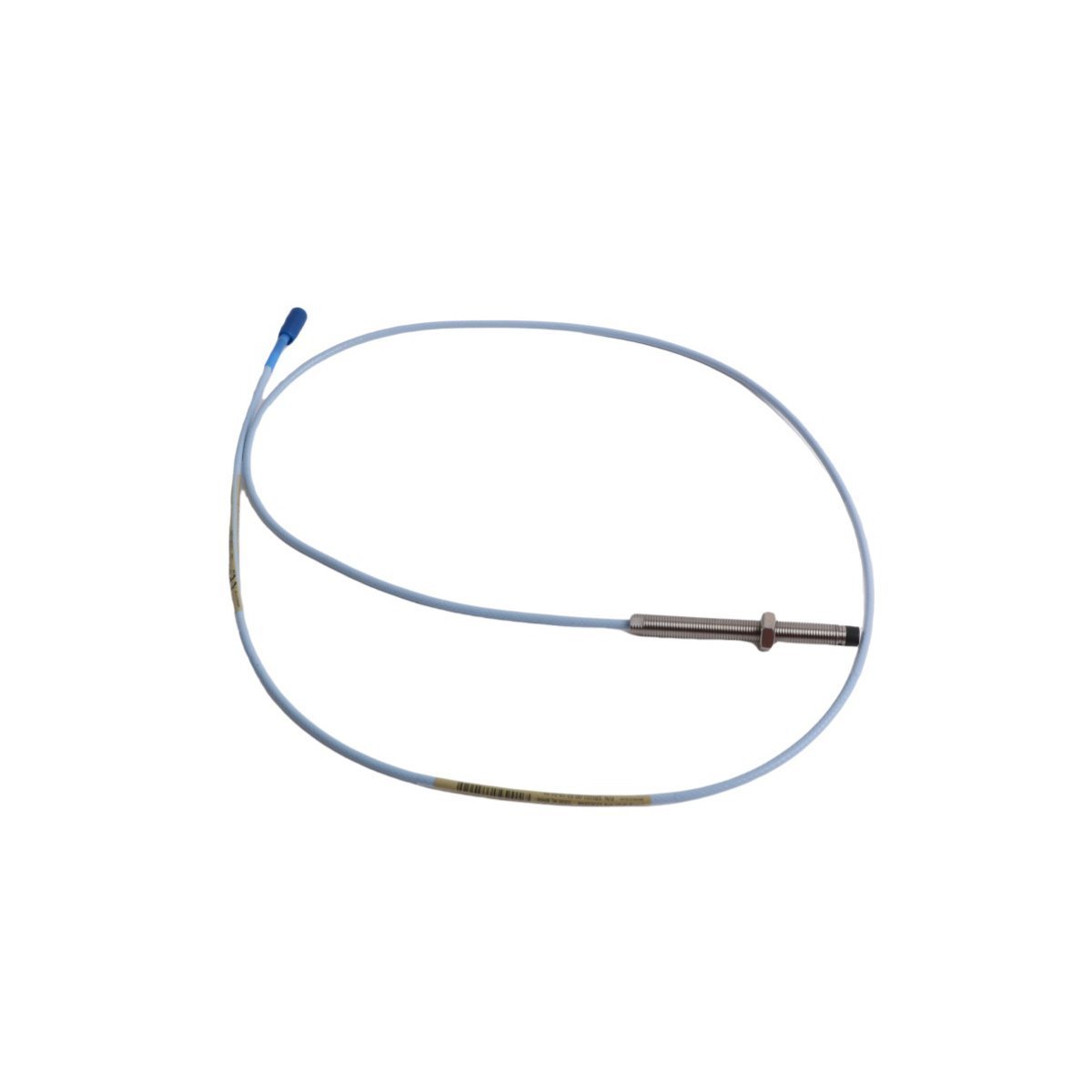

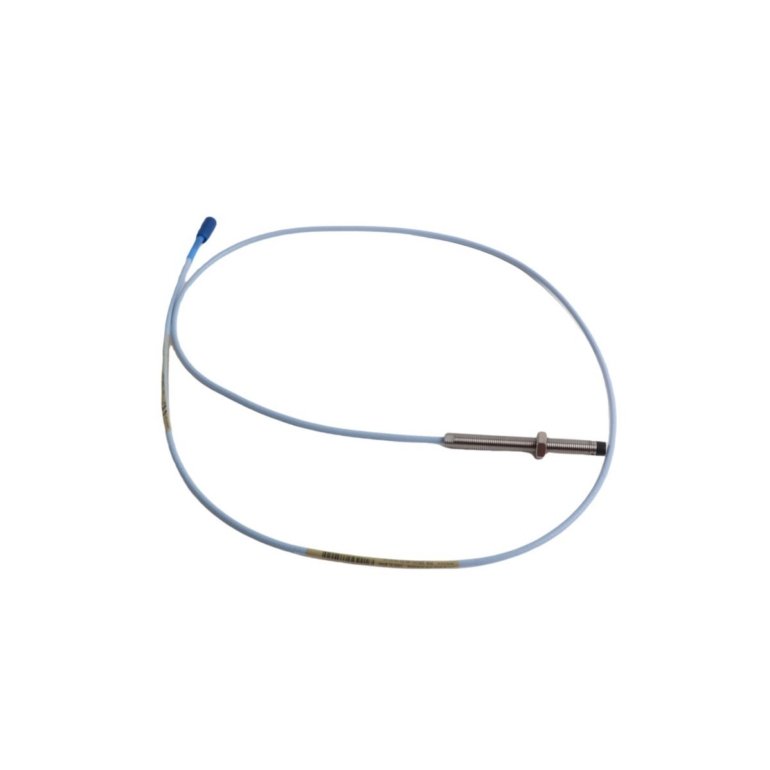

The Bently Nevada 330101-00-32-05-02-00, also cataloged as the 330101 3300 XL 8 mm Probe, operates as a dedicated hardware component for non-contact shaft vibration and position measurements within TSI machinery monitoring systems. Engineers deploy this eddy-current transducer to observe high-speed rotor dynamics and structural casing displacement. The physical assembly utilizes a reinforced tip structure, integrated cable strain relief, and gold-plated ClickLoc connectors to transmit precise physical gap variations without signal degradation.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The unit executes precise eddy-current probe scaling by generating a high-frequency magnetic field around the 8 mm tip. As a conductive target moves relative to the sensor face, the field induces eddy currents that alter the loop impedance, which the connected Proximitor Sensor interprets as an analog gap voltage. Maintenance personnel achieve optimal linearity by performing gap voltage validation (-10 VDC target setting at nominal mid-scale position). This predictable voltage response allows critical turbomachinery protection systems to resolve minute orbital movements, monitor rotor dynamics, and isolate structural cross-talk suppression across adjacent signal channels.

Frequently Asked Questions

Q: Does the ClickLoc connector require manual crimping or specialized assembly tools during field installation?

A: Field technicians engage the connection without special tools because the internal locking mechanism snaps into place with an audible click while integrated gold plating prevents contact corrosion.

Q: How does the cable prevent fluid migration when oil splashes over the sensor body inside a bearing housing?

A: The cable assembly incorporates a FluidLoc sealing structure, which blocks oil and operational liquids from leaking through the internal cable strands into external terminal enclosures.

Q: Can technicians intermix standard probe components with Extended Temperature Range (ETR) extension cables?

A: Operators maintain full electrical compatibility across the system because standard 3300 XL components and ETR variants share identical electrical scaling, although thermal limits match the lowest-rated element in the loop.

Field Installation Guidelines

Technicians must observe strict mechanical and electrical handling steps during mounting. First, thread the probe body into the tapped mounting port until the tip reaches the target gap distance, then set the initial mechanical zero while reading the output voltage from the Proximitor loop. Maintain at least 5 full threads of NPT engagement or use the designated locknut to prevent physical loosening caused by machine vibration. Next, route the flexible coaxial cable through protective conduit, avoiding sharp bends that exceed the minimum bend radius. Install optional connector shields over every ClickLoc junction to isolate signal paths from ground loops and physical debris. Finally, terminate the cable braid to the system shield bus at one end only to prevent noise coupling across the TSI network.
