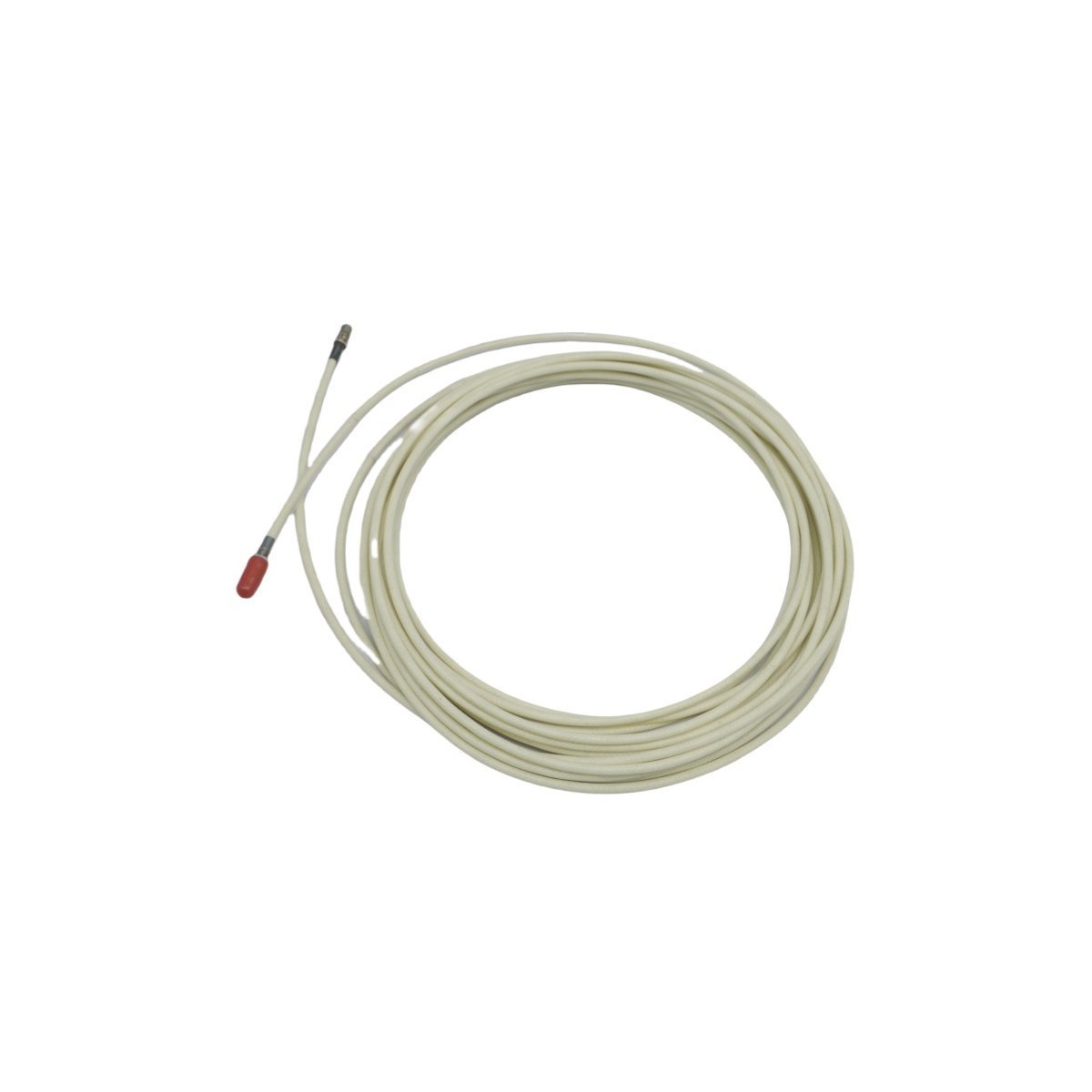

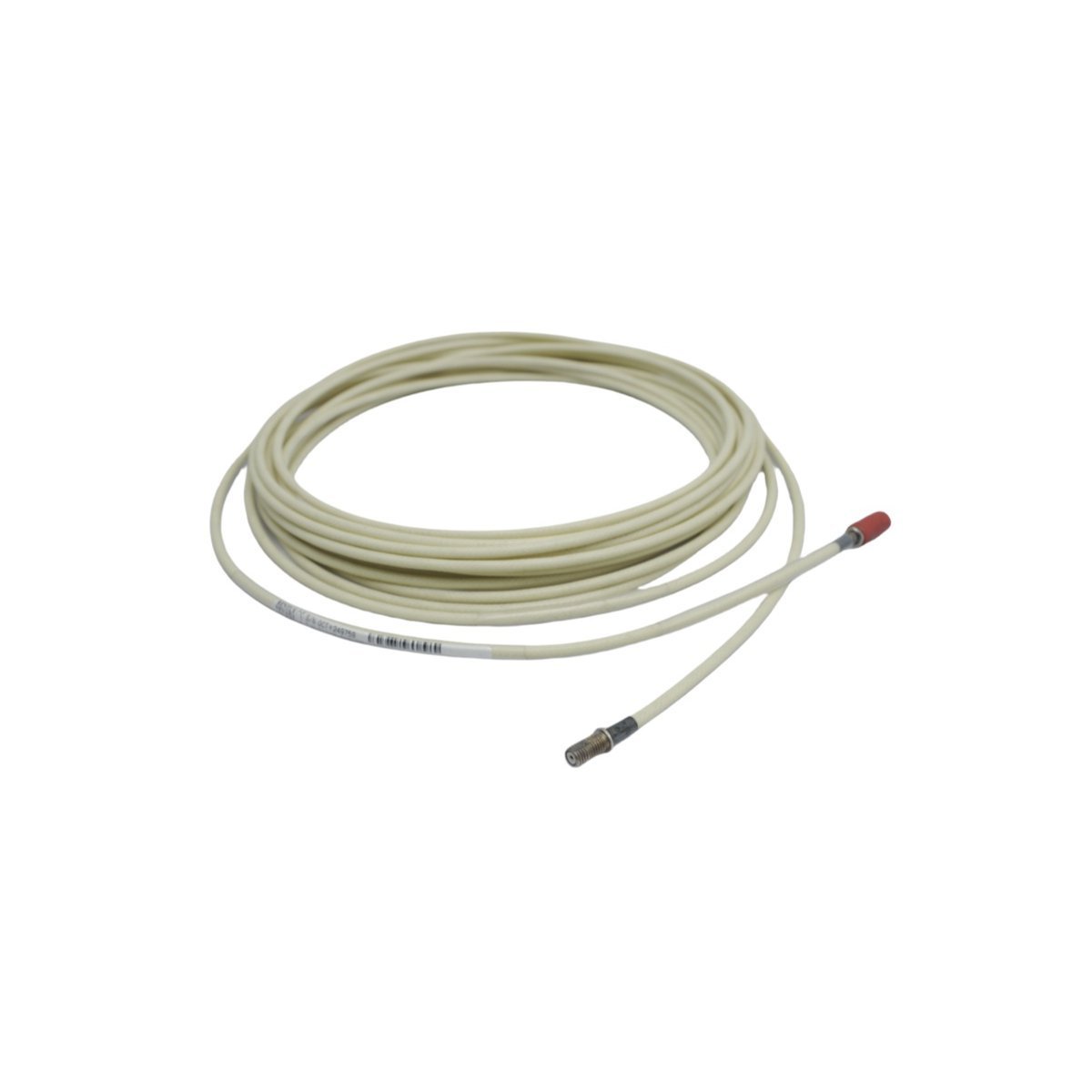

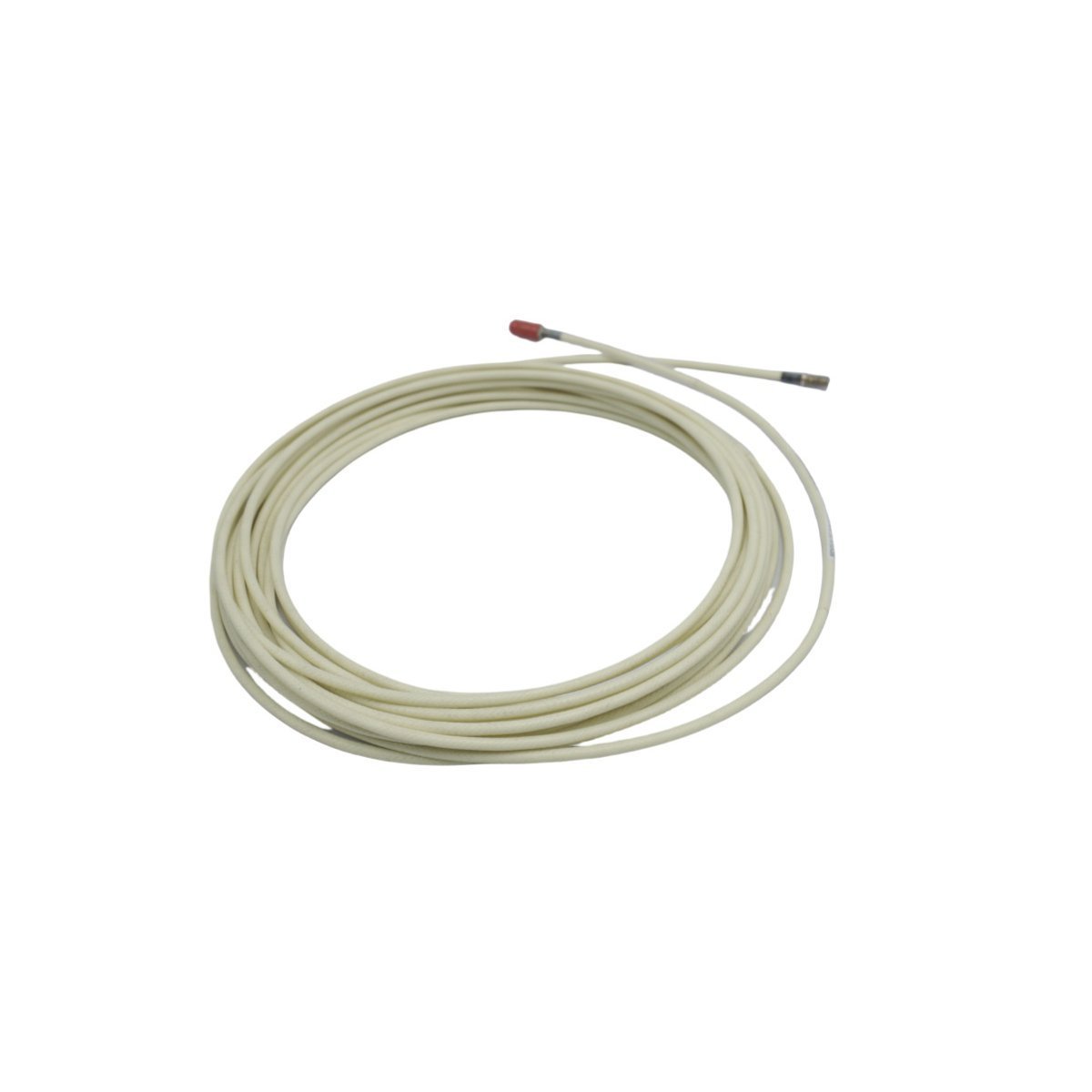

21747-080-01 Bently Nevada 8-Meter Proximitor Sensor Extension Cable

Product Overview

The Bently Nevada 21747-080-01 is a high-performance industrial extension cable engineered specifically for the legacy 7200 Series 8mm Proximity Transducer System. This specialized component bridges the electrical gap between the proximity probe tip and the Proximitor signal conditioning unit to enable continuous, non-contact machinery displacement monitoring.

Technical Function and Industrial Application

This extension cable plays a vital role in maintaining the precise electrical calibration of the entire eddy current measurement loop. By maintaining strict electrical impedance parameters across its entire length, the cable prevents signal degradation and ensures that the monitoring panel receives an accurate representation of physical shaft behavior. Control systems rely heavily on this stable data path to evaluate critical parameters, including radial shaft vibration, axial thrust position, and Keyphasor timing references.

Plant engineers integrate this component into heavy-duty turbomachinery protection and Turbine Supervisory Instrumentation (TSI) systems. Because reliable condition monitoring prevents catastrophic failures, this cable serves as a critical link across high-stakes industrial assets, including:

• Utility-scale steam, gas, and hydro power generation turbines
• High-speed centrifugal process compressors and multi-stage industrial pumps
• Large-scale induction motors, synchronous motors, and electrical generators
• Heavy machinery centrifuges and high-power reciprocating compressors

Engineering and Construction Features

The 21747-080-01 part number features a non-armored coaxial layout that provides superior physical flexibility during routing through tight conduit runs and internal junction boxes. To combat harsh industrial environments, the specialized insulation jacket shields the internal conductor from moisture, synthetic lubricants, and aggressive chemical vapors. Furthermore, gold-plated miniature coaxial connectors secure the physical interfaces at both ends, which eliminates contact resistance and prevents intermittent signal losses caused by structural machine vibrations.

Because Bently Nevada designs proximity systems as tuned electrical loops, matching the total system length remains critical for measurement accuracy. The specific “-080” option code designates an exact 8.0-meter electrical length. When technicians combine this extension cable with a standard 1.0-meter probe, they form a complete 9-meter system that matches the input calibration curves of standard 7200 Proximitor sensors perfectly. This precise engineering configuration eliminates the need for field recalibration during routine system maintenance.

Technical Characteristics
