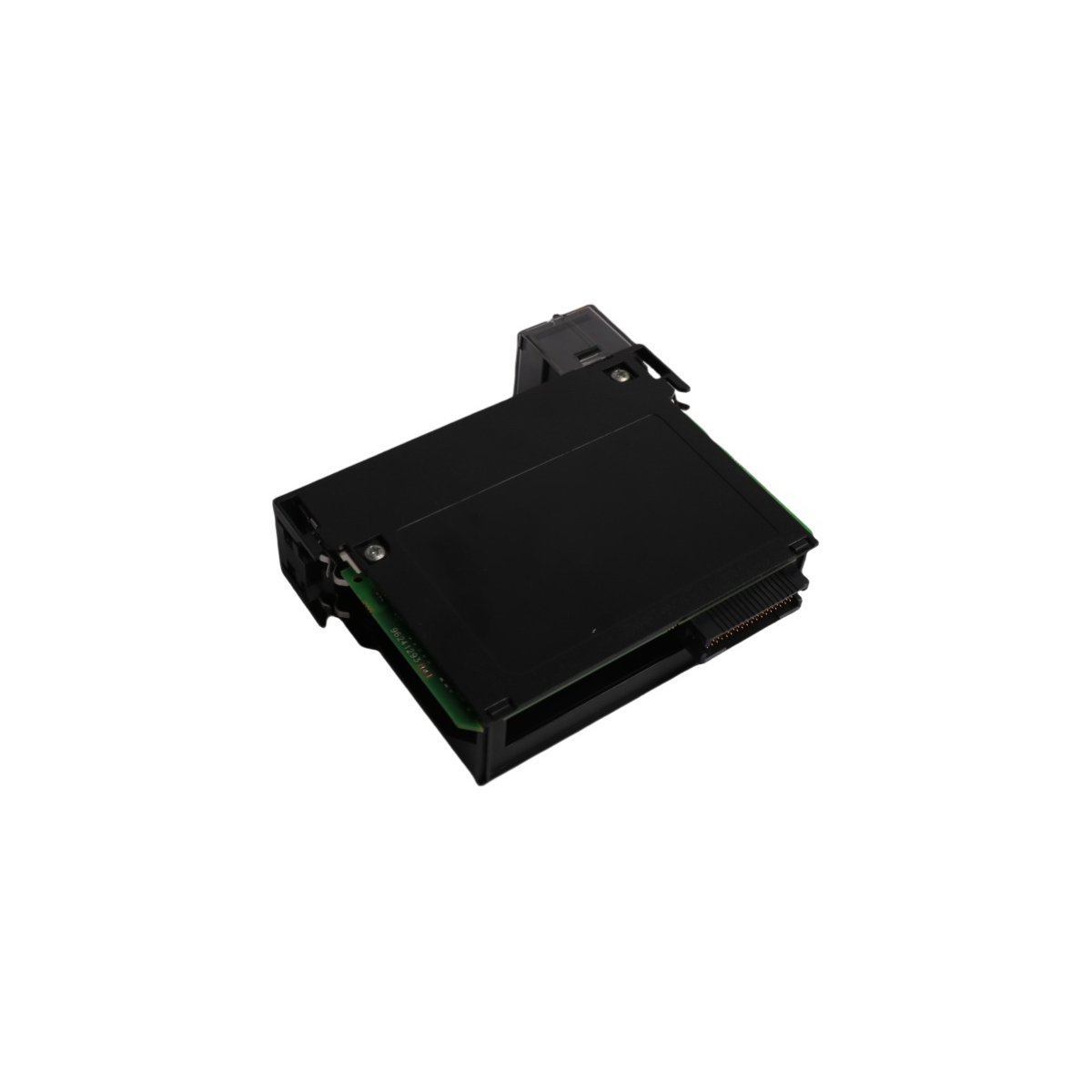

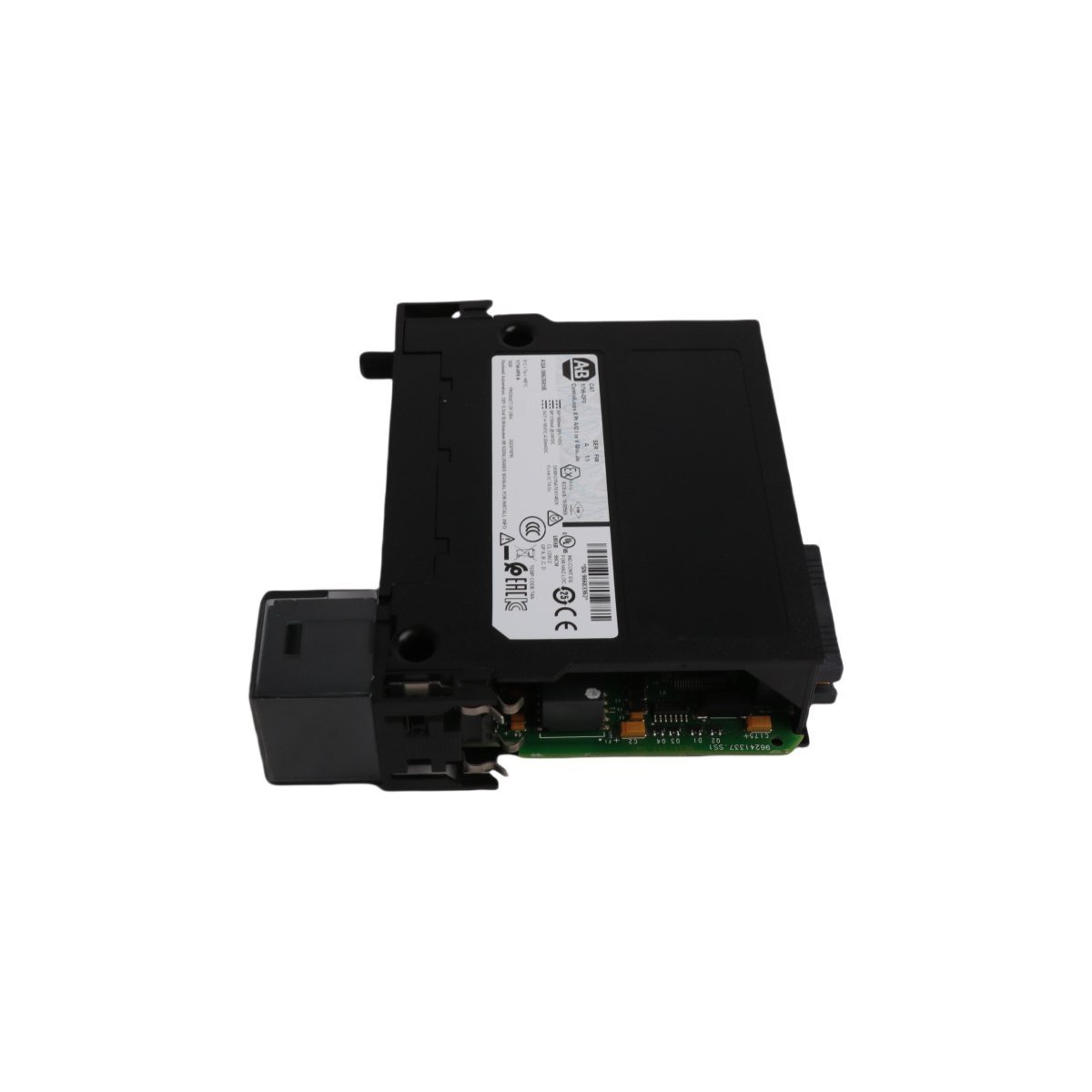

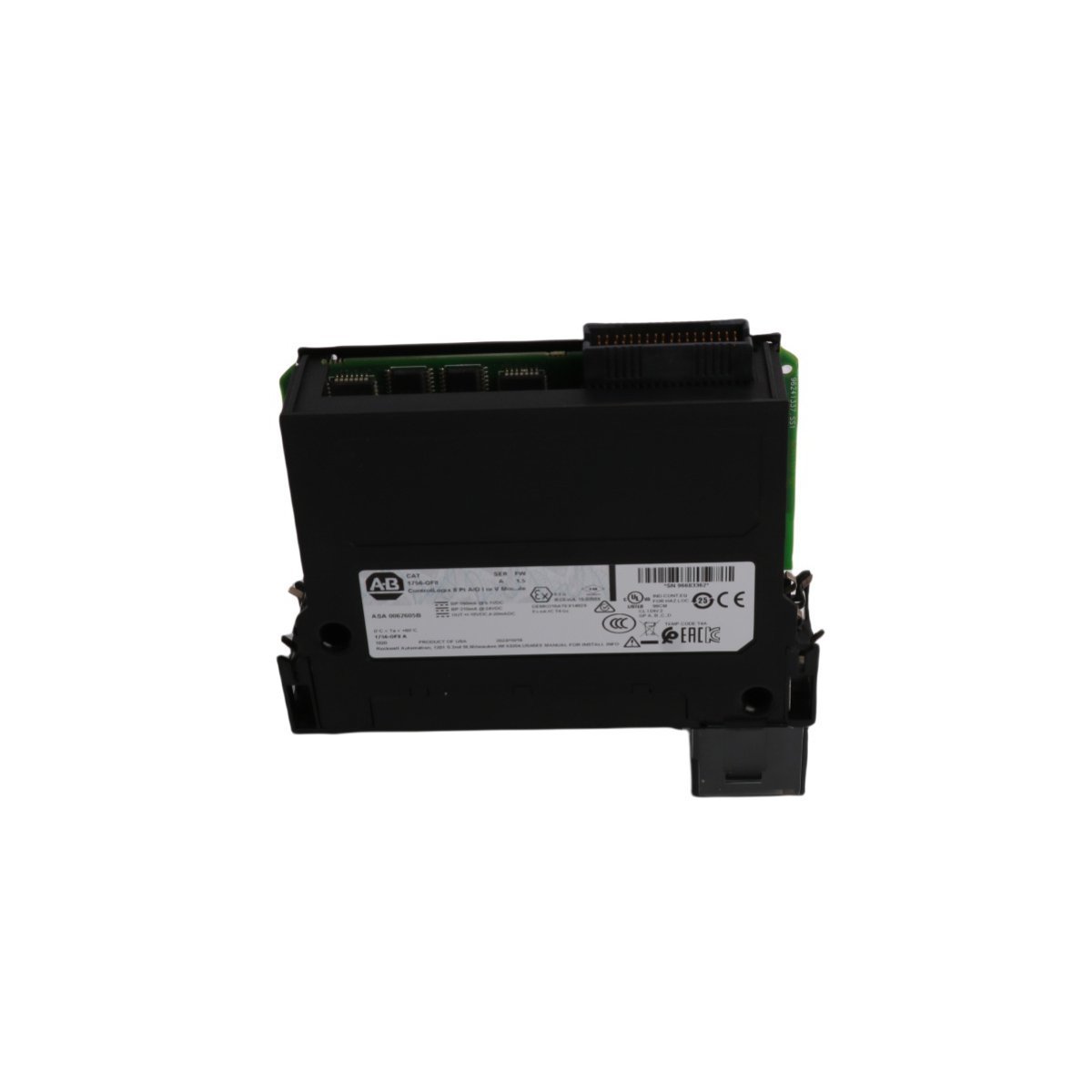

1756-OF8 Allen Bradley 8-Channel Voltage/Current Analog Output Card

Product Description

The Allen Bradley 1756-OF8 serves as a high-density analog output solution within the ControlLogix platform, providing eight independent channels for precise field device control. This module converts digital controller data into proportional analog signals, allowing for the seamless regulation of actuators, variable frequency drives (VFDs), and control valves. Because it supports both voltage and current signals on a per-channel basis, engineers gain significant flexibility when designing complex instrumentation loops.

Technical Specifications

The 1756-OF8 features a chassis-based design that utilizes the high-speed ControlLogix backplane for deterministic data updates.

Engineering Advantages

• Multi-Range Signal Versatility: The module eliminates the need for separate hardware by supporting multiple output types. Users can configure each point individually for voltage (±10V) or current (4–20mA), which streamlines spare parts inventory.
• Advanced Onboard Diagnostics: Integrated circuitry monitors the health of the output loops. The 1756-OF8 detects open-wire conditions for current outputs and short-circuit conditions for voltage outputs, instantly alerting the controller to prevent process deviations.
• High-Speed Backplane Synchronization: Through the Producer/Consumer model, the module synchronizes its output updates with the controller scan. This ensures that time-critical PID loops receive fresh data without the jitter associated with older I/O architectures.
• Robust Electrical Isolation: A continuous 1500V AC isolation barrier separates the field-side wiring from the backplane logic. This protection prevents ground loops and safeguards the expensive CPU and communication modules from field-side electrical surges.
• Simplified Field Wiring: The module utilizes a Removable Terminal Block (RTB), which allows technicians to replace a module without disconnecting individual wires. This design significantly reduces mean time to repair (MTTR) during maintenance cycles.
• 100% Brand New Condition: We provide only original, factory-sealed Allen Bradley modules. By installing brand-new 1756-OF8 hardware, facilities ensure compliance with original equipment manufacturer (OEM) specifications and maintain maximum system uptime in 24/7 manufacturing environments.

FAQs

Which Removable Terminal Block (RTB) should I use with the 1756-OF8?

This module requires either the 1756-TBNH (20-position NEMA clamp) or the 1756-TBSH (20-position spring clamp). Please note that the RTB is sold separately from the module.

Does the 1756-OF8 support digital-to-analog calibration?

Yes, the module supports electronic calibration. You can perform calibration procedures through the Studio 5000 Logix Designer software to maintain accuracy over the module’s operational lifespan.

Can I use this module in a remote I/O rack?

Absolutely. You can install the 1756-OF8 in a remote chassis and communicate with the primary controller via EtherNet/IP or ControlNet, provided a compatible communication adapter is present in the remote rack.
