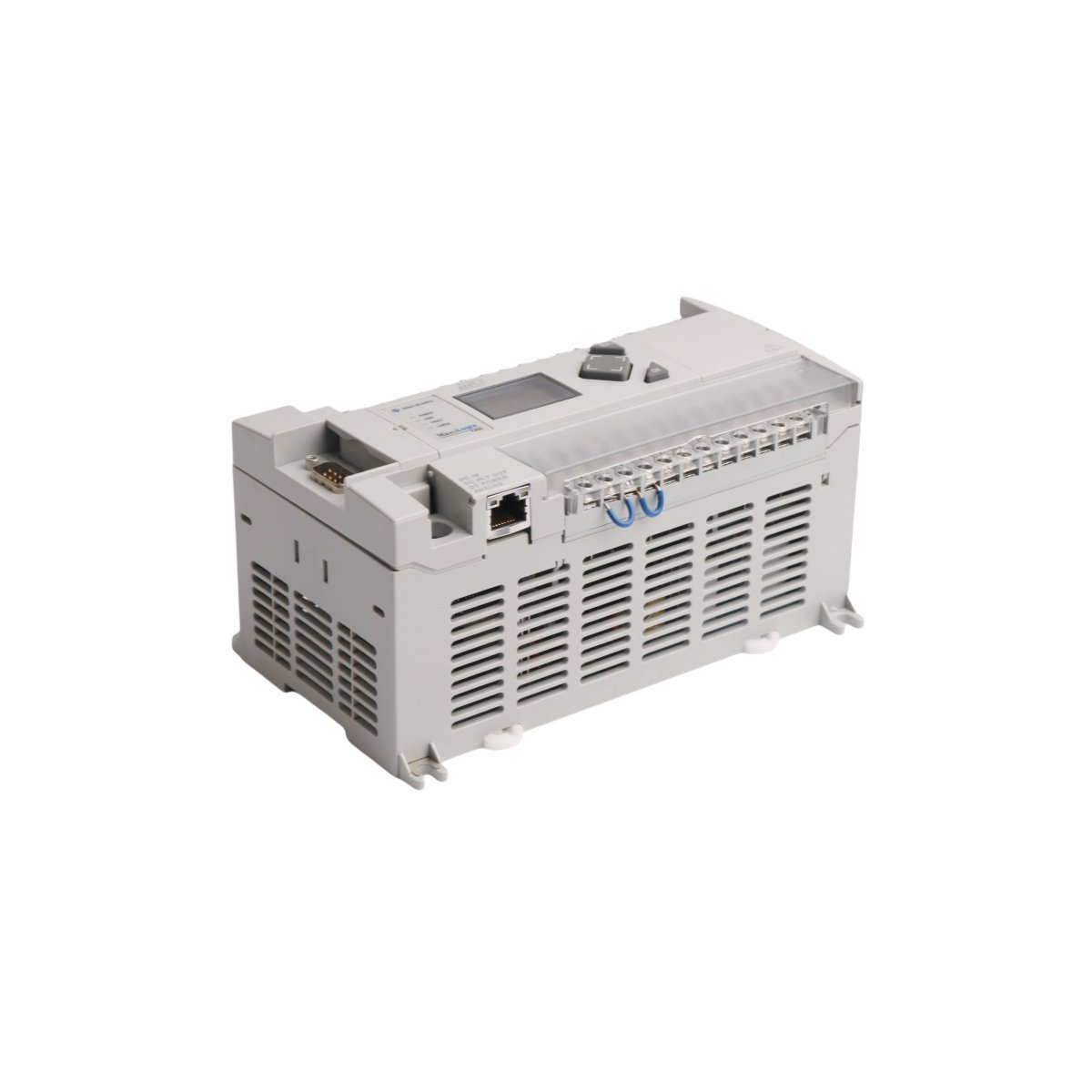

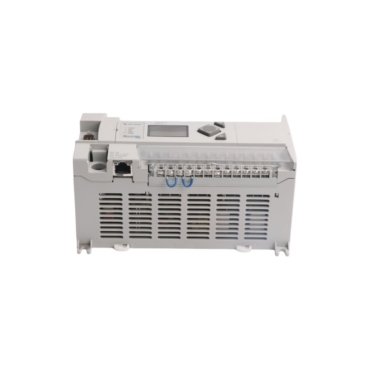

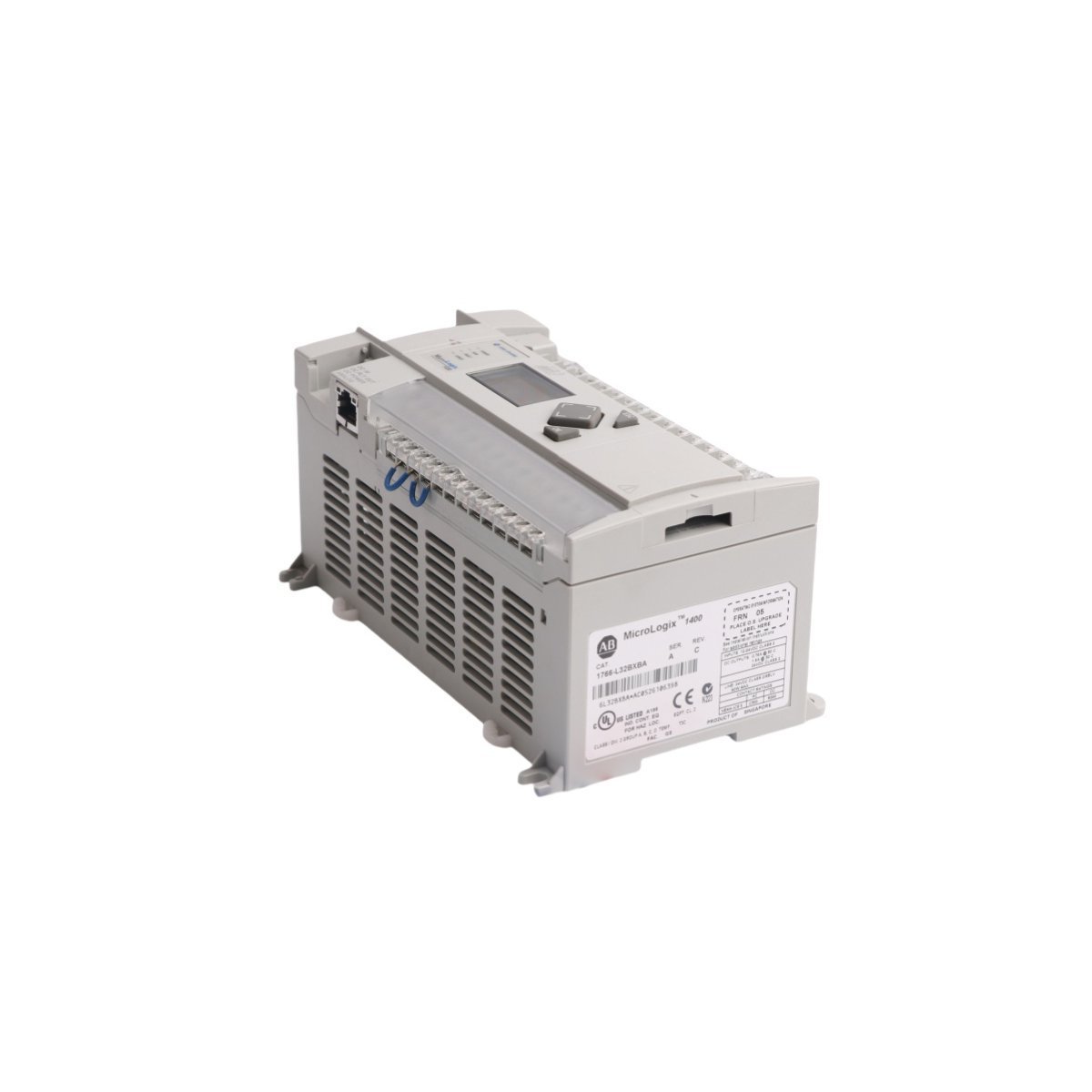

Allen Bradley 1766-L32BXBA MicroLogix 1400 PLC

The Allen Bradley 1766-L32BXBA serves as a robust foundation for small-scale industrial automation. This MicroLogix 1400 controller features a diverse array of 32 integrated digital I/O points. Specifically, the unit provides 12 high-speed digital inputs and 8 standard digital inputs. Output options include 6 relay circuits and 6 fast DC outputs for flexible device control. Furthermore, the hardware integrates 4 analog channels to handle voltage-based sensor signals directly. This comprehensive I/O density eliminates the need for extra expansion modules in many applications.

Network Connectivity and Time-Based Logic

Communication remains a core strength of this MicroLogix 1400 series processor. The unit features an isolated RS-232/485 port alongside a dedicated Ethernet interface for high-speed data exchange. Consequently, the controller integrates easily into modern plant networks and SCADA systems. An internal real-time clock enables the execution of precise, schedule-based automation routines. This functionality supports complex lighting, HVAC, and sequential manufacturing processes. Moreover, the 24V DC power requirement ensures compatibility with standard industrial power supplies.

Memory Security and Data Integrity

Data protection and program stability are critical for continuous manufacturing operations. The 1766-L32BXBA utilizes non-volatile memory to safeguard application code during power interruptions. While the base unit offers ample storage, users can install optional 1766-MM1 memory modules. These modules facilitate easy program transfers and provide an extra layer of project security. However, these external components do not increase the primary 2MB internal memory capacity. This architecture ensures that critical automation logic remains intact under diverse operating conditions.

Technical Specifications
