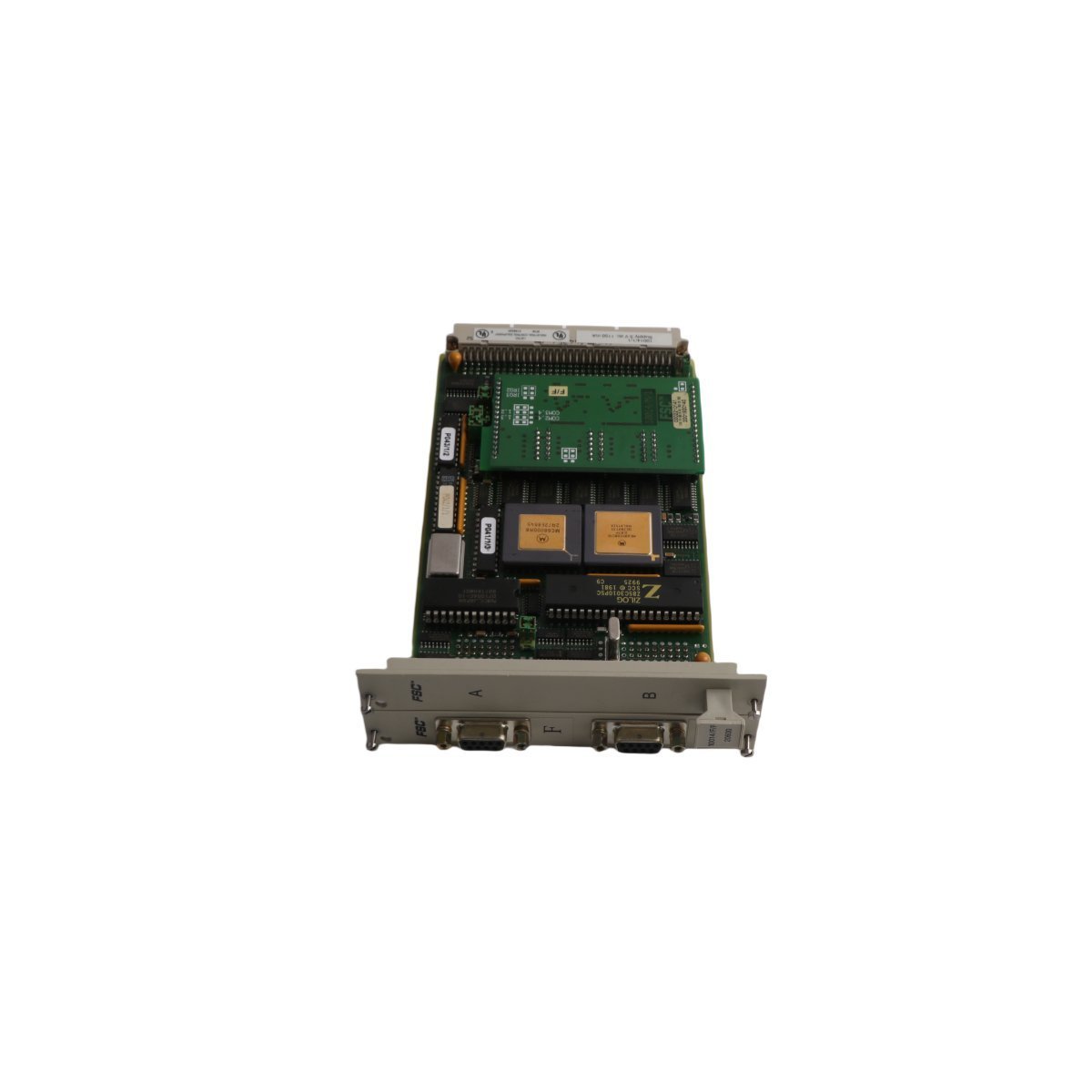

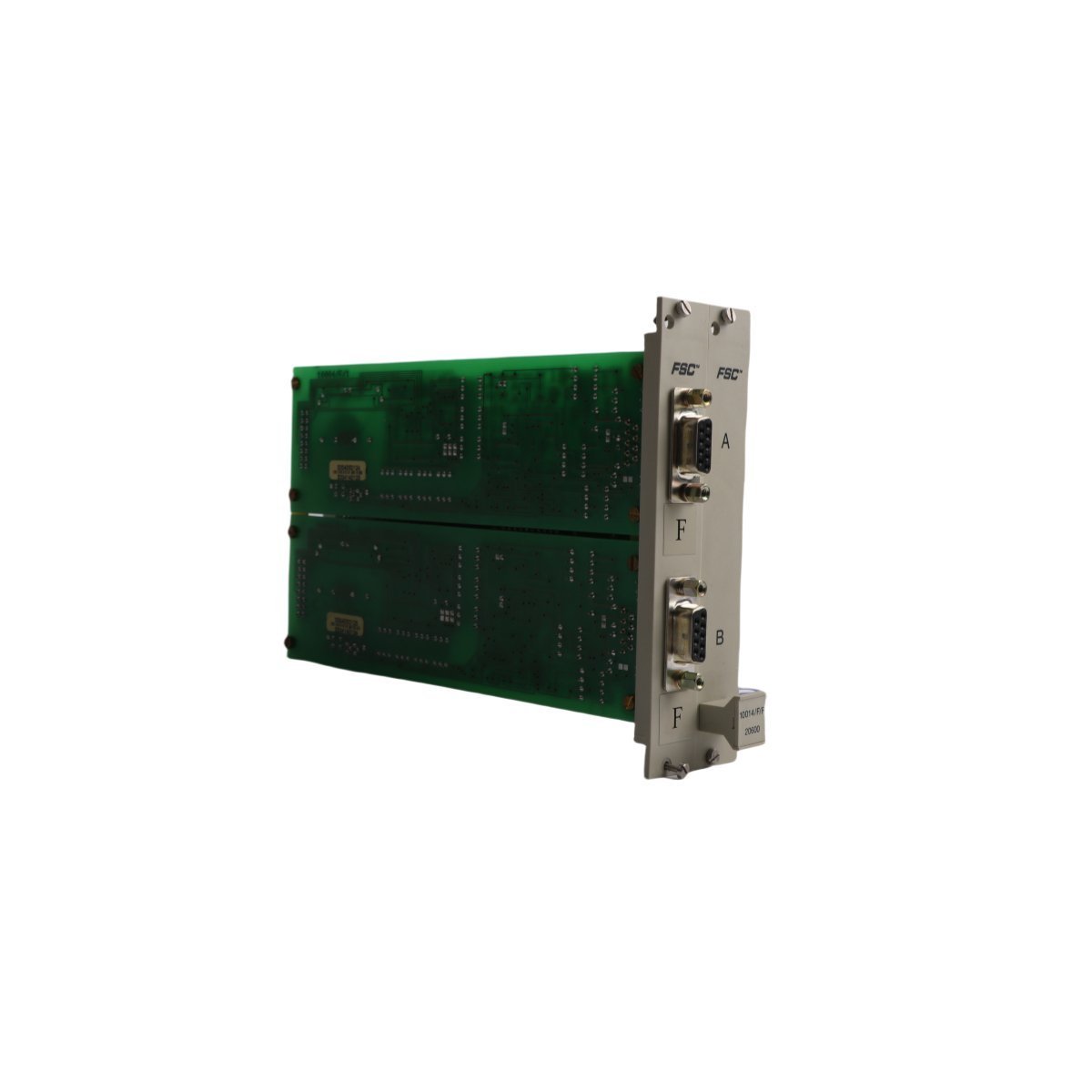

10014/F/F Honeywell FSC Series Ethernet Communication Module

Product Overview

The Honeywell 10014/F/F acts as a high-speed communication processor and interface bridge for proprietary Fail Safe Control (FSC) architectures. This dual-port hardware establishes parallel communication channels to preserve data integrity across critical plant safety networks.

System Integration and Network Applications

This communication board routes high-priority control data between primary safety controllers and supervisory Distributed Control System (DCS) layers. Because emergency shutdown systems require continuous data synchronization, the module utilizes independent data paths to handle heavy communication traffic without latency. Industrial facilities deploy this card inside safety-critical environments to run real-time hardware diagnostics and transmit board-level telemetry. Consequently, the network interface prevents complete communication failure by immediately failing over to the secondary port if a line disruption occurs.

Core Technical Characteristics

• Dual-Channel Redundancy: Employs two completely independent interface ports to provide seamless communication failover protection.
• FSC System Diagnostics: Features embedded processing logic that monitors network health metrics and isolates bus faults in real time.
• Compact Slide-In Frame: Utilizes a slim 4.0cm profile that installs cleanly into standard safety system subracks.
• Noise-Insulated Circuitry: Incorporates electrical isolation barriers across both channels to block ground loop interference in dense control cabinets.

Technical Specifications
