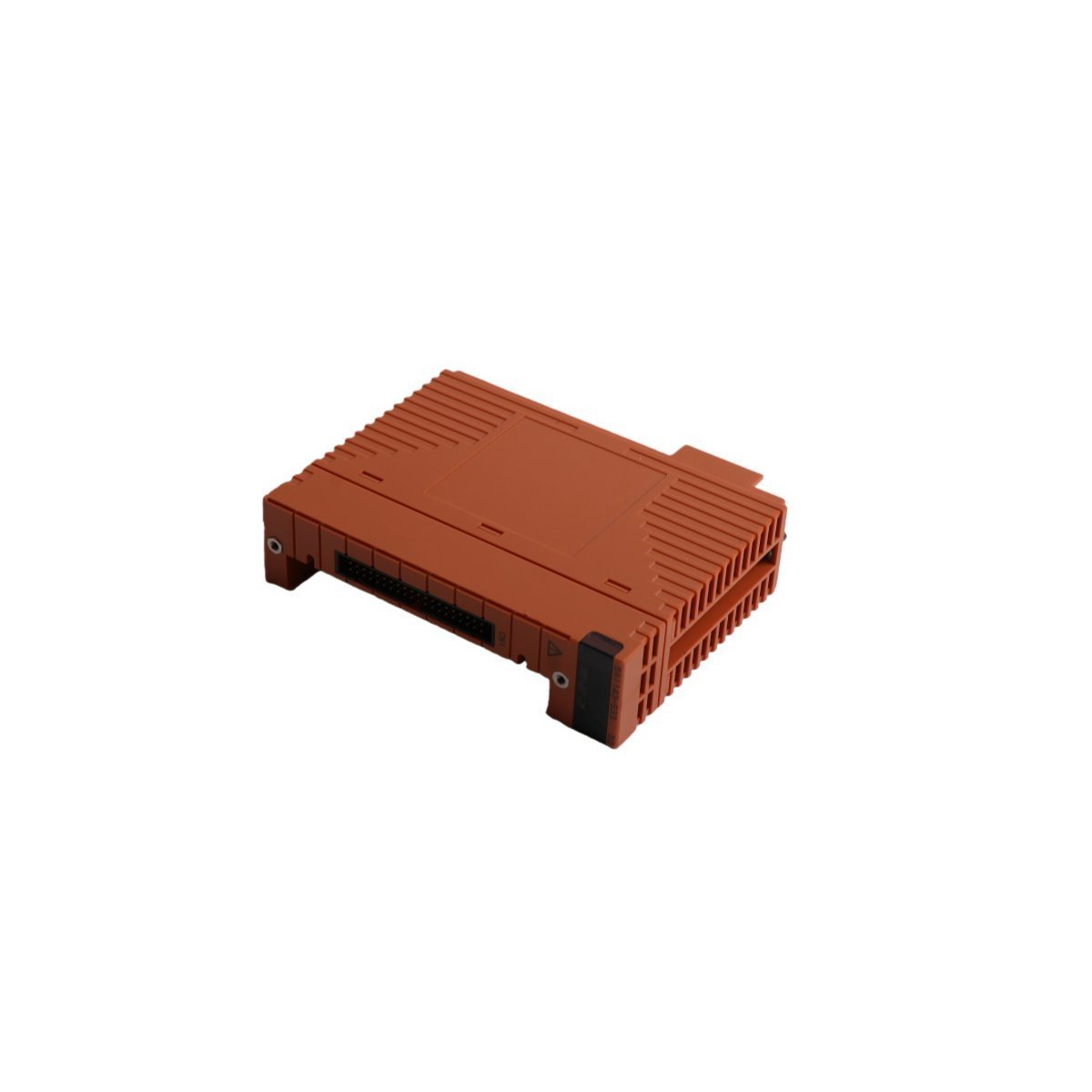

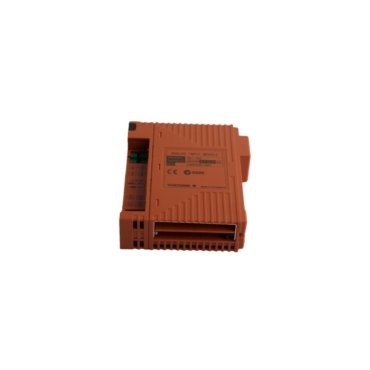

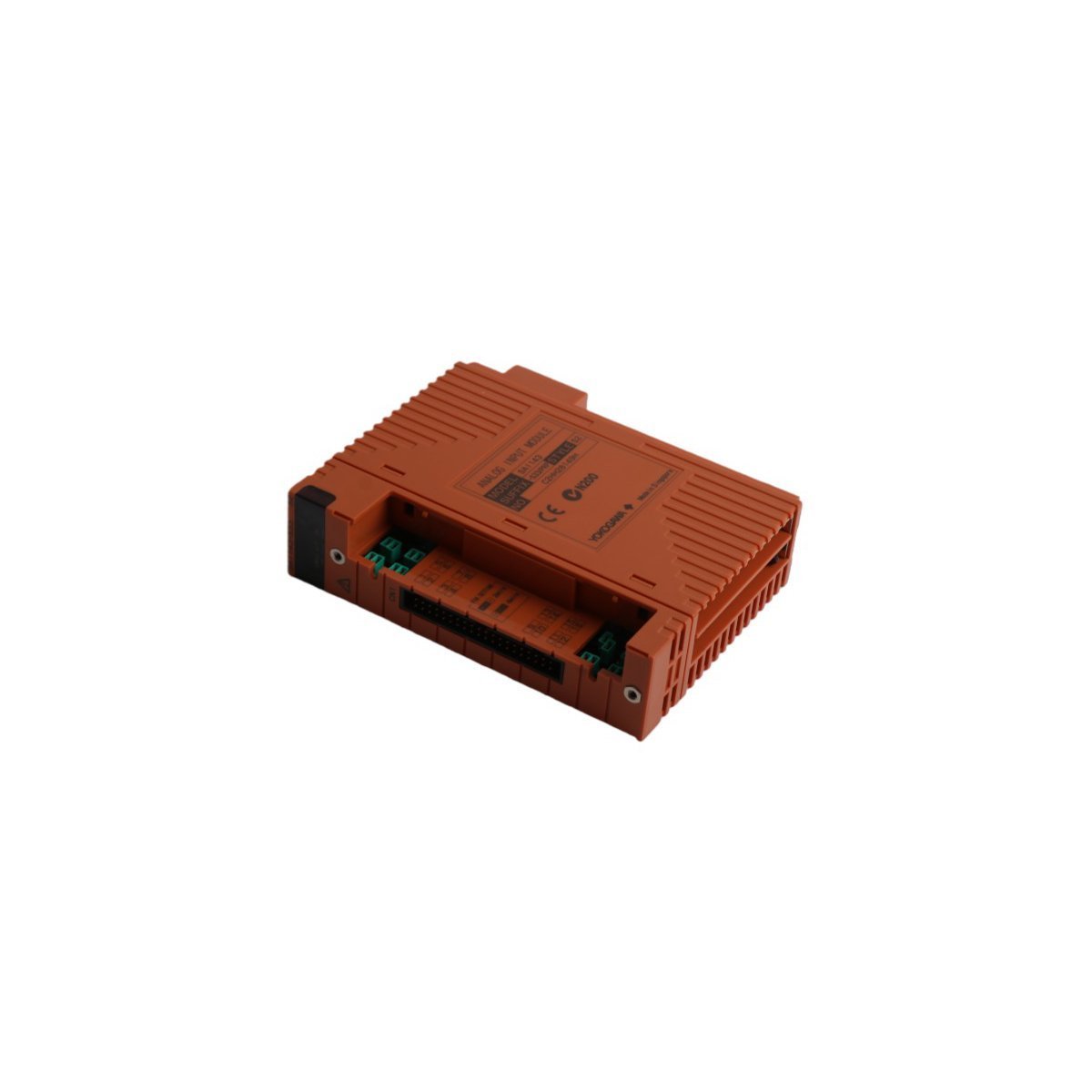

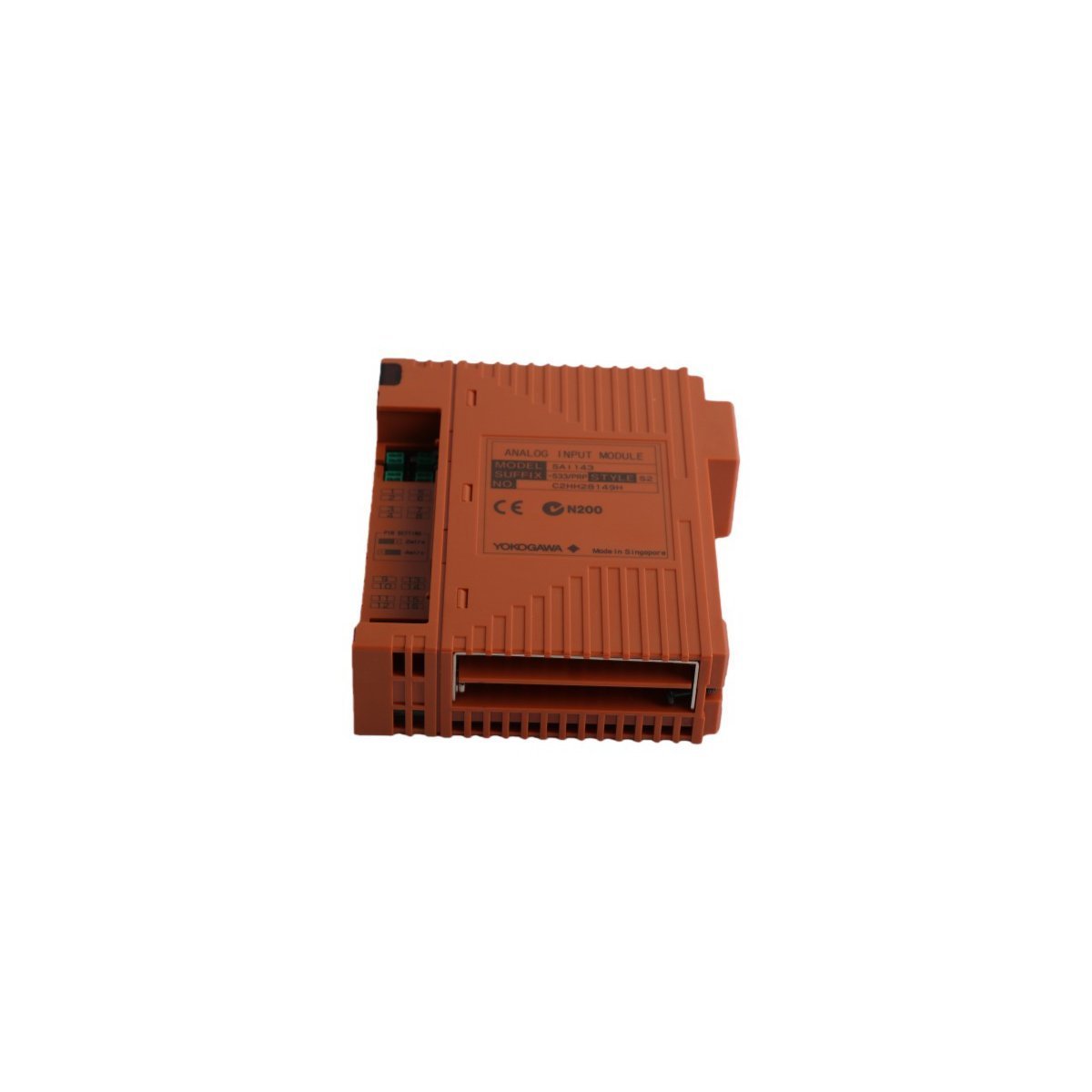

Yokogawa SAI143-S33 Analog Input Module

The SAI143-S33 serves as a core analog interface for Yokogawa ProSafe-RS safety instrumented systems. This 16-channel module captures critical 4-20 mA signals from various field sensors. It provides high-speed data acquisition for monitoring pressure, flow, and temperature variables. Because it carries safety certifications, this module performs essential roles in emergency shutdown and fire detection. The robust internal architecture ensures that operators receive precise data under extreme industrial conditions.

Advanced Signal Processing and Performance

This module delivers exceptional accuracy by maintaining a tight tolerance of ±16 µA. It processes signals within a standard 1 to 23 mA operational range. Furthermore, the unit handles peak inputs up to 25 mA without signal loss. An integrated 40 ms refresh rate allows for near-instantaneous process response. This speed helps the safety controller identify hazardous conditions immediately. Additionally, photocoupler isolation protects the system from 1.5 kV AC surges between field and logic circuits.

Flexible Field Integration

The SAI143-S33 supports both 2-wire and 4-wire transmitter configurations. This versatility simplifies the connection of diverse instrumentation types. Engineers can choose between pressure clamp terminals or MIL cable interfaces. Moreover, the module includes a remote power reset function for gas detection sensors. This feature enables maintenance teams to clear latched alarms without visiting the field. The hardware fits securely into the FIO base units of the ProSafe-RS rack.

Detailed Technical Specifications
