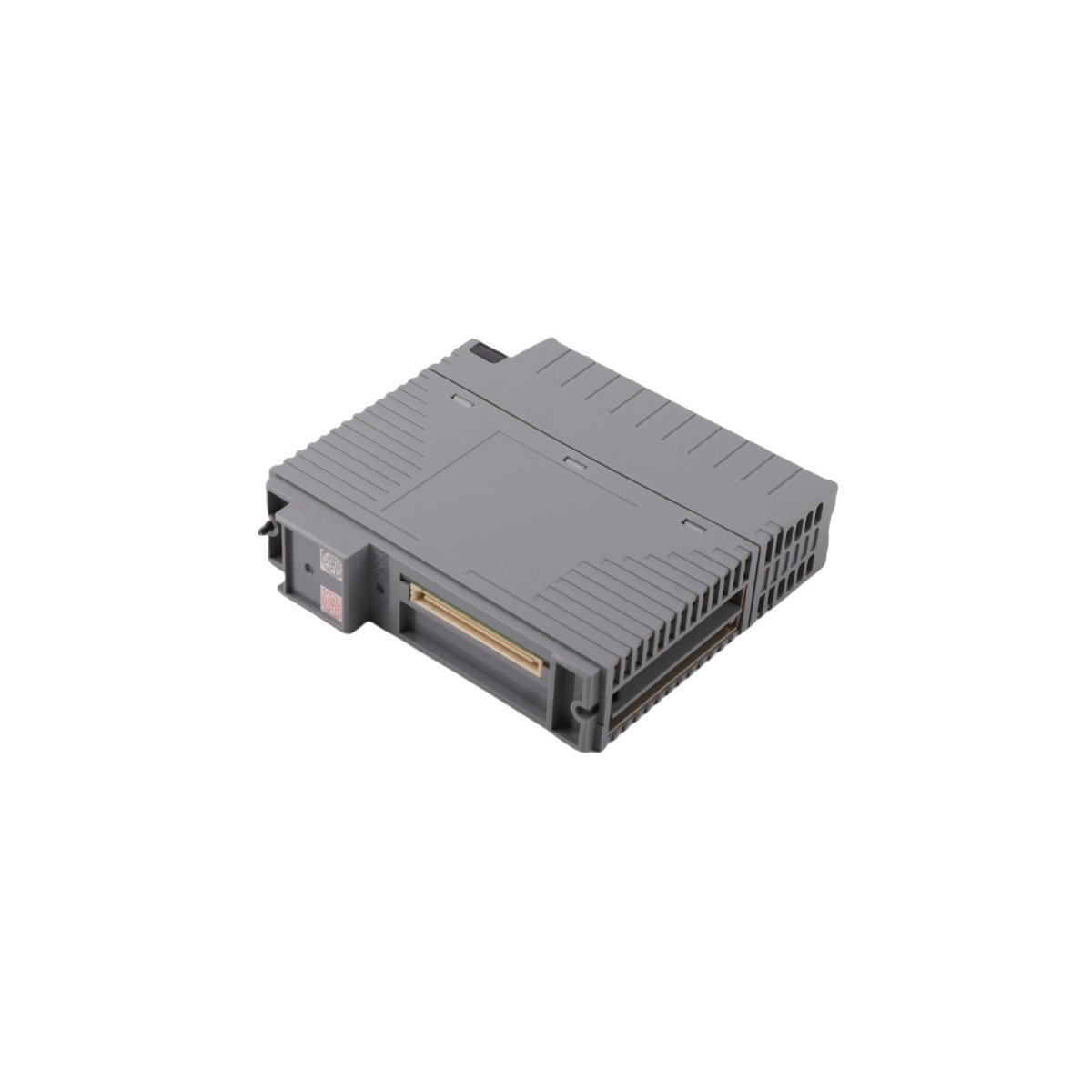

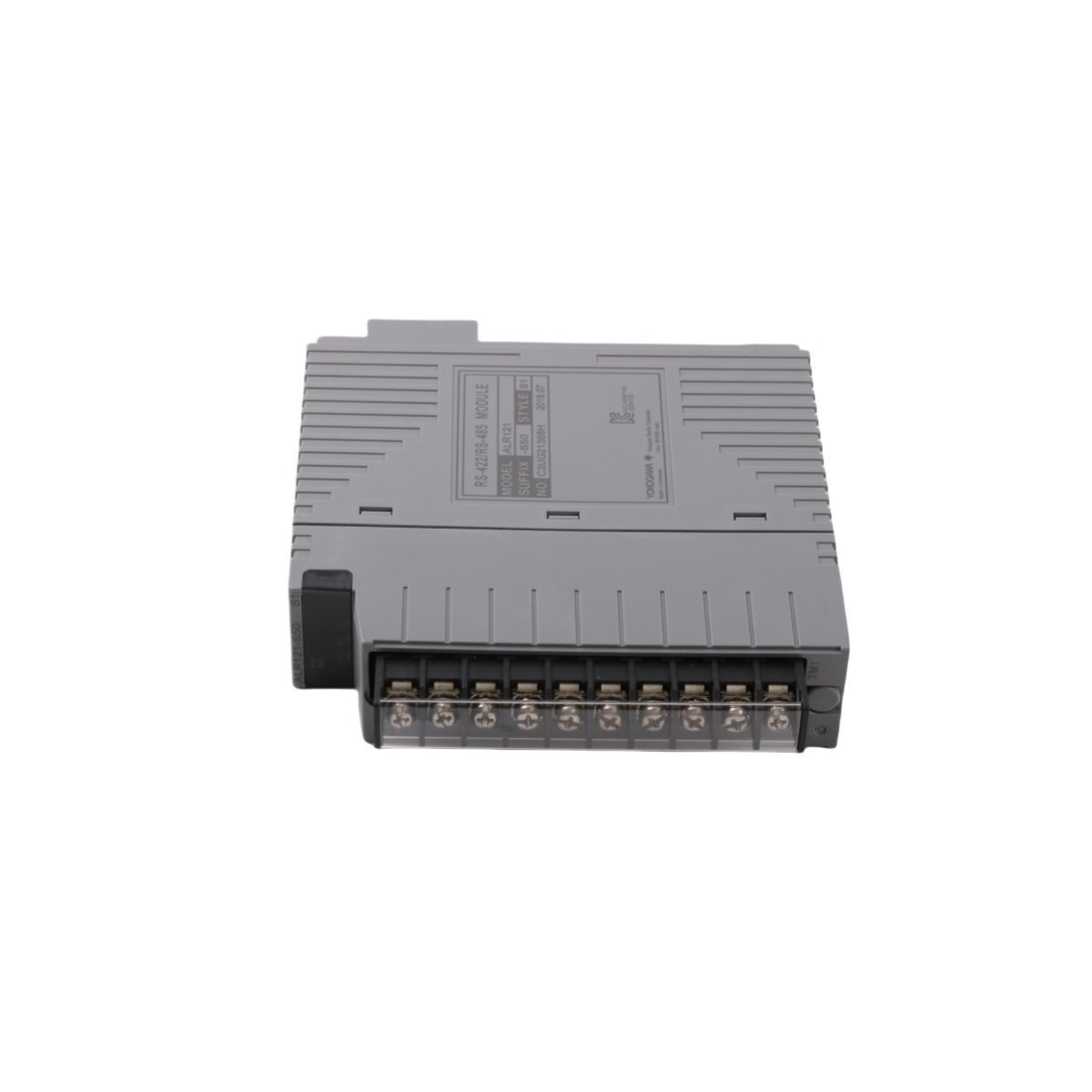

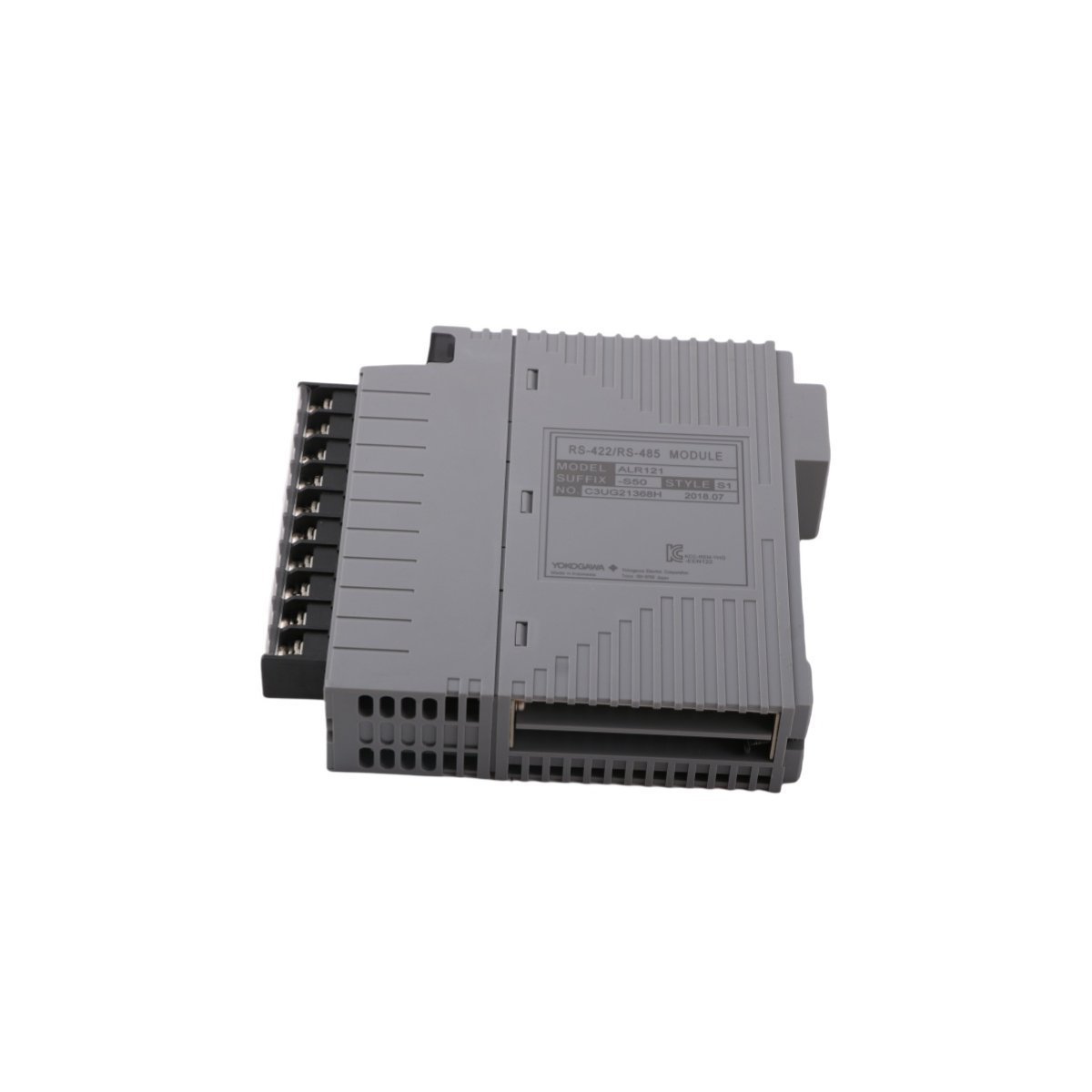

Yokogawa ALR121-S50 S1 SERIAL COMMUNICATION MODULE

The Yokogawa ALR121-S50 S1 enables high-reliability serial data exchange between control systems and external subsystems. This module provides essential connectivity for integrating PLC units, analyzers, and other third-party hardware into a central network. It excels in environments where data integrity and continuous uptime are non-negotiable requirements. By utilizing an advanced RS-232C interface, the module facilitates stable long-distance communication. Its versatile design fits perfectly within the CENTUM VP and ProSafe-RS hardware ecosystems.

Technical Performance and Specifications

Dual-Redundant Network Architecture

The ALR121-S50 S1 supports a robust dual-redundant configuration for mission-critical industrial applications. This setup involves pairing two modules to create a fault-tolerant communication backbone. Each module utilizes dual ports to establish independent data paths to the connected subsystems. Consequently, the system maintains operations even if a port or cable fails. If the active module detects an error, the standby unit assumes control instantly. This seamless transition prevents process interruptions and data loss during hardware malfunctions.

Intelligent Data Synchronization

This serial module features a sophisticated data equalization process between active and standby units. While the active module manages real-time input image data, the standby unit stays fully updated. It refreshes its internal output image at precise intervals to match the active state. This proactive synchronization ensures that the backup hardware always possesses current process variables. Therefore, the Smart Control Station (SCS) experiences no delay during a failover event. This mechanism provides a reliable safety net for oil, gas, and power facilities.

Optimized Operational Stability

Engineers specify the ALR121-S50 S1 to eliminate communication bottlenecks in complex automated plants. The module handles high-volume data traffic without compromising the speed of the main control loop. Furthermore, the compact 0.3 kg design allows for high-density mounting in standard system racks. It operates efficiently as an Ethernet router bridge for serial subsystem data. Because the hardware meets strict Japanese manufacturing standards, it withstands harsh electromagnetic interference. This durability ensures a long service life in demanding industrial settings.
