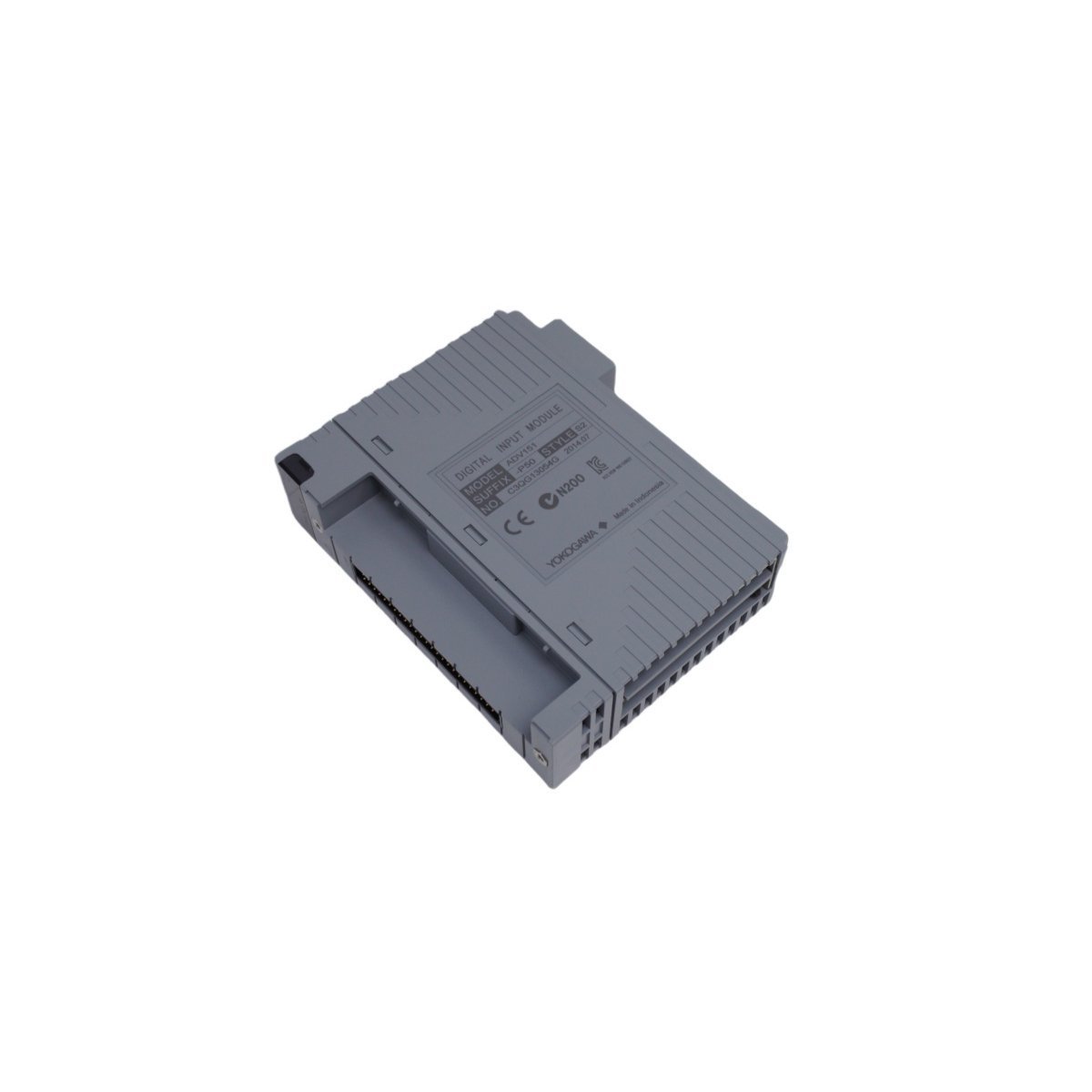

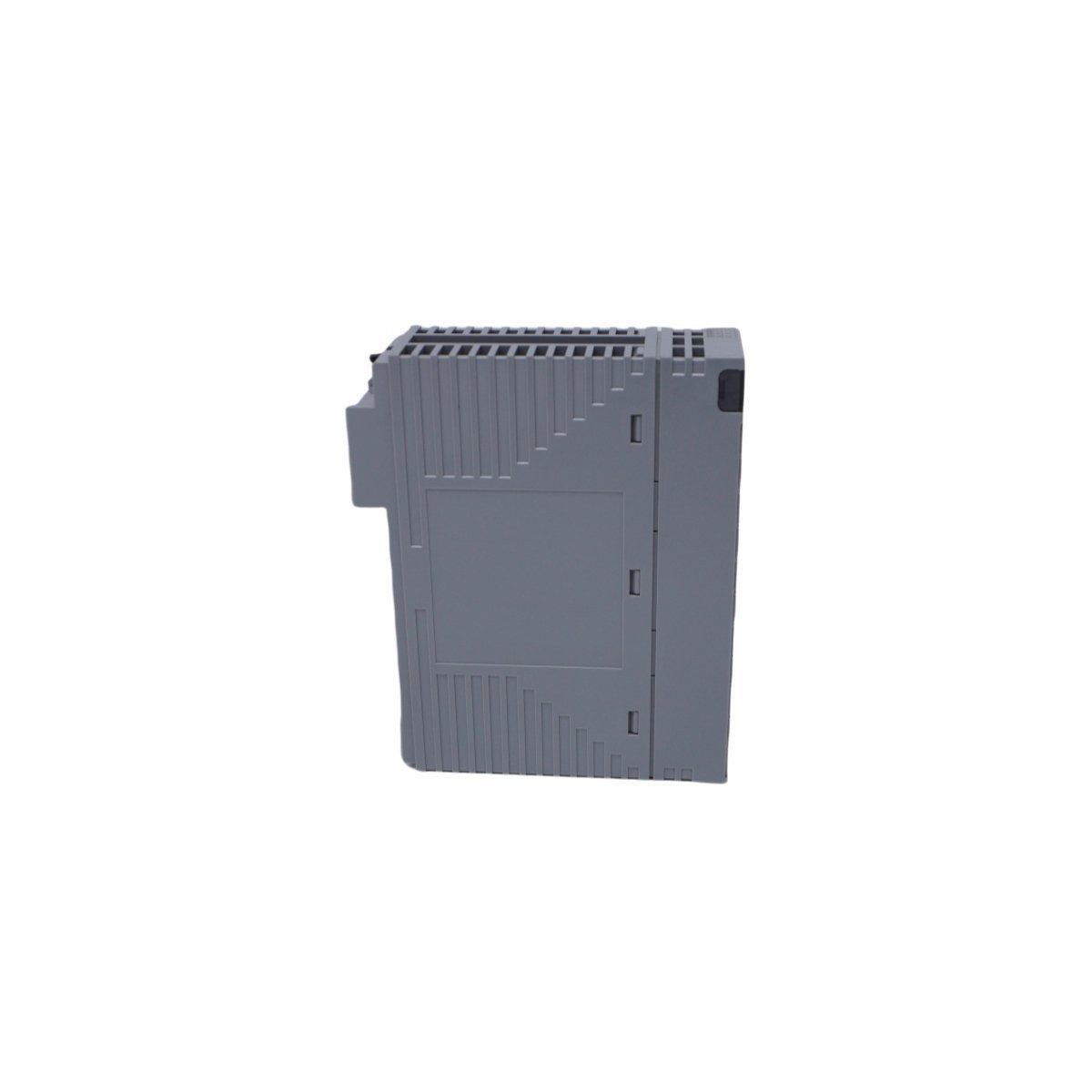

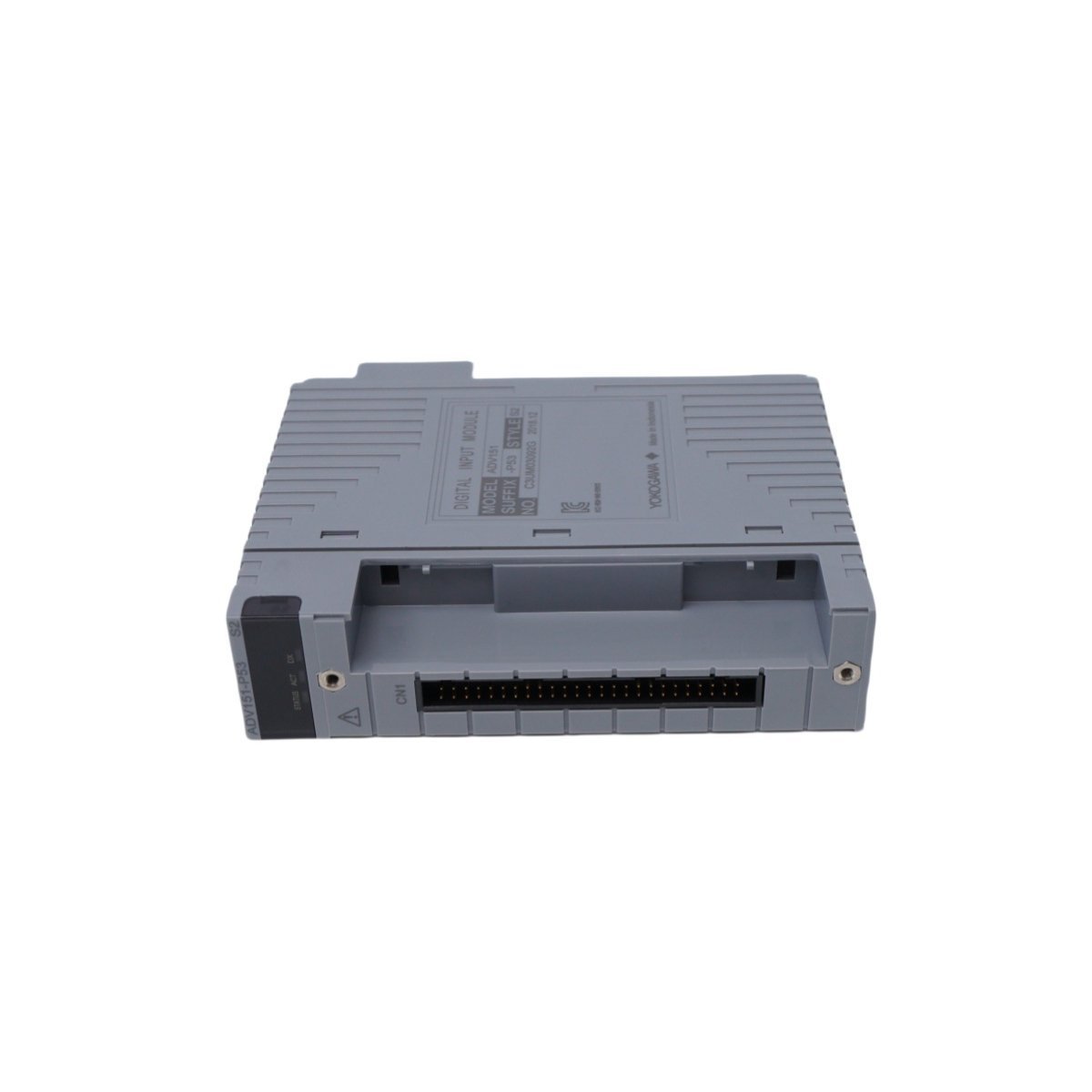

Yokogawa ADV151-P60 S2 Digital Input Module

Technical Specifications Summary

The Yokogawa ADV151-P60 S2 serves as a high-density digital interface within the CENTUM VP Distributed Control System. This module facilitates the acquisition of discrete signals from various field devices like pressure switches and motor starters. It provides 32 individual channels to capture ON/OFF states across the industrial facility. By converting physical contact positions into digital data, the module enables the controller to execute complex automation logic. This process ensures that the system responds accurately to real-time plant conditions.

Advanced Signal Processing and Isolation

Signal integrity remains a top priority for the ADV151-P60 S2 during high-speed data acquisition. Each input channel features robust electrical isolation to block transient noise and prevent ground loops. These protective measures ensure that external interference does not reach the sensitive DCS backplane. Furthermore, the module filters out mechanical contact bounce to avoid false signal triggers. This technical precision makes it an ideal choice for industries where data accuracy is a safety requirement.

Key technical characteristics include:

• 32-channel high-density digital input configuration.
• Support for 24 V DC dry contact signals.
• Full isolation between channels and internal system circuitry.
• Native integration with Yokogawa FIO (Field Interface I/O) bus.
• Low power consumption design to minimize cabinet heat buildup.
