Product Overview

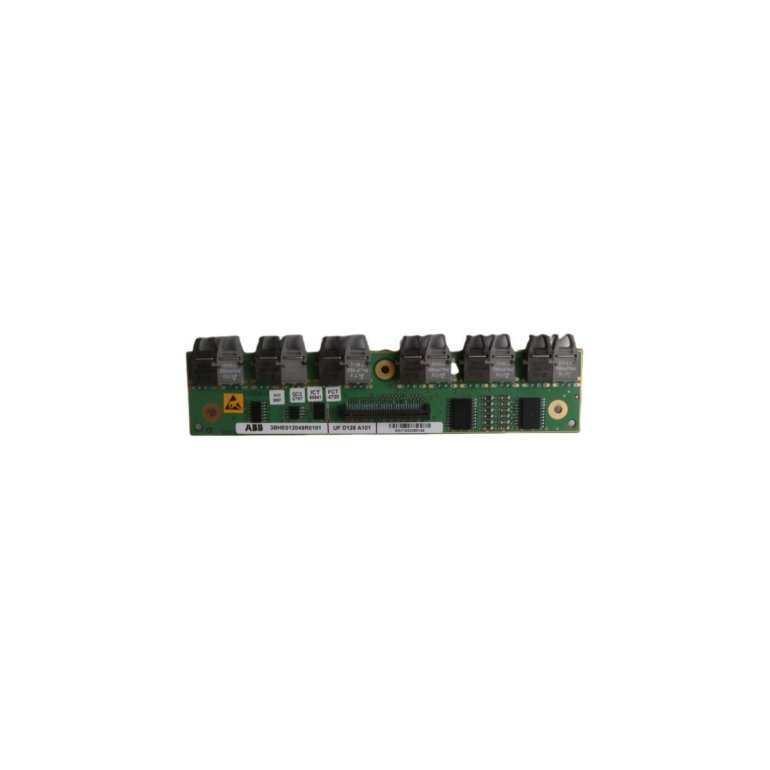

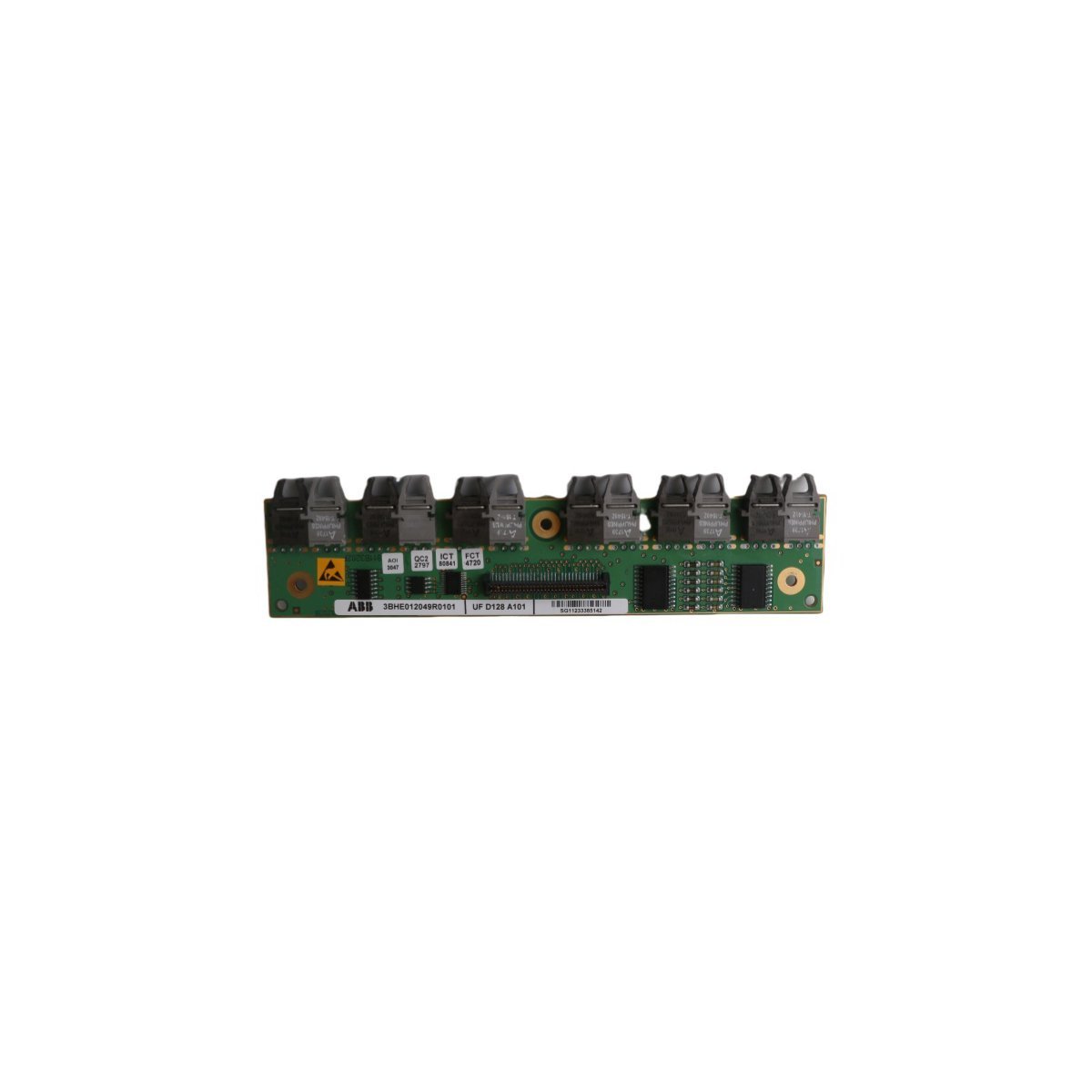

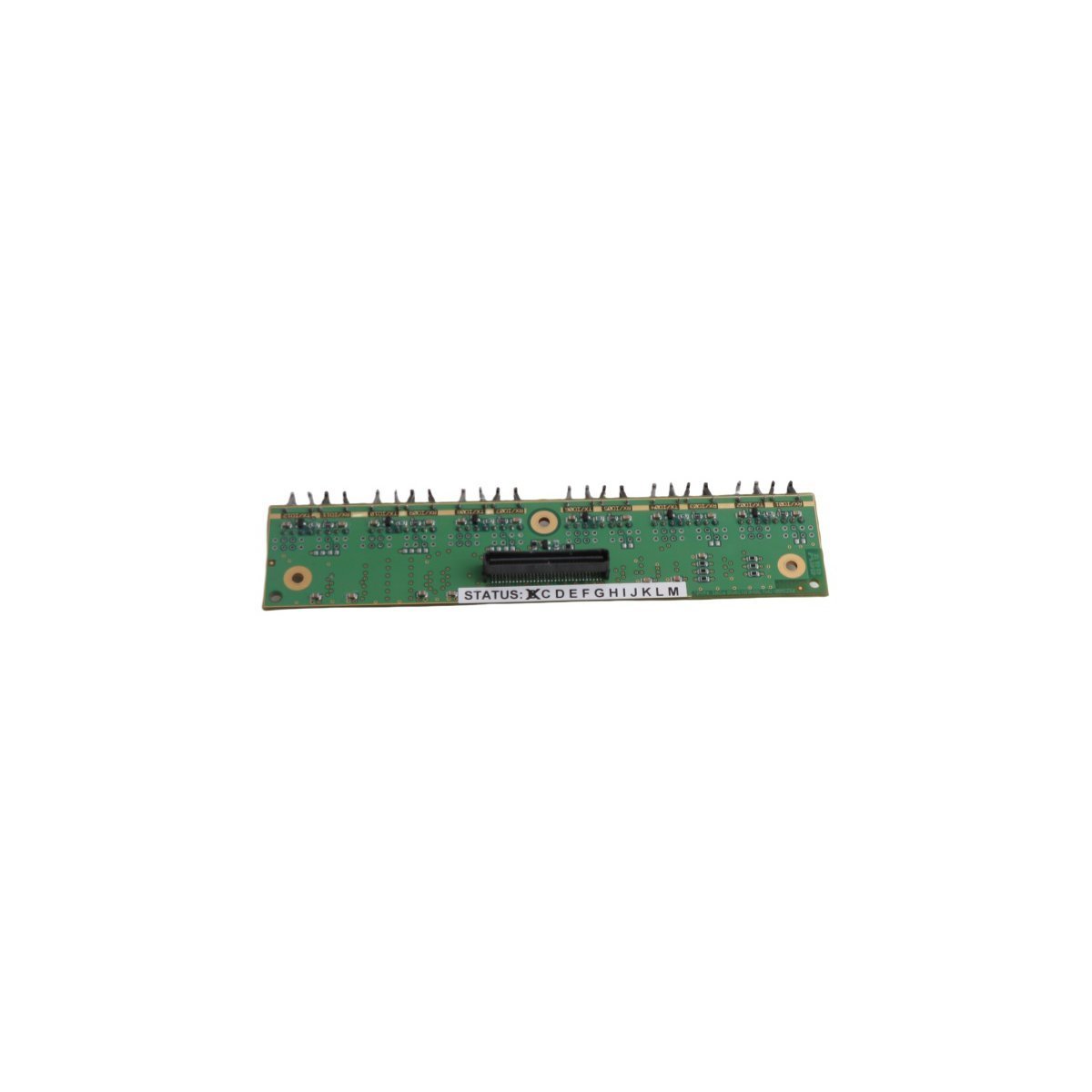

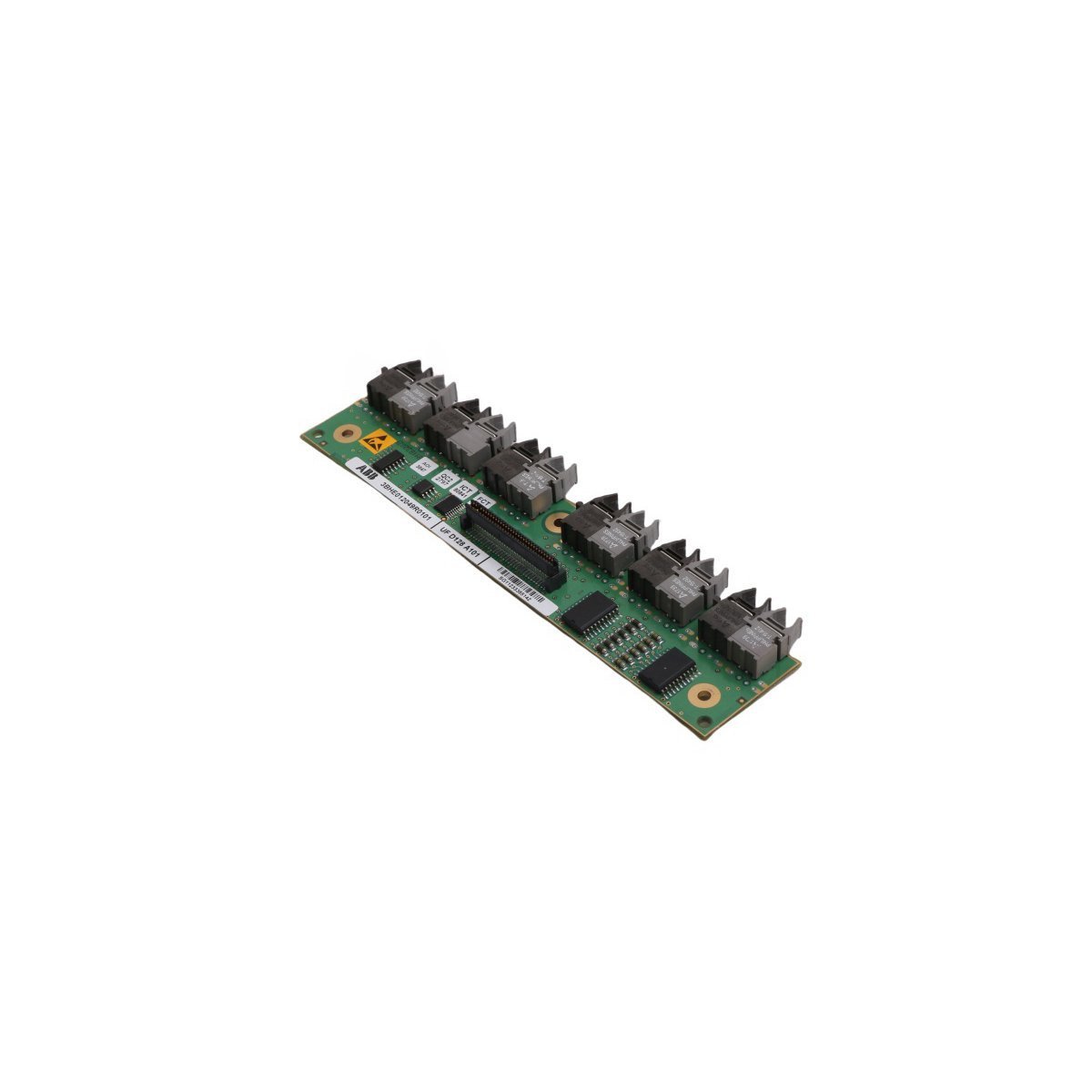

The ABB 3BHE012049R0101 UFD128A101 establishes high-speed optical links inside heavy-duty generator control systems. This transceiver safely isolates critical data traffic from high-voltage electromagnetic interference.
Technical Specifications
- Manufacturer: ABB
- Model Designation: UFD128A101
- Part Number: 3BHE012049R0101
- Module Type: Fiber Optic Communication Transceiver Module
- Product Framework: UNITROL Excitation Systems
- Data Transmission Rate: 1 Gbps
- Optical Wavelength: 1310 nm
- Fiber Connector Interface: Duplex LC Type
- Harmonized Tariff Classification (HS Code): 8537101190
- Physical Outline Dimensions: 16.1 cm x 4.0 cm x 1.8 cm
- Net Hardware Weight: 0.06 kg
Functional Characteristics
High-Speed Galvanic Isolation
The transceiver converts electrical data packets into optical signals at a lightning-fast 1 Gbps rate. Because the fiber link carries photons instead of electrical current, the network blocks severe high-voltage surges and ground loops completely. This absolute dielectric isolation protects the core UNITROL microprocessor assets from destructive field spikes.
Optimized Long-Range Signal Integrity
The specialized 1310 nm optical laser assembly penetrates long industrial cable distances without signal degradation. Consequently, process engineering teams eliminate the need for expensive inline repeaters or signal boosters in remote layouts. This efficient light transmission secures dependable sub-millisecond control updates across distributed turbine halls.
Industrial Duplex LC Architecture
A standardized industrial duplex LC physical interface connection guarantees a highly stable mechanical lock. Furthermore, the compact form factor simplifies the layout of high-density fiber routing cards inside space-restricted control cabinets. This plug-and-play design speeds up active system commissioning and routine maintenance turnarounds.
