Detailed Technical Specifications
| Specification Item | Technical Data |
| Manufacturer | Triconex (Schneider Electric) |

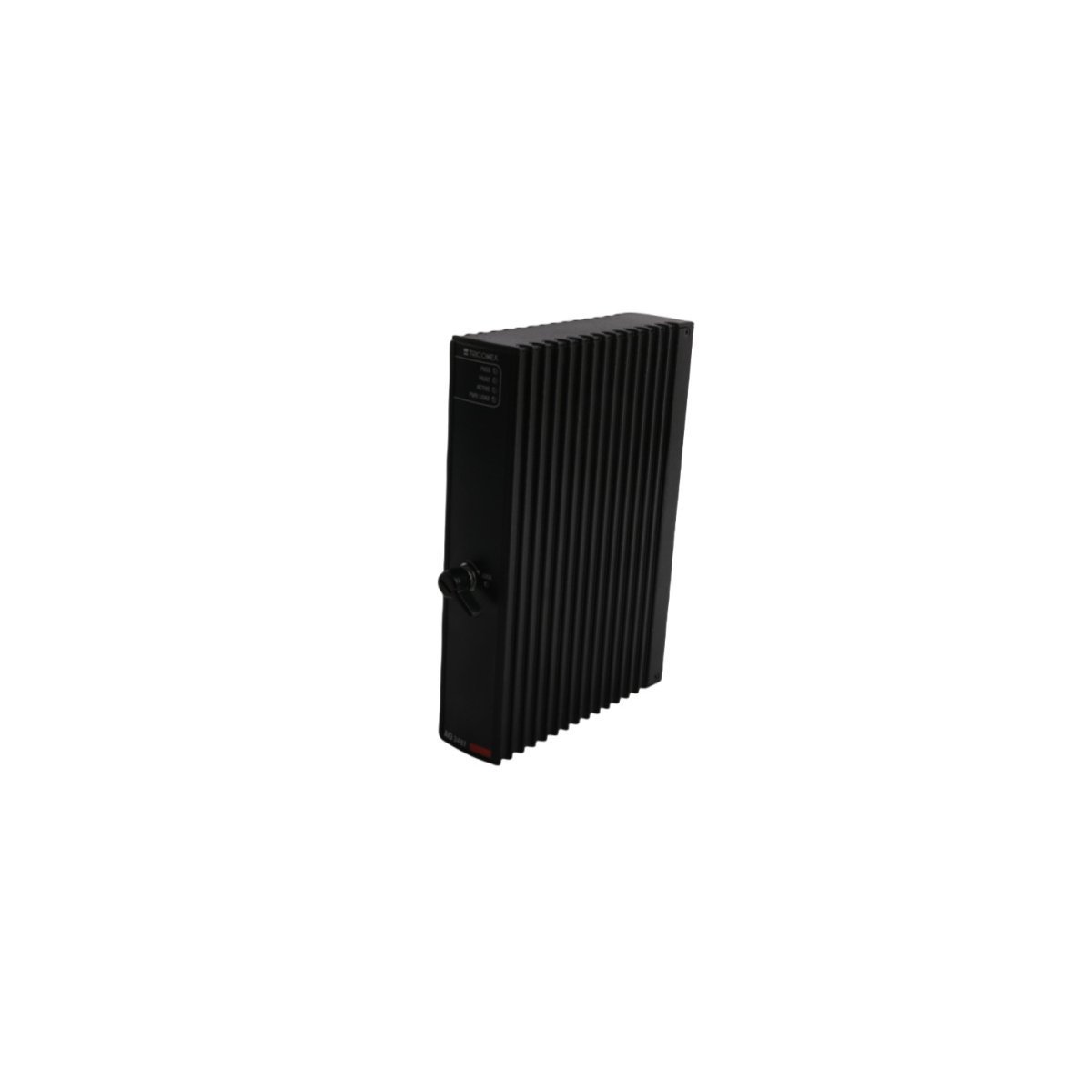

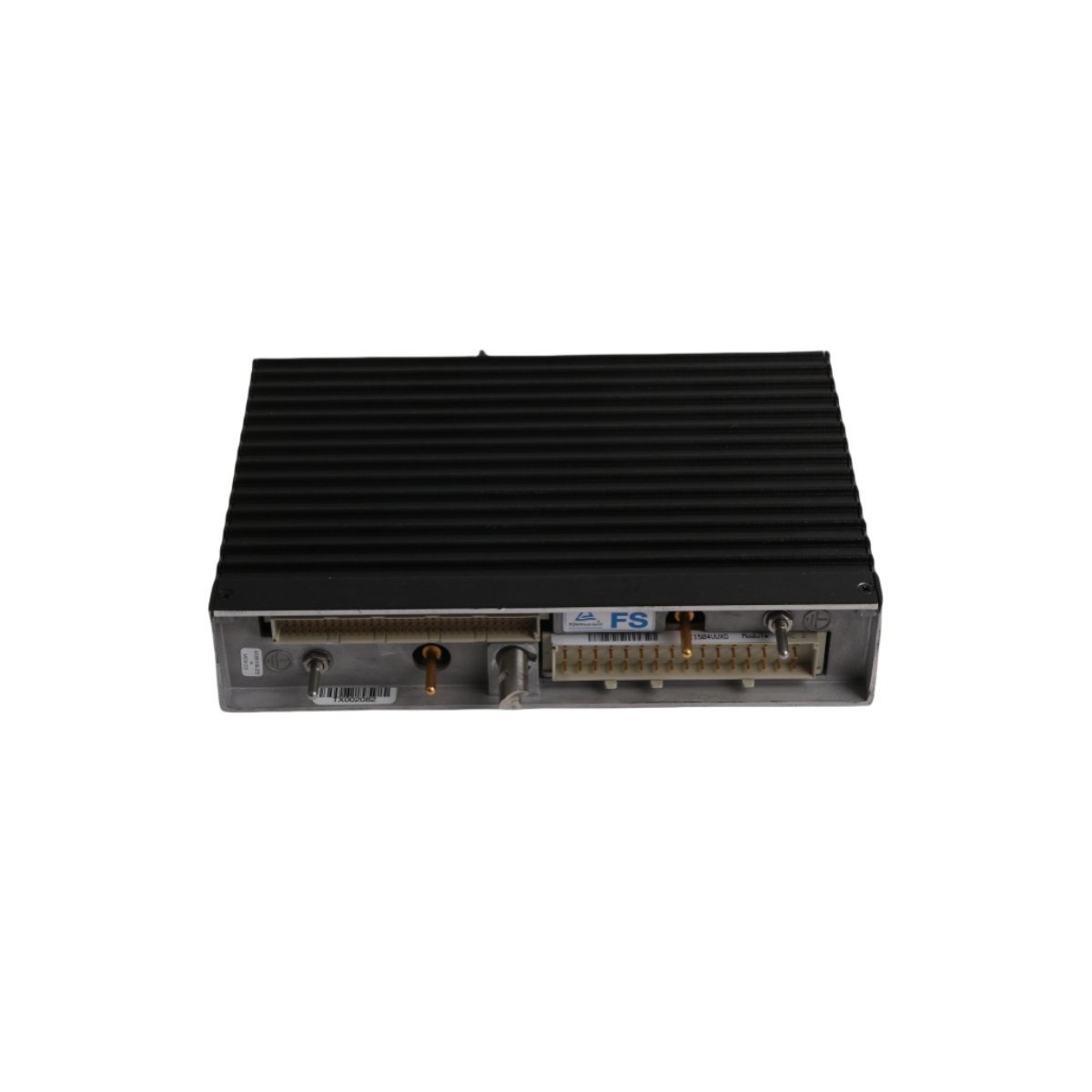

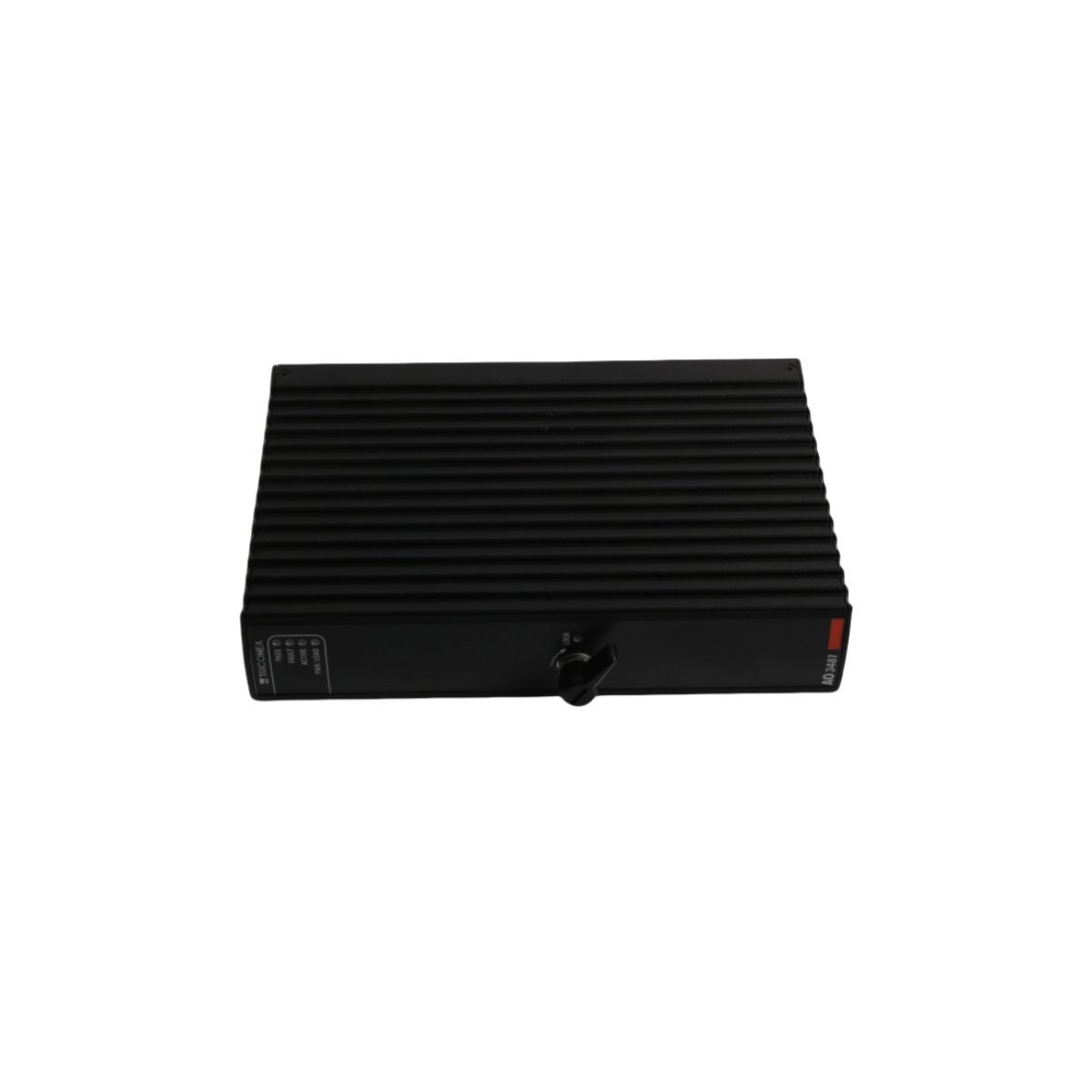

| Model Number | AO 3481 |
| Module Type | Analog Output (8-Channel) |
| Output Signals | 4-20 mA or 0-10 VDC |
| Safety Integrity | SIL 3 Capable |
| Redundancy | TMR (Triple Modular Redundant) |
| Weight | 1.48 kg |
| Dimensions | 4.5 x 18.8 x 21.8 cm |
| Country of Origin | USA |
Seamless System Integration and Fail-Safe Operation
The AO 3481 integrates perfectly with Tricon safety controllers for immediate data synchronization. It offers configurable fail-safe states to ensure a predictable process shutdown. During system updates, the module maintains smooth transitions to prevent signal spikes. Moreover, its compact form factor optimizes the use of valuable cabinet space. The unit also supports hot-swapping for fast maintenance during live plant operations. These features allow technicians to replace modules without halting the control logic. This ensures continuous protection for high-risk industrial environments.
Primary Functional Benefits
- High Output Accuracy: Delivers precise control signals for sensitive valve positioning.
- Redundant Reliability: Eliminates single points of failure through triple-redundant voting logic.
- Integrated Diagnostics: Monitors loop integrity and detects open or short circuits automatically.
- Versatile Signal Range: Adjusts to various industrial standards for current and voltage outputs.
- Rugged Construction: Withstands the harsh electrical conditions found in power generation plants.
