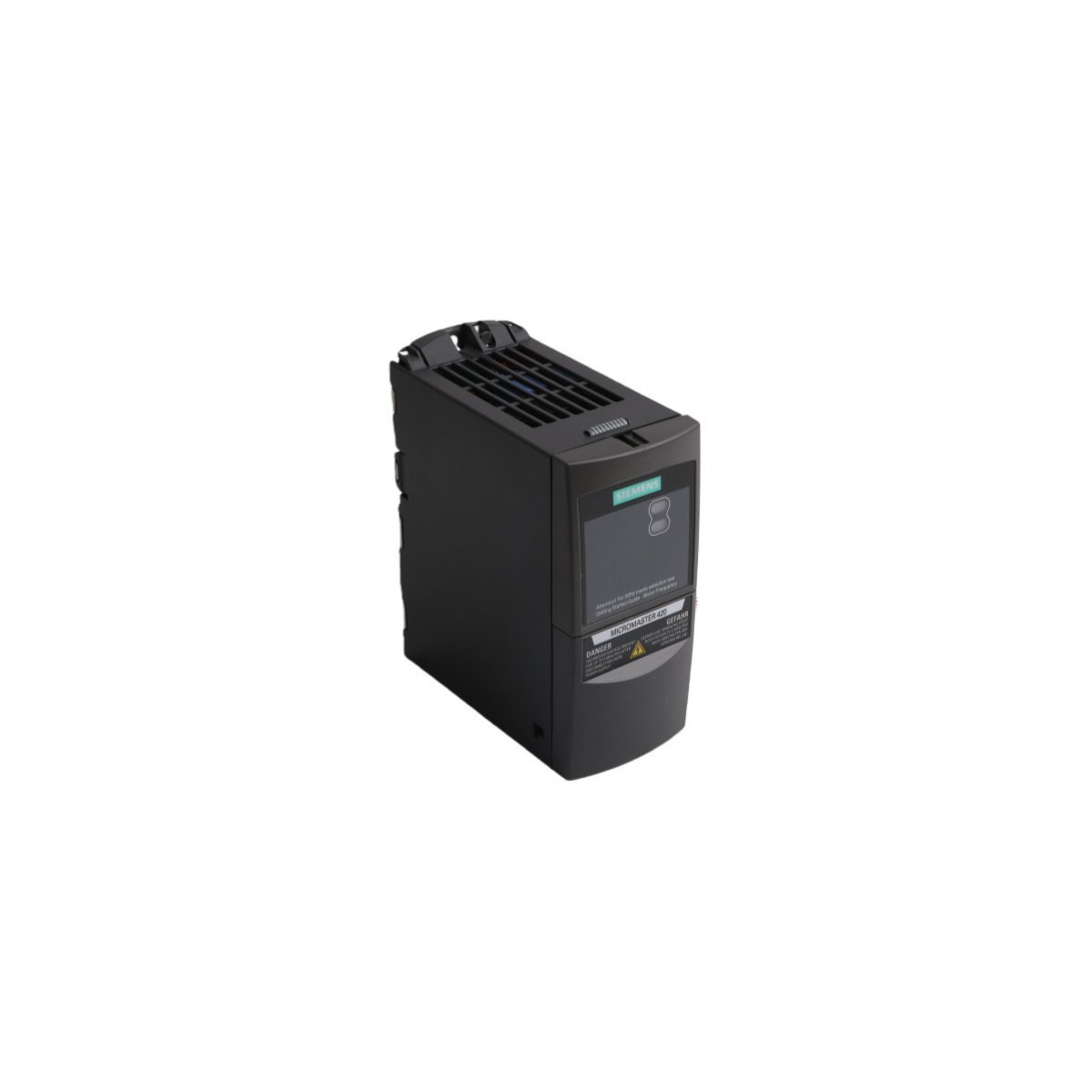

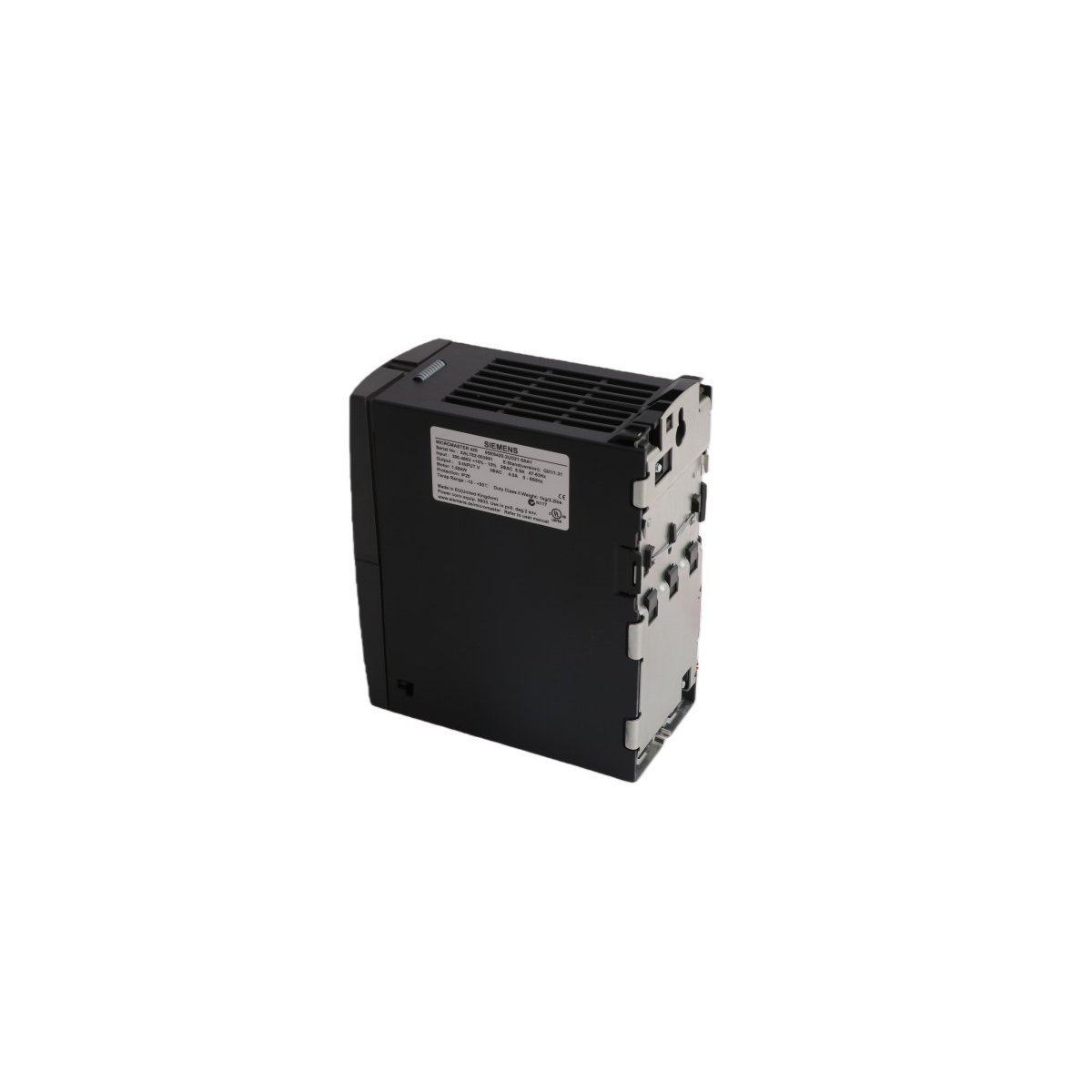

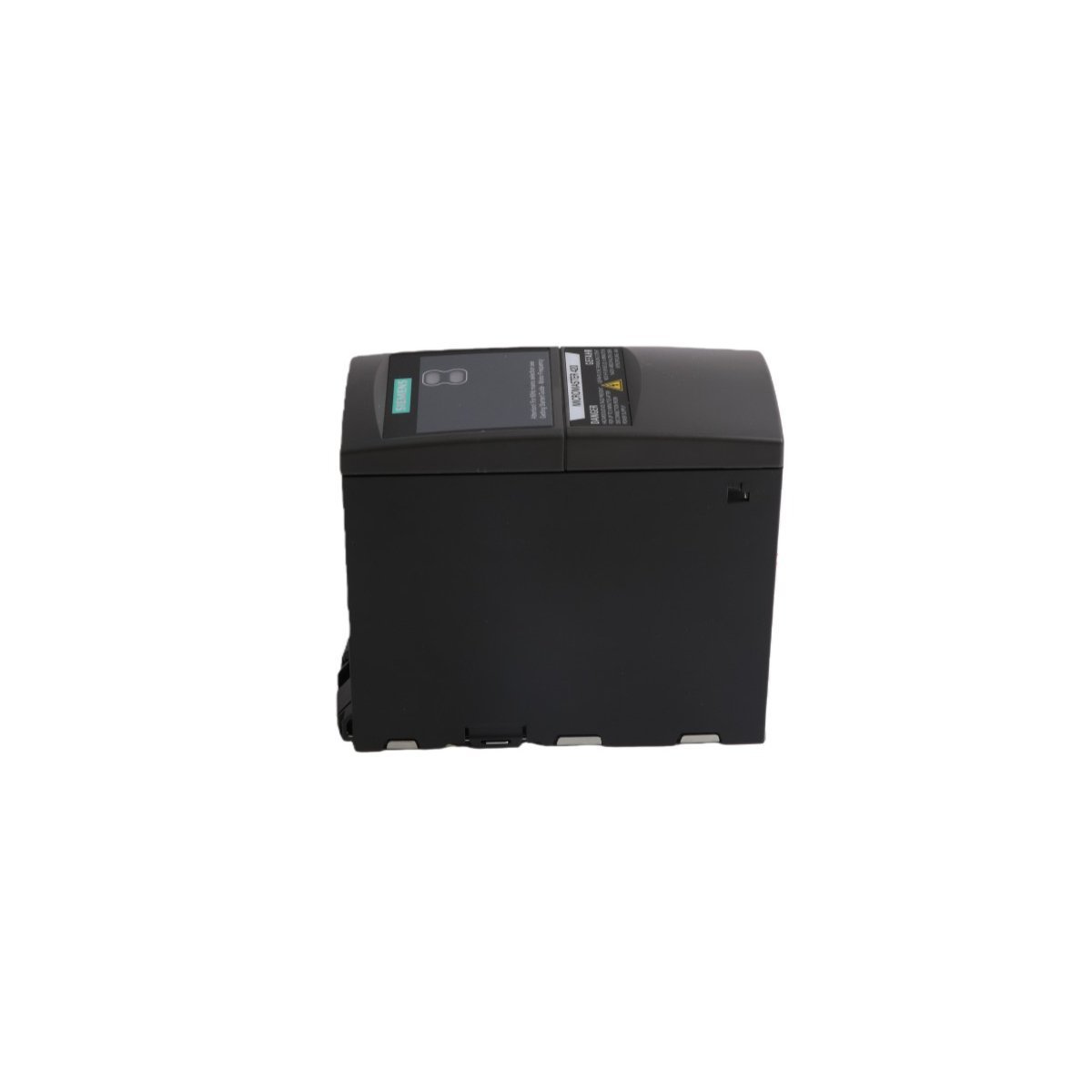

Siemens 6SE6420-2UD21-1AA1 Variable Speed Drives

The Siemens 6SE6420-2UD21-1AA1 represents a compact, efficient solution for three-phase motor speed regulation. As part of the MICROMASTER 420 series, this inverter provides precise control for various industrial loads. It operates effectively in pump, fan, and conveyor belt applications. The drive utilizes advanced pulse-width modulation to ensure smooth motor operation. Engineers select this model for its reliability in demanding, continuous-duty industrial environments. Its architecture emphasizes ease of use and efficient power conversion.

Core Technical Specifications

Advanced Control and Integration

The drive integrates a robust PID controller to manage complex process variables. This feature allows for tighter loop stability in automated systems. Multiple digital and analog I/O ports facilitate seamless integration with existing PLCs. Furthermore, the unit supports quick parameterization during the commissioning phase. The 4 kHz pulse frequency promotes quiet motor operation across varied speeds. Although the base unit lacks an integrated operator panel, optional components connect easily to the drive. This modular design provides flexibility for diverse control panel configurations.

Thermal Management and Installation

The 6SE6420-2UD21-1AA1 handles ambient temperatures from -10°C up to +50°C. Its compact Frame Size A footprint optimizes space within dense control cabinets. Users mount the device directly onto backplanes or standard DIN rails. The heat-sink design effectively dissipates thermal energy during heavy-load cycles. Maintenance requirements remain low due to the solid-state construction of the internal components. Consequently, facilities benefit from reduced downtime and extended equipment service life. This drive serves as a dependable choice for modern factory automation projects.
