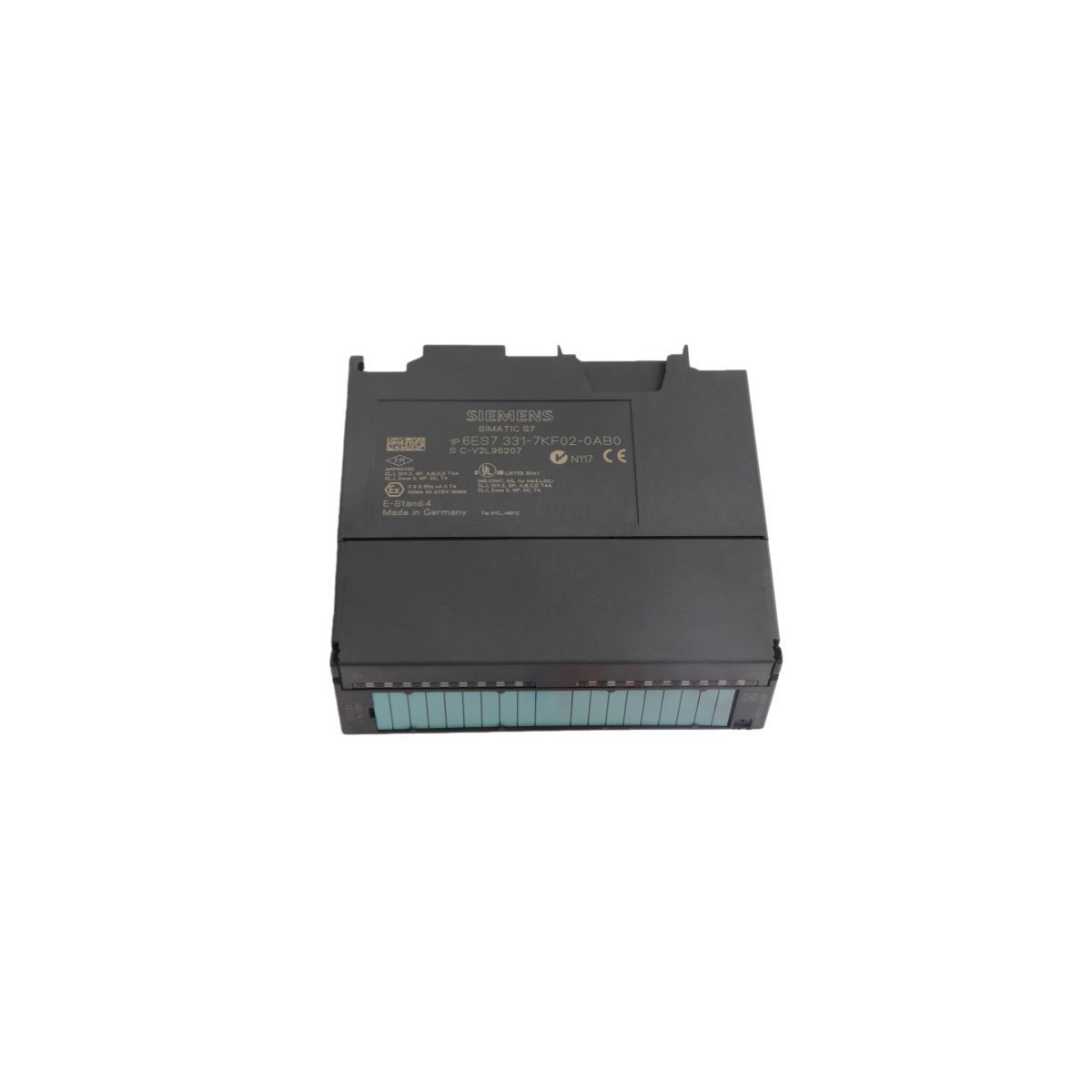

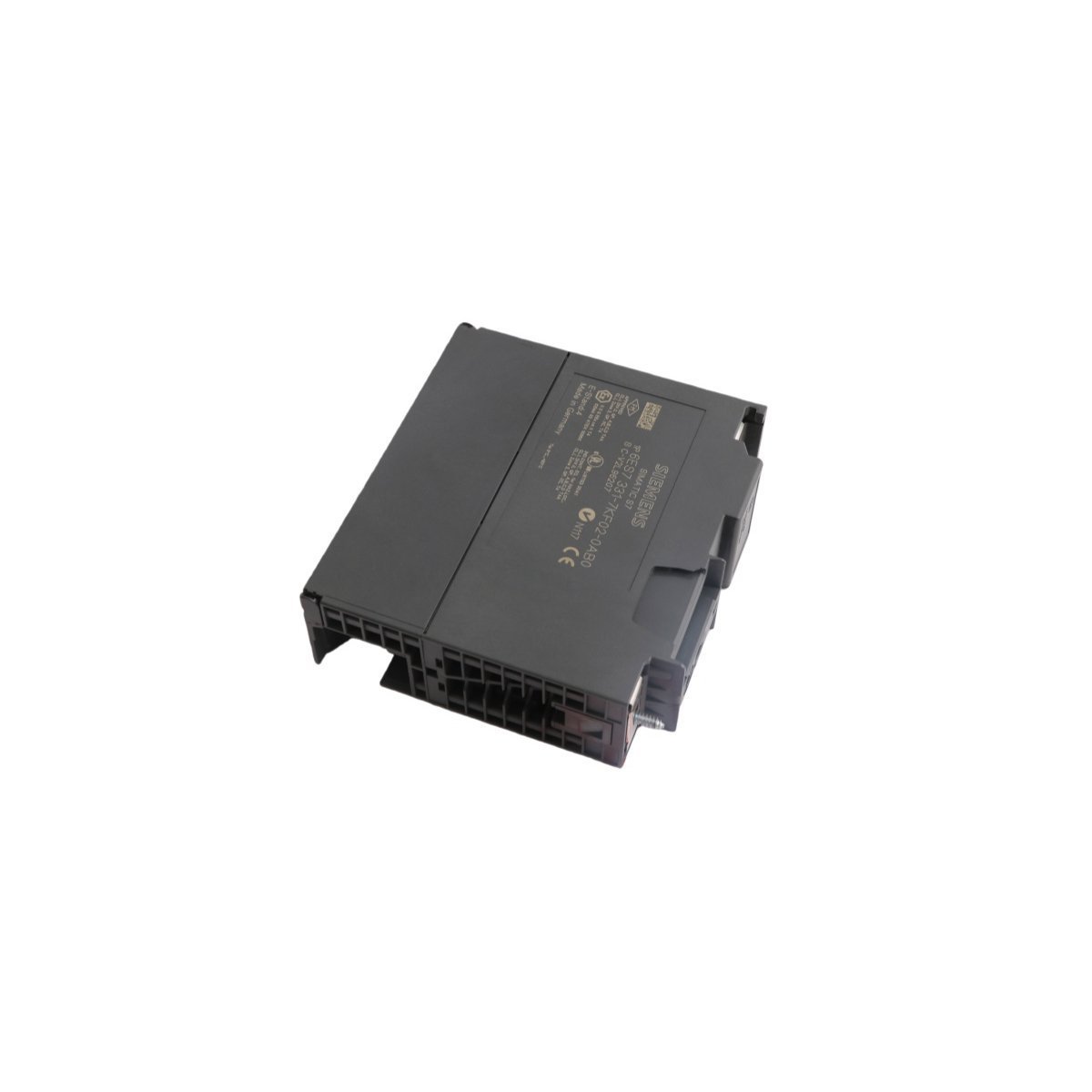

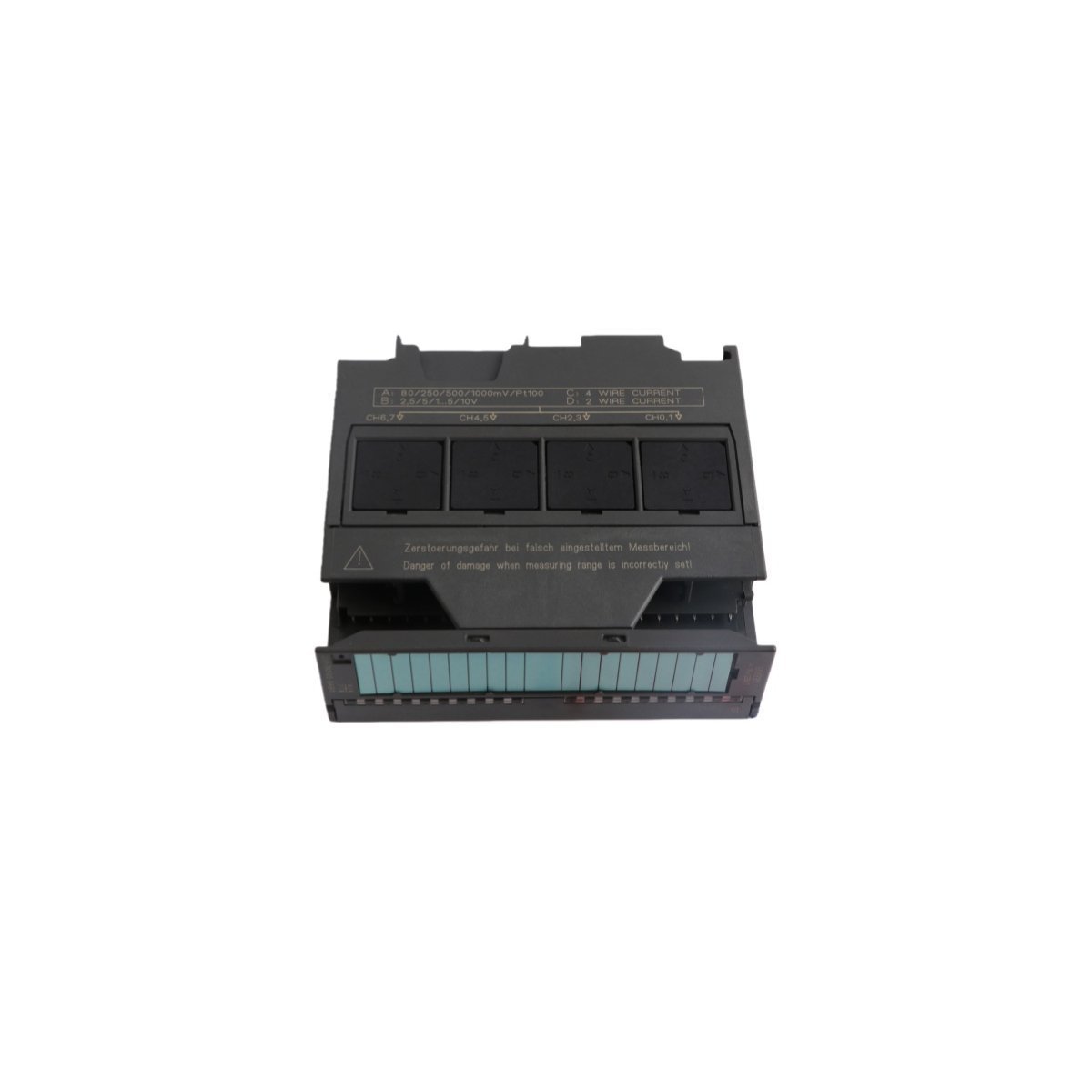

Siemens 6ES7331-7KF02-0AB0 SM331 Analog Input Module

The Siemens 6ES7331-7KF02-0AB0 module provides high-performance analog data acquisition for the SIMATIC S7-300 PLC series. This unit features eight isolated input channels for maximum signal integrity. It converts diverse physical variables into digital values for the central controller. Furthermore, the electrical isolation protects the internal system from field-side electrical interference. This design ensures stable operation in harsh industrial environments with heavy electromagnetic noise.

Core Technical Specifications

Key Technical Characteristics

• Multi-Protocol Signal Support

  The module handles a wide array of measurement types across its eight channels. Users can configure the hardware for voltage and current measurements. Additionally, it directly supports thermocouples and resistance thermometers like Pt100. This versatility eliminates the need for external signal converters.

• Configurable Precision and Speed

  Engineers can adjust the resolution to 9, 12, or 14 bits depending on requirements. Higher bit depths provide greater accuracy for sensitive process variables. Conversely, lower resolution settings decrease conversion times for faster loop responses. This flexibility optimizes the module for various industrial control strategies.

• Advanced Diagnostics and Maintenance

  The 6ES7331-7KF02-0AB0 includes intelligent monitoring for wire breaks and signal overflows. These diagnostic interrupts alert the PLC to sensor failures immediately. Moreover, the module supports hot-swapping on active backplane buses. This feature allows hardware replacement without stopping the entire automation process.

Strategic Industrial Applications

This analog module excels in temperature monitoring for chemical processing plants. It also provides accurate pressure and flow data for hydraulic systems. Manufacturing facilities utilize its high-density design to save precious cabinet space. Because it handles multiple signal types, it simplifies inventory management for large-scale projects. The robust Siemens engineering guarantees long-term reliability for critical infrastructure and factory automation.
