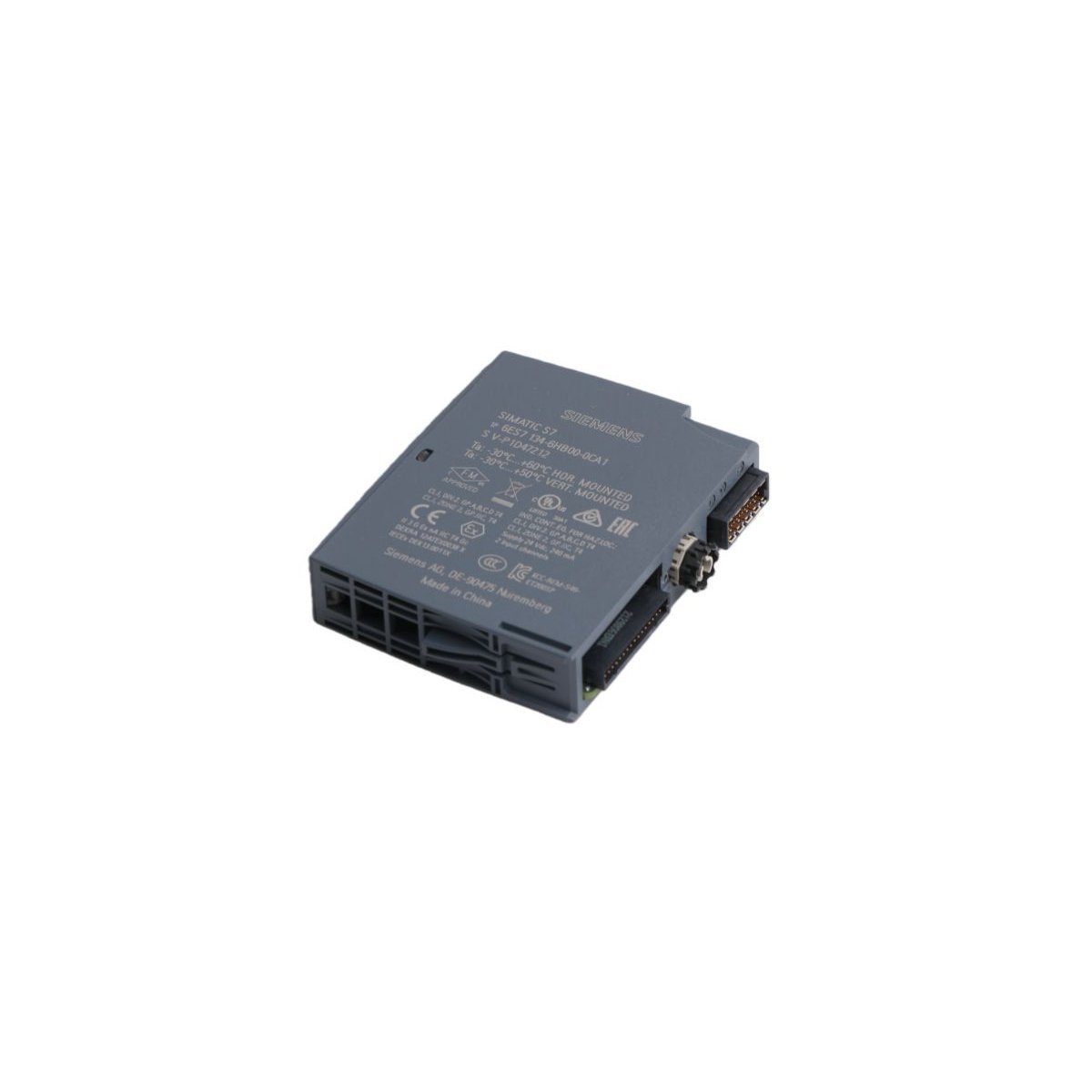

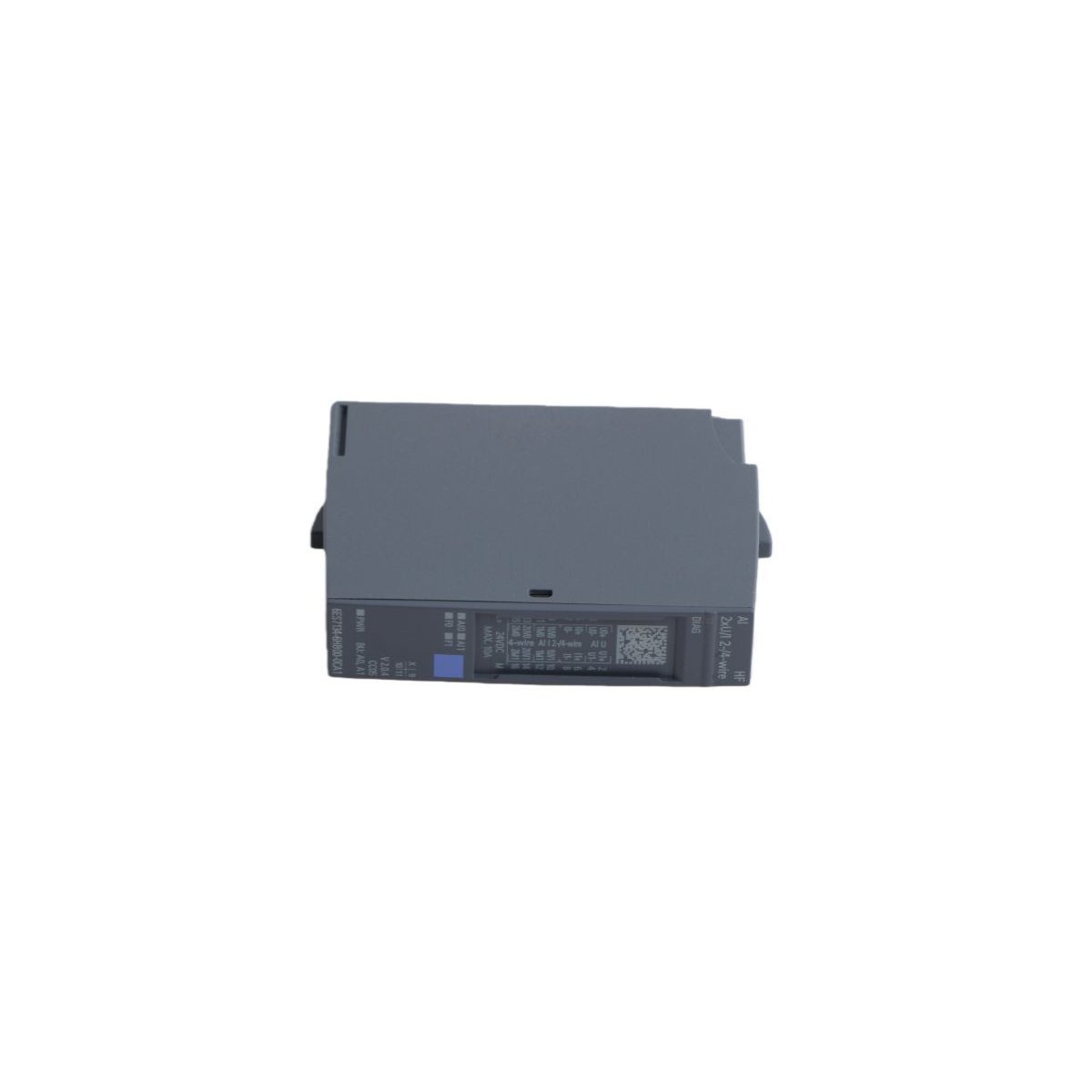

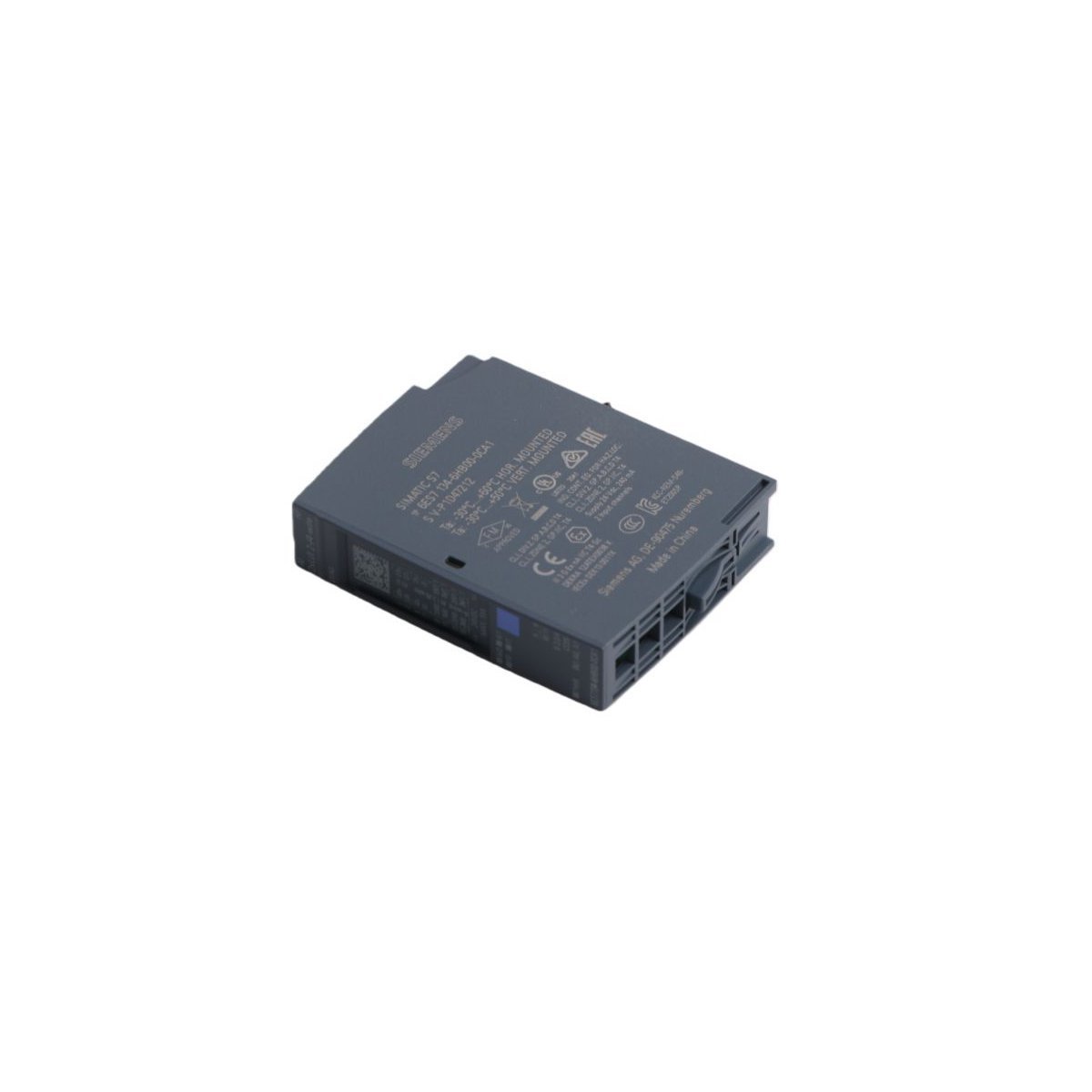

Siemens 6ES7134-6HD00-0BA1 Analog Input Module

The Siemens 6ES7134-6HD00-0BA1 serves as a high-performance analog input module for the SIMATIC ET 200SP distributed I/O system. It specifically processes 4 channels of current or voltage signals with high resolution. This device ensures accurate data acquisition for process variables such as temperature, pressure, or flow rates. Its robust design maintains signal integrity in demanding industrial environments. Furthermore, it supports various connection types to suit diverse sensor configurations. The module enables seamless integration into Profinet and Profibus network architectures.

Technical Specification Overview

Functional Characteristics

• Advanced Diagnostics

  The module features built-in diagnostic monitoring for every input channel. It detects wire breaks and short circuits automatically. This proactive approach helps maintenance teams identify issues immediately. Consequently, operators experience significantly reduced unplanned downtime in production cycles.

• High Signal Accuracy

  Internal calibration circuitry minimizes measurement errors during operation. The module handles signal fluctuations with high precision. This stability improves the performance of control loops in your application. High resolution allows for granular control over sensitive industrial processes.

• Scalable Installation

  The ET 200SP platform supports modular expansion for system growth. You can mount this module easily on standard BaseUnits. This design reduces panel space requirements in compact control cabinets. Additionally, it simplifies wiring tasks during the initial system installation.

Industrial Applications

Process engineers rely on this module for consistent monitoring of field instrumentation. It serves essential roles in chemical plants, food manufacturing, and energy generation. The module thrives in conditions requiring high electromagnetic compatibility. Its compatibility with standard automation tools streamlines the engineering workflow significantly. By choosing this Siemens component, you secure reliable input processing for your facility.
