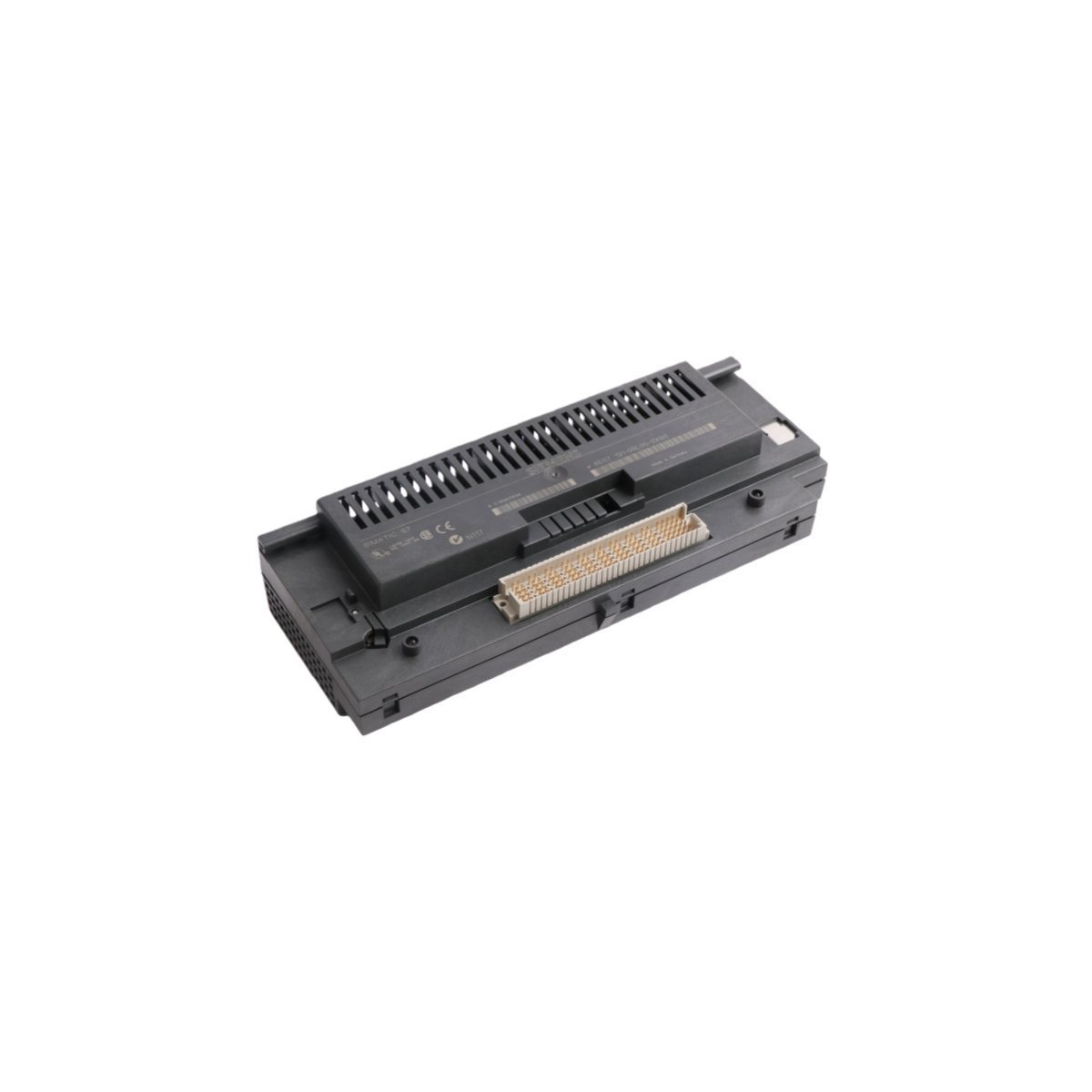

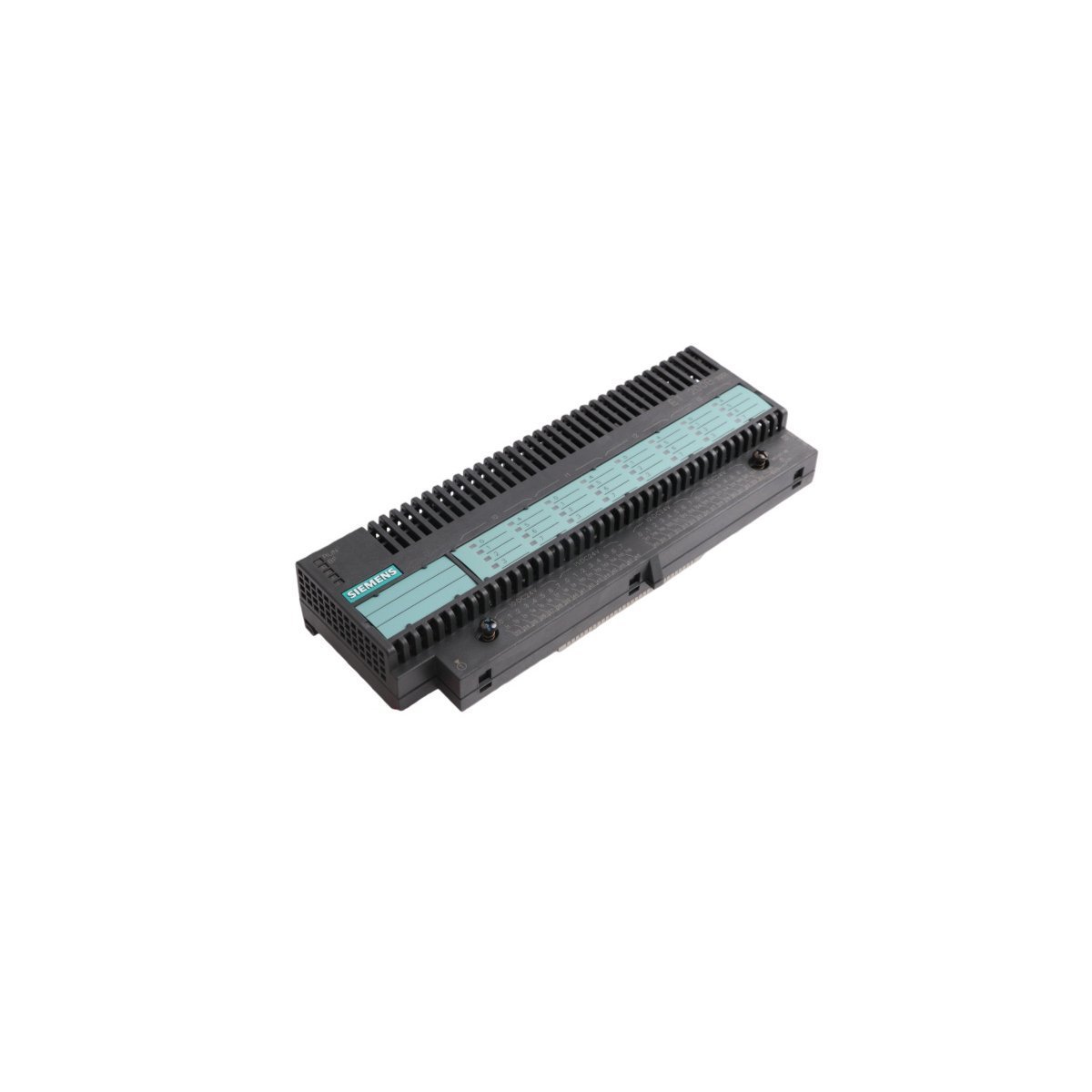

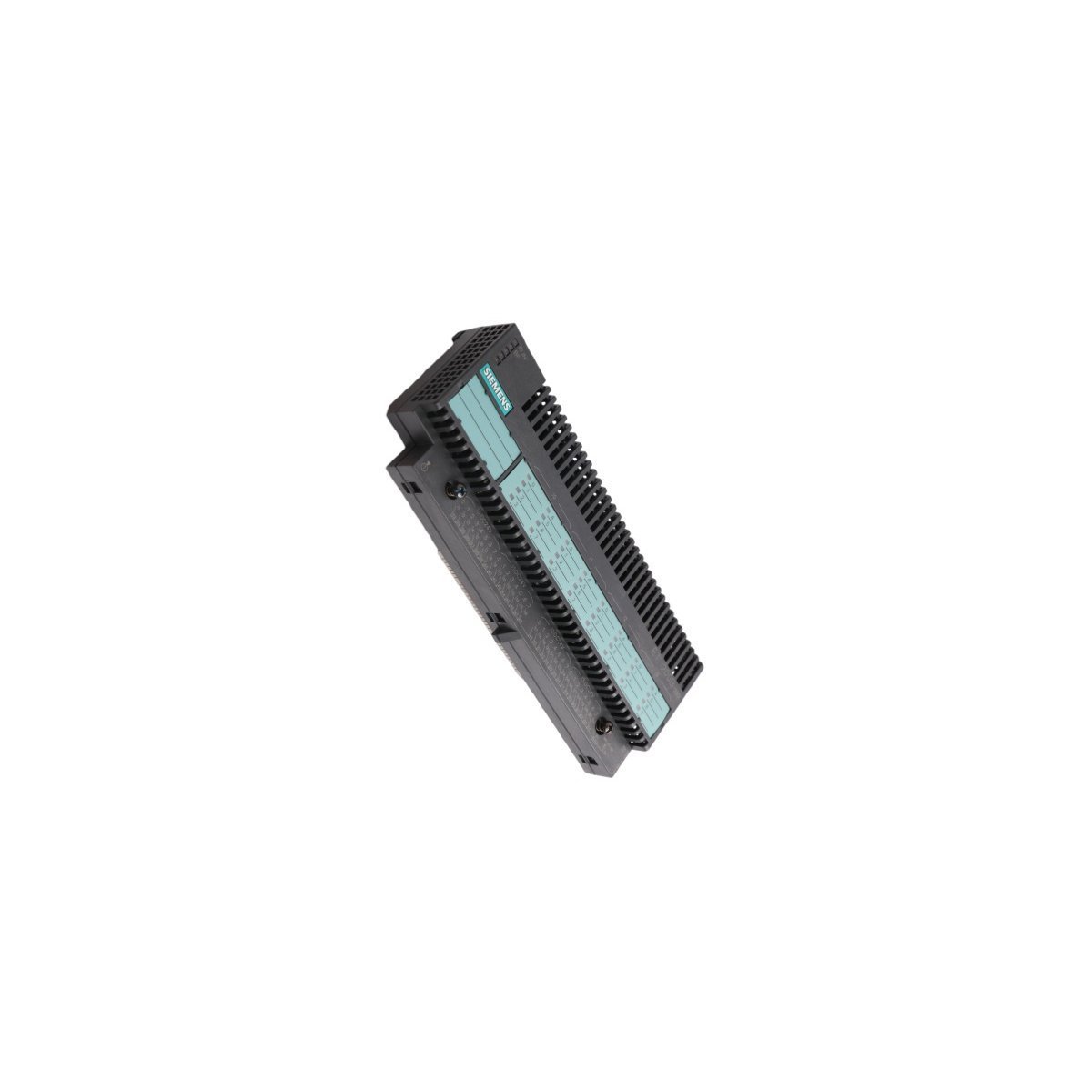

Siemens 6ES7131-0BL00-0XB0 Digital Input Module

The Siemens 6ES7131-0BL00-0XB0 serves as a high-capacity digital input interface for SIMATIC DP distributed I/O stations. This electronic module facilitates the connection of up to 32 discrete sensors within a single unit. It effectively optimizes control cabinet space by consolidating multiple field connections. The module architecture specifically supports the ET 200B series for decentralized automation tasks. Engineers often utilize this component to streamline wiring in complex manufacturing environments. It bridges the gap between field-level detection and central processing logic reliably.

Precise Input Detection and Electrical Robustness

Reliable data acquisition depends on the module’s 24V DC operating standard. The 6ES7131-0BL00-0XB0 accurately identifies a logic “1” signal between 13V and 30V. Furthermore, an integrated 3ms input delay filter eliminates signal chatter from mechanical contacts. This ensures only stable transitions reach the PLC for processing. The hardware manages power efficiently with a typical loss of only 4.8W during operation. Additionally, the unit provides a robust 1000 mA sensor supply current across its channels. This electrical stability prevents data errors during brief voltage fluctuations.

Industrial Installation and Connectivity

The 6ES7131-0BL00-0XB0 integrates easily with standard TB2/DC and TB4/DC terminal blocks. This compatibility simplifies the installation process for system integrators. The module supports unshielded cable runs up to 100 meters for flexible field placement. Its rugged German construction withstands the thermal and mechanical stresses of factory floors. Consequently, the unit maintains high availability in continuous production cycles. Technicians can quickly verify signal status through the clear front-panel indicators. This visual feedback accelerates the commissioning of large-scale I/O stations.

Specialized Application in Modern Factories

Large-scale automation projects benefit from the 32-channel density of this Siemens module. It is particularly effective for monitoring banks of limit switches or proximity sensors. The module communicates seamlessly over PROFIBUS networks via the ET 200B interface. This ensures rapid data exchange between the decentralized I/O and the host controller. Because it adheres to strict SIMATIC quality standards, it offers long-term operational stability. It remains a preferred choice for material handling, packaging, and general assembly applications.

Technical Specifications
