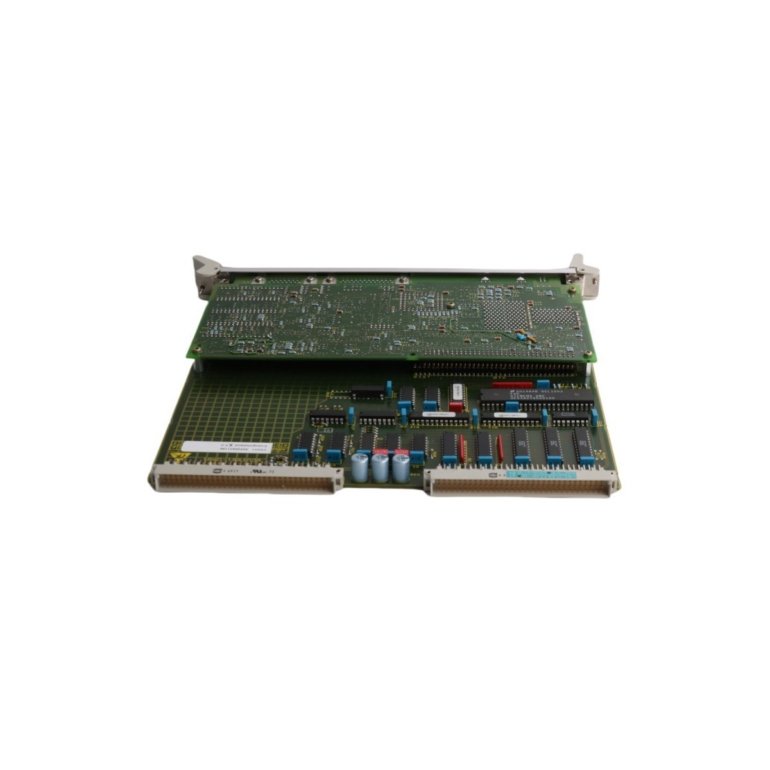

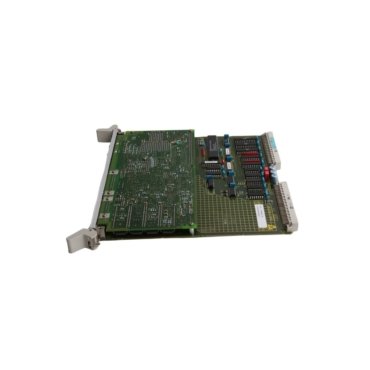

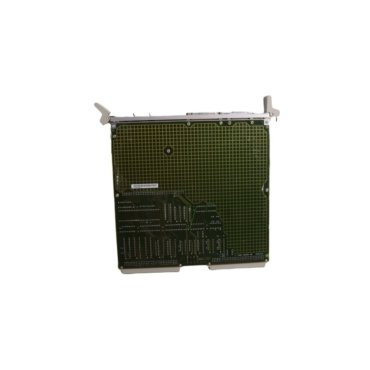

Siemens 6DD1661-0AB1 Communication Module

The Siemens 6DD1661-0AB1 functions as a CSH11 communication module within the Simadyn D automation system. This unit acts as a slave interface for the Siniec H1 industrial Ethernet network. It facilitates high-speed data exchange between central processing units and connected network devices. The module utilizes an onboard CP1470 processor to manage complex communication tasks efficiently. It ensures stable, reliable connectivity for demanding industrial process control applications. Operators use this component to bridge legacy controllers with broader plant-wide communication architectures.

Key Technical Specifications

Operational Features and Management

The front interface provides intuitive controls for maintenance and system monitoring. A selector switch allows users to toggle between ADM, RUN, and STP modes. A dedicated reset button simplifies the recovery process during configuration changes. Integrated diagnostic LEDs offer instant status feedback for rapid troubleshooting. These visual indicators help technical teams minimize downtime during network maintenance. The module design supports long-term operational stability in rugged manufacturing environments. It requires minimal intervention once configured within the automation system.

Industrial Applications and Integration

Industry professionals deploy this module in plants requiring robust, time-tested communication solutions. It supports the integration of programming devices and PCs for system configuration. Although Siemens officially discontinued this model, it remains a vital component for legacy system support. Its design ensures compatibility with existing Simadyn D installations without requiring complex upgrades. The hardware allows facilities to extend the service life of critical automation equipment. This module remains a reliable choice for maintaining process continuity in older industrial networks.
