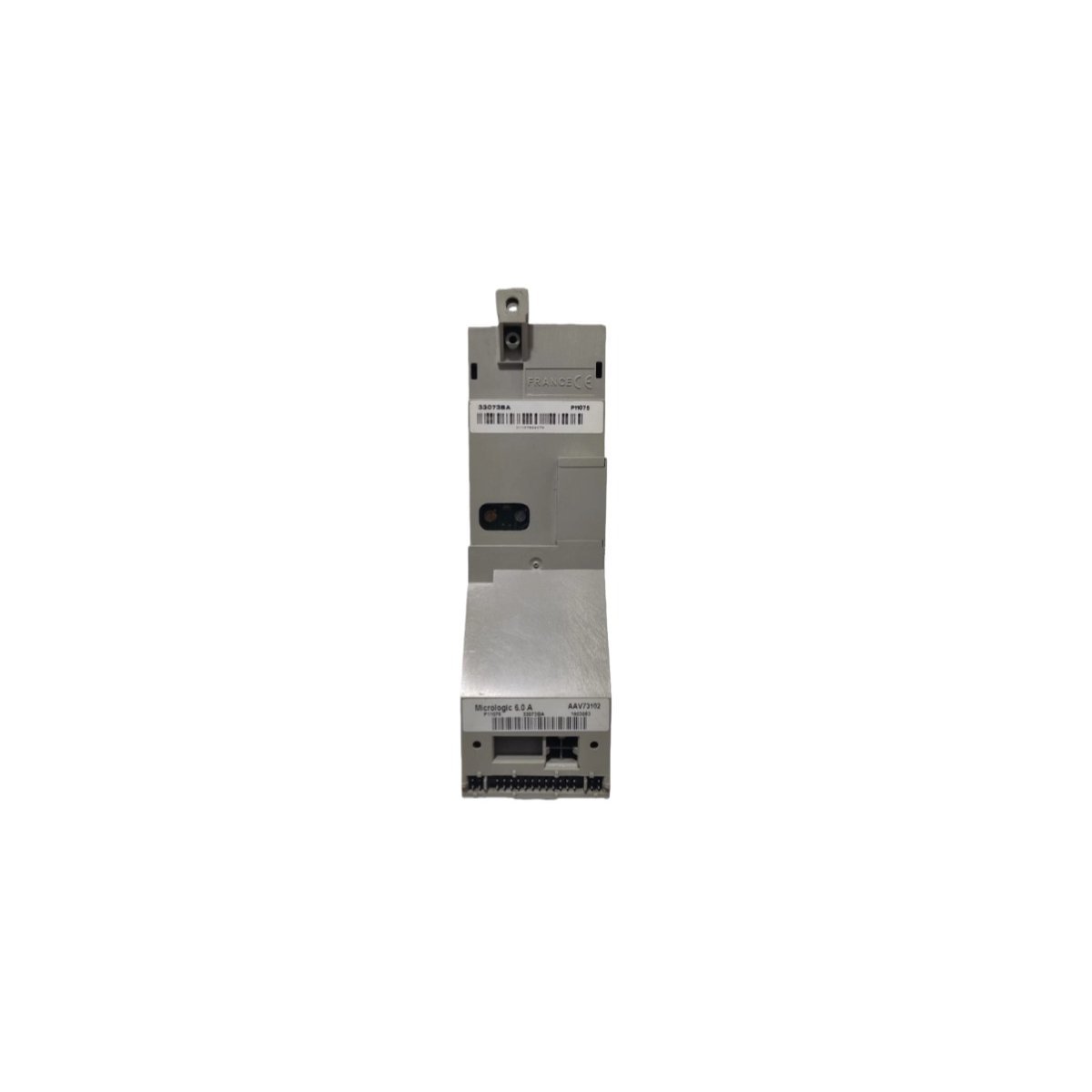

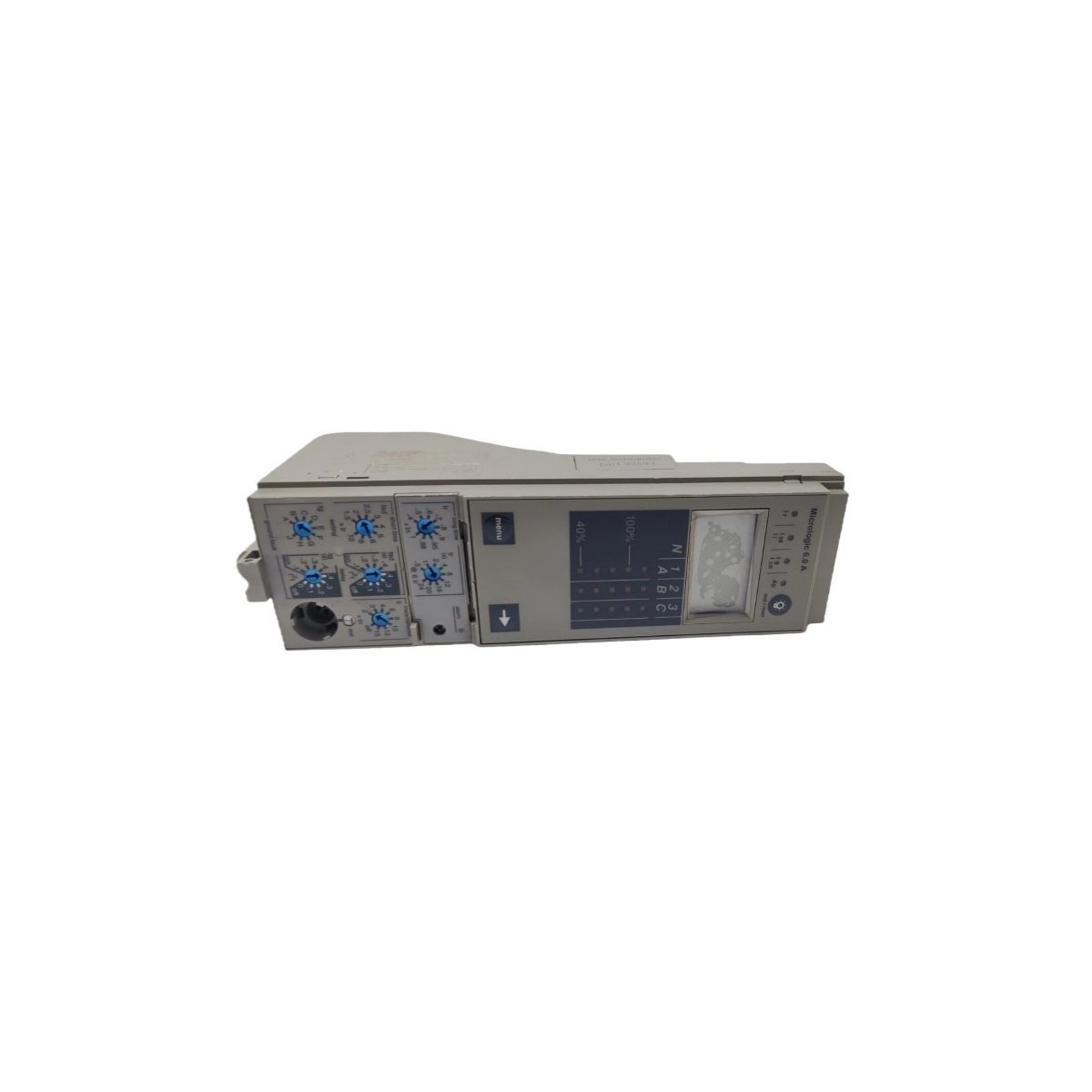

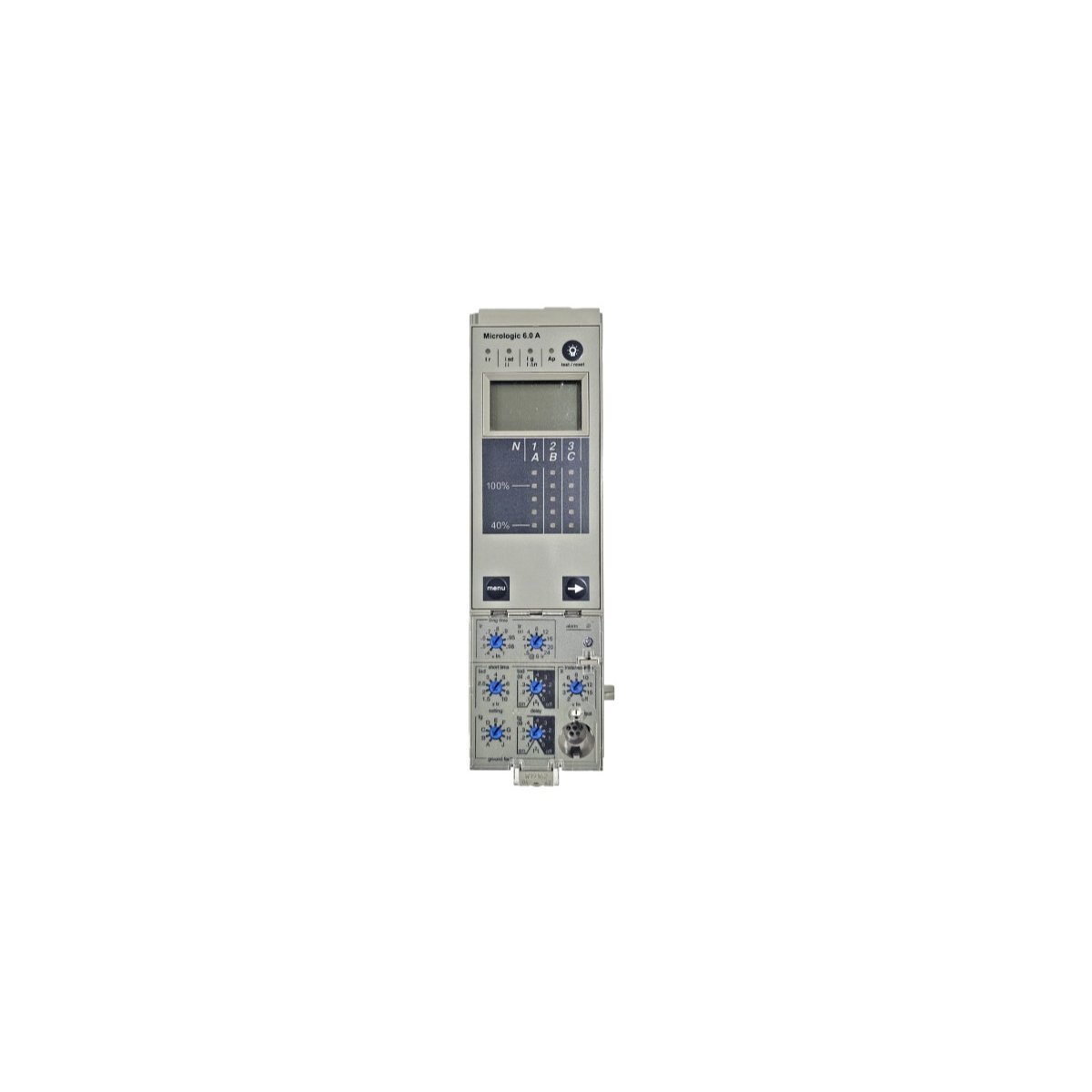

The Schneider Electric Micrologic 6.0A serves as a high-tier electronic trip unit for power distribution safety. It specifically integrates with Masterpact NT and NW air circuit breakers to manage complex electrical loads. This control unit provides comprehensive LSIG protection parameters. These include Long-time (L), Short-time (S), Instantaneous (I), and Ground-fault (G) functions. Operators can precisely calibrate these settings to ensure maximum safety for downstream equipment. Consequently, the unit prevents damage from overloads and high-current short circuits.
Operational Intelligence and Monitoring
The “A” designation indicates that this unit includes advanced ammeter capabilities. It displays phase currents directly on a built-in digital screen for immediate diagnostics. Furthermore, the Micrologic 6.0A supports selective coordination within electrical networks. This feature allows only the breaker closest to a fault to trip. Such precision minimizes downtime by keeping healthy circuits active during localized issues. The unit also tracks trip history to assist maintenance teams with rapid troubleshooting.
Durable Design and Industrial Application
Schneider Electric engineered this trip unit for demanding industrial and commercial environments. The rugged housing resists high humidity levels and extreme temperature fluctuations. It typically secures critical infrastructure in data centers, manufacturing plants, and large office complexes. Because it uses electronic sensing, the unit provides higher accuracy than traditional thermal-magnetic alternatives. This reliability ensures that the Micrologic 6.0A remains a cornerstone of modern low-voltage switchgear.
Core Technical Specifications
- Protection Category: Selective LSIG (Long, Short, Instantaneous, Ground Fault)
- Compatibility: Designed for Masterpact NT/NW and PowerPact circuit breakers
- Current Measurement: Built-in “A” (Ammeter) functionality for real-time current monitoring
- Voltage Rating: Supports operational voltages up to 690V AC
- Operating Temperature: Maintains performance between -25°C and +70°C
- Storage Temperature: Rated for environments from -40°C to +85°C
- Adjustment Range: Fine-tune trip thresholds via rotary dials and digital interfaces
