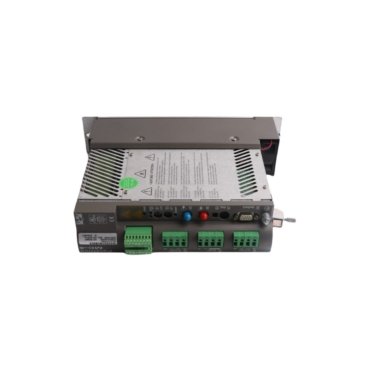

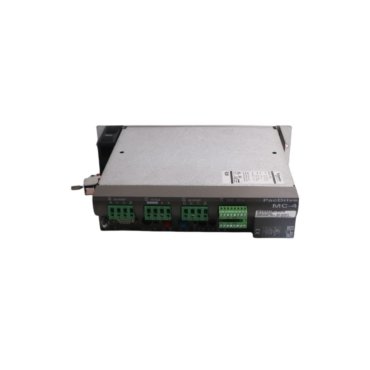

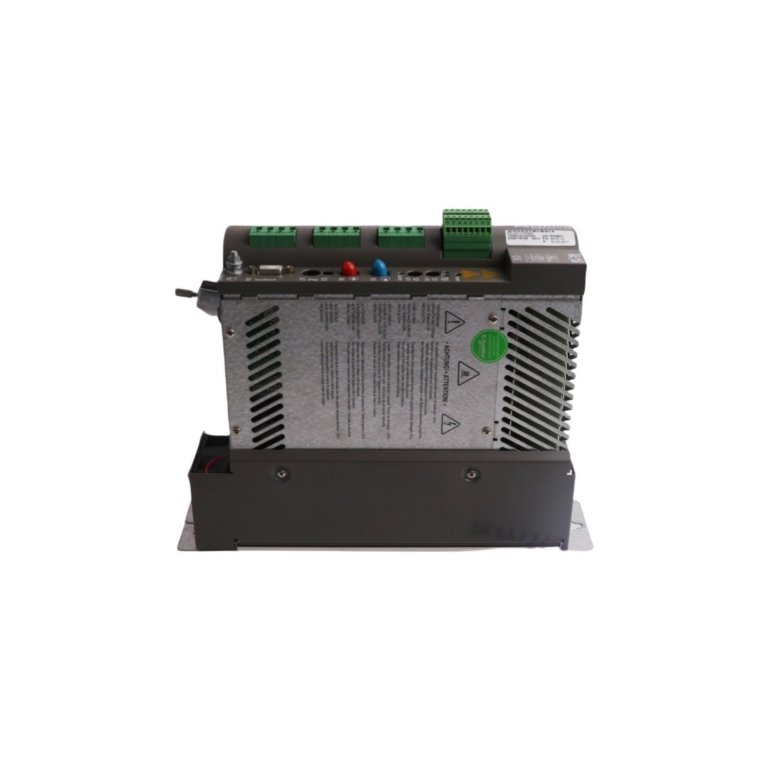

The Schneider Electric MC-4/11/10/400 is a high-tier digital servo drive for the PacDrive M system. This module functions as a primary interface for sophisticated motion control in automated environments. It specifically utilizes hardware version E0P603 and software version 00.22.03 for improved stability. The drive coordinates multi-axis movements with extreme precision through integrated fiber optic technology. Furthermore, it supports high-speed data exchange to meet the demands of modern industrial production.
Operational Efficiency and Connectivity
This PacDrive unit streamlines machine setup through an electronic motor nameplate feature. The system identifies connected motors automatically to reduce manual configuration errors. Additionally, the drive provides a significant 250% overload capacity for peak performance. The integrated SERCOS interface utilizes optical cables to prevent electromagnetic interference. Consequently, the hardware maintains signal integrity in noisy factory environments. The module also supports various fieldbus standards to allow for flexible network integration.
Safety and Industrial Applications
Schneider Electric designed this drive for high-speed packaging machinery and automated assembly lines. It includes a dedicated “Inverter Enable” input to enhance functional safety during operation. The compact housing facilitates both centralized cabinet mounting and decentralized installation strategies. Moreover, the 00.22.03 firmware version introduces advanced diagnostic tools for proactive maintenance. This combination of speed and reliability makes it ideal for precision-driven industrial sectors.
Core Technical Specifications
- Brand: Schneider Electric
- Model: MC-4/11/10/400
- Hardware Revision: E0P603
- Software Firmware: 00.22.03
- Product Type: AC Pac Drive / Servo Drive
- Communication: SERCOS real-time bus (4MBaud)
- Voltage Compatibility: Supports 85-264V AC worldwide ranges
- Weight: 3.54 kg
- Physical Dimensions: 6.8cm x 24.5cm x 31cm
