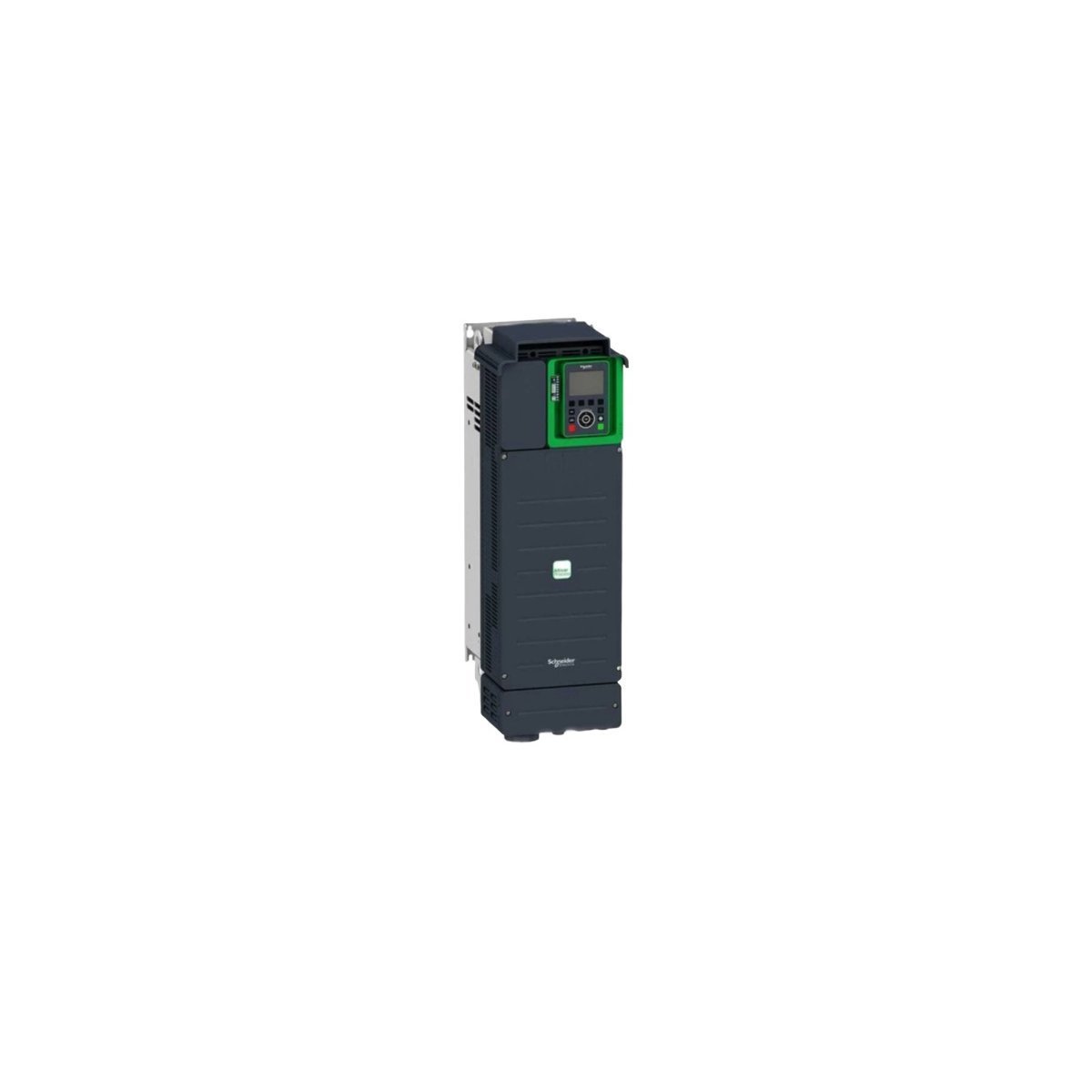

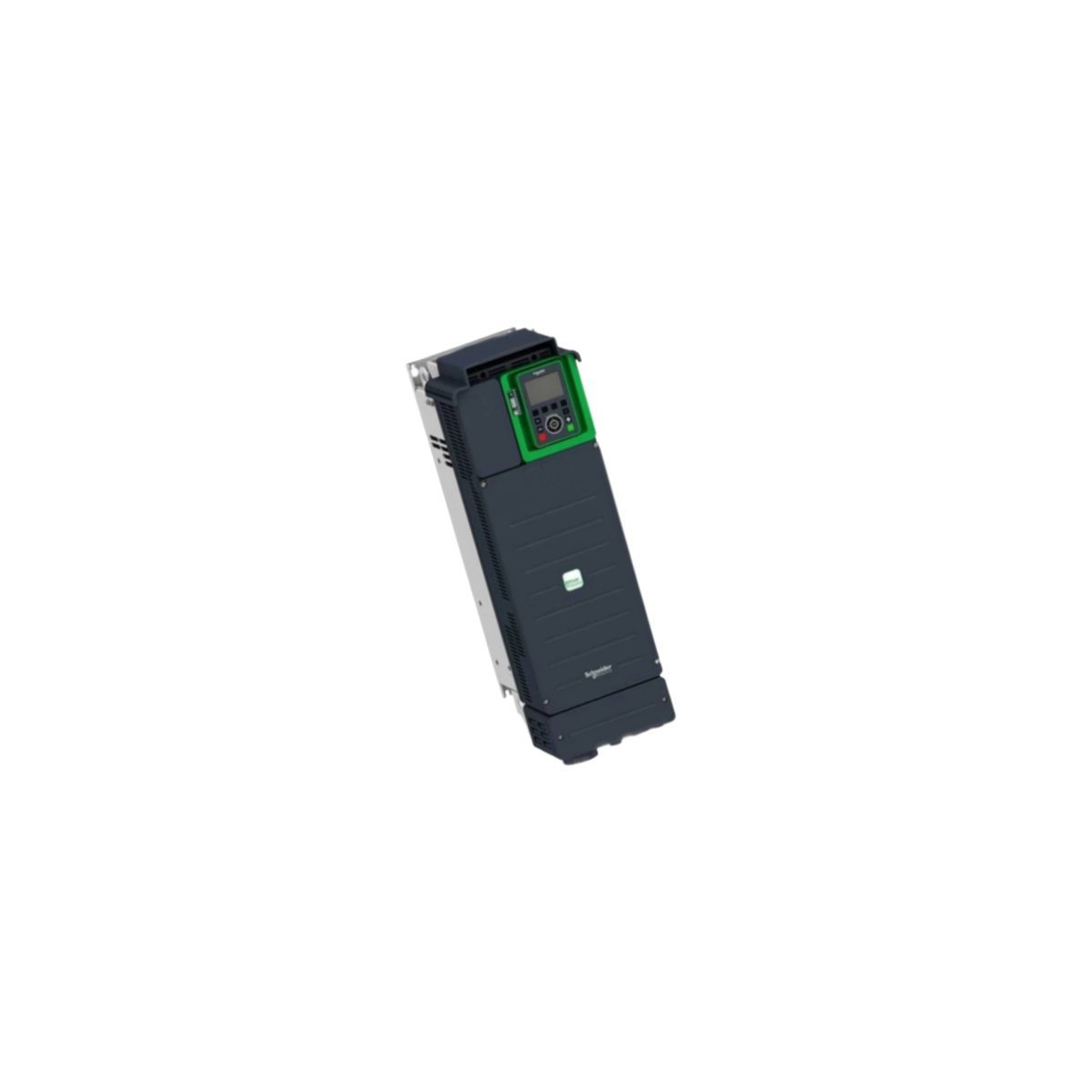

The Schneider Electric ATV930D22N4 belongs to the high-performance Altivar Process 900 series. This 22kW variable speed drive provides exceptional torque control for demanding motor applications. It specifically handles three-phase asynchronous and synchronous motors within a 380V to 480V range. Furthermore, the integrated braking unit facilitates rapid deceleration in heavy-cycle machinery. The IP21-rated enclosure offers essential protection for standard industrial cabinet installations. Consequently, this drive improves operational efficiency across manufacturing and process sectors.
Intuitive Interface and Diagnostic Capabilities
This drive supports the VW3A1101 graphic display terminal for simplified commissioning and maintenance. Operators can navigate complex menus using a multifunctional jog dial for precise parameter adjustments. Additionally, the optional interface allows for real-time speed referencing and local motor control. The firmware supports detailed text readouts to streamline troubleshooting procedures. However, users must ensure compatibility by avoiding display units from different Altivar families. This precaution prevents control loss and maintains workplace safety standards.
Safety and Network Integration
The ATV930D22N4 incorporates dual Ethernet ports to enable seamless integration into modern IIoT architectures. It facilitates secure data exchange with PLCs and supervisory control systems. Moreover, the drive includes dedicated safety functions like Safe Torque Off (STO) for machine protection. This hardware meets international standards for electromagnetic compatibility and vibration resistance. Its French-engineered design ensures a long service life in harsh environments. Therefore, it serves as a reliable backbone for critical pump, fan, and conveyor systems.
Technical Performance Data
- Manufacturer: Schneider Electric
- Model Designation: ATV930D22N4
- Power Rating: 22 kW (30 HP)
- Supply Voltage: 380…480 V AC
- Phase: 3-Phase Input and Output
- Output Frequency: 0.1 to 599 Hz
- Continuous Current: 46.3 A at 4 kHz
- Enclosure Rating: IP21 / UL Type 1
- Communication: Modbus TCP and Ethernet/IP
- Internal Protection: Thermal, overcurrent, and phase failure
- Unit Weight: 1.9 kg
