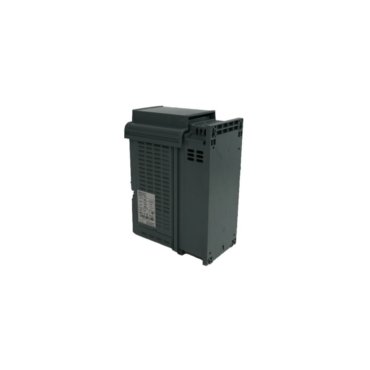

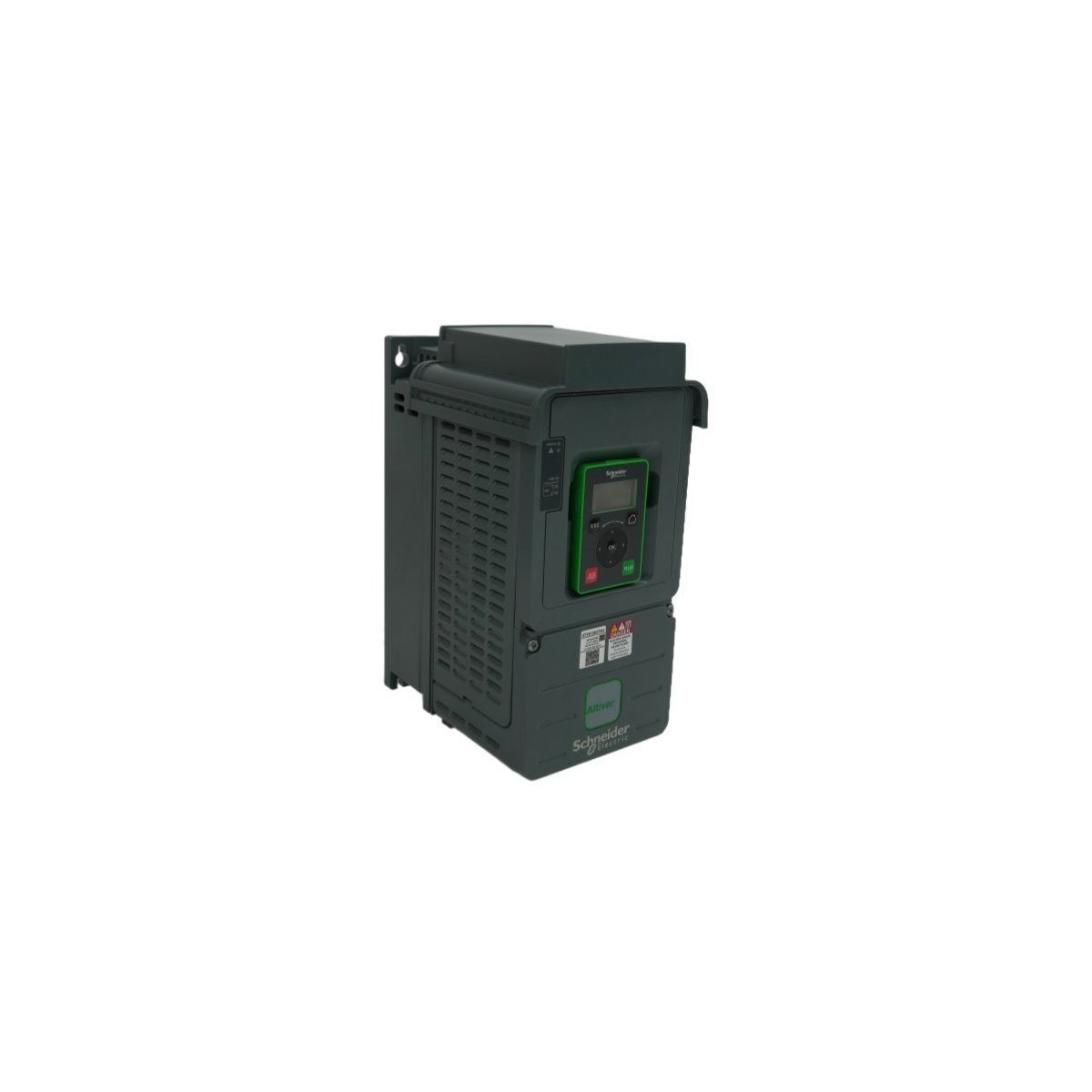

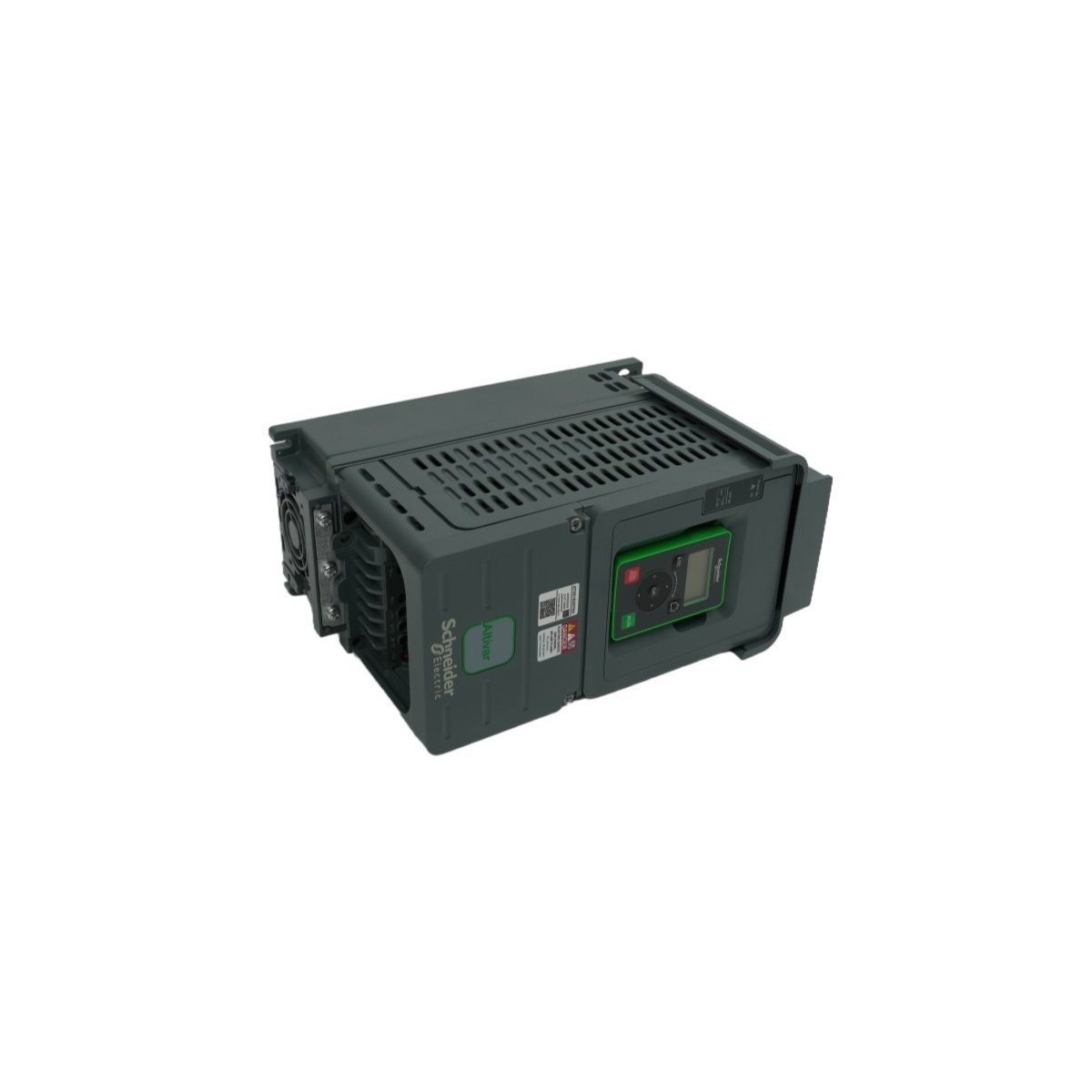

The Schneider Electric ATV630C16N4 belongs to the advanced Altivar Process ATV600 family. This variable speed drive specializes in high-efficiency motor control for complex industrial systems. It manages both three-phase synchronous and asynchronous motors with exceptional precision. The hardware supports power ratings up to 160kW at a 380-480V AC supply. Furthermore, it delivers a 120% overload capacity to handle demanding start-up torque requirements.
Connectivity remains a central feature of this architecture. The unit integrates three RJ45 communication ports directly into its frame. These include a dedicated Ethernet port and two serial connections for networking. Consequently, the drive fits seamlessly into modern IIoT and automated industrial infrastructures.
Operational Efficiency and Energy Management
This drive introduces significant cost-saving benefits through innovative power management. The integrated “Stop and Go” technology reduces energy consumption by 30% during standby. This feature requires no external hardware and activates automatically. Such efficiency proves vital for continuous processes where operational costs remain a priority.
The physical construction matches its high performance. The chassis measures 320mm in width and 852mm in height. It supports vertical wall mounting with a flexible +/- 10-degree tolerance. Although the module weighs 82kg, its streamlined design allows for efficient installation in standard control rooms.
Technical Specifications
| Feature | Specification |
| Manufacturer | Schneider Electric |
| Model Number | ATV630C16N4 |
| Power Rating | 160 kW (Normal Duty) |
| Rated Voltage | 380…480 V AC |
| Output Current | 302 A |
| Communication Ports | 1x Ethernet, 2x RS485 Serial |
| Weight | 82 kg |
| Dimensions | 320 x 852 x 390 mm |
| Degree of Protection | IP21 (Wall Mount) |
Industrial Applications and Versatility
The Altivar Process series excels in fluid management and asset optimization. It serves critical roles in water and wastewater treatment facilities. Mining and mineral processing plants utilize its robust torque control. Moreover, the food and beverage industry relies on its hygienic and precise regulation.
Users can enhance the system using various modular accessories. Options include I/O expansion modules, graphic terminals, and advanced EMC filters. These components allow engineers to tailor the drive for specific process requirements. Ultimately, the ATV630C16N4 reduces the total cost of ownership through superior reliability and asset management.
