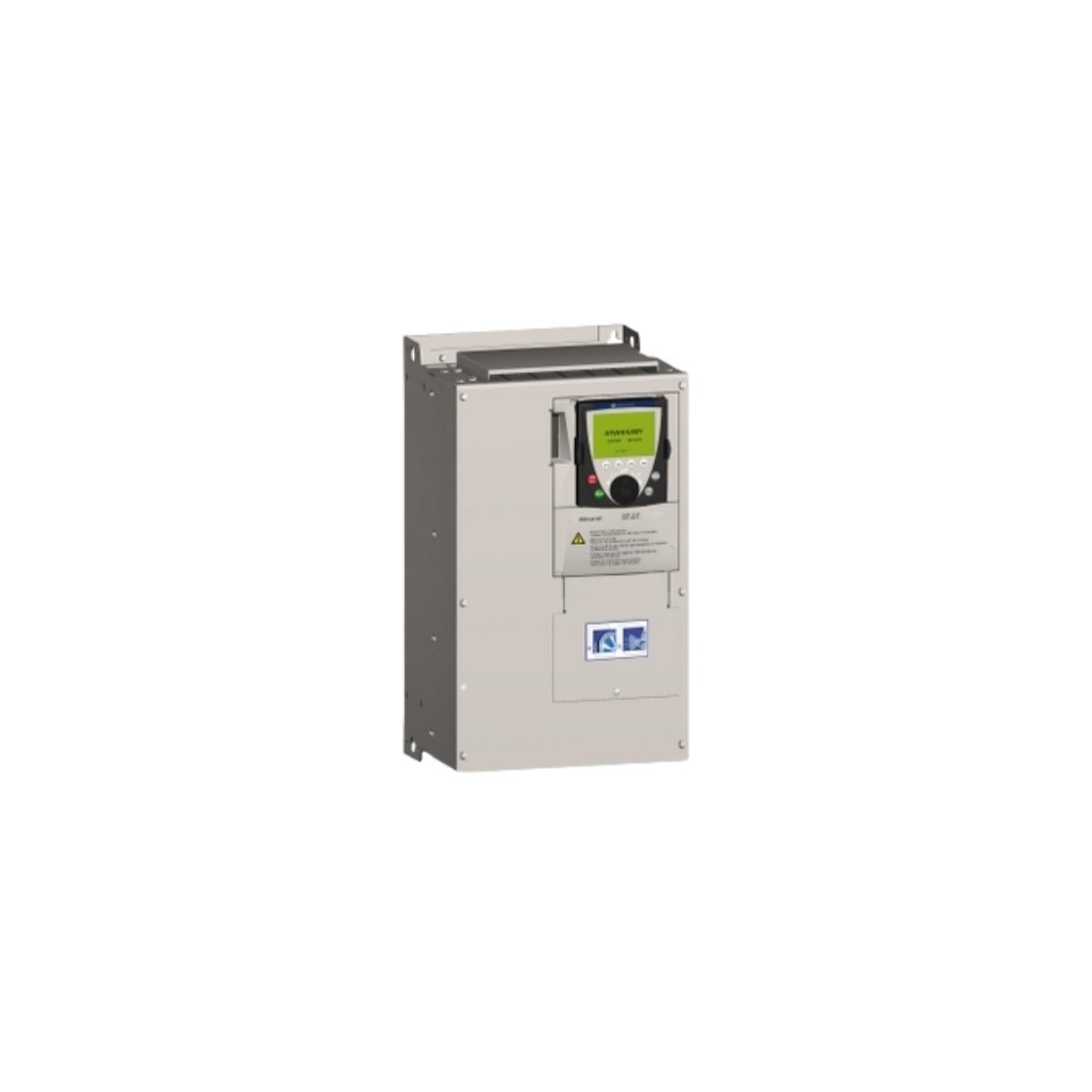

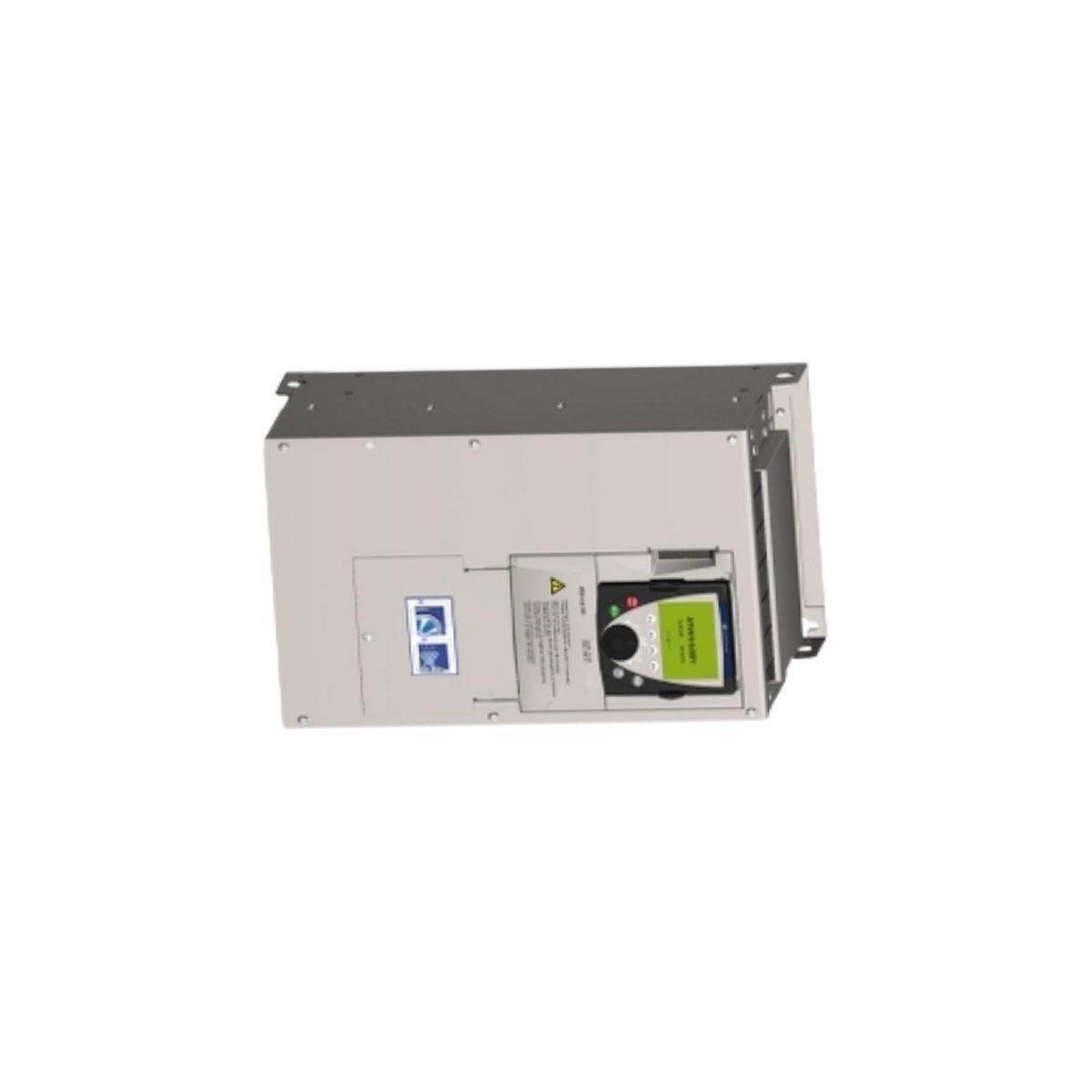

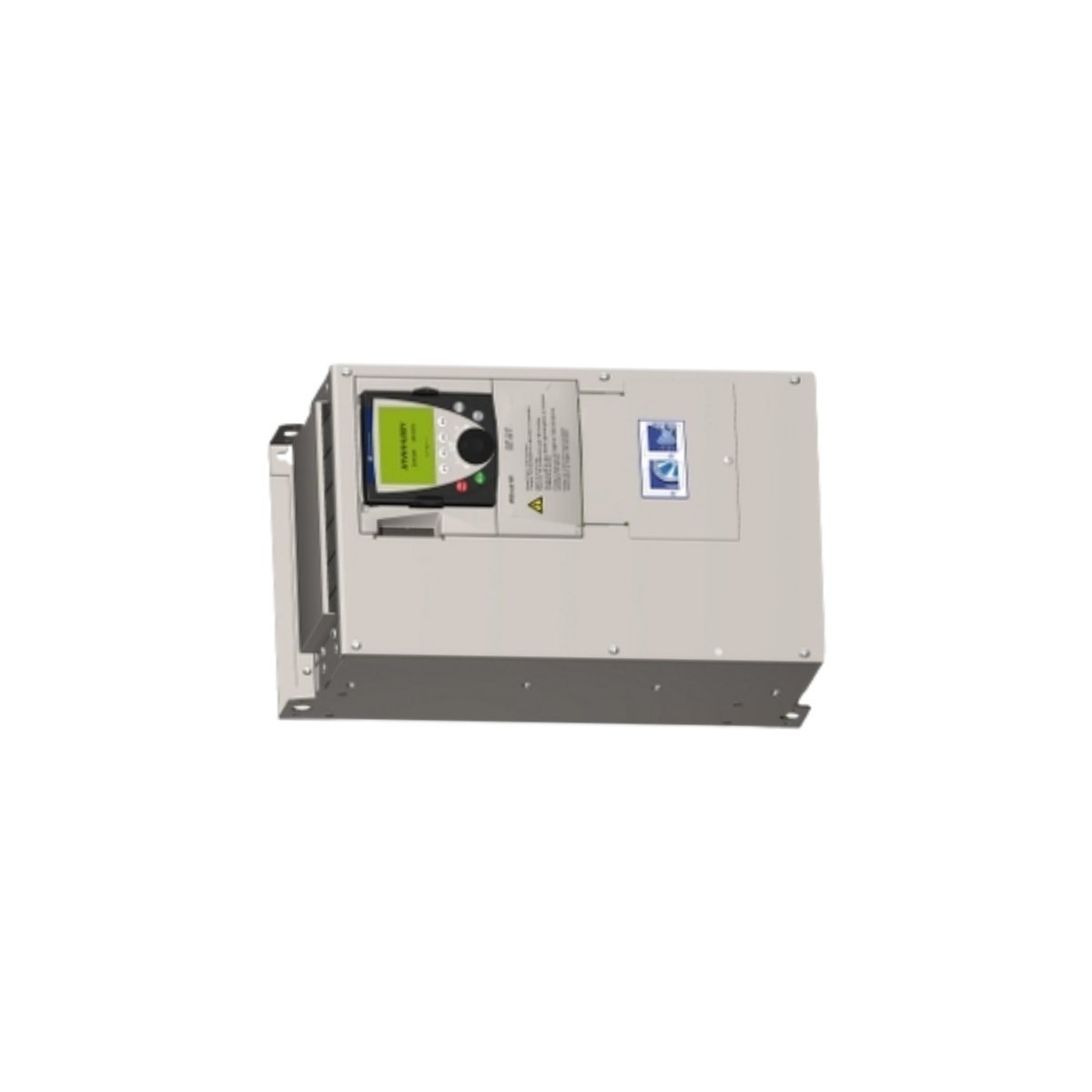

The Schneider Electric ATV61HD22N4Z belongs to the Altivar 61 series of high-performance inverters. This 22kW frequency converter specializes in managing asynchronous motor speeds for centrifugal torque applications. It operates on a three-phase supply voltage ranging from 380V to 480V AC. By precisely modulating power, this drive enhances energy efficiency in fluid management systems. Modern industrial facilities utilize this unit to reduce mechanical stress on HVAC and pumping infrastructure. Consequently, the ATV61HD22N4Z serves as a critical component for optimizing large-scale utility operations.
Environmental Protection and Enclosure Standards
This drive performs reliably even in demanding environments with high humidity or airborne contaminants. While the base unit features an open design, it adapts to IP54-rated metal enclosures for harsh conditions. Such protective housing shields the sensitive internal circuitry from dust and corrosive gases. The drive continues to function effectively in internal cabinet temperatures up to 50°C.3 Additionally, the use of specialized IP54 filters prevents liquid splashing from reaching electrical components. These safeguards allow the inverter to thrive in various factory and outdoor utility settings.
Core Technical Specifications
The following data outlines the primary electrical and physical parameters of the ATV61HD22N4Z:
| Technical Attribute | Specification Details |
| Brand | Schneider Electric |
| Model Number | ATV61HD22N4Z |
| Motor Power | 22 kW (30 HP) |
| Input Voltage | 380…480 V AC (3-Phase) |
| Output Frequency | 0.1…599 Hz |
| Communication | Integrated Modbus and CANopen |
| Cooling Method | Forced Convection via Internal Fan |
| Net Weight | 1.9 kg (Power Module) |
| Dimensions | 27.9 x 21.6 x 6.3 cm |
| Compliance | UL, CSA, DNV, C-Tick, NOM, GOST |
Reliability through Professional Engineering
The ATV61HD22N4Z combines robust power delivery with sophisticated diagnostic capabilities. Integrated software monitors motor parameters to prevent overloads and short circuits during startup. Moreover, the modular design allows for the addition of various communication and I/O cards. This flexibility ensures compatibility with diverse PLC architectures and Building Management Systems (BMS). Maintenance teams benefit from a straightforward interface that simplifies parameter adjustment and troubleshooting. By implementing these industrial-grade drives, facilities achieve superior process control and significant energy savings.
