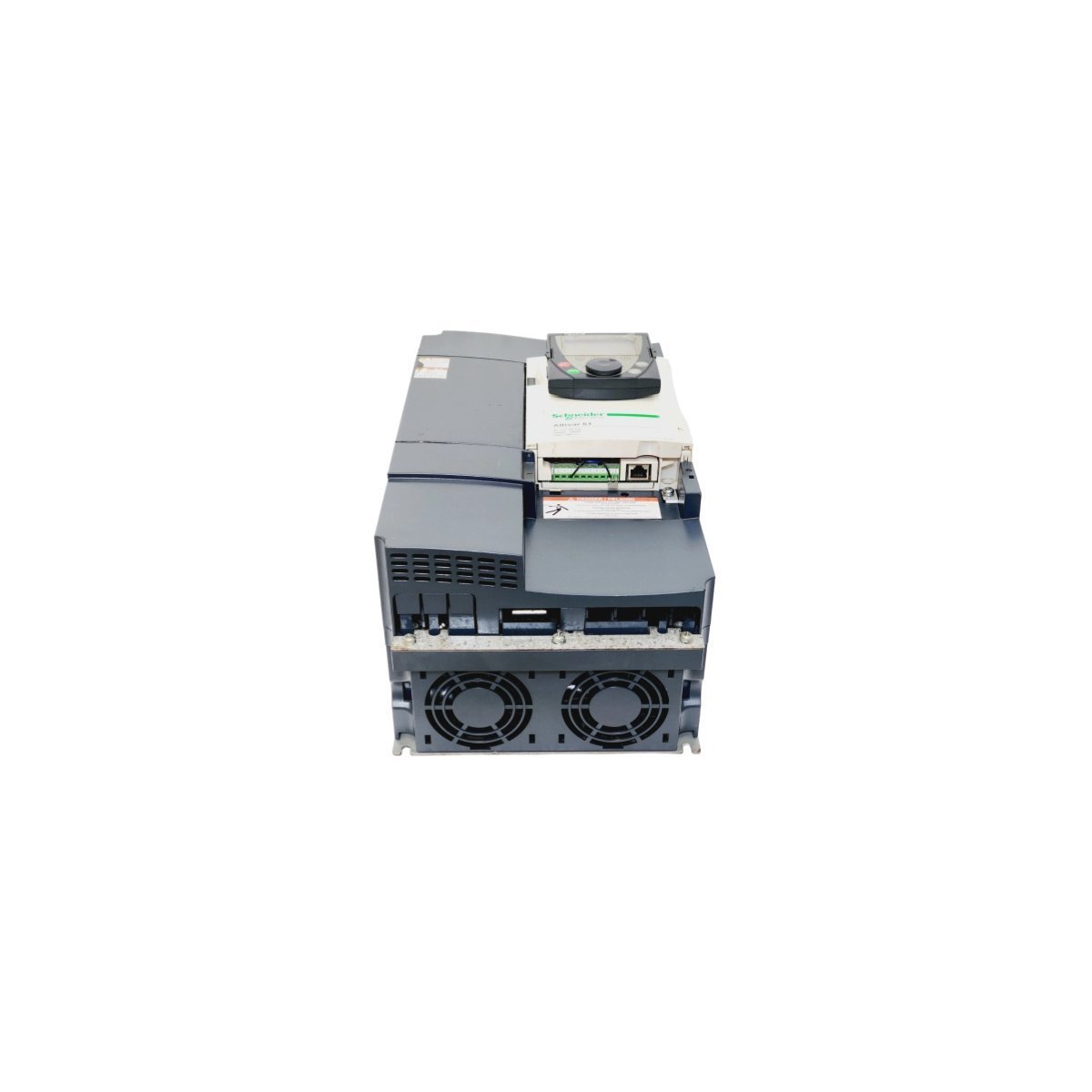

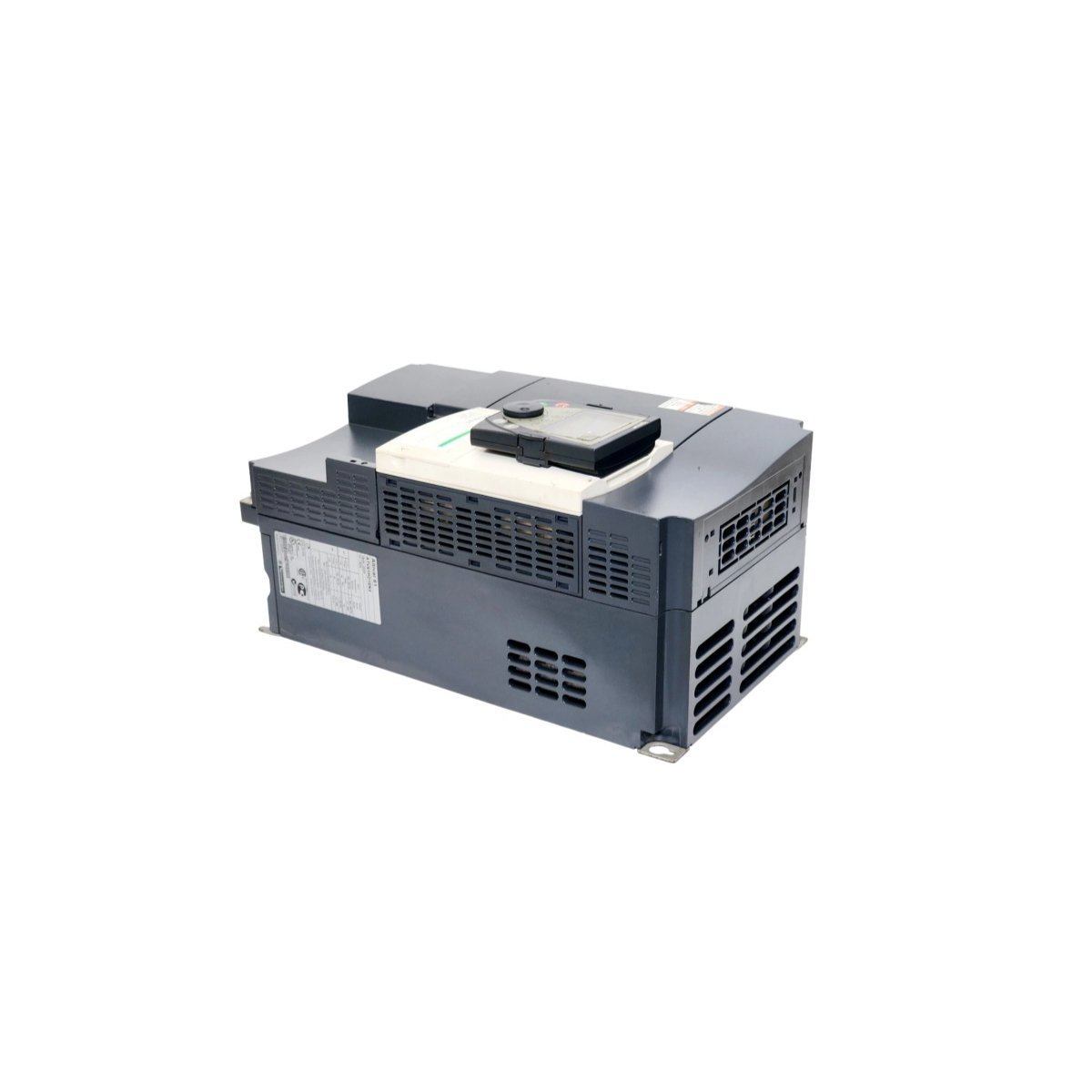

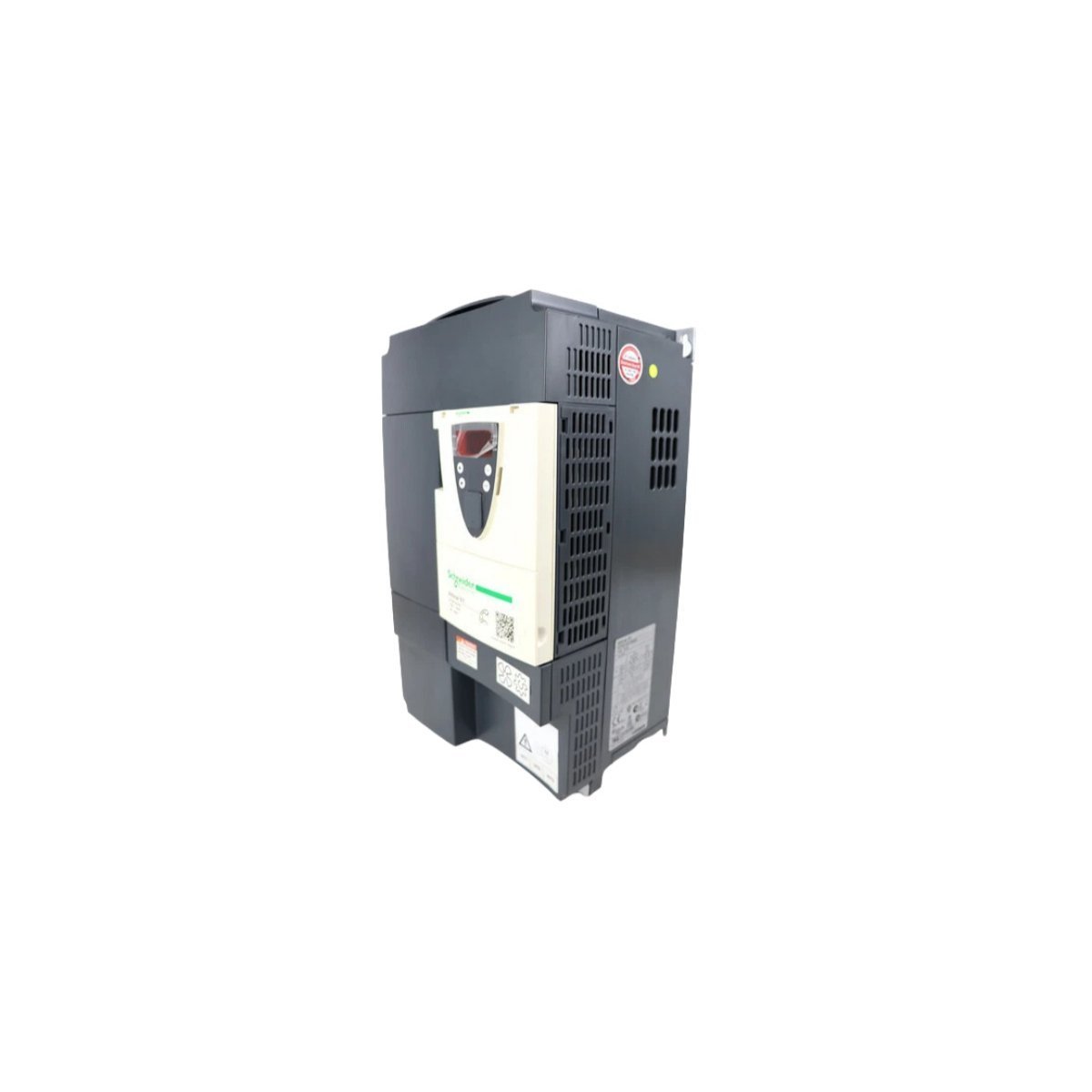

The Schneider Electric ATV61HD15N4 manages three-phase asynchronous motors effectively. This drive provides 15 kW (20 HP) of power for industrial systems. It belongs to the Altivar 61 series. This range specializes in variable torque management. The unit optimizes power usage for fluid and air systems. It matches energy consumption to real-time load demands. This technology improves operational efficiency significantly. Facilities use this drive to maintain high mechanical reliability. It serves as a vital tool for modern energy management.
Optimized Control for Centrifugal Machinery
This drive excels at managing centrifugal pumps and fans. These machines often follow quadratic torque curves. The ATV61HD15N4 includes macros for multi-pump control. These tools simplify HVAC and water treatment integration. Built-in protection guards against motor overloads and short circuits. It also prevents damage from phase loss events. Intelligent speed regulation protects pipes from water hammer effects. It further reduces pressure surges during motor startups. This careful control extends the lifespan of mechanical components.
Technical Capabilities and Network Integration
- Dynamic Torque Adjustment: The system alters voltage-to-frequency ratios to save power.
- Flexible Input Voltage: The unit operates on 380V to 480V AC power supplies.
- Standard Communication: Built-in Modbus and CANopen protocols allow easy PLC connection.
- Global Safety Standards: The drive carries CE, UL, and CSA certifications.
- Advanced Cooling Design: The hardware maintains stability inside industrial control cabinets.
- Simplified Programming: Graphic terminals allow for fast setup and clear diagnostics.
Industrial Use and System Expansion
The ATV61HD15N4 suits ventilation and irrigation networks perfectly. It remains a top choice for building management systems. Users can transition easily to the Altivar Process ATV600 family. The vertical design saves space in tight electrical panels. Modular slots allow for I/O and fieldbus expansion cards. These include options like Profibus or Ethernet/IP modules. This drive combines durability with smart energy logic. It helps companies reduce their total carbon footprint. Reliable performance ensures lower overall maintenance costs for operators.
