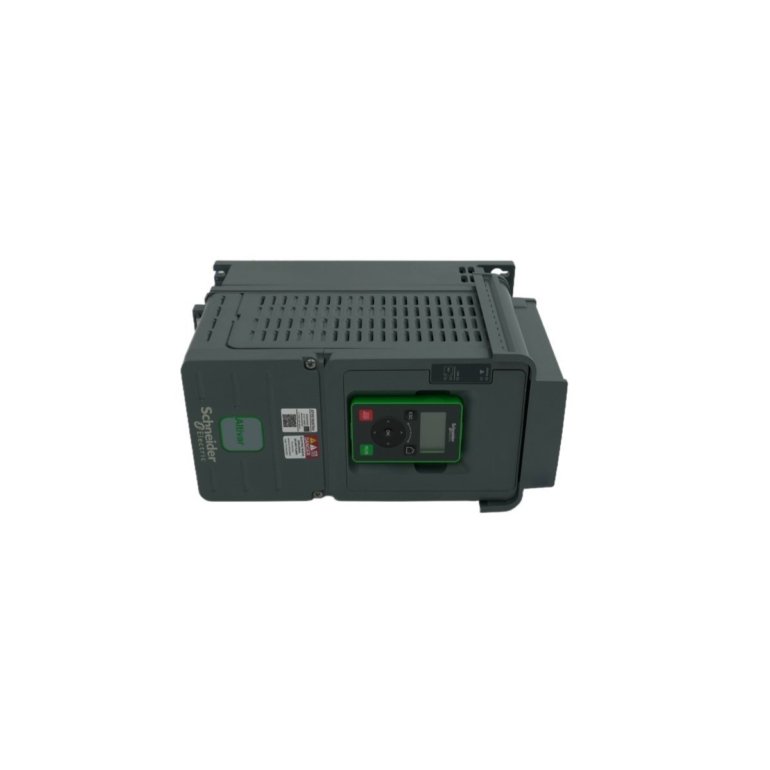

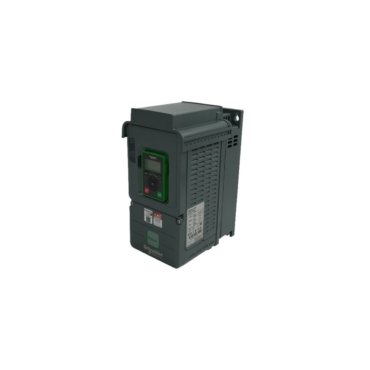

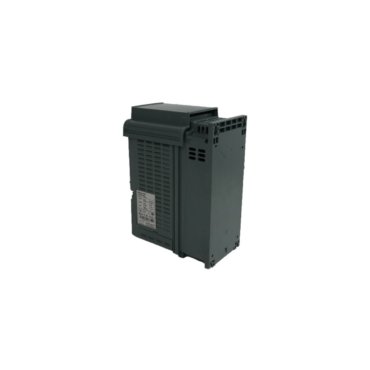

Schneider ATV610D90N4 Variable Speed Drive

The Schneider Electric ATV610D90N4 serves as a robust power conversion solution within the Easy Altivar 610 family. This 90 kW frequency inverter manages three-phase asynchronous motors effectively in demanding industrial environments. It provides precise speed control and torque management for equipment operating on 380V to 415V AC power systems. The drive prioritizes operational reliability and energy optimization for heavy-duty motor applications.

Technical Performance and Functional Features

This variable speed drive utilizes advanced motor control algorithms to maximize electrical efficiency. The internal architecture includes integrated EMC filters to minimize electromagnetic interference. Users benefit from the plug-and-play design, as factory presets allow for immediate commissioning without extensive manual programming. The unit monitors thermal levels and electrical loads constantly to prevent equipment failure. It features a high overload capacity to handle transient torque spikes during startup or process changes.

Industrial Applications

Designers engineered the ATV610D90N4 specifically for fluid management and air handling systems. It excels in the following sectors:

• Municipal water treatment and pumping stations
• Industrial cooling towers and HVAC systems
• Process fans and ventilation units
• Wastewater management facilities
• Oil and gas distribution networks

Technical Specifications

Operational Integrity and Maintenance

The drive construction emphasizes long-term durability with coated circuit boards for harsh atmospheres. Integrated diagnostics allow technicians to identify faults quickly through the clear display interface. The modular design simplifies access to power terminals and control blocks during routine inspections. This focus on serviceability reduces system downtime and lowers the total cost of ownership for industrial operators.
