Essential Technical Specifications
| Feature | Specification Details |

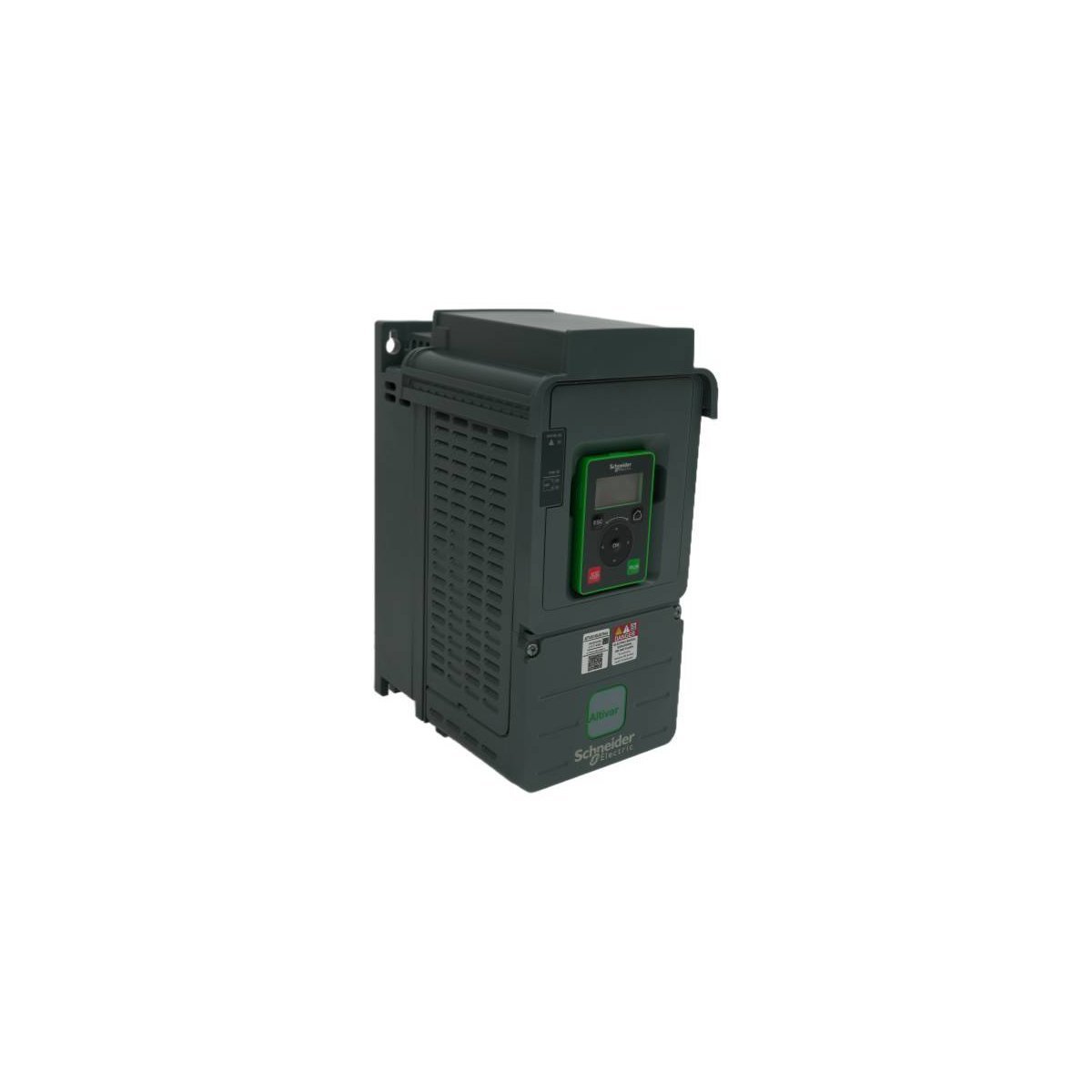

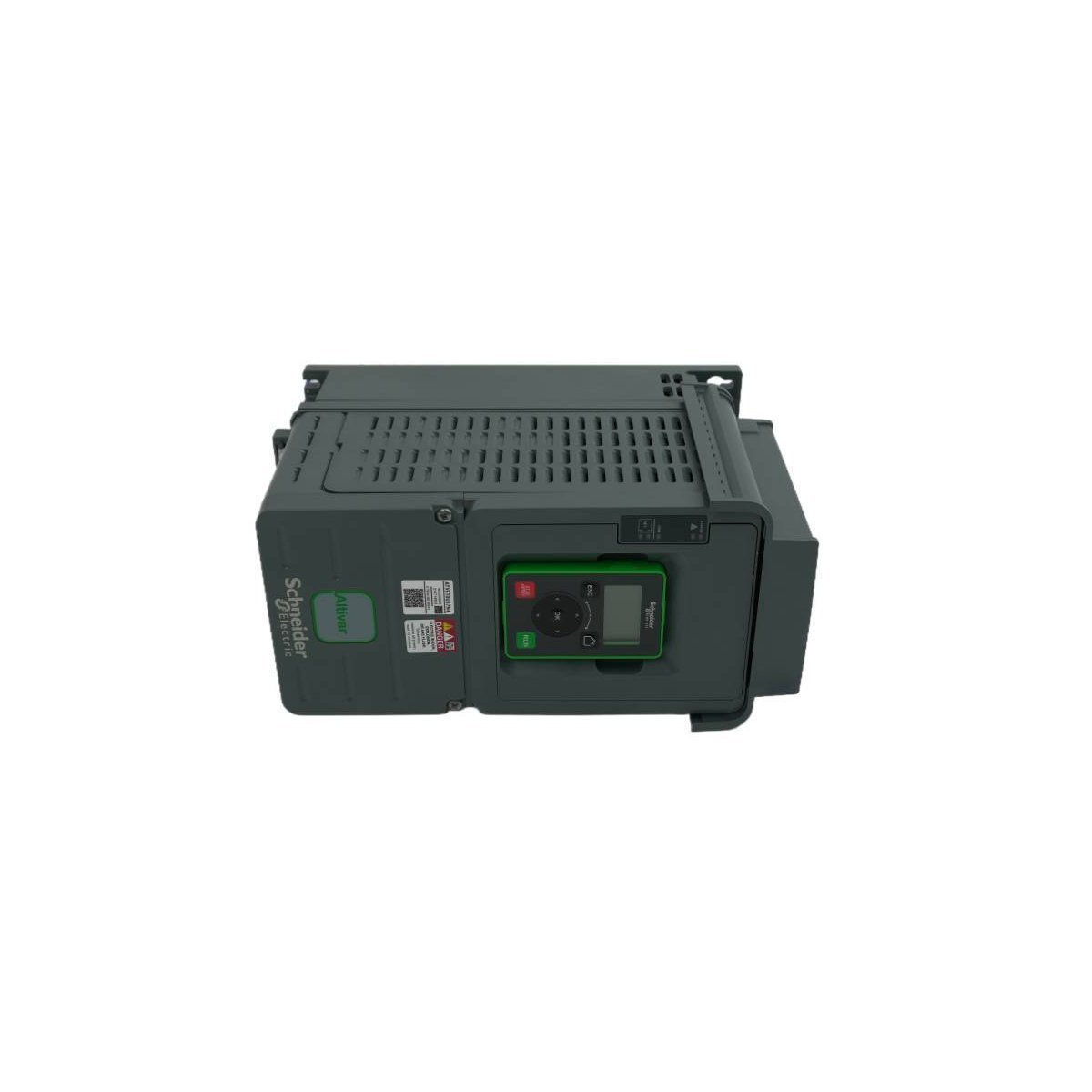

| Model Number | ATV610D45N4 |
| Nominal Power | 45 kW (60 hp) |
| Input Voltage | 380…460 V AC (50/60 Hz) |
| Network Phase | Three-Phase |
| Apparent Power | 63.3 kVA at 400 V |
| Continuous Current | 88 A at 4 kHz |
| Protection Degree | IP20 |
Critical Installation and Thermal Management

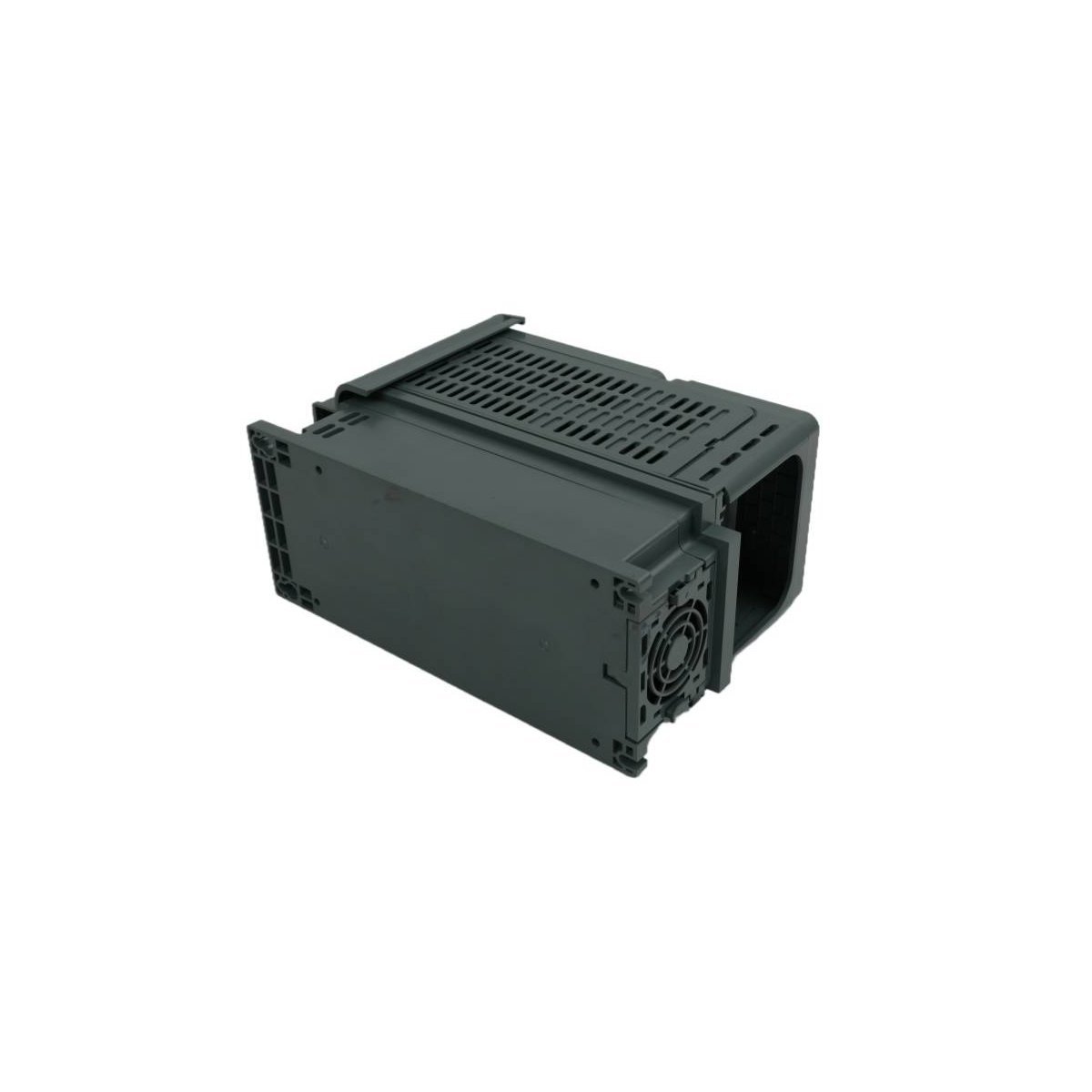

Proper mounting remains vital for the longevity of the ATV610D45N4. Installers must secure the unit vertically on a flat surface. This orientation facilitates natural convection and internal fan cooling. Use four fixation screws with captive washers to ensure mechanical stability. Furthermore, maintain the specified clearance distances around the chassis. Sufficient airflow prevents internal overheating during high-torque operations. Avoid placing the drive near heat sources or in environments with conductive gases.
Operational Versatility and Security
The Easy Altivar 610 series features an IP20 rating for indoor cabinet integration. For individual installations, users can utilize Mounting Type A for IP21 protection. The drive includes integrated protection against short circuits and motor thermal overloads. This hardware excels in water management, oil and gas, and general process industries. It provides precise speed regulation for pumps and industrial fans. Consequently, this drive reduces mechanical stress on pipes and transmission systems.
