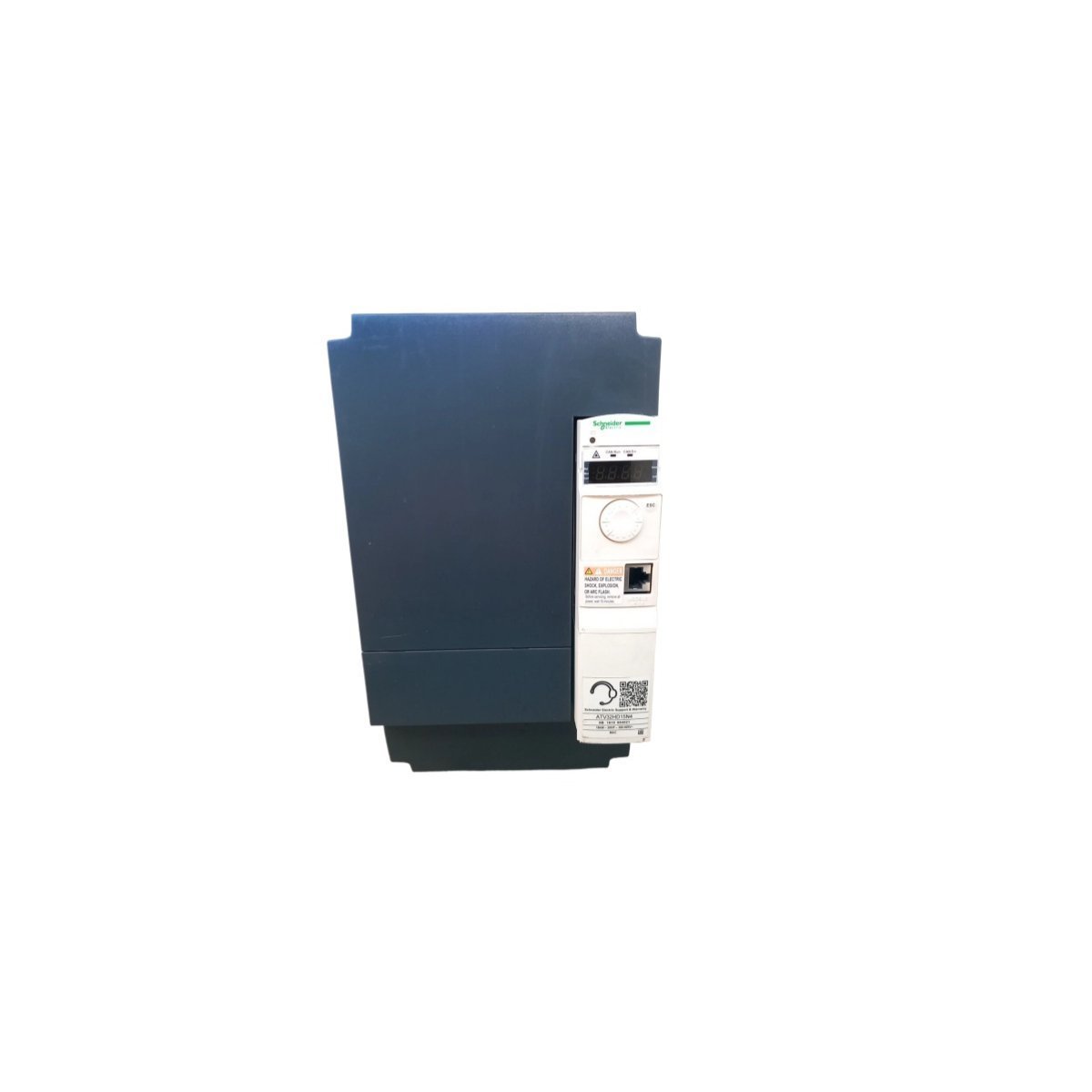

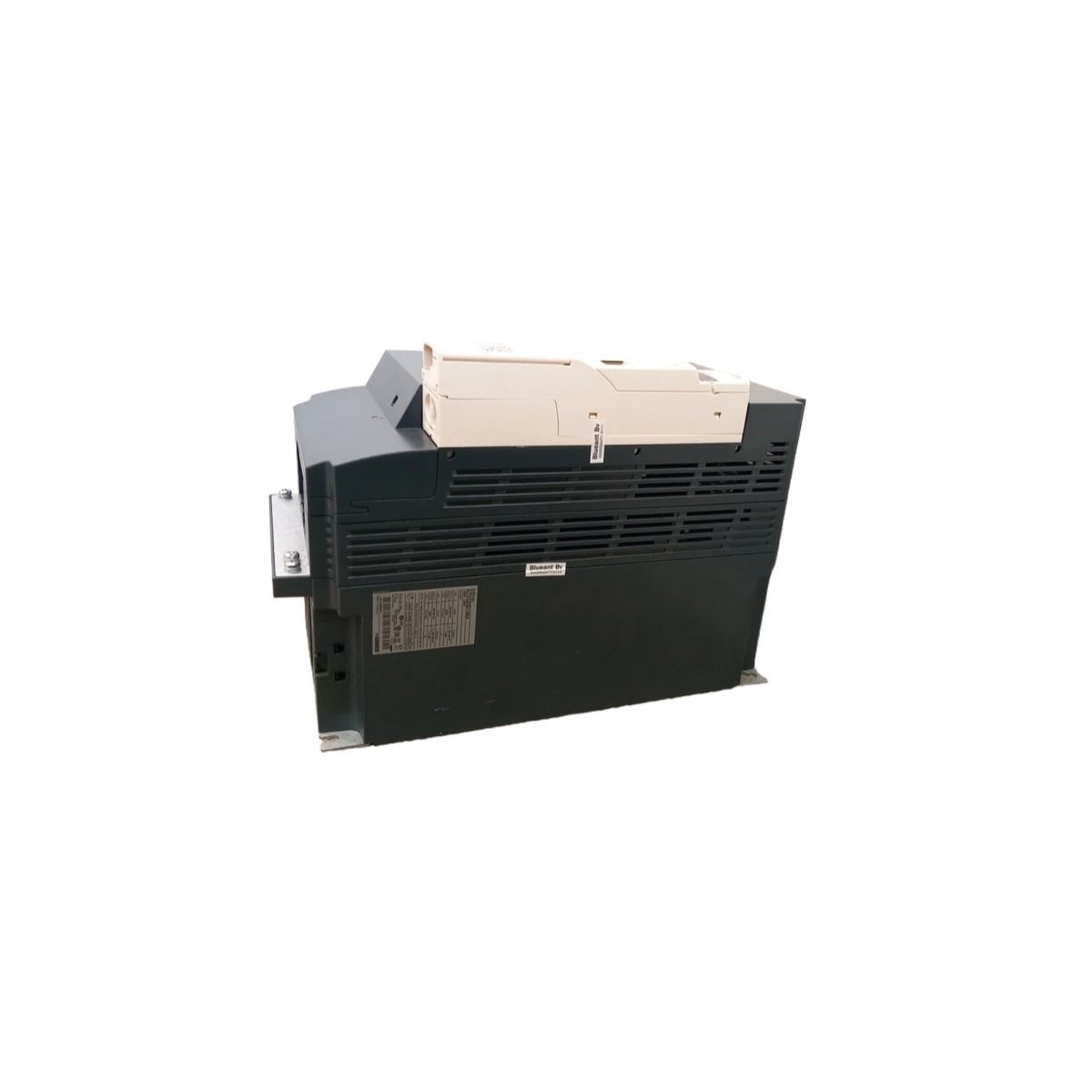

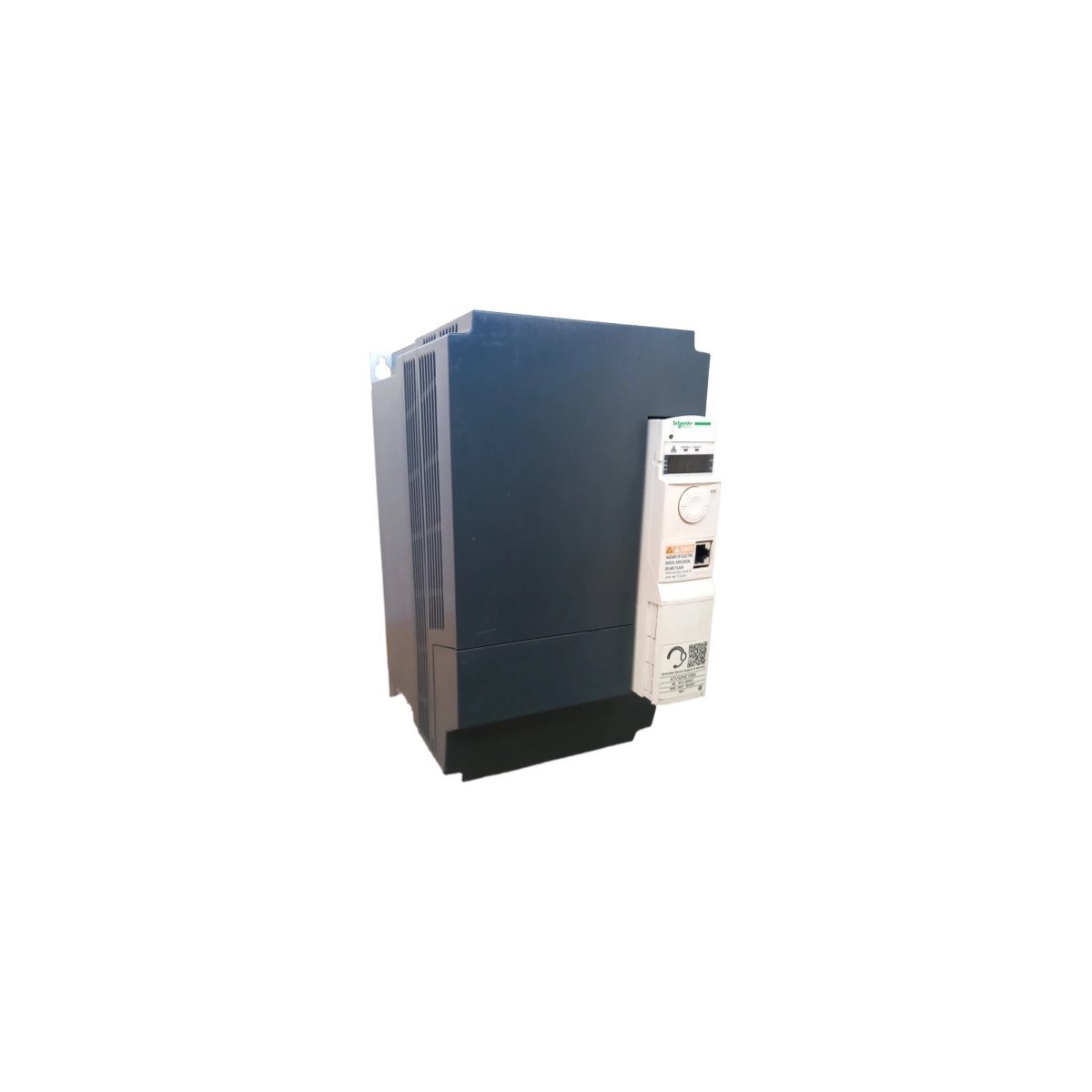

Schneider ATV32HD15N4 Variable Speed Drive

The Schneider Electric ATV32HD15N4 offers high-performance motor regulation within the Altivar 32 family. This 15 kW (20 hp) drive manages three-phase asynchronous and synchronous motors efficiently. Furthermore, its slim 180mm frame optimizes cabinet space in dense installations. The unit features an integrated heat sink to maintain stable operating temperatures. Consequently, this drive delivers reliable service for textile, woodworking, and metal processing machinery. It also excels in heavy-duty material handling and hoisting applications.

Intuitive User Interface and Configuration

This variable speed drive utilizes a bright 4-digit LED display for basic monitoring. For deeper analysis, the unit supports the optional VW3A1101 graphic display terminal. This external module provides full-text diagnostics and a multi-function navigation dial. Additionally, maintenance teams can utilize Schneider SoMove software for advanced programming. This software facilitates rapid parameter transfers to new units during maintenance. Such flexibility ensures minimal downtime when replacing equipment or updating system settings.

Robust Safety and Connectivity

The ATV32HD15N4 incorporates several safety functions to protect both personnel and equipment. It includes an integrated EMC filter to ensure electromagnetic compatibility. Moreover, the hardware supports various communication protocols through specialized option cards. These include Modbus, CANopen, and Ethernet for seamless network integration. The drive also provides exceptional torque performance at low speeds. These protective and communicative features make it an ideal choice for complex automated systems.

Technical Specifications

Operational Excellence in Manufacturing

The Altivar 32 series streamlines the design of small to medium machine control panels. Specifically, its book-style format reduces the physical footprint in control rooms. The drive effectively manages fluctuating loads with high dynamic response times. Maintenance workers can secure settings using a snap-lock protective seal. Furthermore, the unit complies with international standards for industrial safety and energy efficiency. Choosing the ATV32HD15N4 guarantees a sophisticated and durable solution for modern factory automation.
