Product Overview

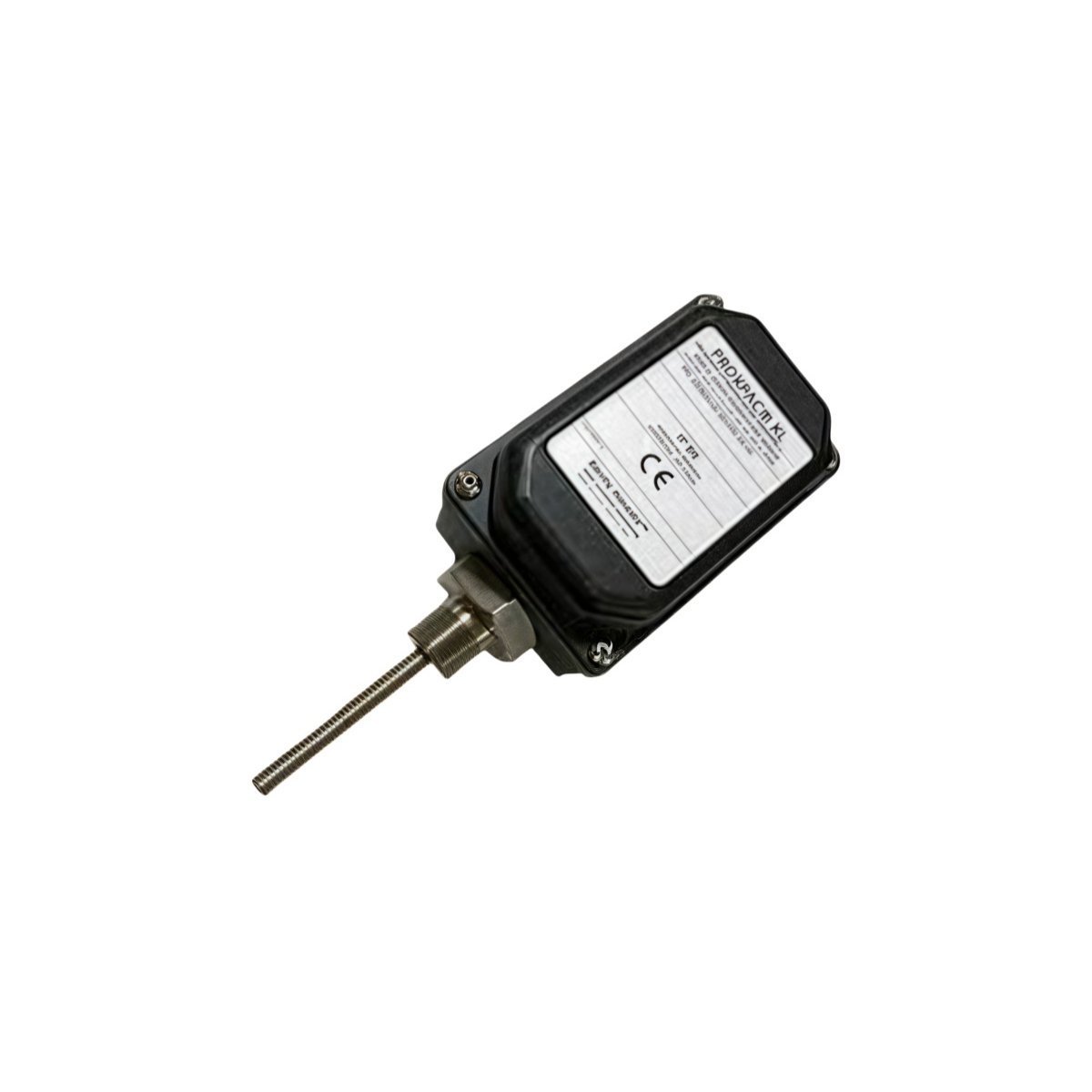

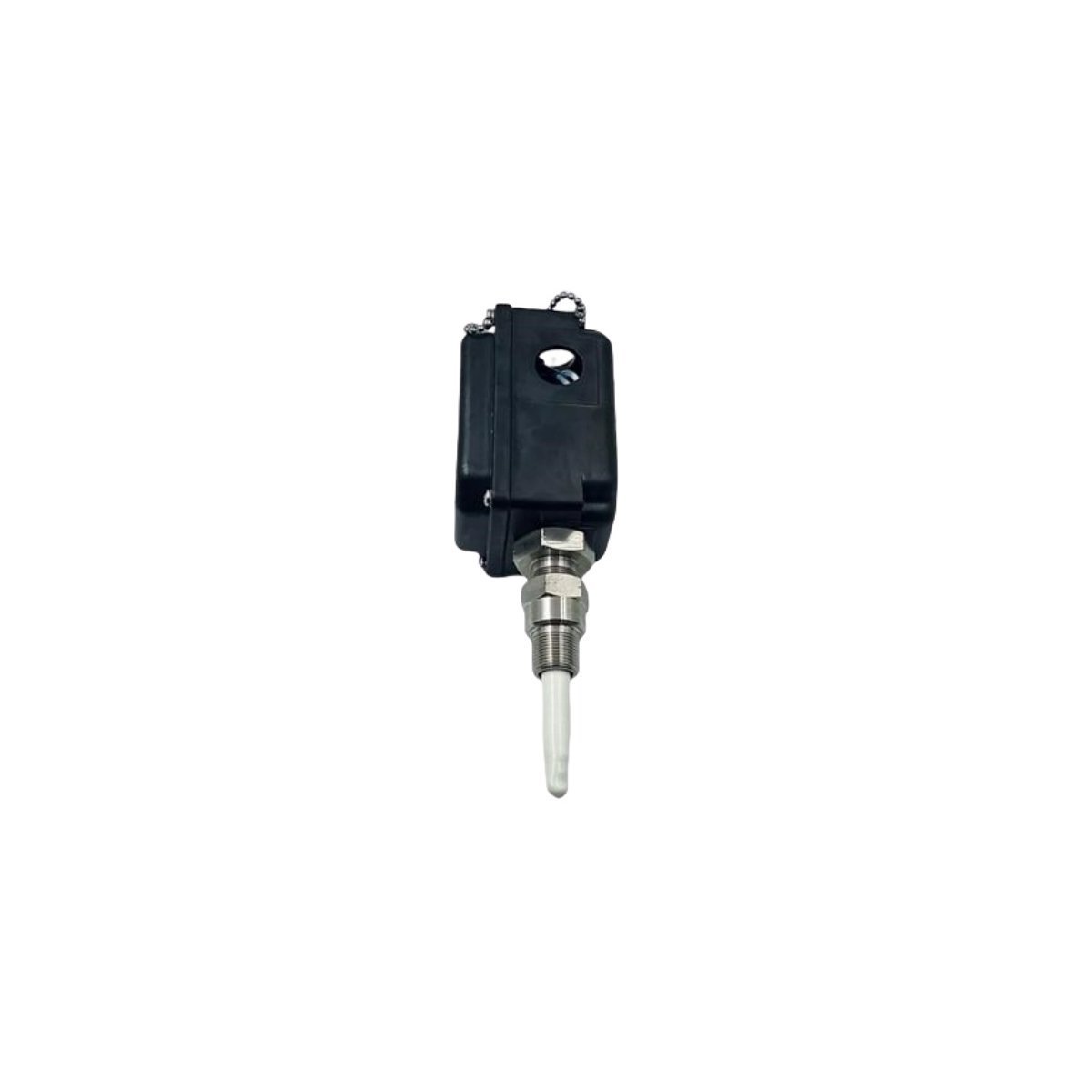

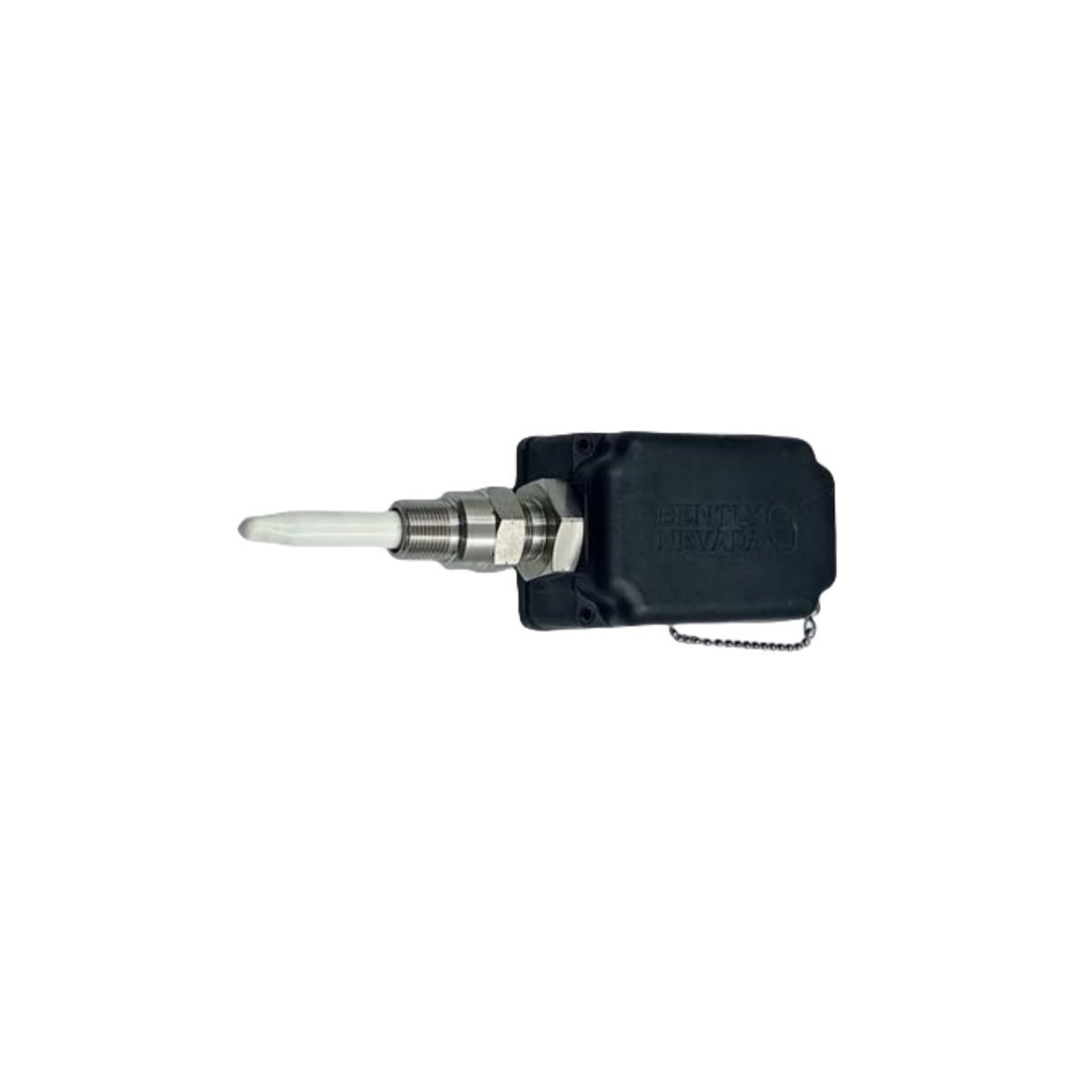

The Bently Nevada 330881-28-00-100-06-02 streamlines industrial vibration and position sensing by housing the probe, extension cable, and Proximitor sensor within a consolidated package. This PROXPAC XL configuration eliminates the need for separate signal conditioning electronics and external junction boxes, which significantly reduces installation time and labor costs. Engineers primarily deploy this unit on turbines, compressors, and large motors to monitor radial vibration and axial thrust.
By utilizing a stainless steel housing with NPT fittings, the device maintains a high level of environmental resistance. It effectively protects sensitive internal components from moisture, dust, and corrosive chemicals common in oil, gas, and power generation facilities. Furthermore, the integrated design ensures optimal impedance matching between the probe and sensor, which maximizes signal accuracy and minimizes electronic noise across the entire measurement loop.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Bently Nevada |
| Model/Part Number | 330881-28-00-100-06-02 |
| Sensor Type | Integrated 3300 XL 8 mm Proximity System |
| Total Length | 1.0 Meter (100 cm) |
| Housing Material | Aluminum or Stainless Steel (Configuration Dependent) |
| Mounting Thread | 3/4-14 NPT (Standard) |
| Environmental Protection | IP66 / NEMA 4X Rated |
| Hazardous Area Approvals | ATEX, IECEx, CSA |
| Target Material | AISI 4140 Steel (Standard Calibration) |
| Connector Type | Terminal Block Connection for Signal Output |
Key Technical Attributes
- Consolidated Architecture: This module combines three traditionally separate components into one unit, which simplifies the spare parts inventory and minimizes potential points of failure at cable connections.
- Simplified Calibration: The factory-matched internal components ensure the system meets the standard 7.87 V/mm (200 mV/mil) scale factor without requiring extensive field adjustments.
- Rugged Construction: The assembly features 3/4-14 NPT fittings that allow for direct conduit attachment, providing a seamless and secure path for signal wiring in heavy-duty industrial zones.
- Hazardous Area Readiness: Extensive global certifications allow for safe operation in Class I, Div 1 and Div 2 environments, making it suitable for global petrochemical and energy projects.
- Maintenance Efficiency: Because the Proximitor is located at the probe site within the PROXPAC housing, technicians can perform diagnostics directly at the machine interface without traveling to a remote control room.
