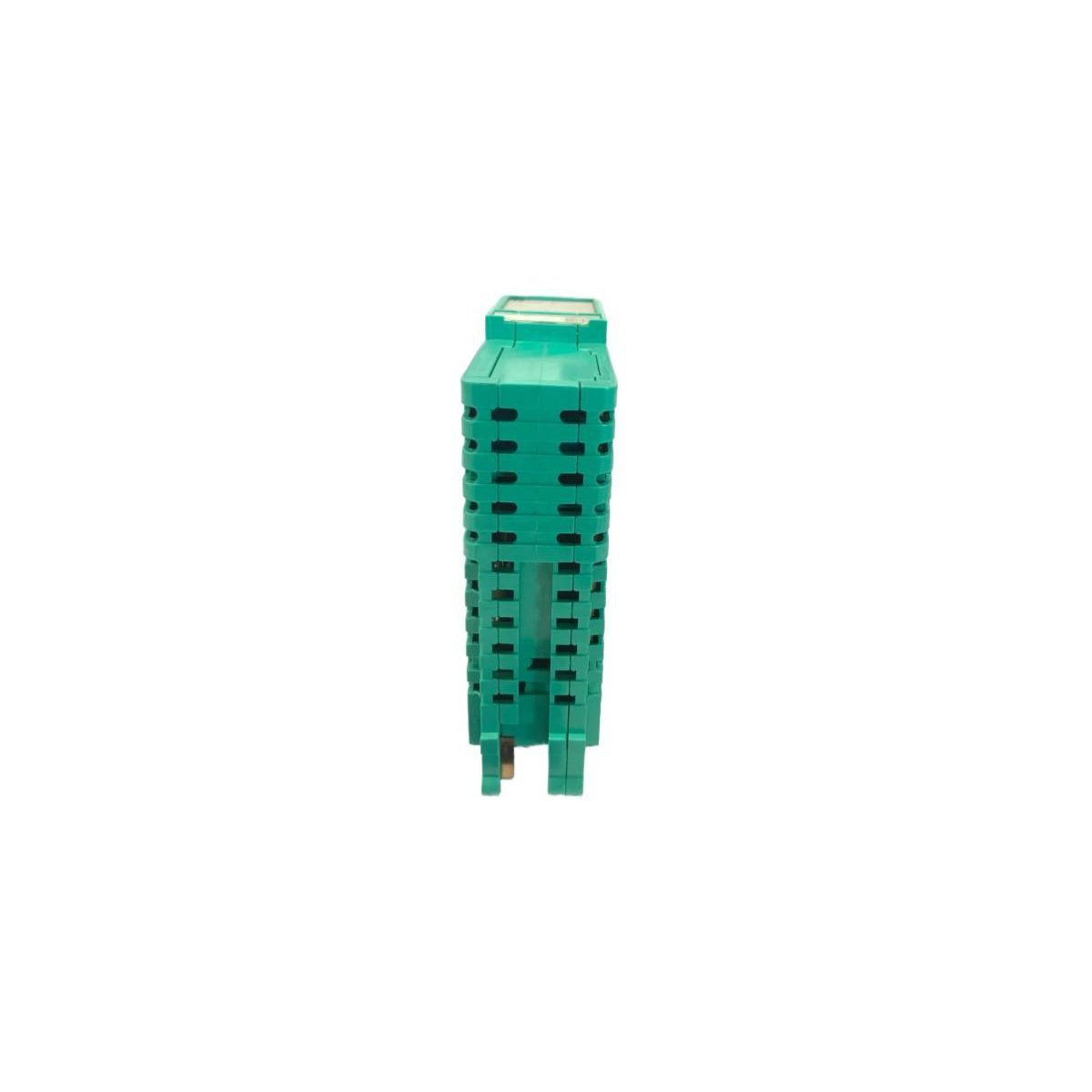

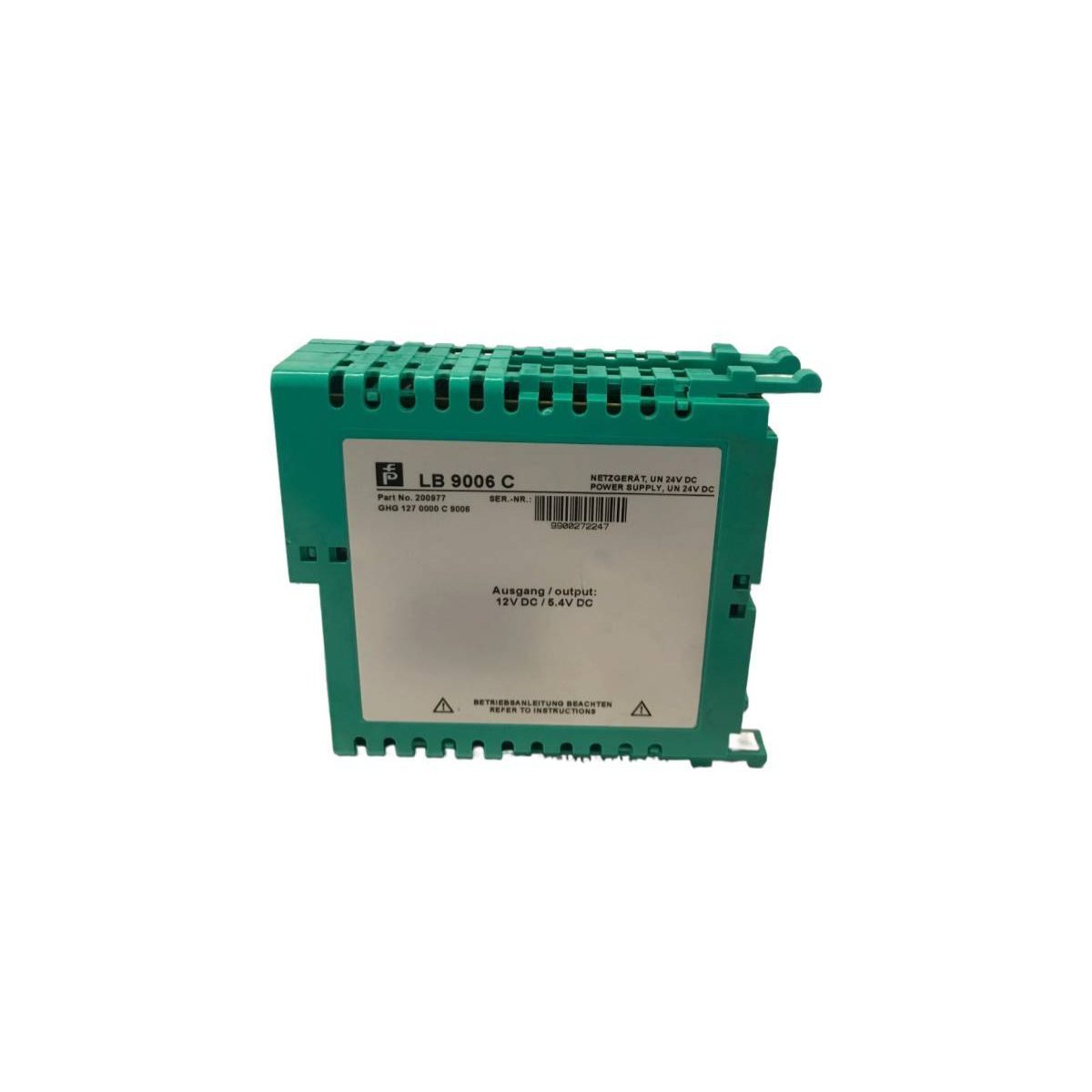

The Pepperl+Fuchs LB9006C serves as a high-reliability power injection module for the LB Remote I/O system. This unit provides regulated energy to backplane-mounted I/O modules and gateway components. By implementing full galvanic isolation between the input and output stages, the device ensures maximum signal integrity and protection for sensitive control electronics. Its versatile design allows for operation in various environments, supporting power outputs of up to 5.4W for 5V rails and 39W for 12V rails in non-hazardous zones.
Environmental Resilience and Hazardous Area Safety
This power module features specialized protection for deployment in demanding industrial locations. It carries ATEX and IECEx certifications, specifically marked for Category 3G Ex ec IIC T4 Gc applications. Furthermore, the internal components receive a conformal coating to resist corrosive gases, meeting ISA-S71.04 severity level G3 standards. The hardware maintains stable performance across a temperature range of -20°C to 60°C. These characteristics make it an essential component for oil and gas, chemical processing, and wastewater treatment facilities.
Operational Features and System Integration

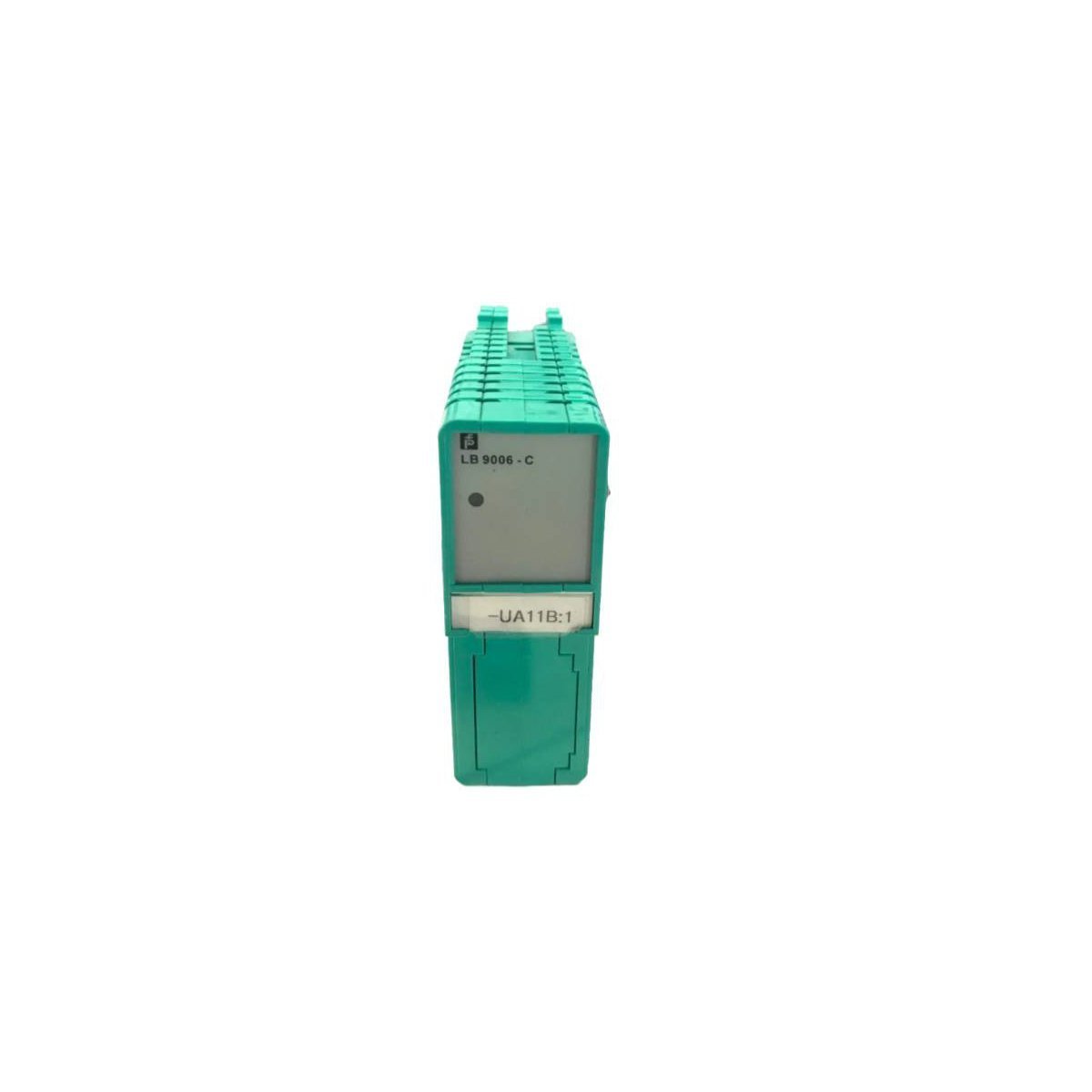

- Visual Diagnostics: Front-facing LED indicators provide immediate status updates regarding the presence of input voltage.
- Compact Footprint: The modular housing measures 32.5 x 100 x 102 mm to save valuable rail space.
- Galvanic Isolation: Enhanced safety separation complies with EN 60950-1 to prevent electrical interference.
- Mechanical Durability: The unit withstands industrial shock and vibration according to international IEC standards.
- Electromagnetic Compatibility: Full compliance with Directive 2014/30/EU ensures low noise emission and high immunity.
- Flexible Power Delivery: Capacity automatically adjusts based on installation in either Zone 2 or safe area environments.
Application in Critical Automation
The LB9006C integrates seamlessly into PLC and DCS architectures through the Pepperl+Fuchs backplane system. Because it supports high-density I/O configurations, it remains a preferred choice for large-scale field instrument networking. The module effectively filters power spikes and maintains constant voltage levels during load fluctuations. This stability prevents communication errors and data loss in distributed control systems. By combining explosion protection with rugged electrical design, this power supply module guarantees long-term availability for mission-critical automation infrastructure.
