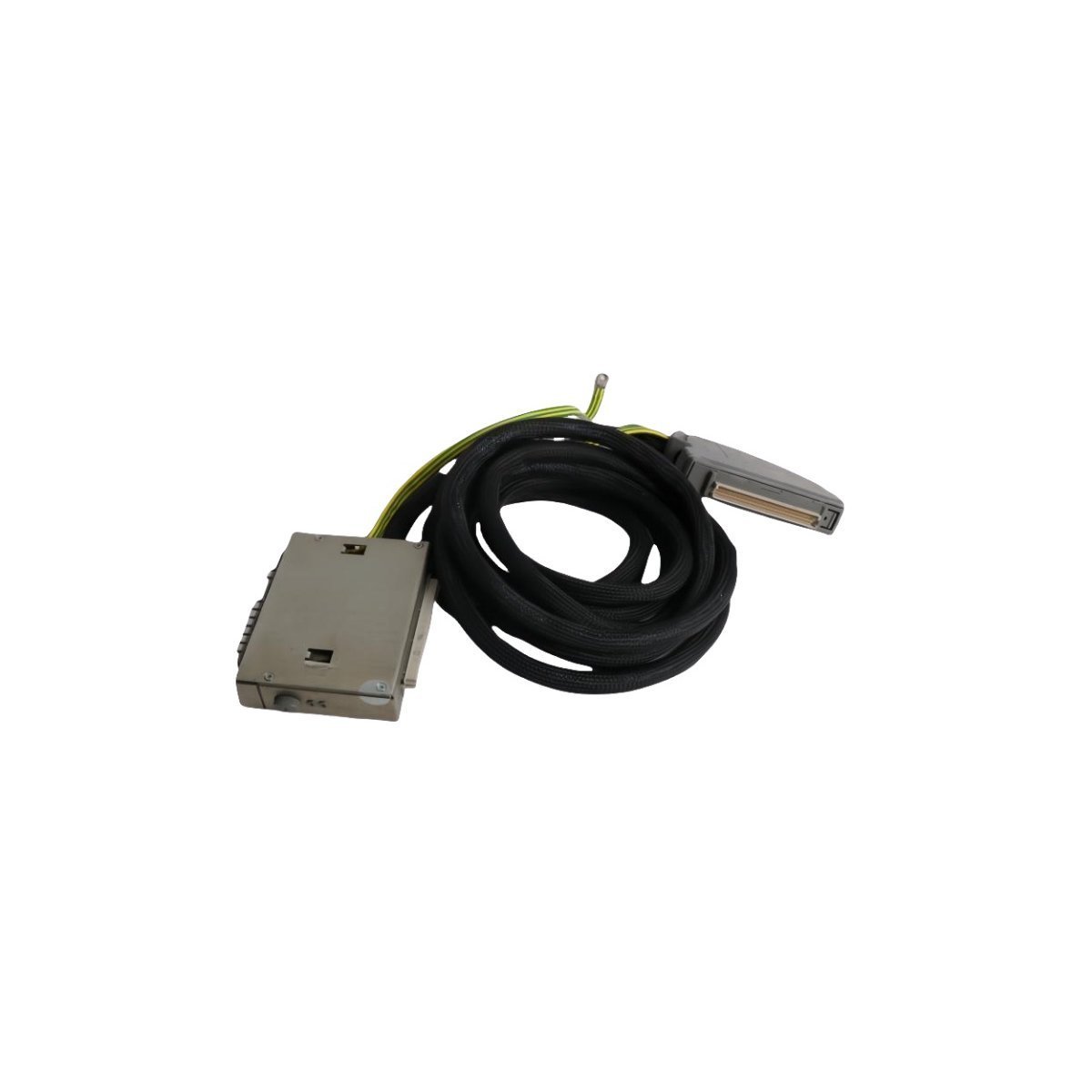

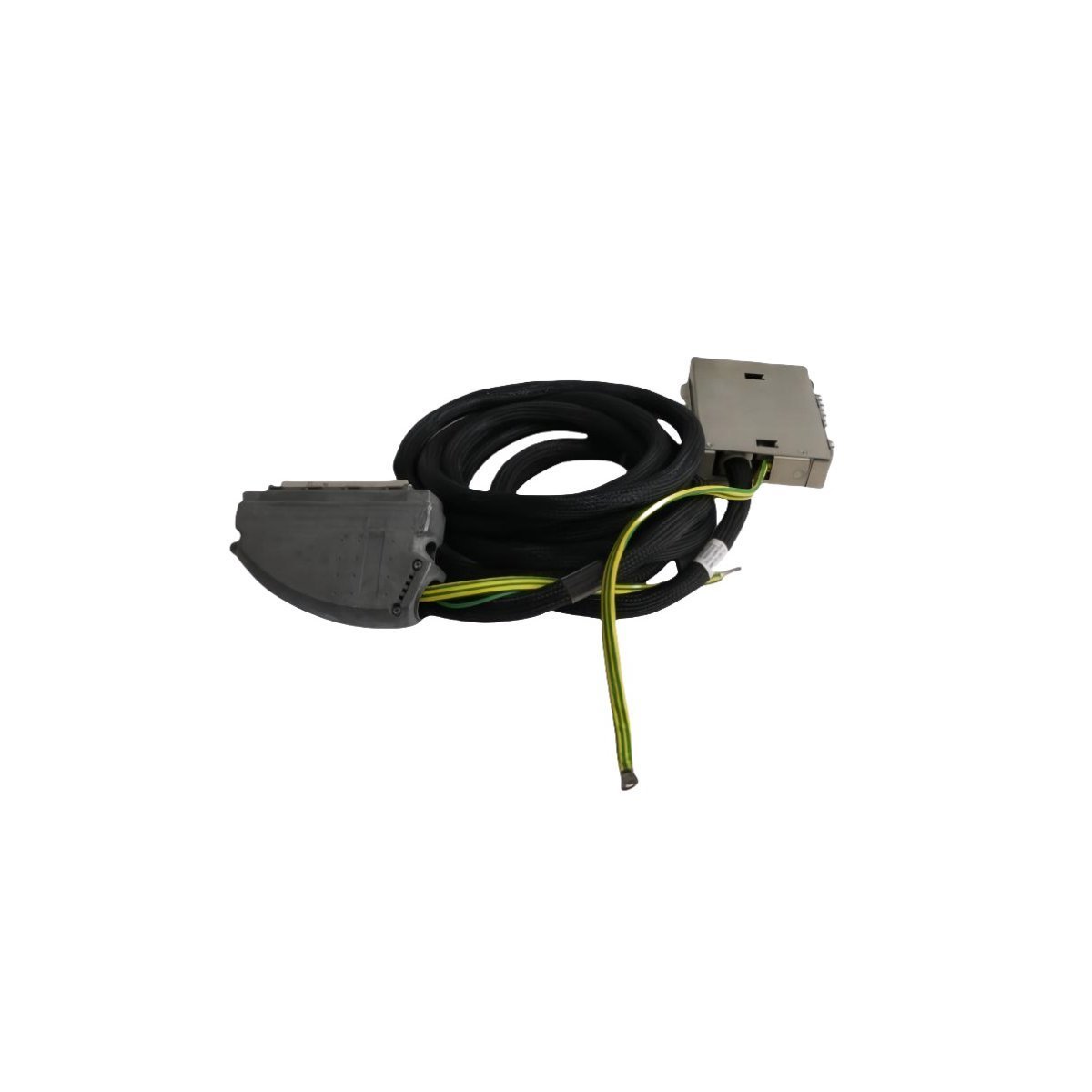

The ICS Triplex TC-501-02-2M0 is a dedicated SmartSlot interconnect cable designed for the ICS Regent Trusted control platform. It extends the backplane interface to support remote I/O modules or multi-chassis configurations.
This cable is not a sensor or temperature device—despite misleading legacy descriptions. Instead, it provides a high-integrity, shielded connection that carries power, data, and diagnostic signals between a SmartSlot controller and compatible I/O modules.
Engineers use the TC-501-02-2M0 to distribute I/O across separate enclosures while maintaining deterministic communication and fault tolerance. The assembly supports the Trusted system’s triple-modular redundant (TMR) architecture by preserving signal timing and isolation.
Key Technical Characteristics
- Cable Type: Shielded SmartSlot interconnect assembly
- Length: 2.0 meters (as indicated by “2M0” suffix)
- Connectors: High-reliability, keyed DIN or D-subminiature (chassis-specific)
- Shielding: Foil + braid for EMI/RFI protection
- Signal Support: Digital I/O, analog channels, module health feedback
- Compatibility: ICS Regent TMR chassis with SmartSlot I/O slots
- Operating Temperature: –25°C to +70°C
- Certifications: Designed for use in IEC 61508 SIL 3 applications
- Mechanical Retention: Locking connectors to prevent accidental disconnection
Physical and Logistics Data
| Parameter | Value |
|---|
| Model Number | TC-501-02-2M0 |
| Manufacturer | ICS Triplex |
| Product Type | SmartSlot I/O Interconnect Cable |
| Product Origin | USA |
| Weight | 1.96 kg |
| Dimensions (Packaged) | 360 mm × 270 mm × 60 mm |
| HS Code | 8537101190 |
| Minimum Order Qty | 1 |
| Availability | In Stock |
| Lifecycle Status | Active |
