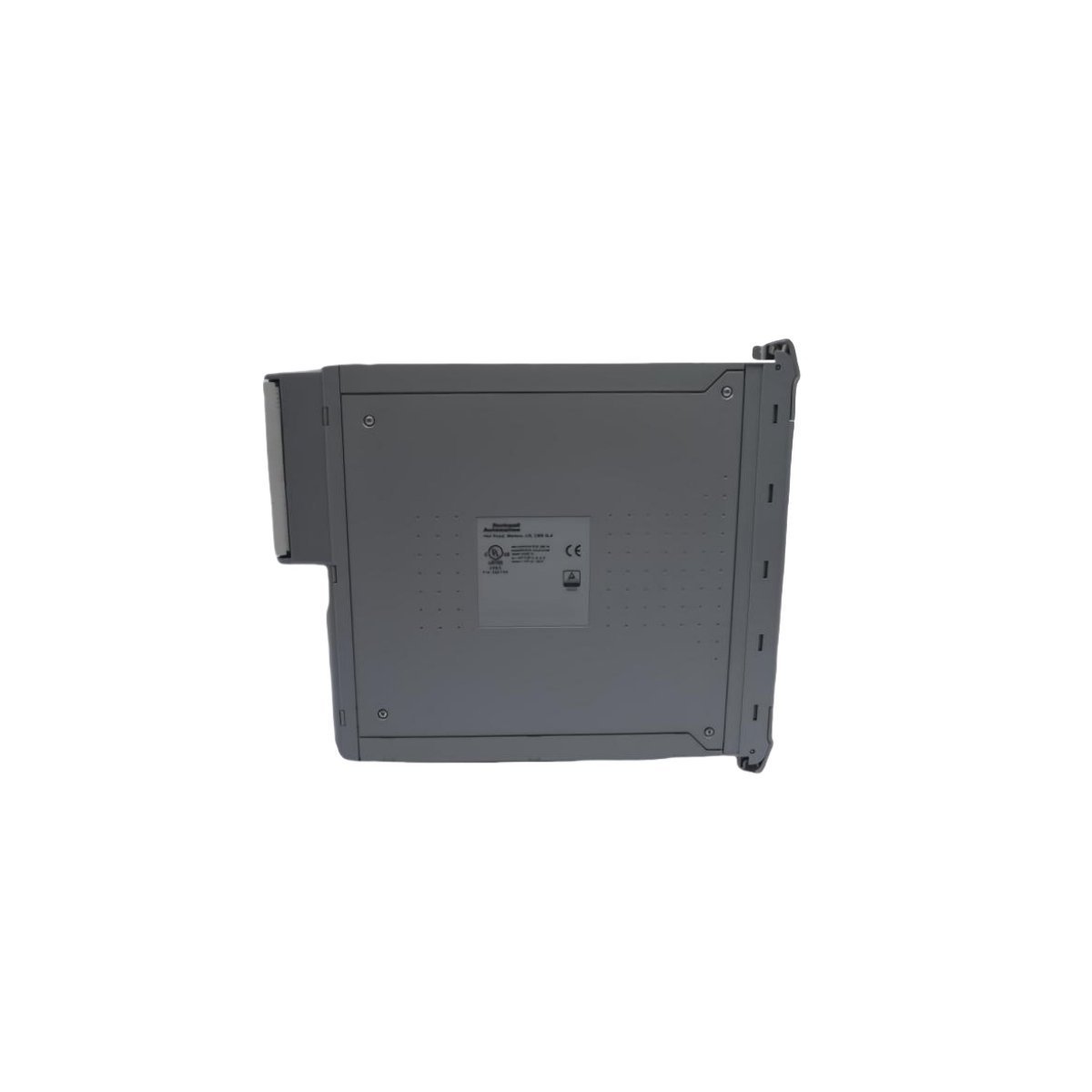

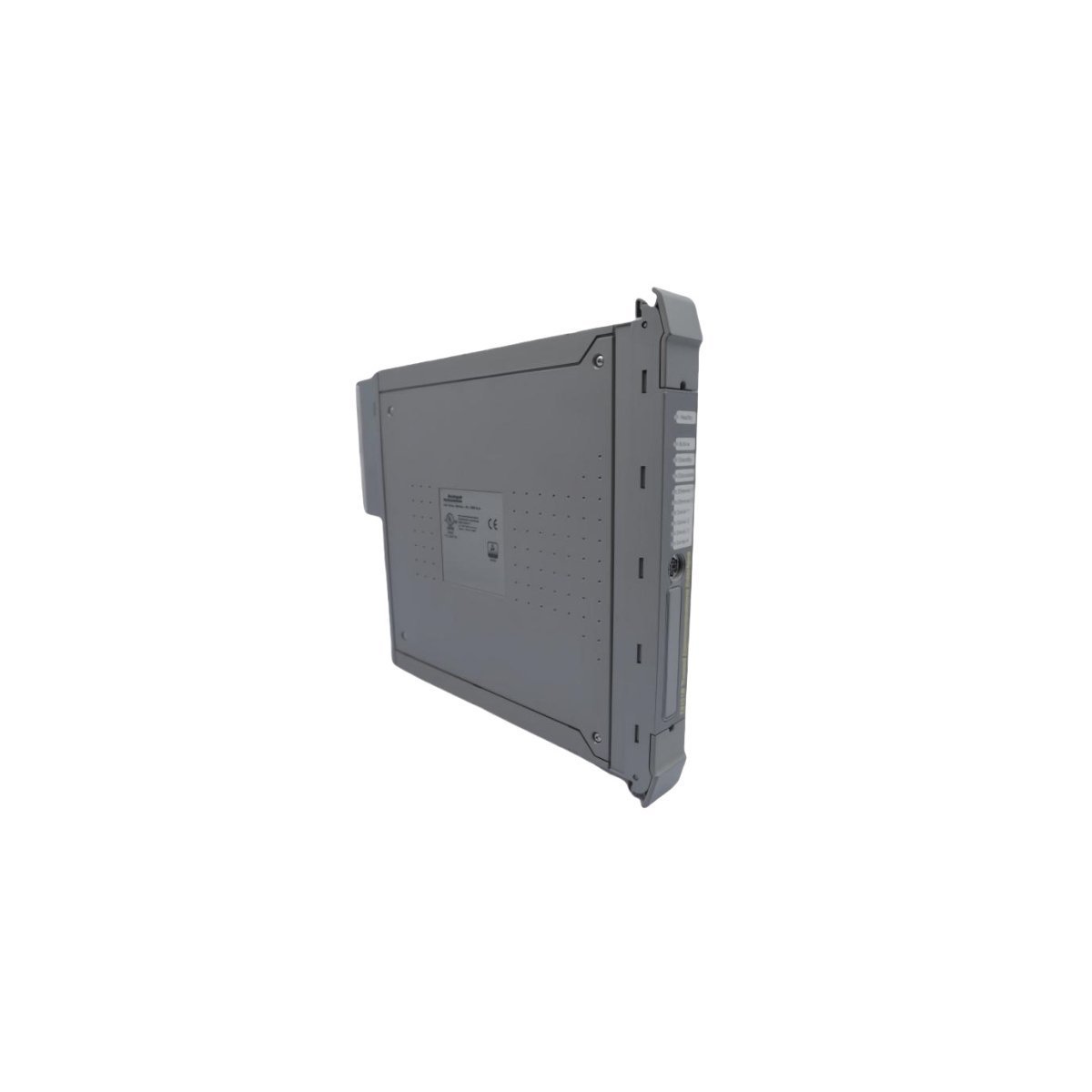

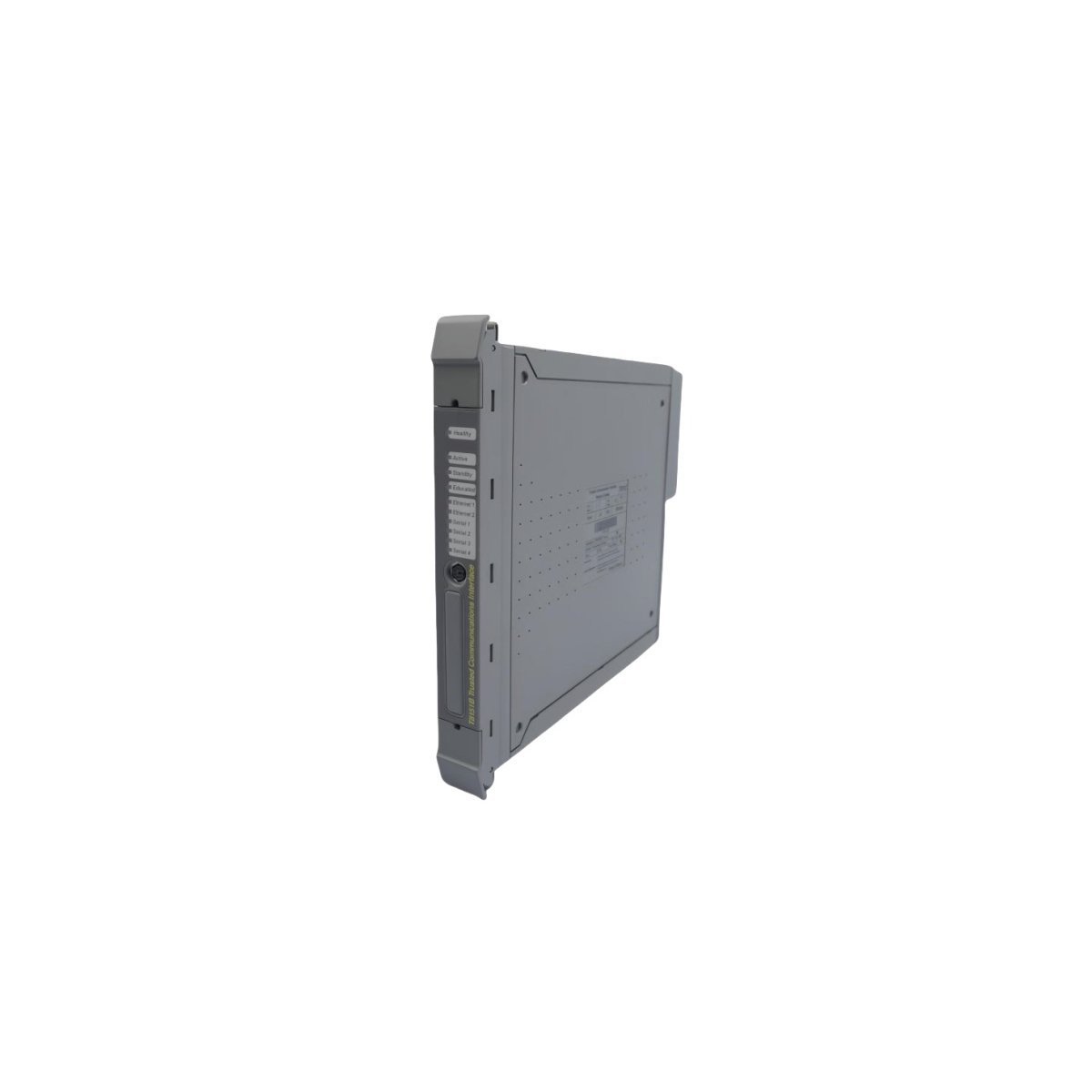

The ICS Triplex T8293C is a Trusted® Power Distribution Module designed for the ICS Regent control platform. It serves as a centralized, fault-tolerant power routing unit that distributes regulated 24V DC to multiple modules within a chassis.
Unlike generic power supplies, the T8293C integrates directly into the Trusted backplane architecture. It supports dual independent power inputs to enable N+1 redundancy. This ensures continuous operation even if one external supply fails.
The module plays a critical role in maintaining system integrity in safety-critical applications such as process automation, nuclear controls, and transportation signaling. By isolating power faults and providing real-time status feedback, it enhances overall system availability.
Key Technical Characteristics
- Input Voltage: Dual 24 VDC (±10%), isolated inputs
- Output: Regulated 24 VDC distributed via backplane
- Redundancy Mode: Automatic switchover on input loss or fault
- Monitoring: Per-channel voltage, current, and fault indication
- Hot-Swappable: Yes – allows replacement without system interruption
- Diagnostic Interface: Communicates status over Trusted Inter-Module Bus (IMB)
- Overcurrent Protection: Electronic current limiting with auto-recovery
- Compliance: Designed for use in IEC 61508 SIL 3 / IEC 61511 environments
- Mounting: Full-slot module for standard ICS Regent chassis
Physical and Logistics Data
| Parameter | Value |
|---|
| Model Number | T8293C |
| Manufacturer | ICS Triplex |
| Product Type | Trusted Power Distribution Module |
| Product Origin | USA |
| Weight | 2.34 kg |
| Dimensions | 145 mm × 300 mm × 45 mm (W×D×H) |
| HS Code | 8537101190 |
| Minimum Order Qty | 1 |
| Availability | In Stock |
| Lifecycle Status | Active |
