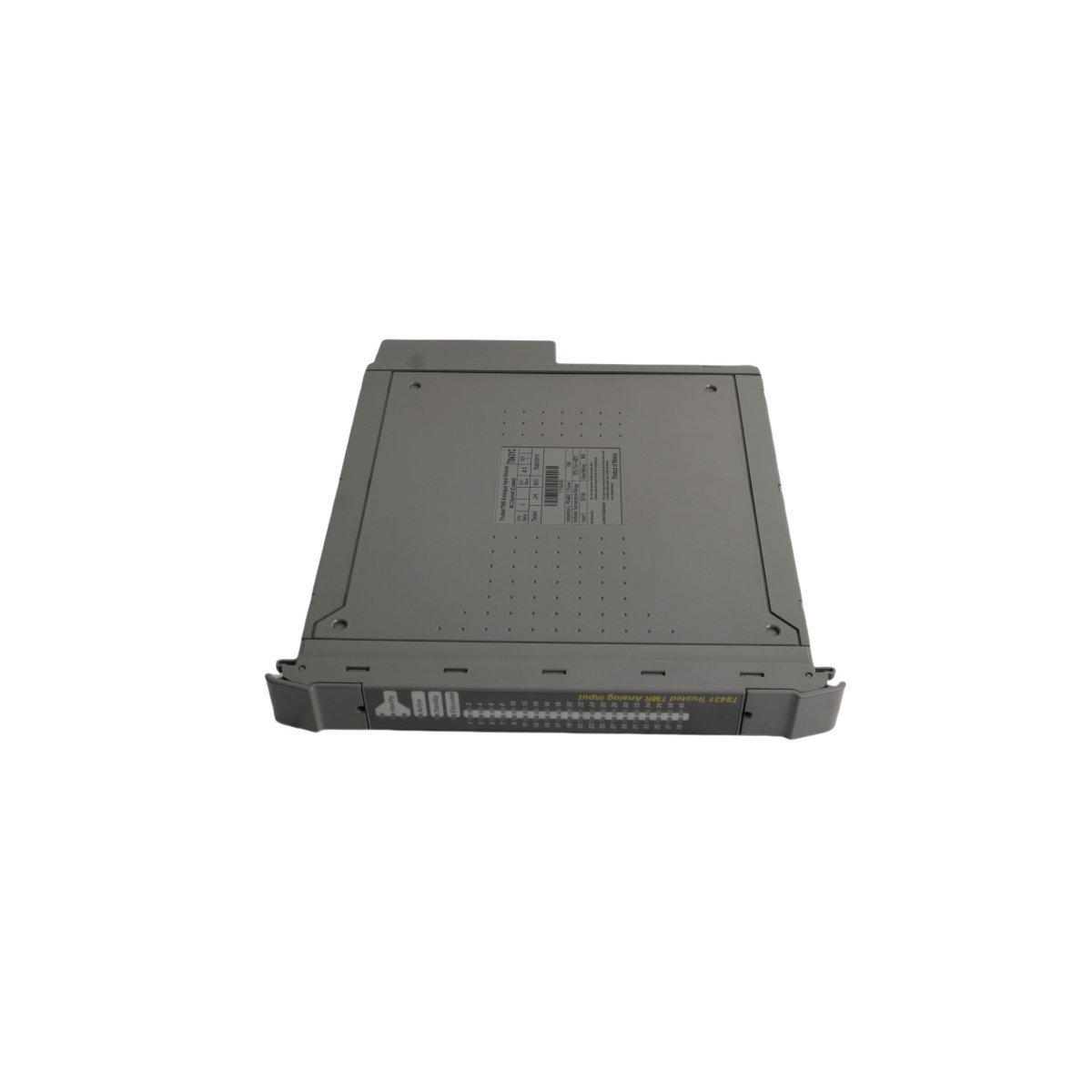

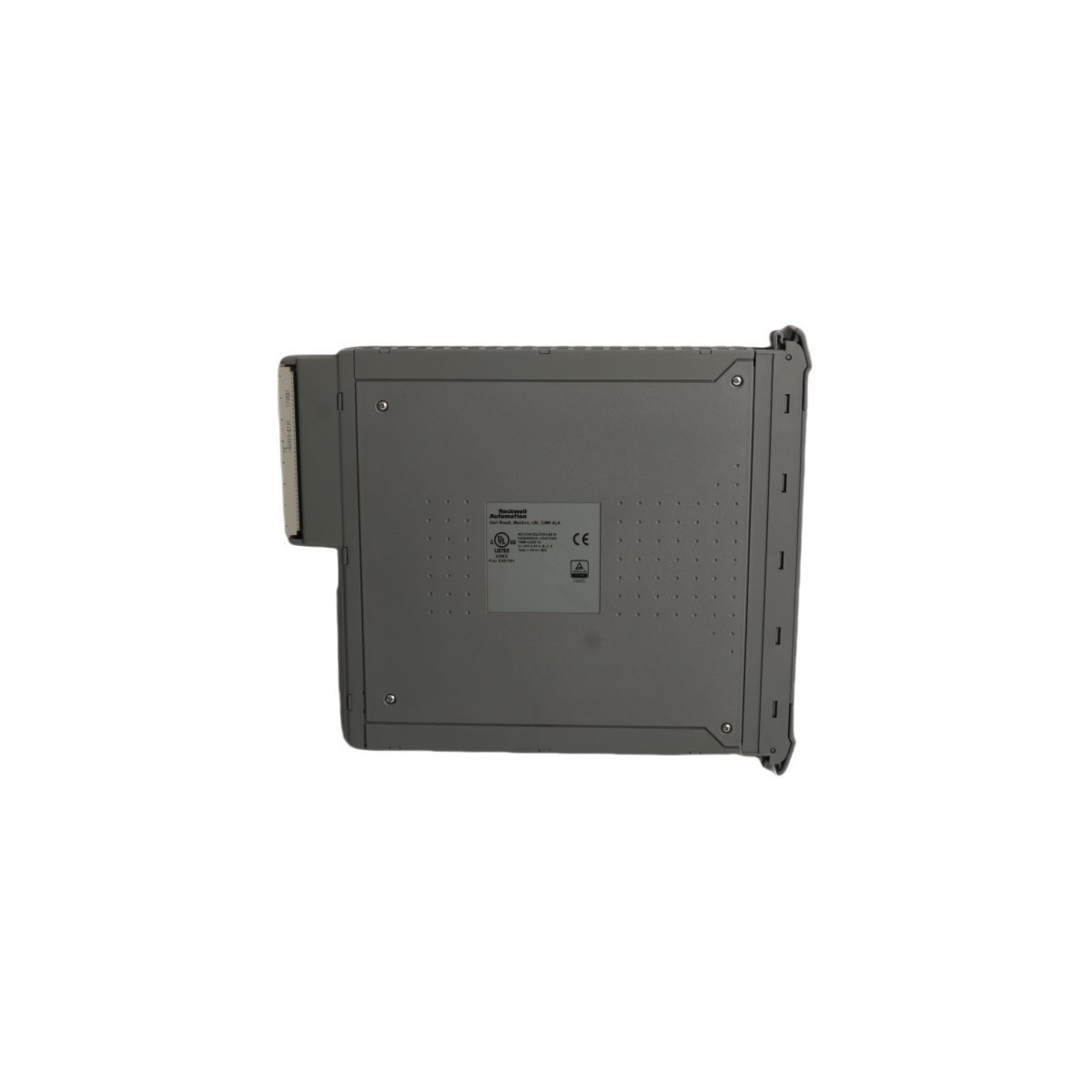

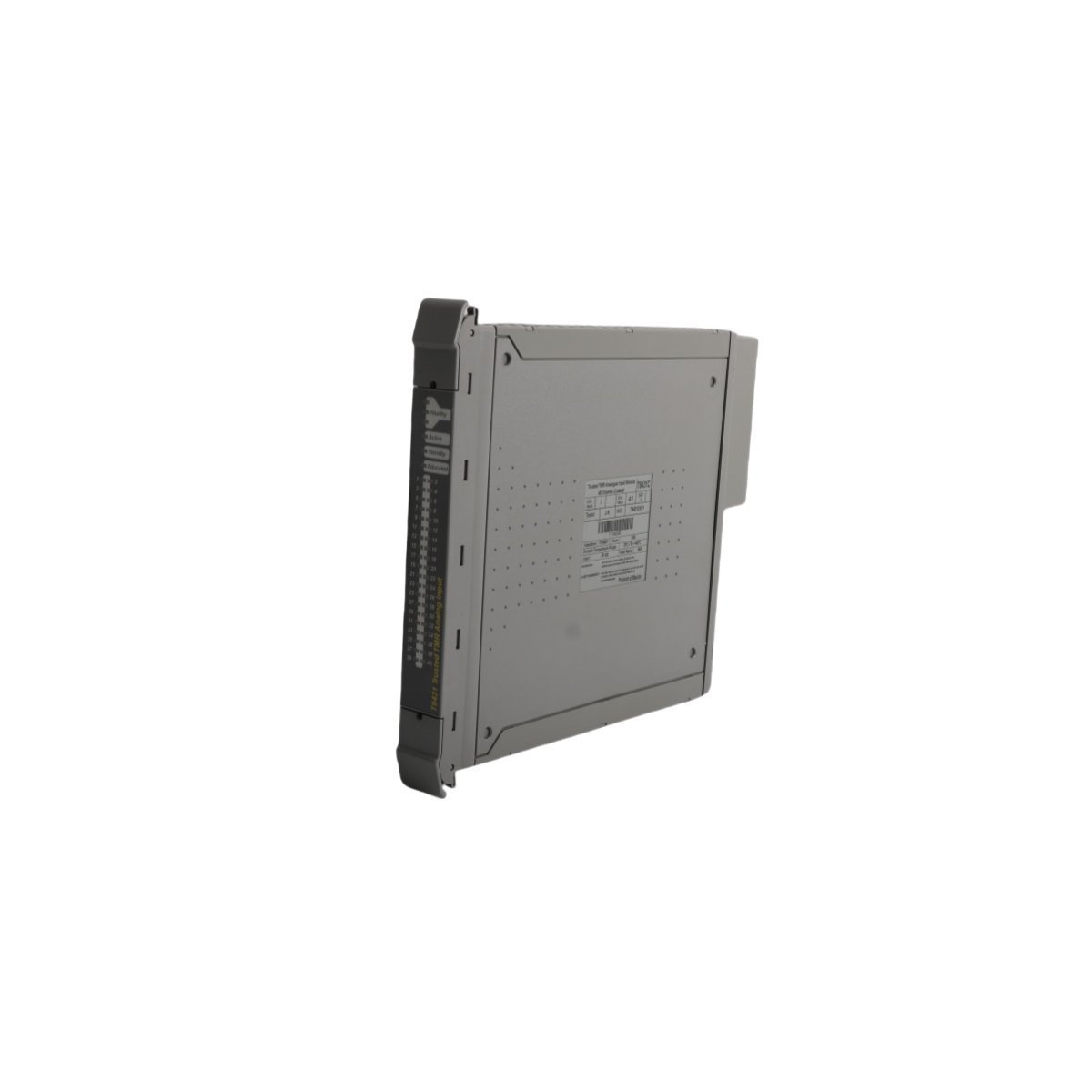

ICS Triplex T8431CX Analog Input Module

The ICS Triplex T8431CX serves as a high-integrity Analog Input Module within the Trusted Triple Modular Redundant (TMR) family. This module manages up to 40 independent input channels for mission-critical industrial processes. It utilizes a sophisticated voting architecture to eliminate single points of failure. Consequently, the T8431CX provides the highest level of availability for safety-related functions. Each channel acts as a current sink to interface with various field sensors.

Module Specifications

Functional Characteristics

The T8431CX module prioritizes data accuracy through advanced diagnostic tools. It monitors every channel for line faults like open circuits and short circuits. Furthermore, the unit features 2500V opto-galvanic isolation to protect the system from electrical surges. These protective measures ensure stable performance in harsh chemical and power plant environments.

Operators benefit from millisecond-accurate Sequence of Events (SOE) reporting. The module records signal changes with 1ms resolution for precise post-event analysis. Additionally, the front panel includes LED indicators for real-time status monitoring. Maintenance teams can perform hot-swapping via SmartSlot technology. This feature allows module replacement without interrupting the active process or system power.

Industrial Applications

Engineers typically deploy the T8431CX in Safety Instrumented Systems (SIS). It is ideal for monitoring critical variables like pressure, temperature, and flow rates. Typical industries include offshore oil platforms, gas refineries, and nuclear power generation. Because the module meets SIL 3 standards, it effectively reduces operational risks in high-stakes settings. The T8431CX provides a future-proof solution for any facility requiring zero-compromise signal reliability.
