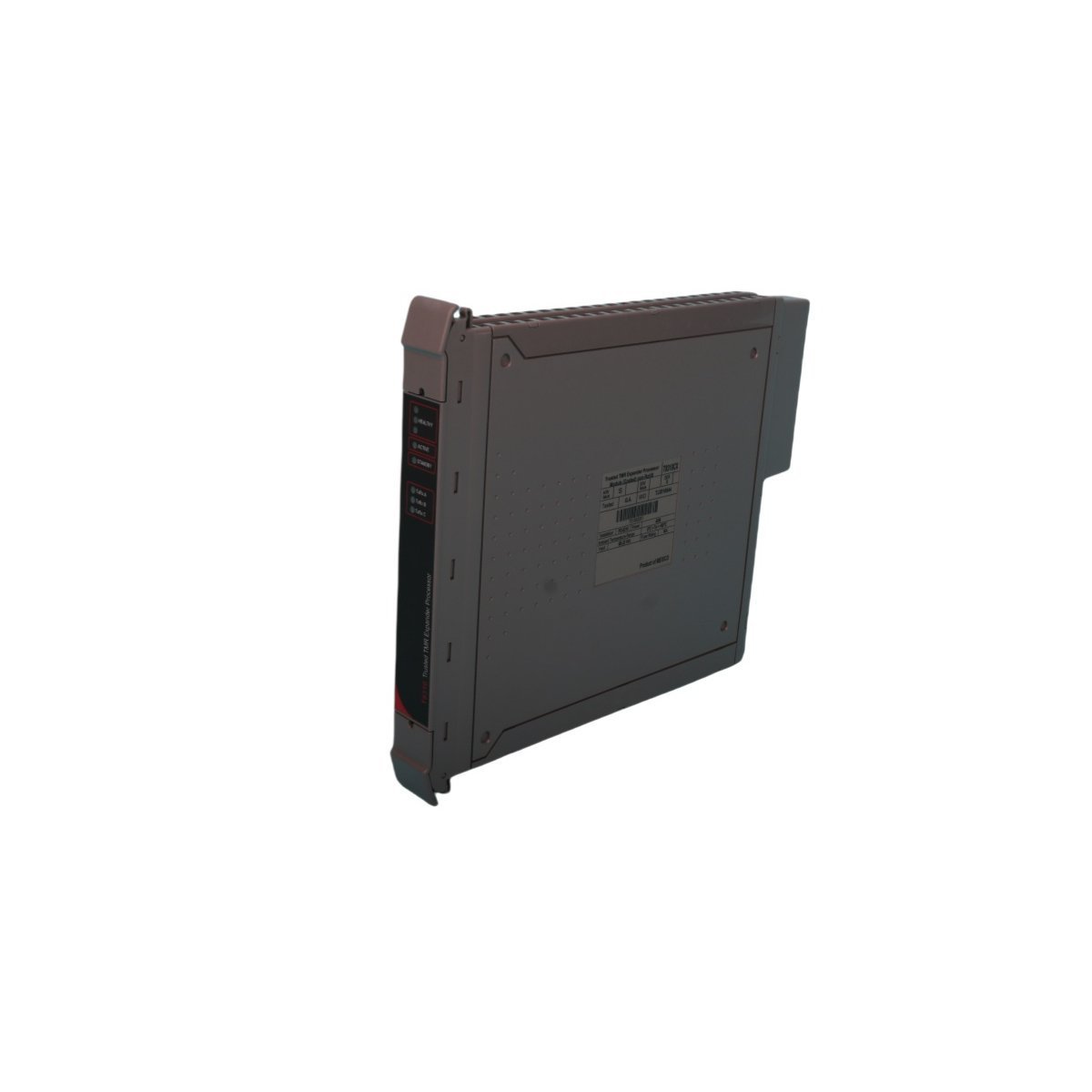

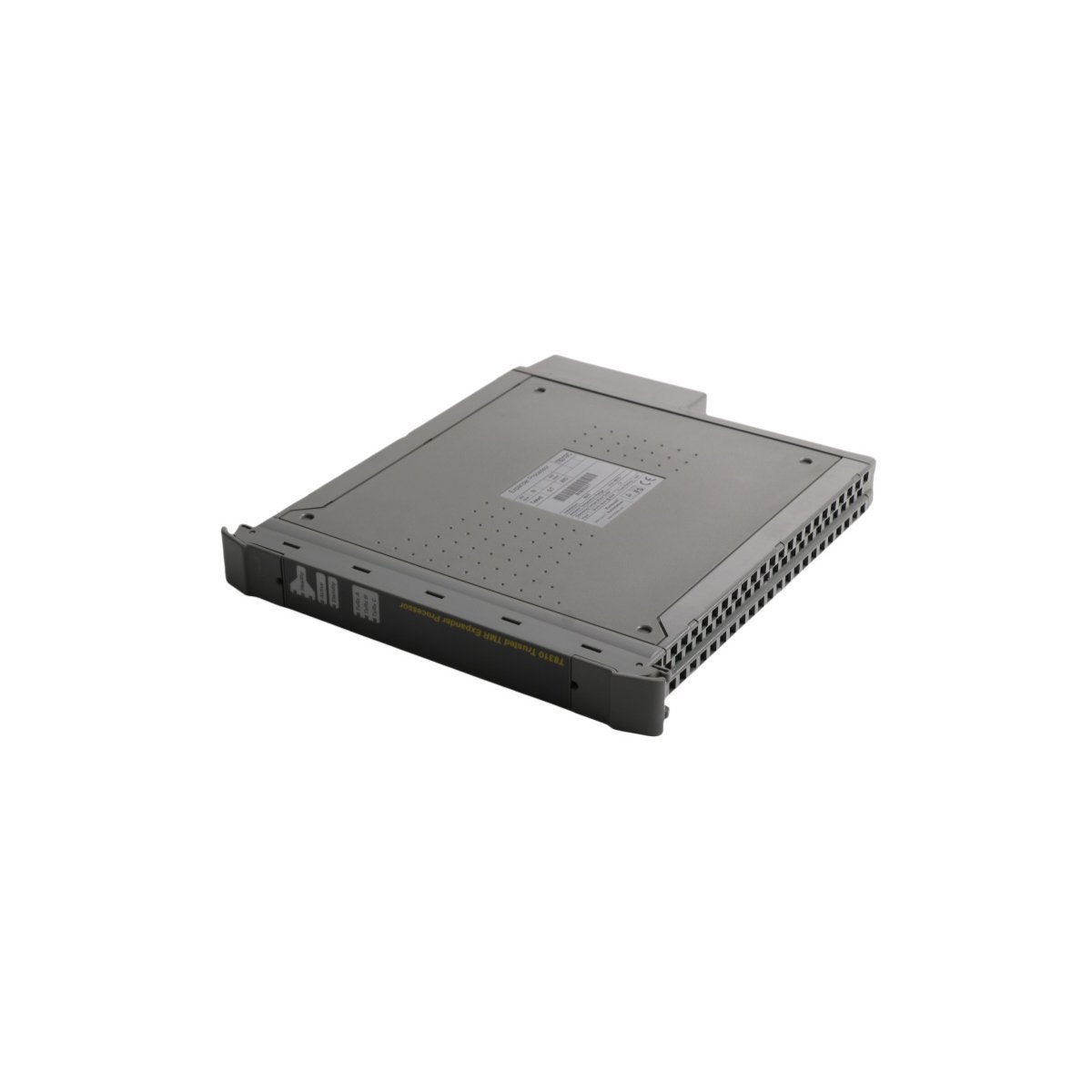

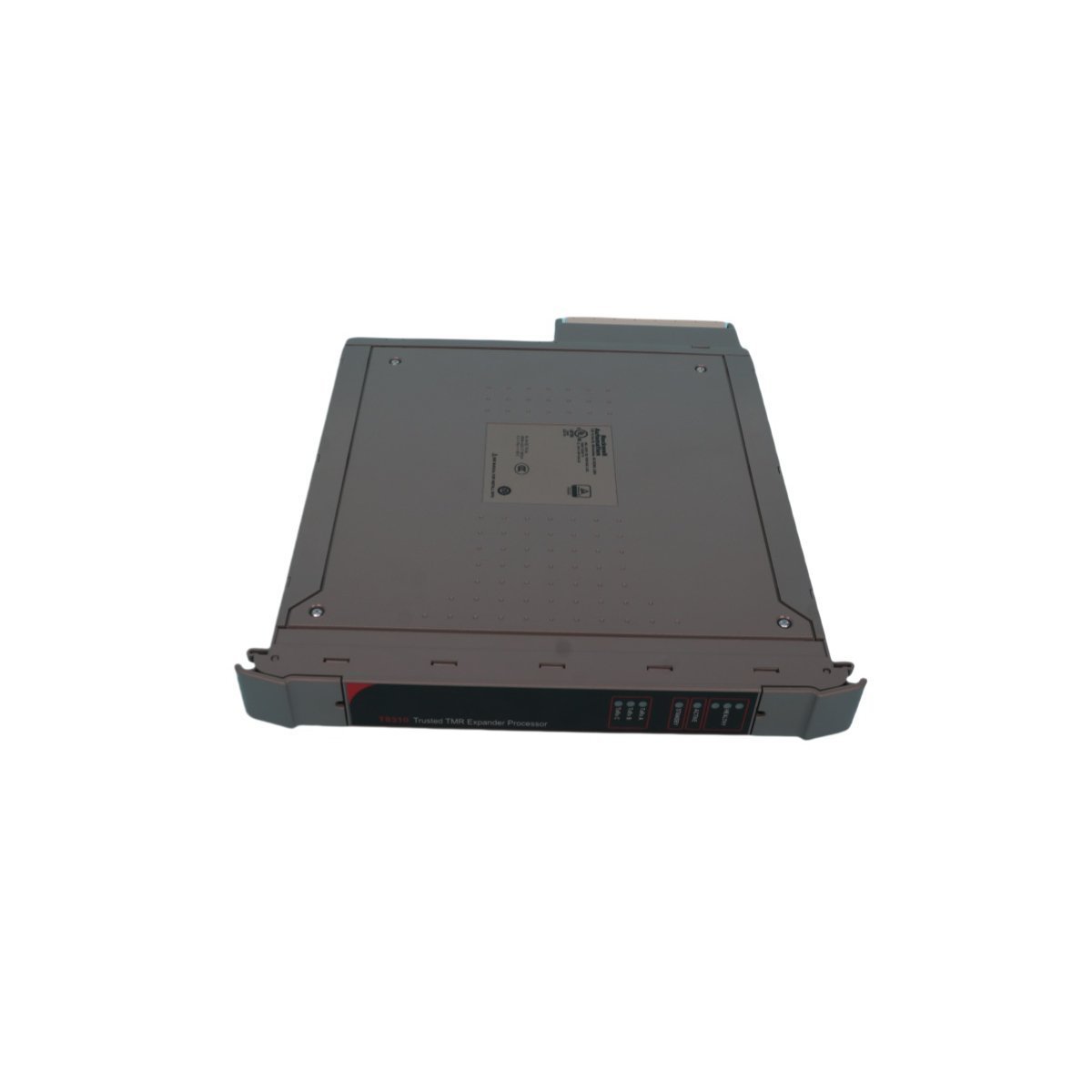

The ICS Triplex T8310 serves as a slave processor module within the Trusted® Triple Modular Redundant (TMR) control platform. It installs into dedicated slots of a Trusted Expander Chassis to extend system I/O capacity across multiple racks while preserving real-time determinism and safety integrity.
This module bridges the Inter-Module Bus (IMB) between primary and remote chassis using standard Unshielded Twisted Pair (UTP) cabling. As a result, engineers can scale I/O networks without compromising the high-speed, fault-tolerant communication backbone essential for SIL 3 applications.
Key Technical Characteristics
- Architecture: Hardware Implemented Fault Tolerance (HIFT) with TMR (3-2-0 voting)
- Processor: Dual 32-bit ARM Cortex-A9 cores
- Memory: 2 GB DDR3 RAM
- Communication Interfaces:
- Ethernet (for diagnostics and configuration)
- RS-485 (for legacy or auxiliary links)
- Bus Connection: IMB over UTP (Cat 5e or better recommended)
- Hot-Swap Support: Yes – enables replacement without system shutdown
- Fault Containment: Isolates failures at module, chassis, or bus level
- Diagnostics: Continuous self-test, front-panel status LEDs, health monitoring
- Power Input: 24 VDC (±10%)
- Certifications: Designed for use in IEC 61508 SIL 3 / IEC 61511 environments
Physical and Logistics Data
| Parameter | Value |
|---|
| Model Number | T8310 |
| Manufacturer | ICS Triplex |
| Product Type | Trusted Expander Processor (TMR Slave) |
| Product Origin | USA |
| Weight | 1.26 kg |
| Dimensions | 302 mm × 265 mm × 30 mm (W×D×H) |
| HS Code | 8537101190 |
| Minimum Order Qty | 1 |
| Availability | In Stock |
| Lifecycle Status | Active |
