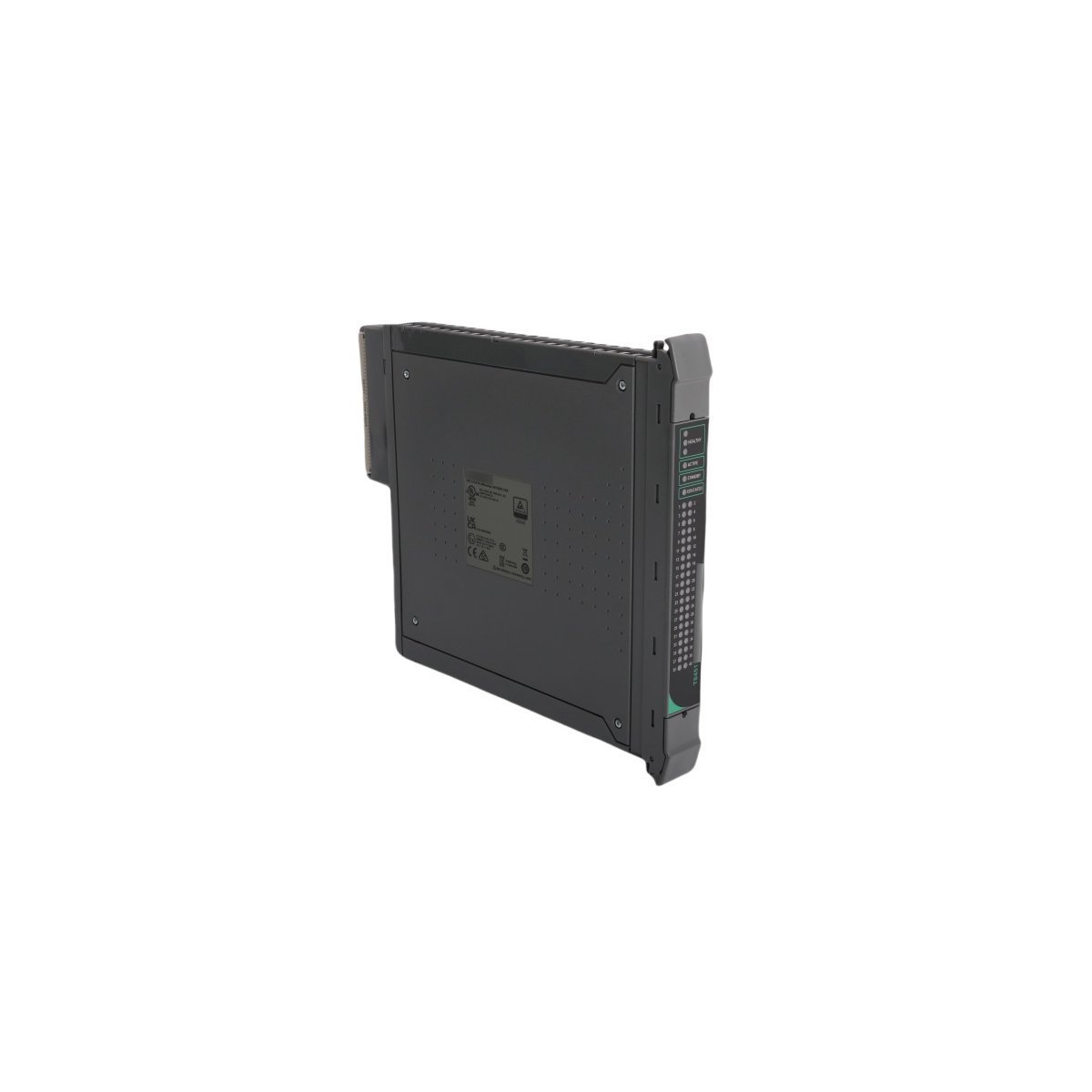

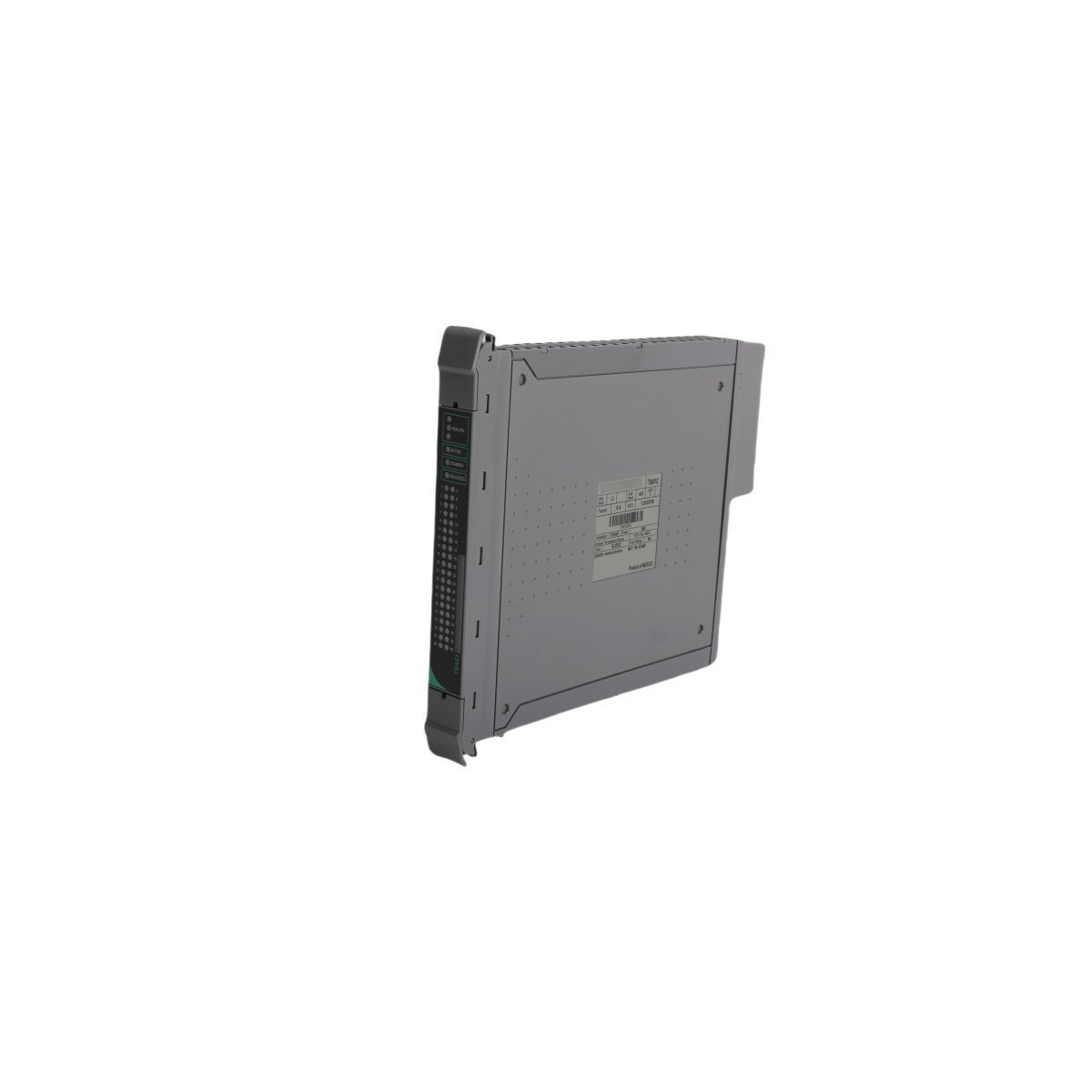

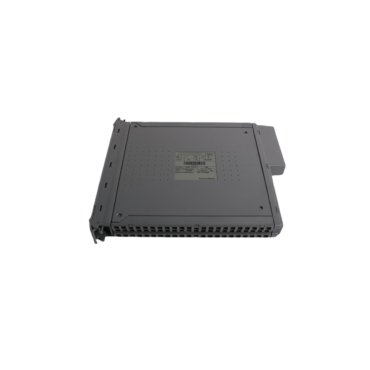

ICS Triplex T8300C Expander Processor

The ICS Triplex T8300C functions as a trusted expander processor within the Regent Control System architecture. It enables users to increase input and output channel density without redesigning the core control system. This module connects directly to the backplane of a compatible chassis and communicates with the main controller via a high-reliability Ethernet-based protocol.

Engineers typically deploy the T8300C in safety-critical applications such as oil and gas processing, power generation, and heavy manufacturing. Its primary role is to interface with field devices—including sensors, valves, and actuators—while maintaining deterministic response times and fault-tolerant operation.

Key Technical Characteristics

• Module Type: Trusted Expander Processor
• Compatible System: ICS Triplex Regent Control System
• Hot-Swappable: Yes – supports live insertion and removal
• Communication Interface: Integrated Ethernet router for peer-to-peer and controller communication
• Diagnostic Capability: Real-time module and channel-level diagnostics
• Redundancy Support: Fully compatible with redundant controller architectures
• Operating Environment: Designed for industrial settings with extended temperature and vibration tolerance

Physical and Logistics Data

Integration and Application Notes

Because the T8300C operates as part of a Trusted computing environment, it undergoes rigorous self-checks during startup and runtime. These checks ensure data integrity and prevent undetected faults from propagating through the control network. The module also supports synchronized scanning with other Trusted processors, which is essential for time-coordinated control strategies.

When expanding an existing Regent system, users can install multiple T8300C units in a single chassis. Each module automatically registers with the controller, simplifying configuration and reducing engineering overhead. Furthermore, its built-in Ethernet router facilitates remote monitoring and firmware updates without requiring additional networking hardware.
