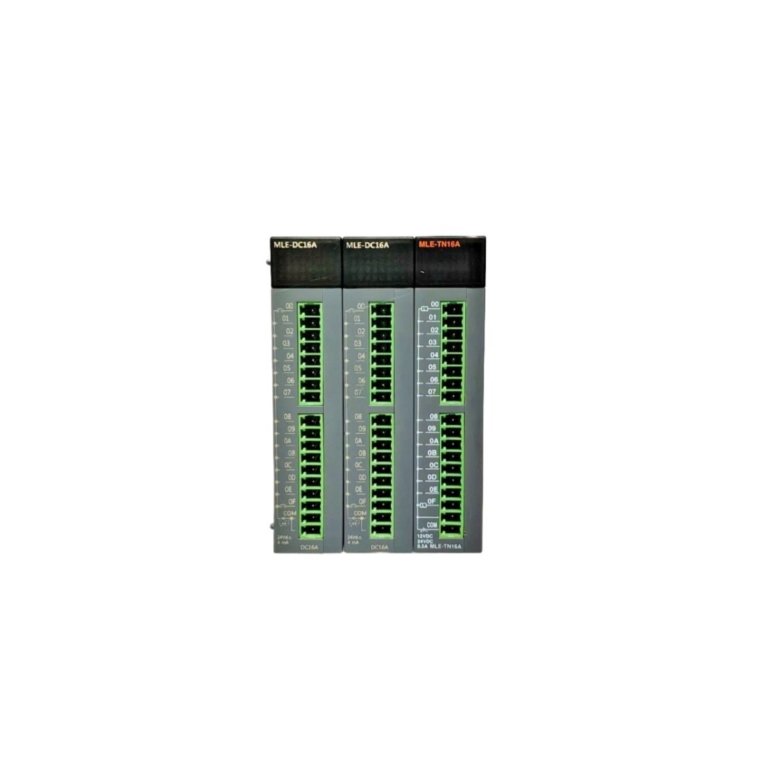

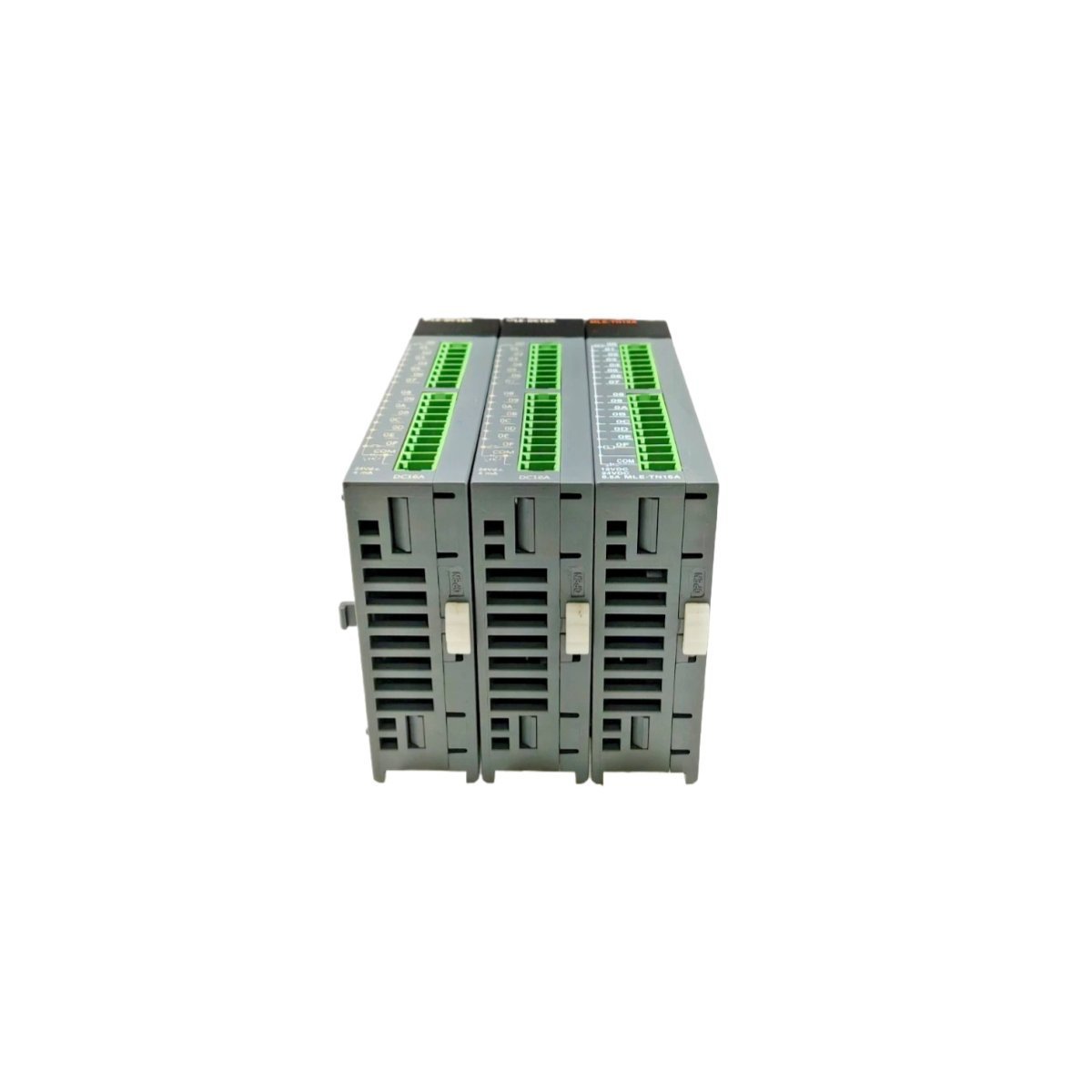

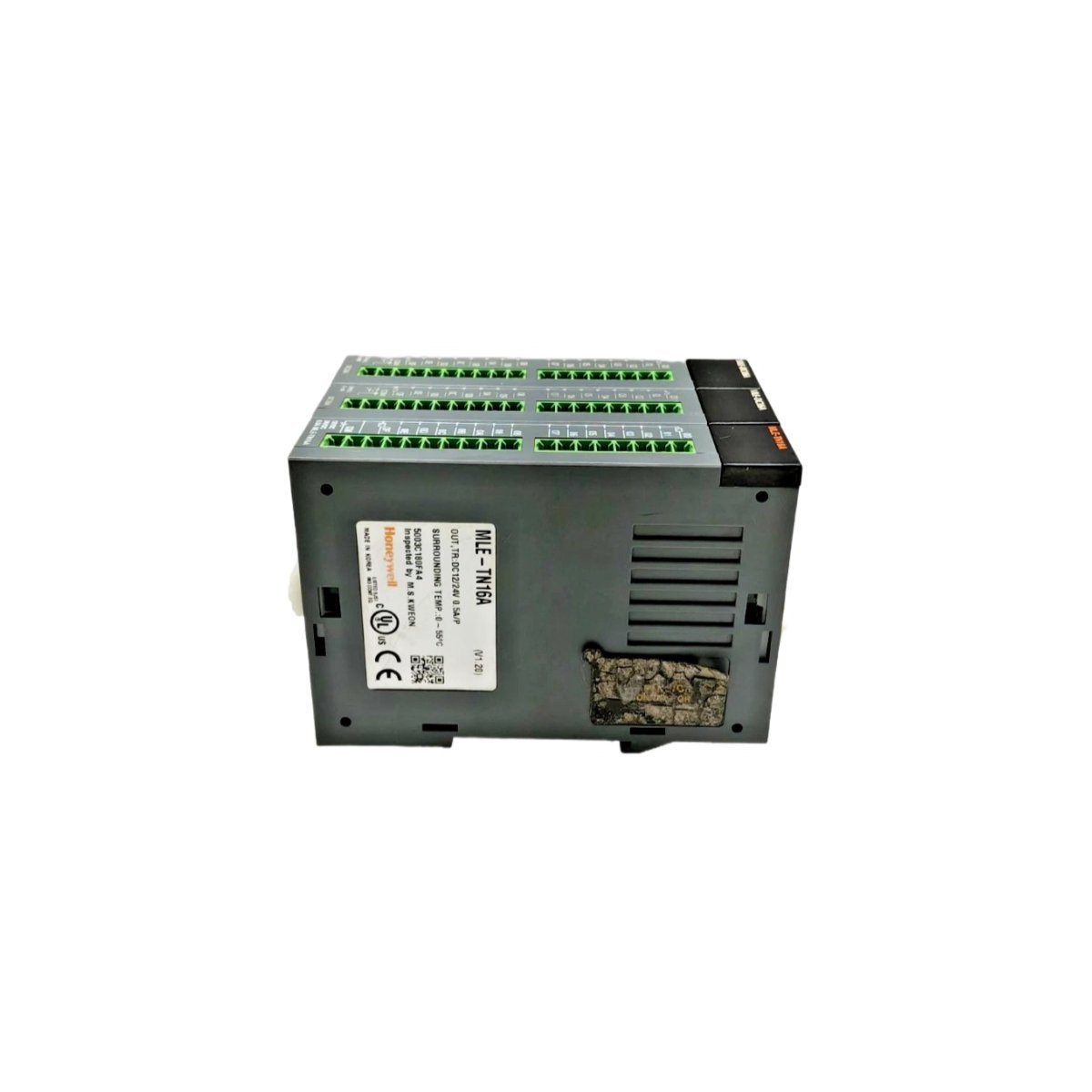

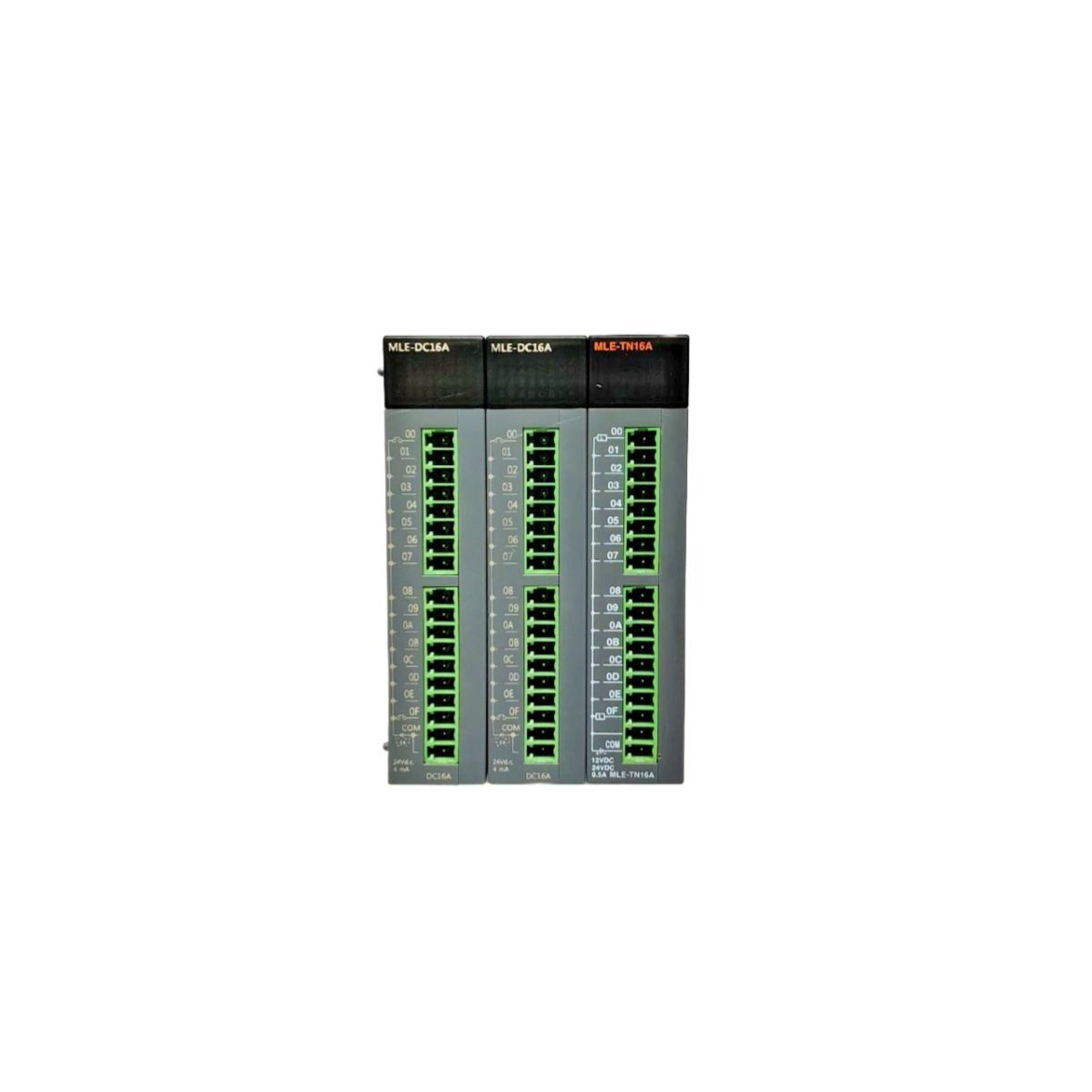

Honeywell MLE-DC16A Input Module

The Honeywell MLE-DC16A serves as a high-density digital input expansion for the MasterLogic ML50 PLC series. This module facilitates precise signal acquisition from field devices like sensors and switches. It features 16 discrete input points designed for 24V DC operation. To ensure system stability, each channel utilizes photo-coupler insulation. This optical barrier protects the internal PLC logic from external electrical noise. Consequently, the module delivers reliable performance in electrically “noisy” industrial environments.

Electrical Performance and Insulation Standards

Reliability remains a core feature of the MLE-DC16A hardware design. The module operates effectively within a voltage range of 20.4V to 28.8V DC. Specifically, the unit recognizes an “ON” state at 19V DC with at least 3mA current. It accurately identifies an “OFF” state when the voltage drops below 6V DC. Furthermore, the insulation resistance exceeds 10MΩ to maintain circuit integrity. The module also withstands pressure up to 560Vrms for three cycles. Thus, it meets the rigorous safety requirements of modern industrial sectors.

System Integration and Diagnostic Capabilities

Integration with existing Honeywell ecosystems is seamless and efficient. The MLE-DC16A connects directly with Experion PKS, HS, and LS supervisory platforms. It supports diverse networking protocols including Profibus DP, DeviceNet, and Modbus. Moreover, the module includes self-diagnostic functions to monitor hardware health. Built-in hot-swapping capabilities allow for module replacement without interrupting process power. This feature significantly reduces maintenance downtime in 24/7 manufacturing operations.

Key Technical Characteristics

• Provides 16 high-speed digital input points for 24V DC signals.
• Utilizes photo-coupler technology for superior electrical isolation.
• Includes self-diagnostic tools for rapid fault detection and resolution.
• Supports hot-swapping to ensure continuous system availability.
• Integrates easily with Honeywell SCADA and DCS architectures.
• Fits compact control cabinets due to its space-saving 0.4kg design.

Technical Specifications

Industrial Applications

The MLE-DC16A is ideal for high-precision machine control and factory automation. Typical deployments include automotive assembly lines and complex packaging systems. In the energy sector, it monitors critical status contacts for power distribution equipment. Its robust American-made construction ensures longevity in demanding climates. Because it supports standardized function blocks, engineers can quickly configure the module for unique tasks. This versatility makes it a cornerstone of modern Honeywell automation solutions.
