Technical Specification Summary
- Model Number: CC-TAIX11
- Part Number: 51308365-175
- Manufacturer: Honeywell
- System Compatibility: Experion PKS Series C
- Module Type: Redundant Analog Input IOTA
- Installation Type: DIN Rail or Panel Mount
- Physical Dimensions: 11 cm x 7 cm x 6 cm
- Unit Weight: 0.14 kg
- Manufacturing Origin: USA

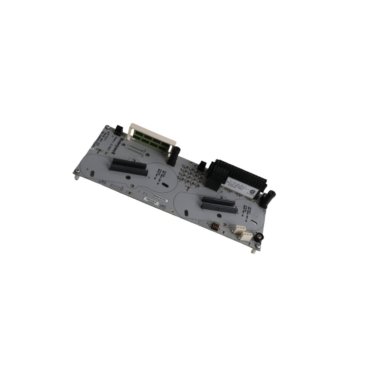

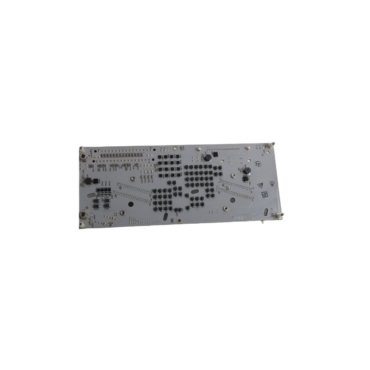

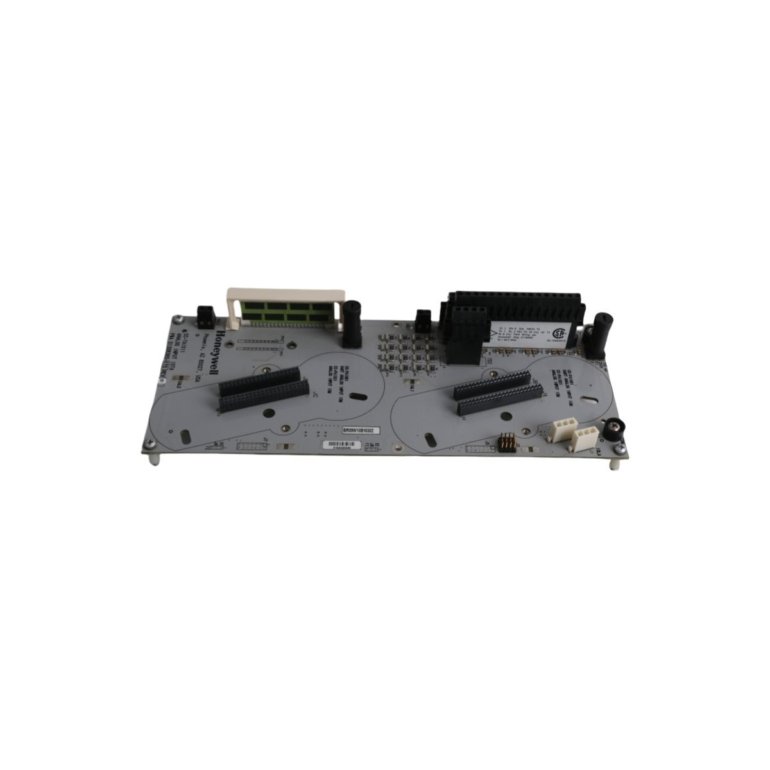

The Honeywell CC-TAIX11 (51308365-175) serves as a critical Input Output Termination Assembly (IOTA) for the Experion PKS Series C architecture. This specific model supports redundant analog input configurations, ensuring that the control system maintains continuous operation even if a hardware failure occurs. By providing a stable physical interface for field wiring, the CC-TAIX11 facilitates the precise transfer of analog signals from sensors to the controller. This reliability makes the unit indispensable for safety-critical environments where process downtime results in significant operational risks.
Fault Tolerance and Redundant Architecture
System availability drives the design of the CC-TAIX11 assembly. The redundant IOTA layout allows two identical Analog Input modules to mount onto a single base, which creates a fail-safe environment for process data. Specifically, if the primary module encounters an error, the secondary module takes control immediately without interrupting the signal flow. Furthermore, this architecture supports hot-swapping, enabling technicians to replace faulty components while the system remains live. Consequently, plant operators achieve much higher levels of uptime in mission-critical applications.
Diagnostic Capabilities and Signal Integrity
Beyond basic signal termination, the CC-TAIX11 incorporates advanced diagnostic features to simplify system maintenance. The assembly monitors the health of the connected I/O modules and the integrity of the field loops in real time. For this reason, the system can identify open circuits or short-circuits before they lead to process trips. Additionally, the compact mechanical footprint of 11x7x6cm allows for efficient mounting within standard Honeywell enclosures. This space-saving design does not compromise performance, as the unit continues to deliver high-precision data acquisition for complex automation tasks.
