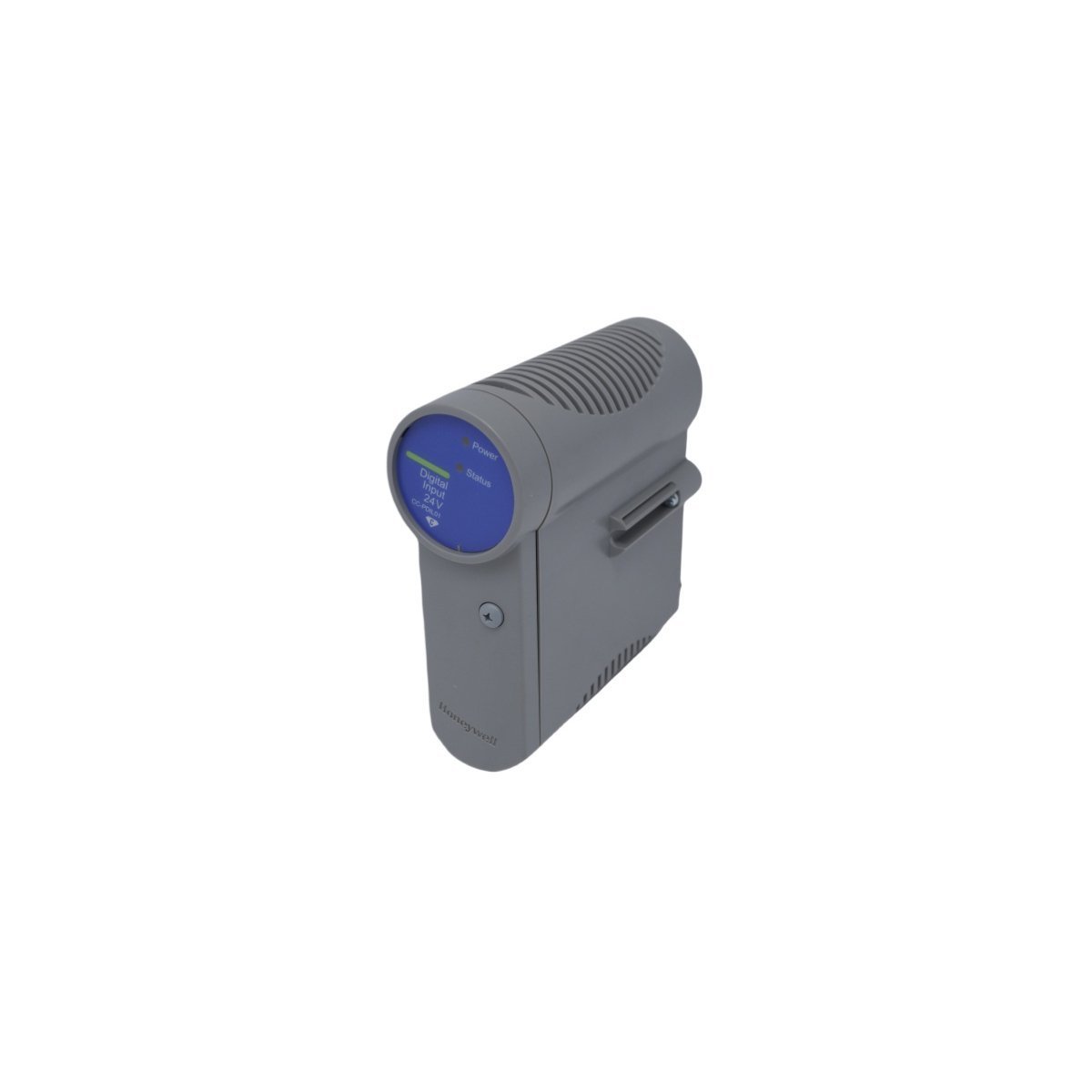

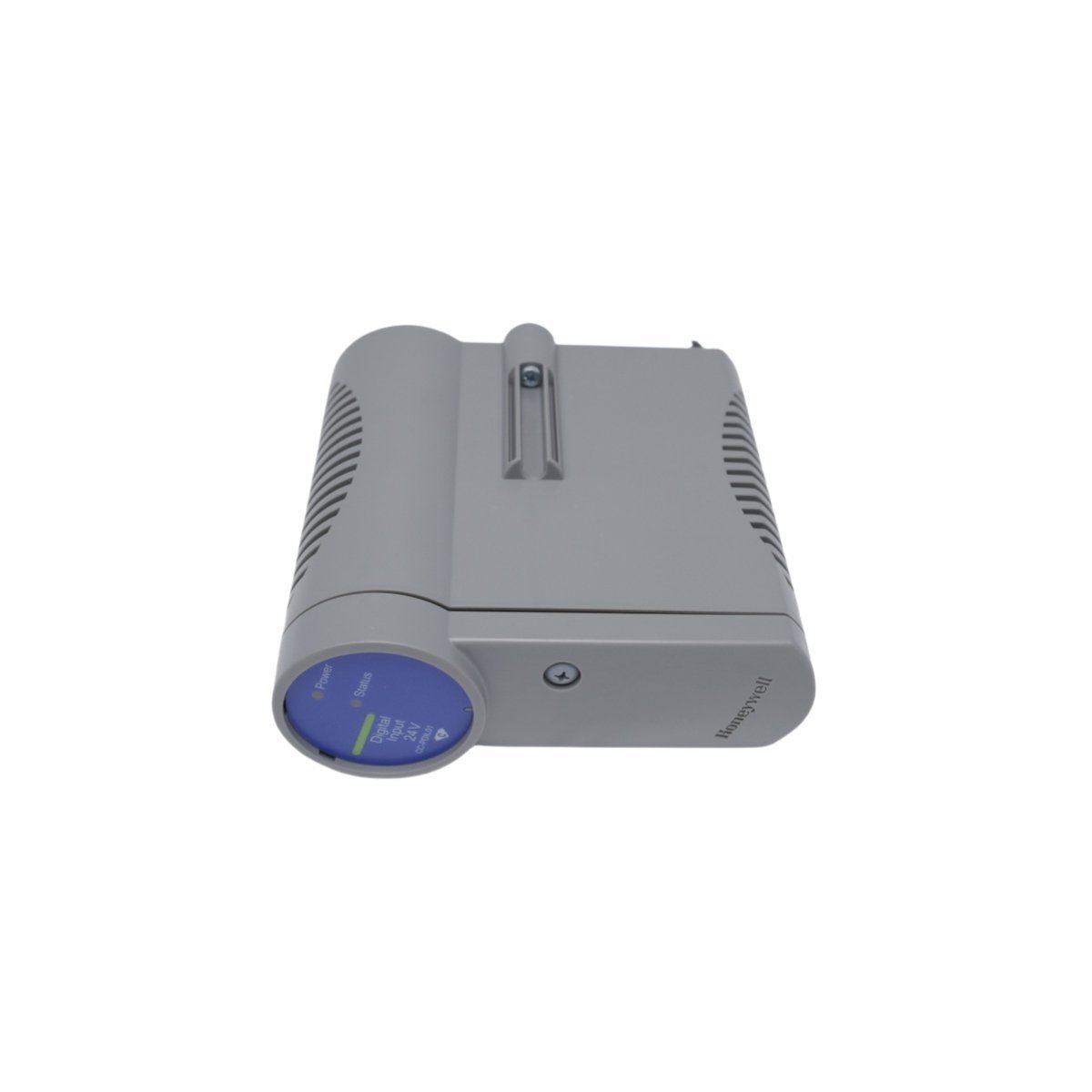

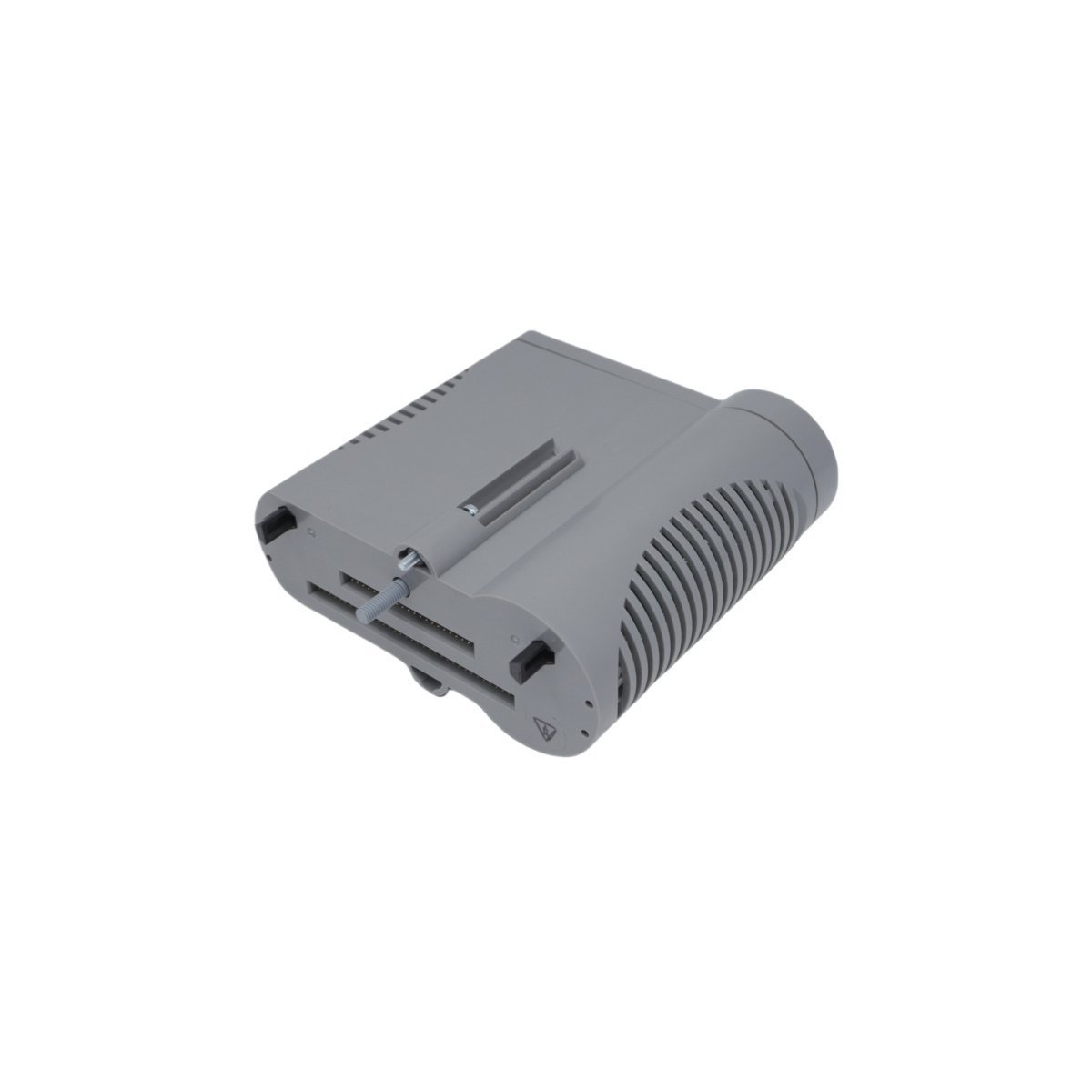

Honeywell CC-PDIL01 51405040-176 Digital Input Module

The Honeywell CC-PDIL01 serves as a high-performance interface for the Experion PKS Series C architecture. This digital input module manages discrete signals from field devices like switches and sensors. It converts 24V DC electrical pulses into actionable data for the controller. Consequently, it supports precise monitoring of automated sequences and machine states. The hardware excels in high-speed manufacturing environments where timing is critical. Its compact Series C form factor optimizes cabinet space while maintaining high channel density.

Advanced Noise Immunity and Signal Protection

Honeywell incorporates sophisticated filtering technology to ensure maximum signal integrity. This feature effectively eliminates electromagnetic interference and signal bounce from mechanical contacts. Furthermore, the 51405040-176 provides superior electrical isolation between all input channels. This isolation protects the central control system from field-side voltage surges. The module also features adaptive filtering to maintain accuracy across varying signal conditions. Therefore, operators receive reliable data despite the electrical noise found in heavy industrial plants.

Primary Technical Specifications

The following table provides the mechanical and operational details for the CC-PDIL01 module.
