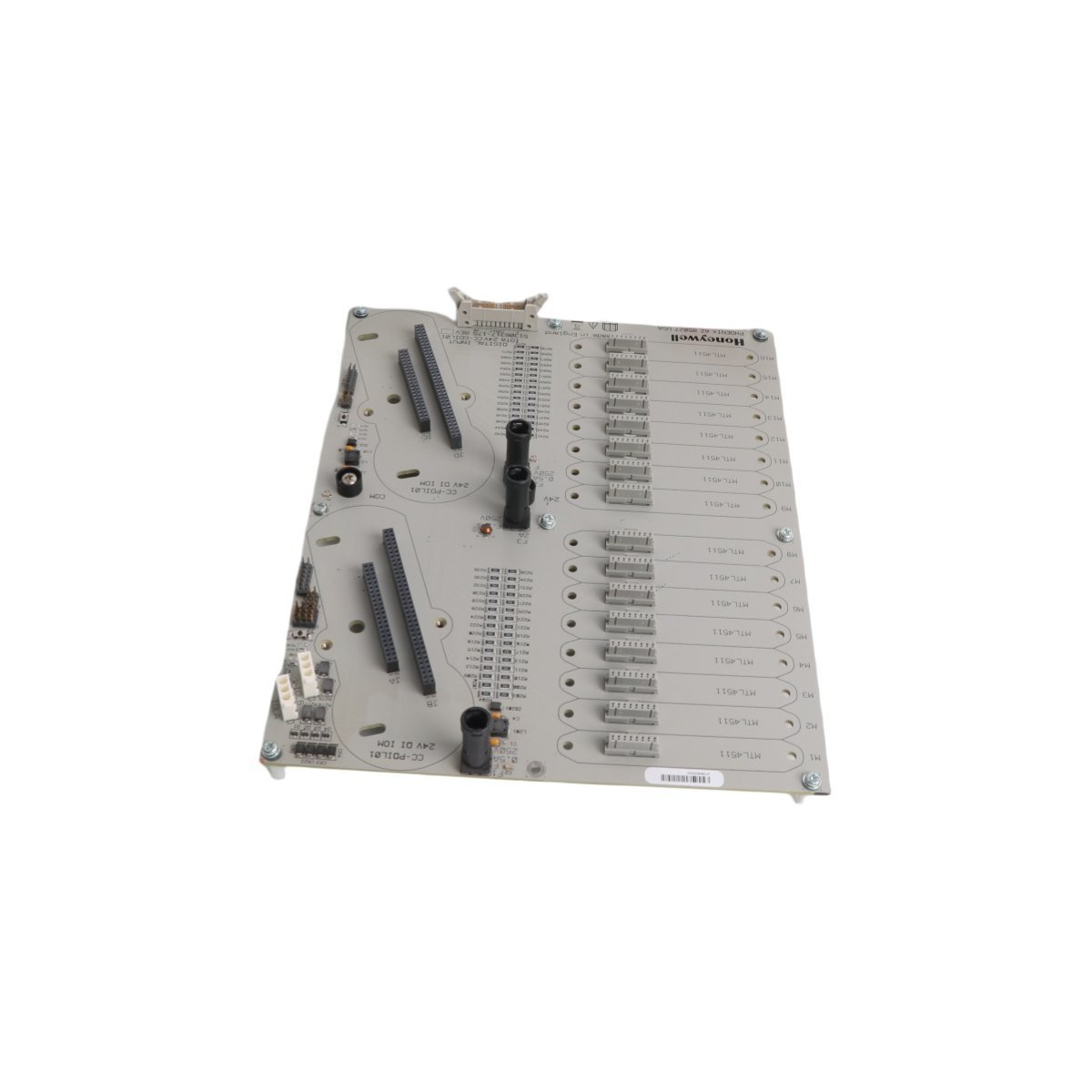

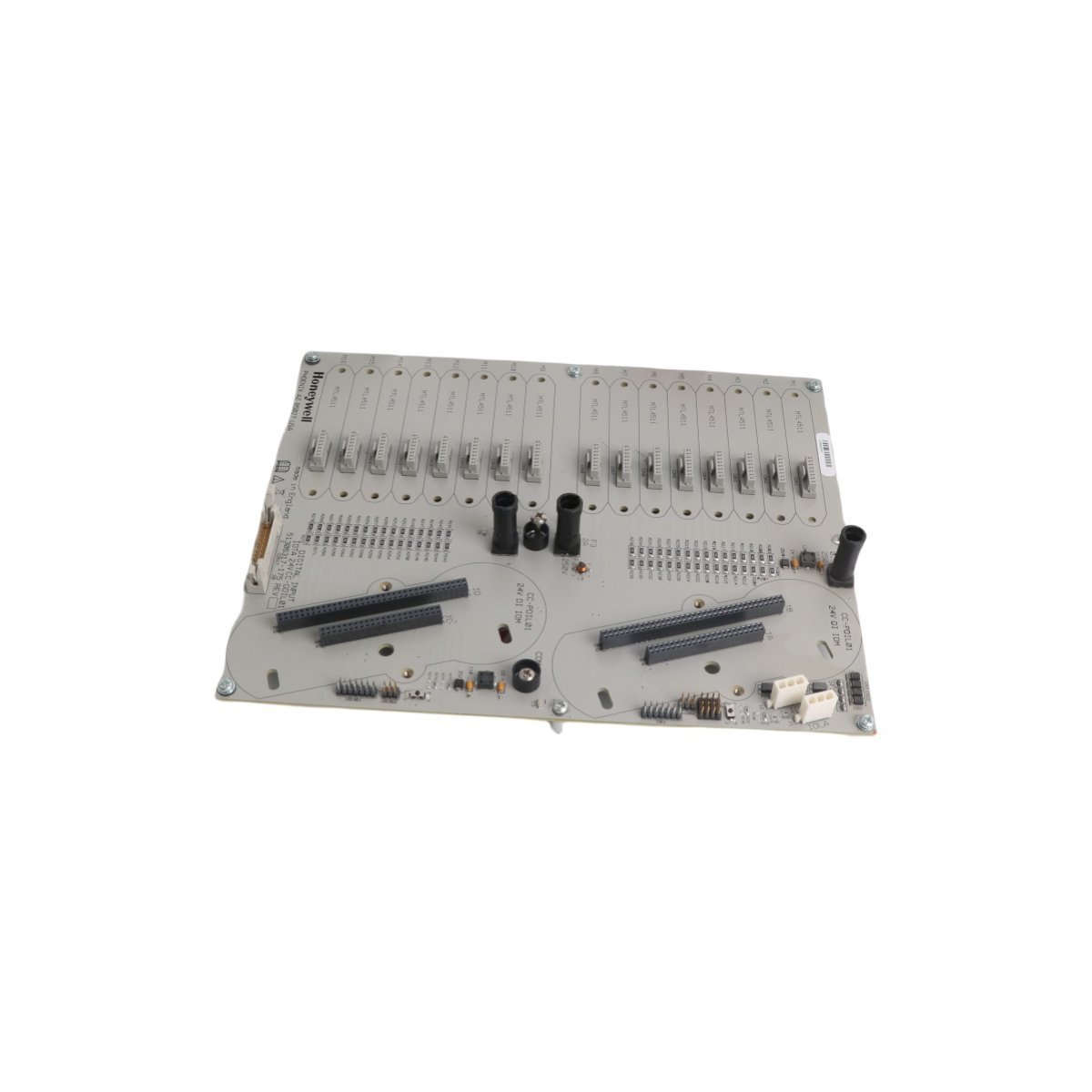

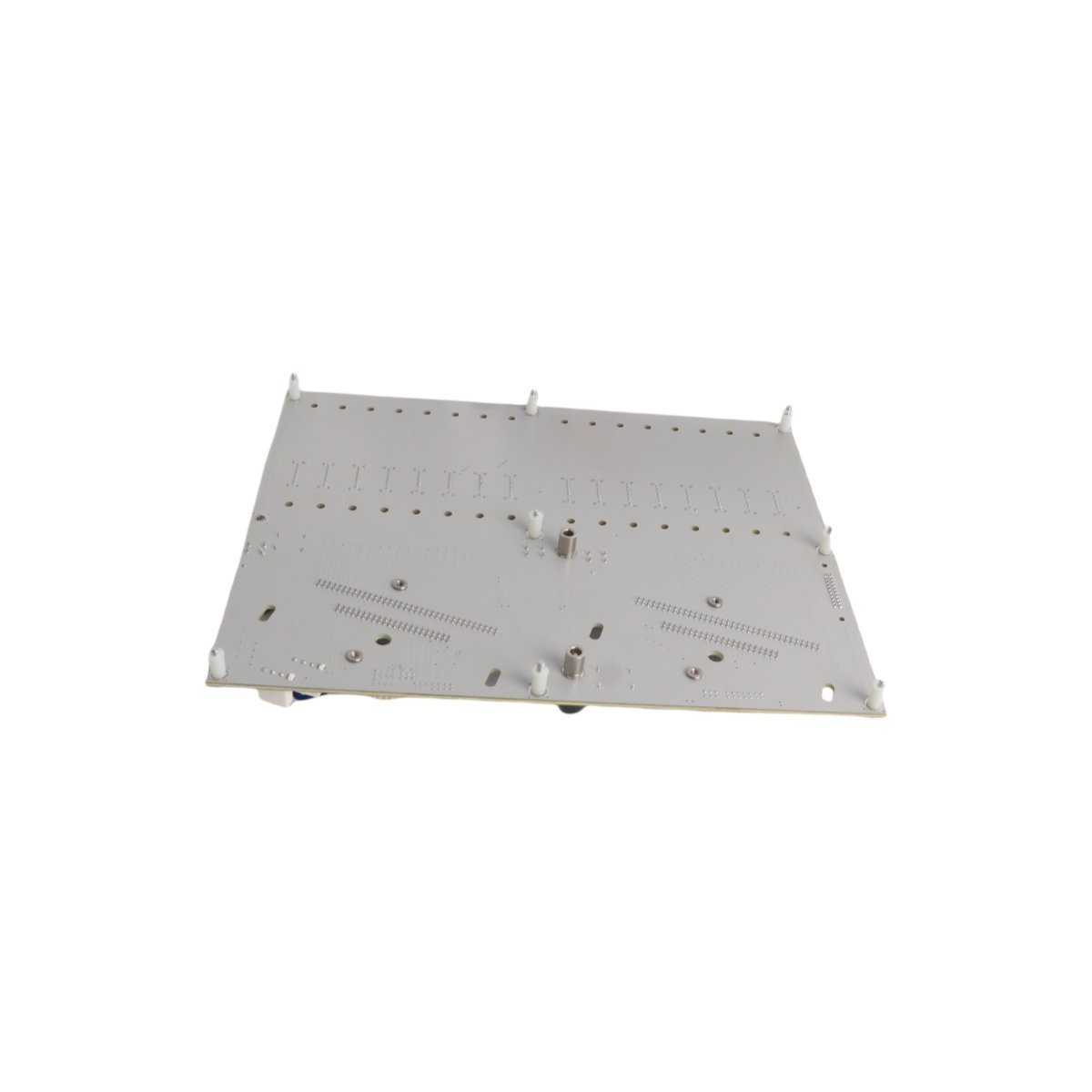

Honeywell CC-GDIL01 51306317-175 Module

The Honeywell CC-GDIL01, part number 51306317-175, is a high-density 32-channel digital input module engineered for the Experion PKS series. This hardware specialized in rapid signal detection from field devices such as limit switches, push buttons, and proximity sensors. By offering a swift 1ms response time, the module ensures that the Distributed Control System (DCS) receives real-time status updates. This speed is vital for time-sensitive operations in manufacturing, energy sectors, and automated transportation systems.

Advanced Electrical Protection and Reliability

Safety and signal integrity remain priorities for industrial environments. The CC-GDIL01 provides 1500V galvanic isolation between channels and to the ground. This feature effectively blocks electrical noise and prevents transients from damaging the core control logic. Furthermore, the module includes surge protection that complies with IEC 61000-4-5 standards. With an impressive Mean Time Between Failures (MTBF) of 500,000 hours, this digital interface supports long-term operational stability in high-availability applications.

Technical Specifications

Modular Integration and Maintenance

Maintenance efficiency is a core benefit of the Series C hardware design. The CC-GDIL01 is hot-swappable, allowing for module replacement without interrupting the power or the broader process control network. Each of the 32 channels features an individual LED status indicator on the front panel. These lights allow technicians to perform rapid visual audits of field signal health. Additionally, the module’s modular architecture supports seamless expansion as facility automation requirements grow over time.
