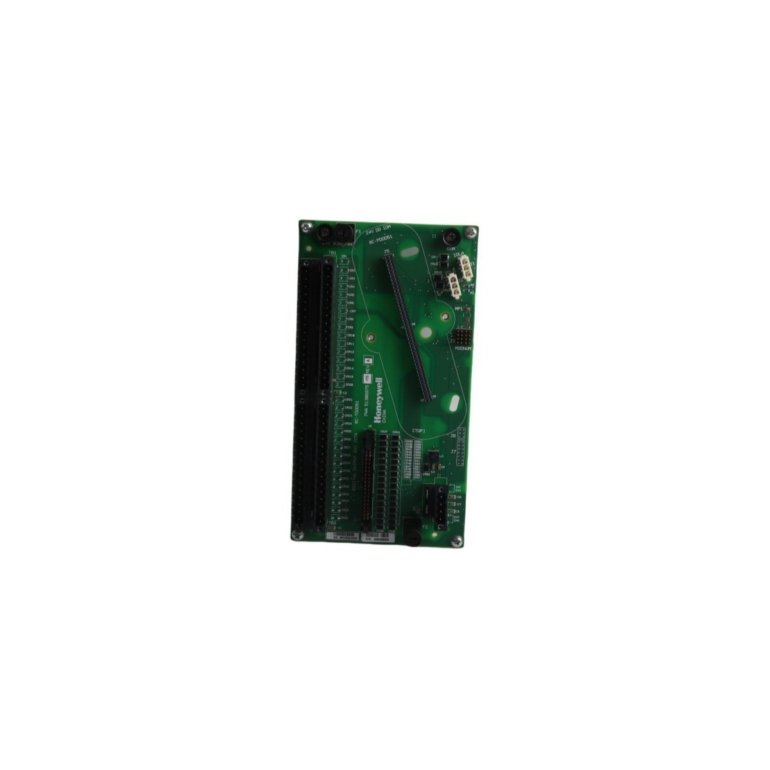

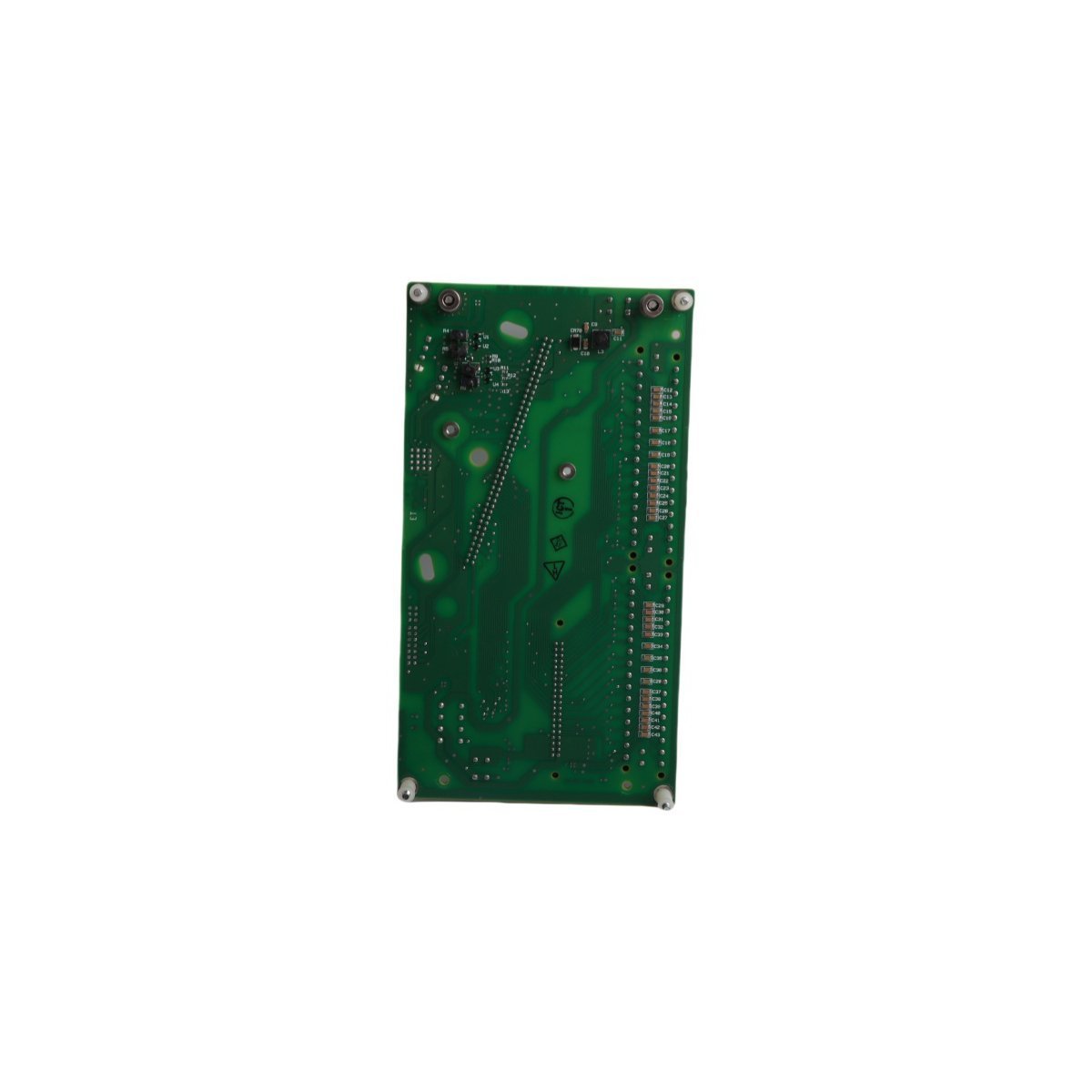

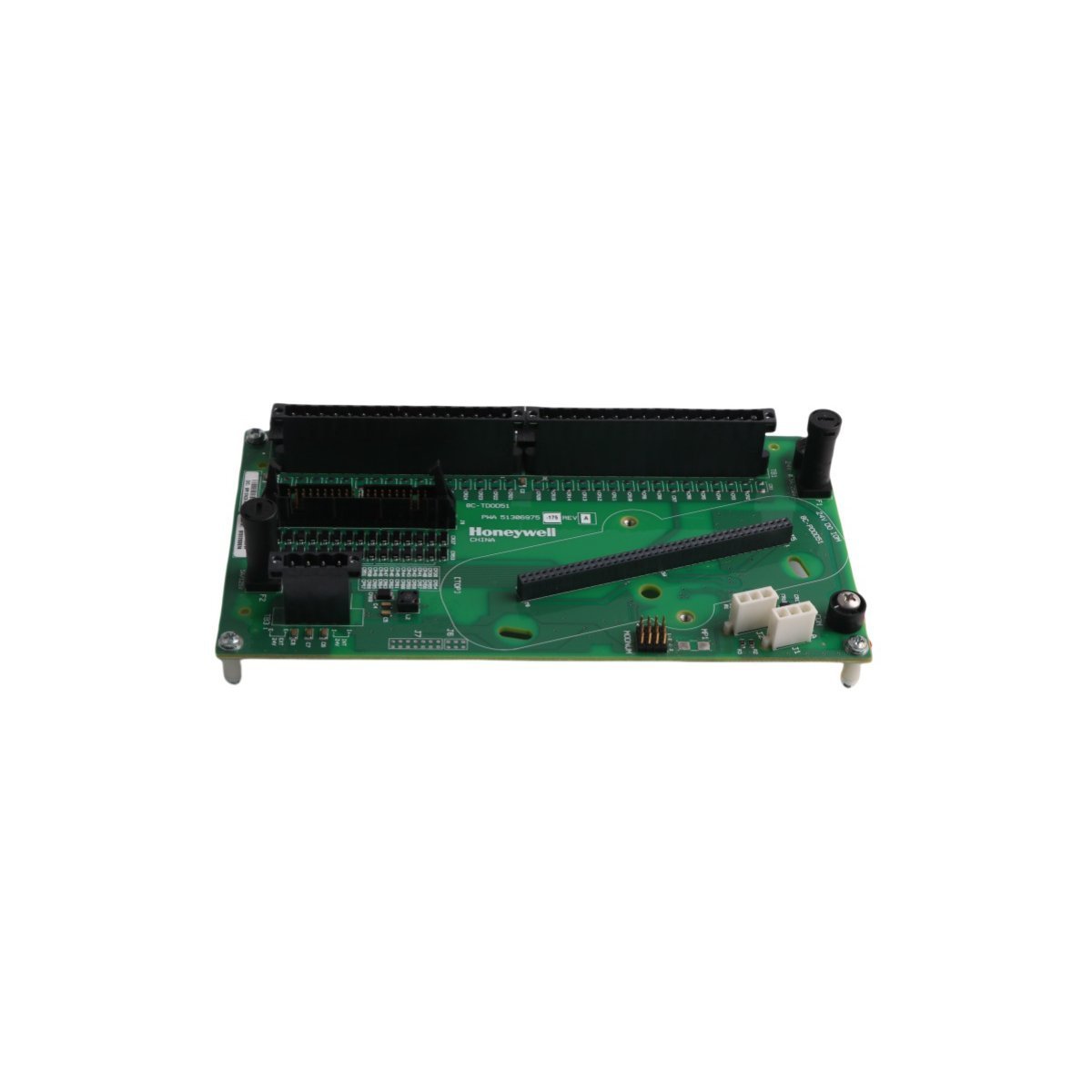

Honeywell 8C-TDOD51 Digital Output Module

The Honeywell 8C-TDOD51 serves as a high-density digital output component for the Series 8 control hardware. This module provides reliable switching control for discrete field devices within the Experion PKS environment. It efficiently manages the state of various industrial components. Typical applications include controlling solenoid valves, motor starters, and indicating lights. Because the module integrates directly with the C300 controller, it ensures low-latency execution of control logic.

This hardware features a vertical design to optimize cabinet space. Its compact form factor allows for high-density I/O configurations in small enclosures. Furthermore, the module utilizes advanced thermal management to maintain stability. This cooling efficiency extends the lifespan of the electronic components. Consequently, the 8C-TDOD51 remains a dependable choice for continuous, mission-critical operations.

Technical Specifications and Hardware Data

System Connectivity and Performance

The 8C-TDOD51 connects to the Series 8 I/O termination assembly (IOTA). This connection method simplifies field wiring and reduces installation time. Moreover, the module supports “hot-swapping” for easier hardware maintenance. Technicians can replace units without disrupting the power to adjacent modules. This capability significantly improves system availability during routine service.

Each channel within the module includes specialized circuitry to minimize signal interference. This protection ensures that digital commands remain clear in noisy electrical environments. Additionally, the module supports comprehensive onboard diagnostics. These diagnostics monitor channel health and detect potential faults immediately. Such proactive monitoring helps prevent unexpected downtime in automated processes.

Industrial Applications and Reliability

Modern refineries and power plants rely on this module for stable discrete control. The 8C-TDOD51 thrives in harsh industrial settings where precision is vital. Its rugged construction meets international standards for durability and safety. Furthermore, the module scales easily to accommodate expanding plant requirements. This scalability makes it a future-proof investment for growing automation networks.

By using genuine Honeywell Series 8 hardware, operators guarantee full system compatibility. The 51202329 series interconnects provide a stable backbone for data transmission. This module excels in robotics, energy management, and telecommunications infrastructure. Ultimately, the 8C-TDOD51 provides the high-speed performance required for modern industrial technology.
