General electric IS420YDOAS1B Discrete Output Module

The GE IS420YDOAS1B functions as a high-performance discrete output I/O pack within the Speedtronic EX2100 Excitation Control system. This module bridges the gap between dual Ethernet networks and discrete output terminal boards. It manages up to twelve relay outputs while simultaneously processing critical feedback signals from the connected hardware.

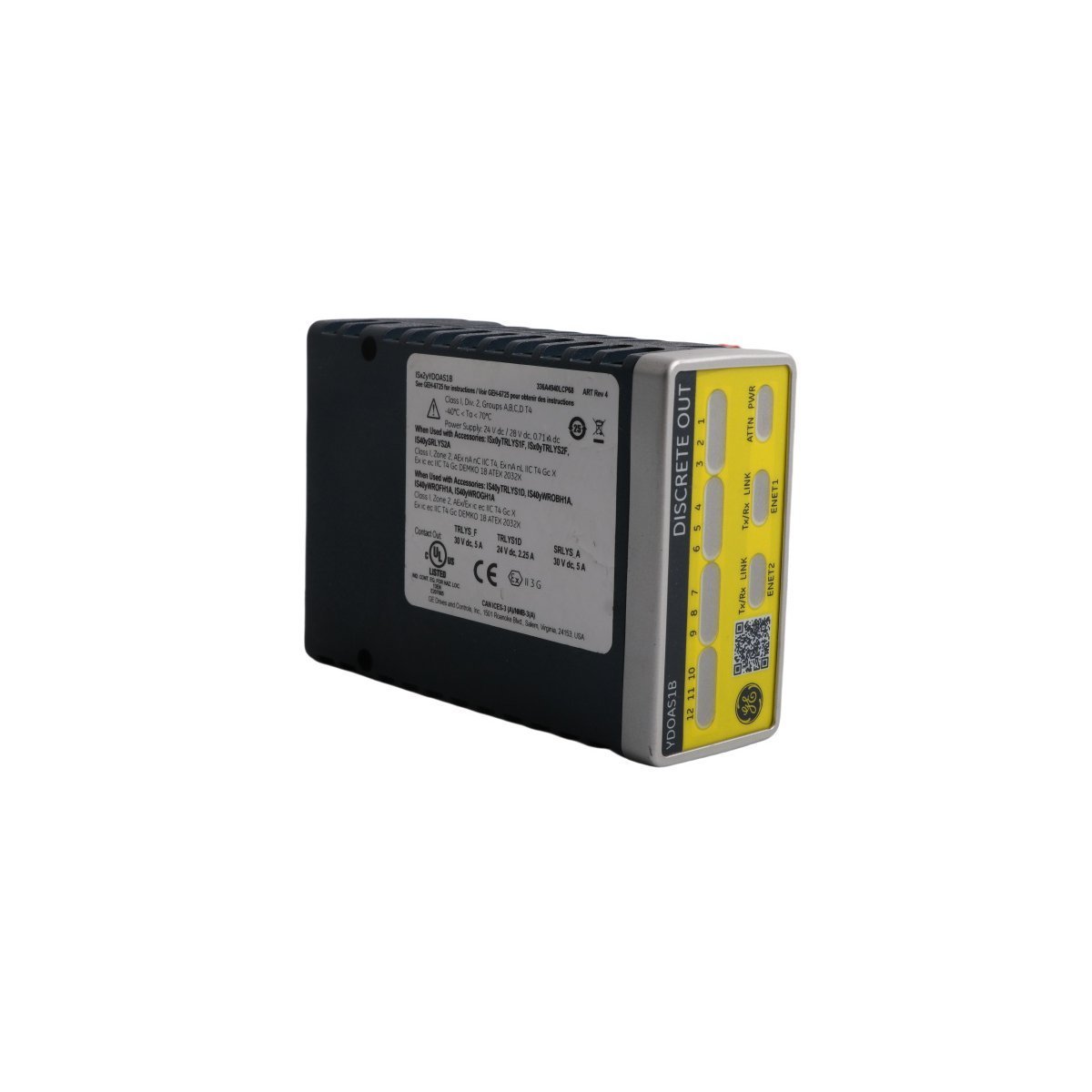

The unit features a robust hardware interface. It includes two RJ45 Ethernet ports for network redundancy and a specialized three-pin power connector. A DC37 pin connector facilitates the primary connection to the terminal board. This design ensures stable data transmission and reliable power distribution in demanding Distributed Control System (DCS) environments.

Operational Features and Diagnostics

The IS420YDOAS1B incorporates an advanced diagnostic suite for real-time monitoring. The front panel contains twelve yellow LEDs that indicate the status of each relay. Additionally, the BBPx processor LEDs provide internal logic status. The multi-color ATTN LED uses specific flash patterns to communicate application health or hardware faults.

System integrity remains a priority through automated alarm triggers. For example, Alarm 5 alerts operators to remote I/O mode issues or configuration mismatches. The module’s protective chassis guards internal circuitry against electrical interference and physical wear. This construction supports long-term reliability in industrial automation and power generation sectors.

Primary Applications

The IS420YDOAS1B excels in power plant excitation control and large-scale industrial DCS frameworks. It provides precise relay logic for motor control centers and turbine trip systems. Engineers utilize this module to maintain synchronized communication across redundant Ethernet architectures. Its compact form factor allows for efficient cabinet mounting without sacrificing cooling or accessibility.

Technical Specifications
