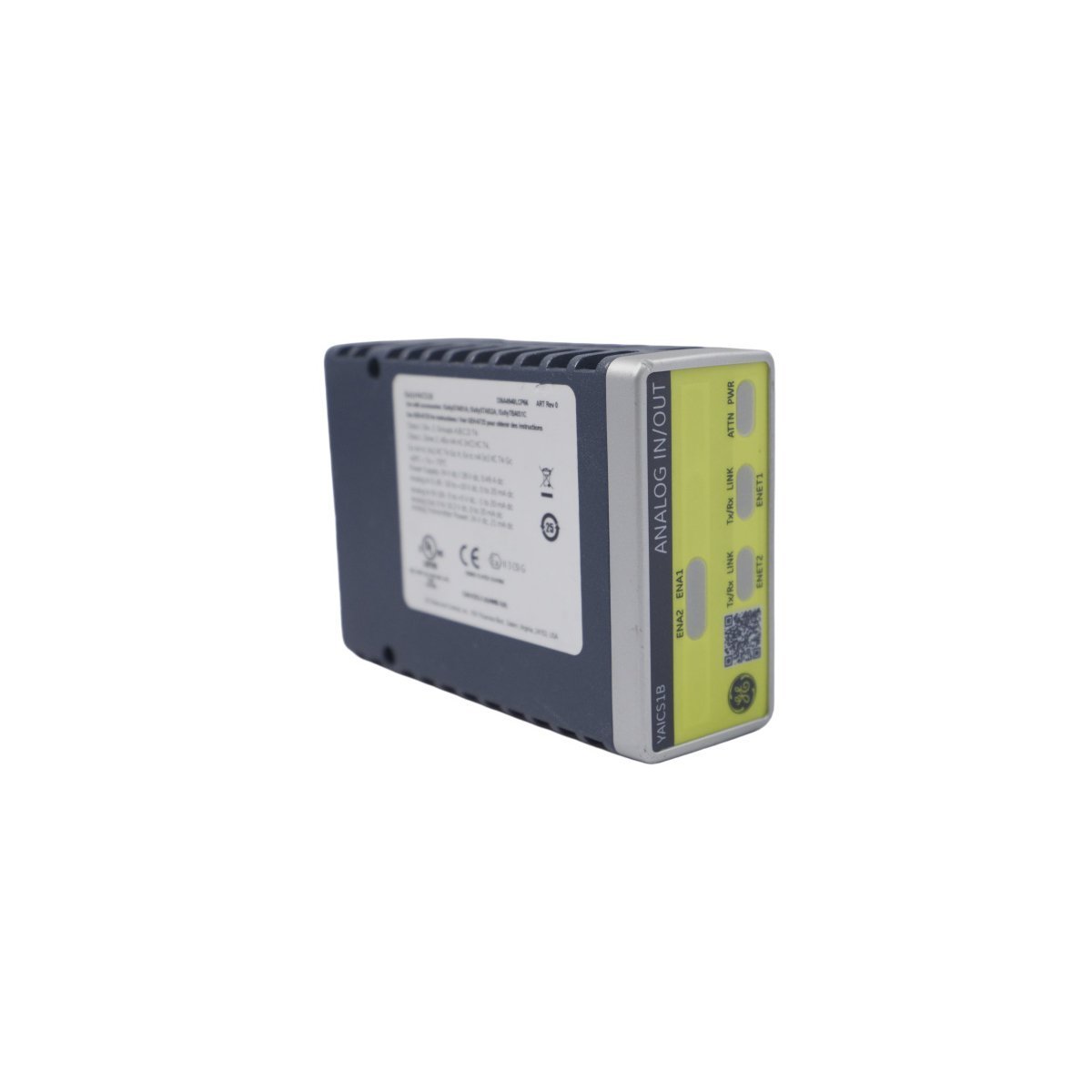

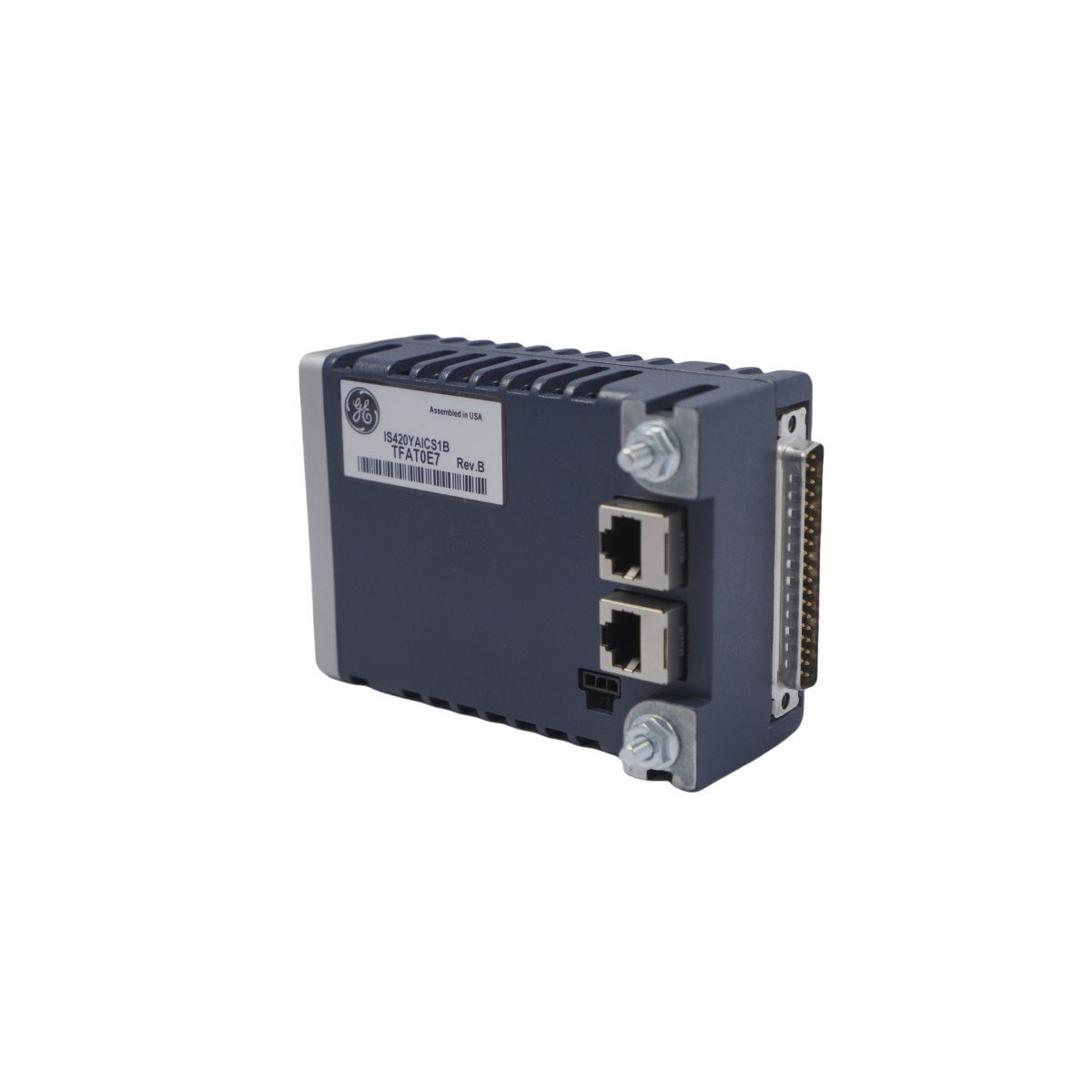

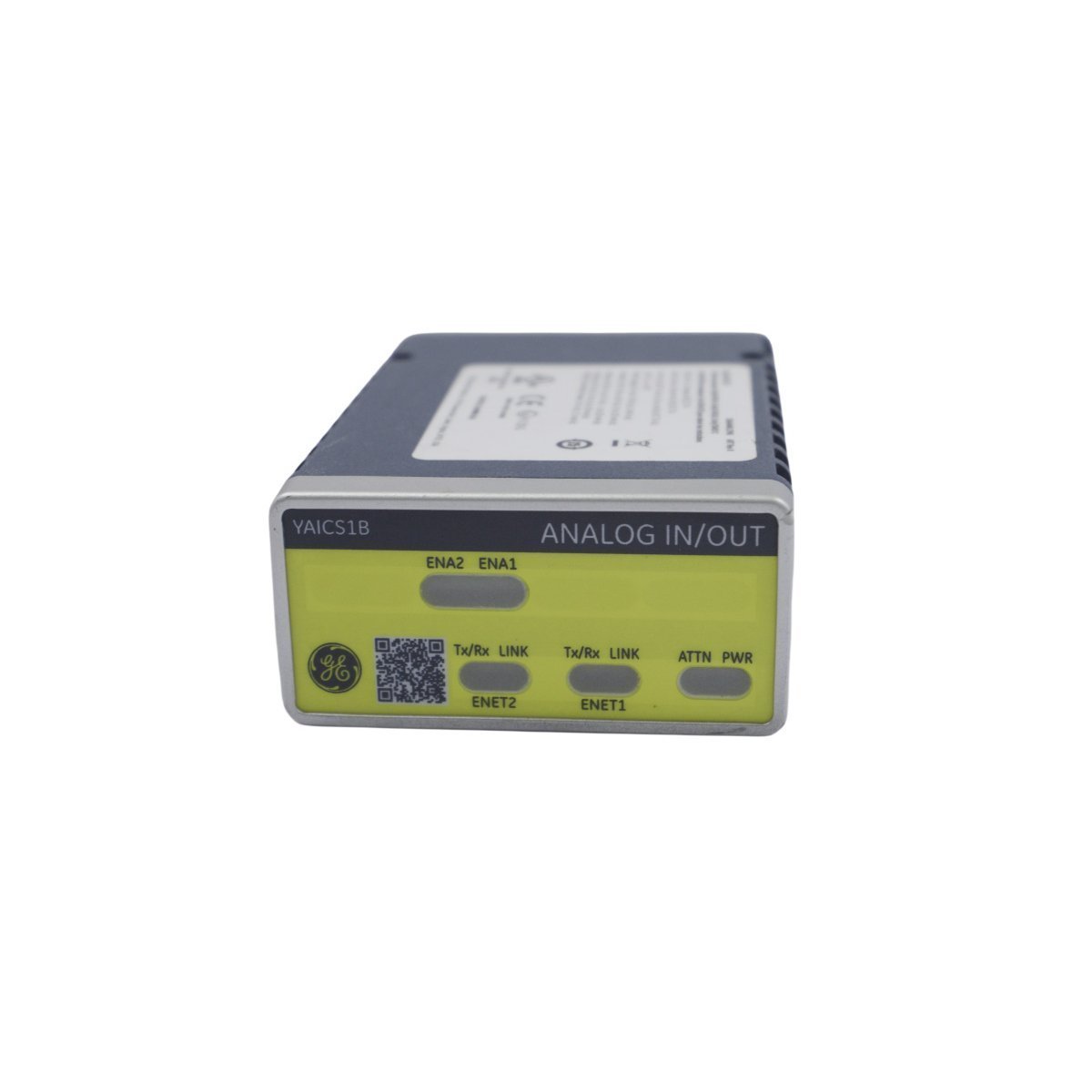

General electric IS420YAICS1B Analog I/O Pack Module

The GE IS420YAICS1B functions as a high-performance interface within the Mark VIe and EX2100 control systems. This Analog I/O pack bridges the gap between terminal boards and the control network. It manages multiple signal types for turbine monitoring and excitation control. Consequently, it provides the precision required for demanding industrial automation environments.

Functional Characteristics and Signal Support

The module integrates a dedicated processor board with a data acquisition board. This architecture allows the unit to handle complex diagnostic fault detection internally. Specifically, the pack supports two channels for ±1 mA or 4-20 mA current inputs. Additionally, eight channels accommodate ±5 V, ±10 V, or standard 4-20 mA current loops.

Reliability remains a priority through extensive self-diagnostic capabilities. During every startup, the module executes flash memory and RAM checks. It also monitors internal power supply health continuously. This ensures the hardware operates within peak performance parameters at all times.

Hardware Compatibility and Redundancy

This “B” revision offers improved functional stability over earlier “A” versions. The IS420YAICS1B supports both simplex and Triple Modular Redundancy (TMR) configurations. Simplex setups utilize a single module for basic operations. Conversely, TMR applications require three identical packs to ensure maximum system availability.

Engineers typically pair this I/O pack with TBAISIC or STAIS2A terminal boards. Note that all units in a TMR set must share the same hardware revision. This uniformity prevents synchronization errors and maintains long-term system integrity.

Technical Specifications
