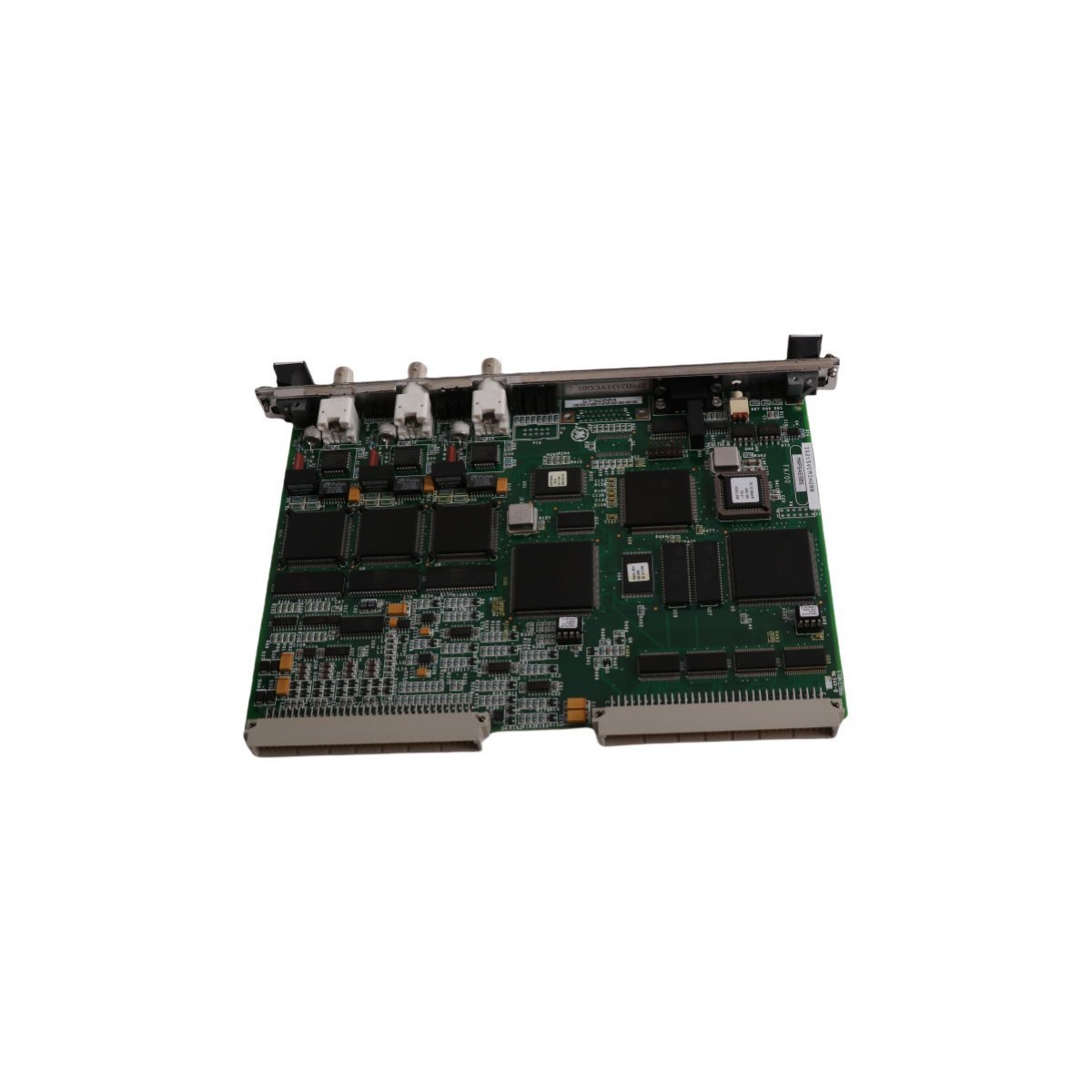

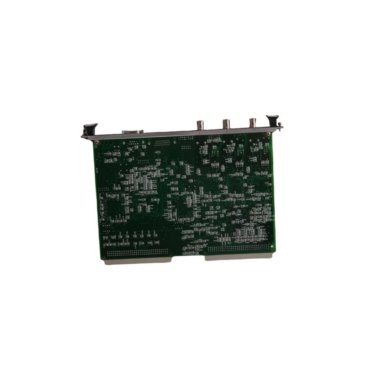

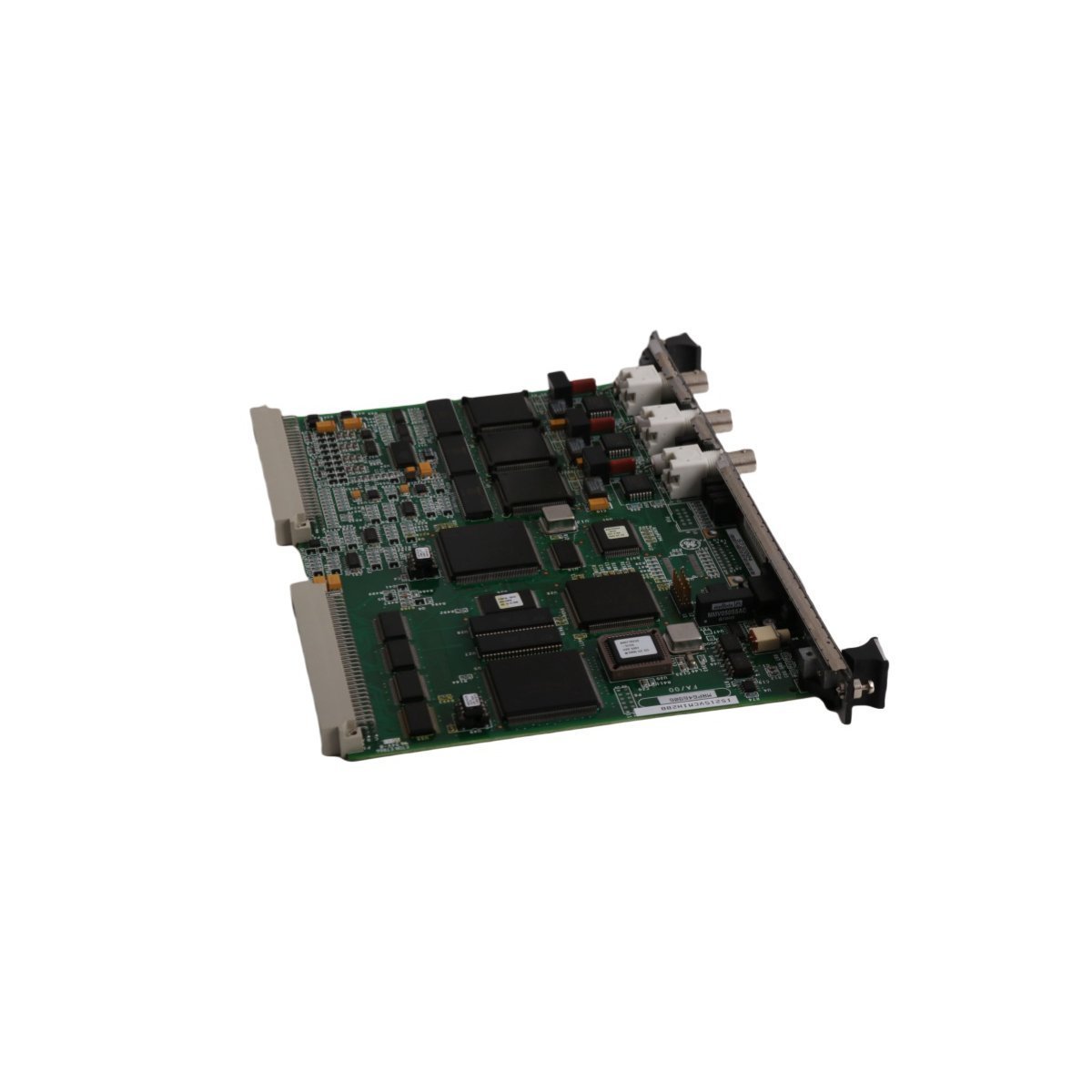

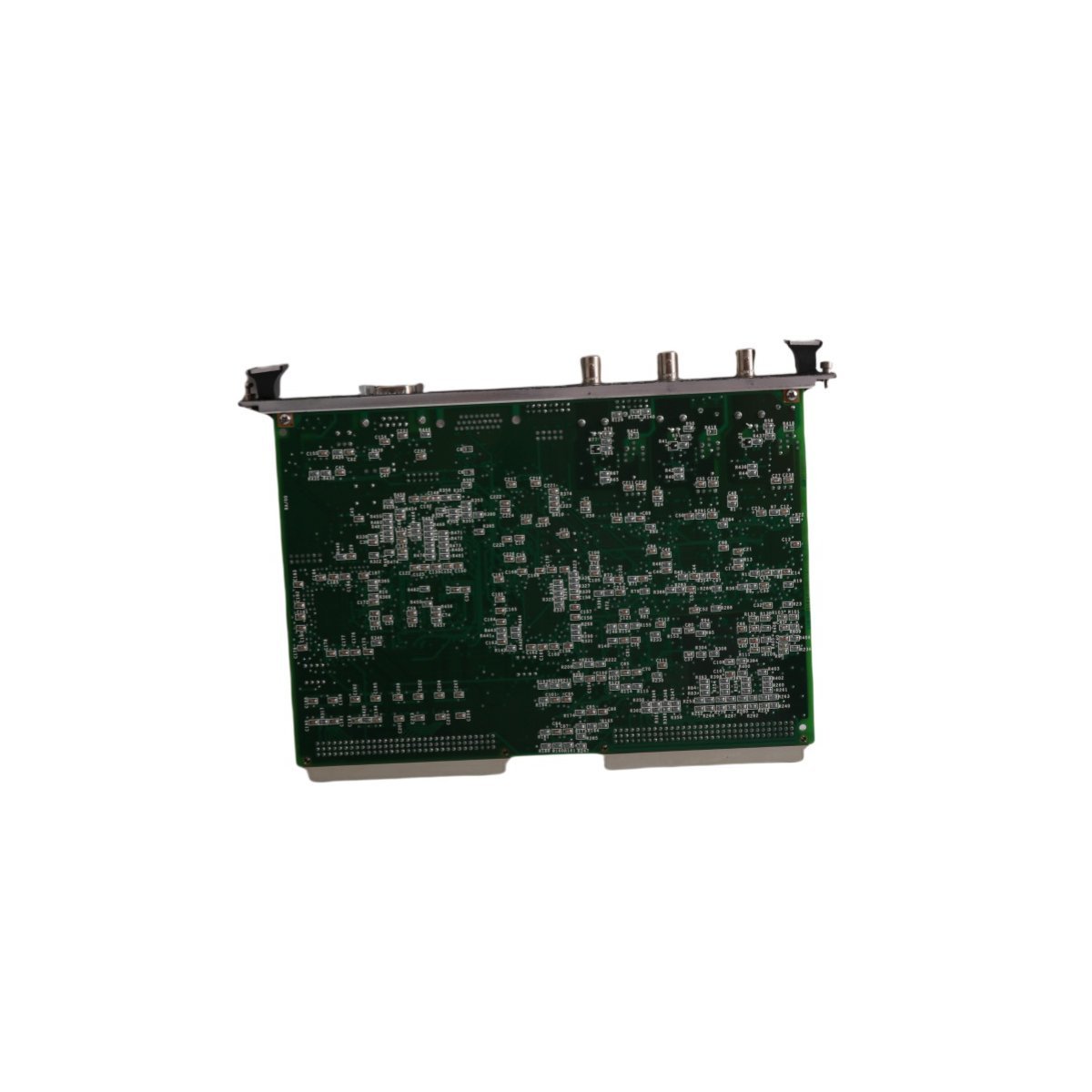

The GE IS215VCMIH2B acts as the primary VME bus master for Mark VI turbine control systems. This sophisticated interface board coordinates all communication between the controller, I/O modules, and the IONet network. It provides a centralized hub for data routing and system synchronization in gas and steam turbine applications.
Technical Specifications
| Feature | Details |
| Brand | General Electric (GE) |
| Model Number | IS215VCMIH2B |
| Series | Mark VI Speedtronic |
| Card Type | VME Bus Master Controller |
| Processor | 32-bit Texas Instruments DSP |
| Memory | 256k x 32 SRAM |
| Form Factor | 6U VME |
| Weight | 0.36 kg |
| Dimensions | 2.1 x 18.8 x 26.2 cm |
High-Speed Data Management
This controller card utilizes a powerful Texas Instruments DSP to process complex logic rapidly. The onboard SRAM ensures low-latency access to critical control variables during turbine operation. Furthermore, the board manages the unique identification of every connected module in the rack.
The hardware supports Triple Modular Redundant (TMR) architectures for maximum system reliability. It continuously monitors power rails and signal integrity across the backplane. Consequently, this card prevents localized faults from disrupting the entire turbine control sequence.
Connectivity and Diagnostics
The front panel features three dedicated IONet ports for high-speed fiber-optic communication. Each port includes TX, RX, and CD indicators to track real-time traffic status. Additionally, a serial interface allows for direct diagnostic access during maintenance or commissioning.
A specialized set of numerical LEDs displays system status and fault codes. These indicators help technicians identify hardware issues without external software. The board also utilizes over 40 inductor beads to minimize electromagnetic interference in noisy environments.
