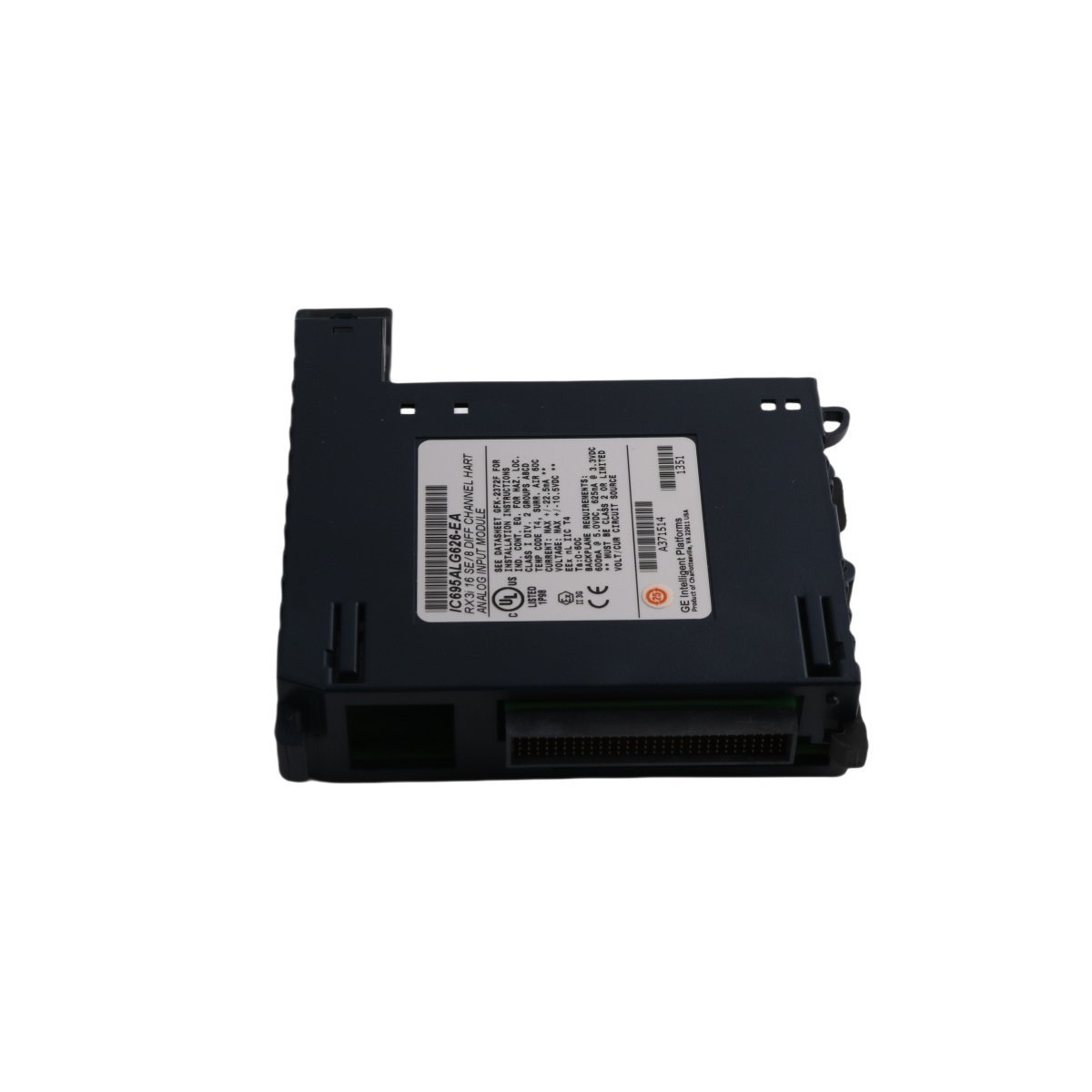

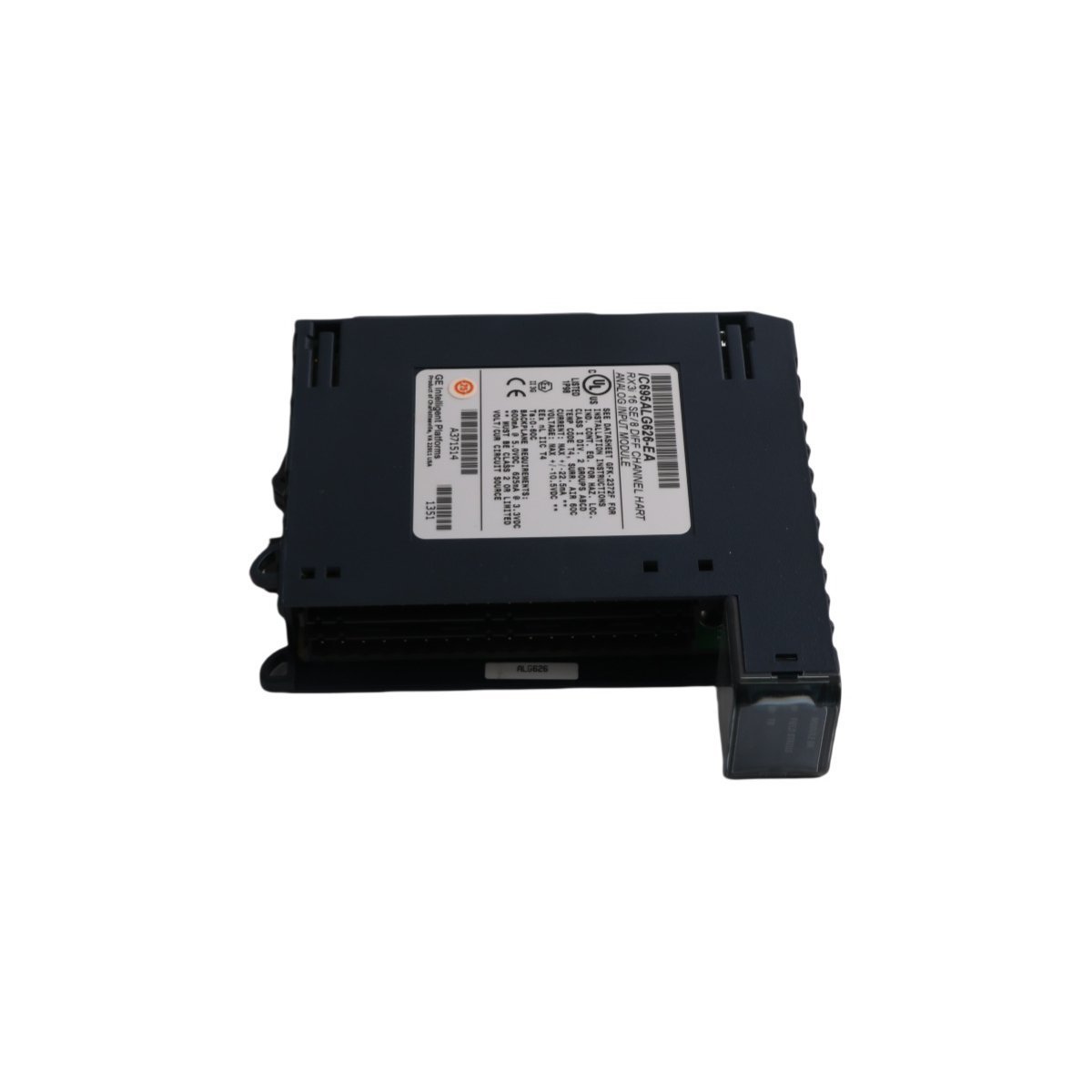

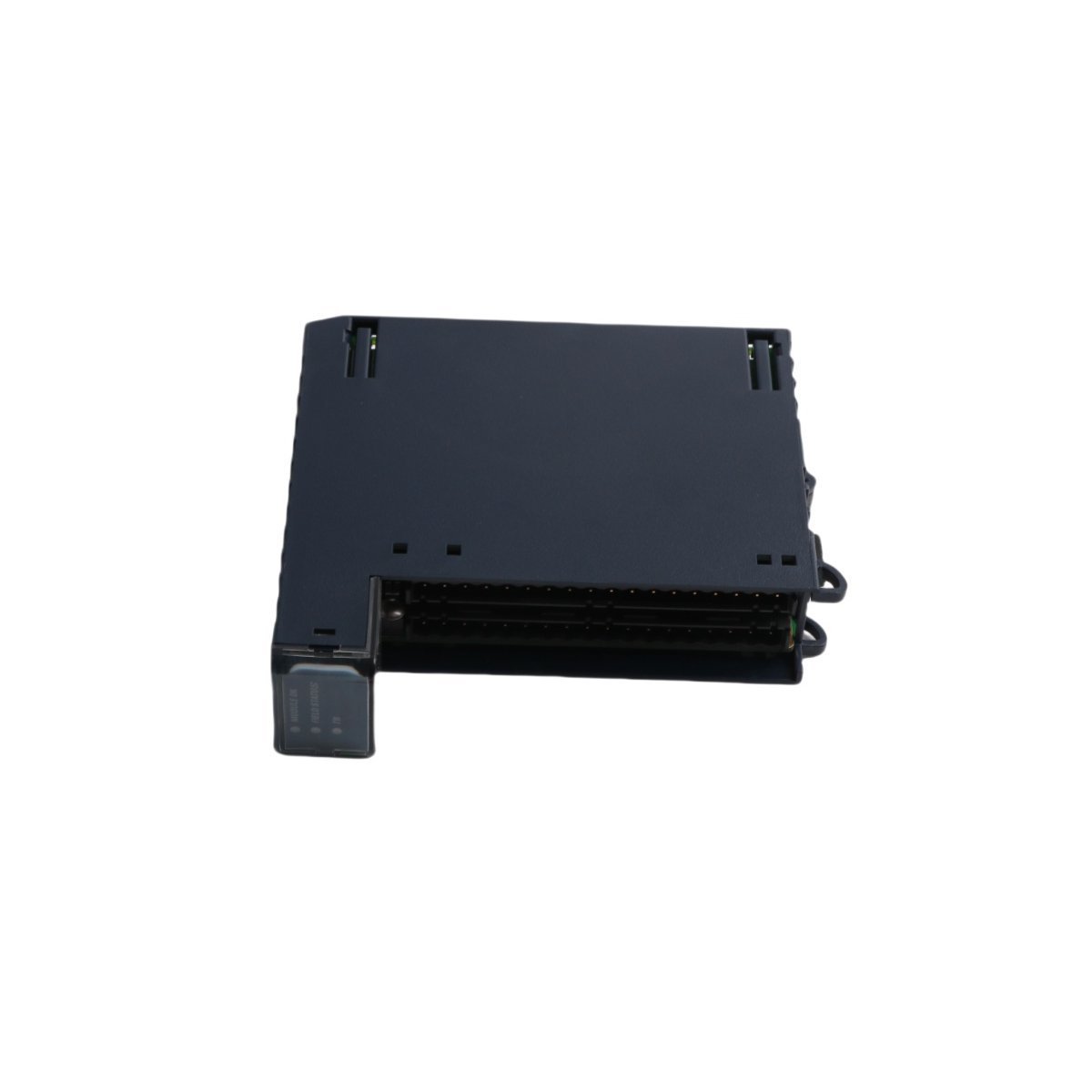

The GE IC695ALG626 is a high-density analog input module designed for the PACSystems RX3i architecture. It serves as a sophisticated interface for field instruments, offering integrated Highway Addressable Remote Transducer (HART) version 5.0 protocol support on every channel. This allows the controller to go beyond basic process variables, capturing secondary digital data such as device diagnostics, calibration status, and tag information directly from smart transmitters. By consolidating high-speed analog sensing with digital asset management, the IC695ALG626 significantly enhances the visibility of plant floor operations.
Key Technical Characteristics
- Universal Input Support: Handles both voltage and current signals with high-resolution analog-to-digital conversion.
- Integrated HART Communication: Simultaneous digital data transmission alongside the 4–20mA analog signal on all channels.
- Dynamic Troubleshooting: Open-circuit detection and onboard error logging identify field wiring issues instantly.
- Enhanced Protection: Ruggedized design suitable for operating temperatures between 0°C and 60°C (32°F to 140°F).
- Firmware Scalability: Features flash memory for field-executable firmware upgrades, ensuring compatibility with future system enhancements.
Technical Specifications Summary
| Specification | Details |
| Manufacturer | GE / Emerson |
| Model Number | IC695ALG626 |
| Series | PACSystems RX3i |
| Input Channels | 16 Single-ended / 8 Differential |
| HART Support | HART 5.0 (All channels) |
| Weight | 0.24 kg |
| Dimensions | 3.5 x 13.5 x 13.5 cm |
| Backplane Compatibility | PCI (Universal Backplane) |
| Module Origin | USA |
