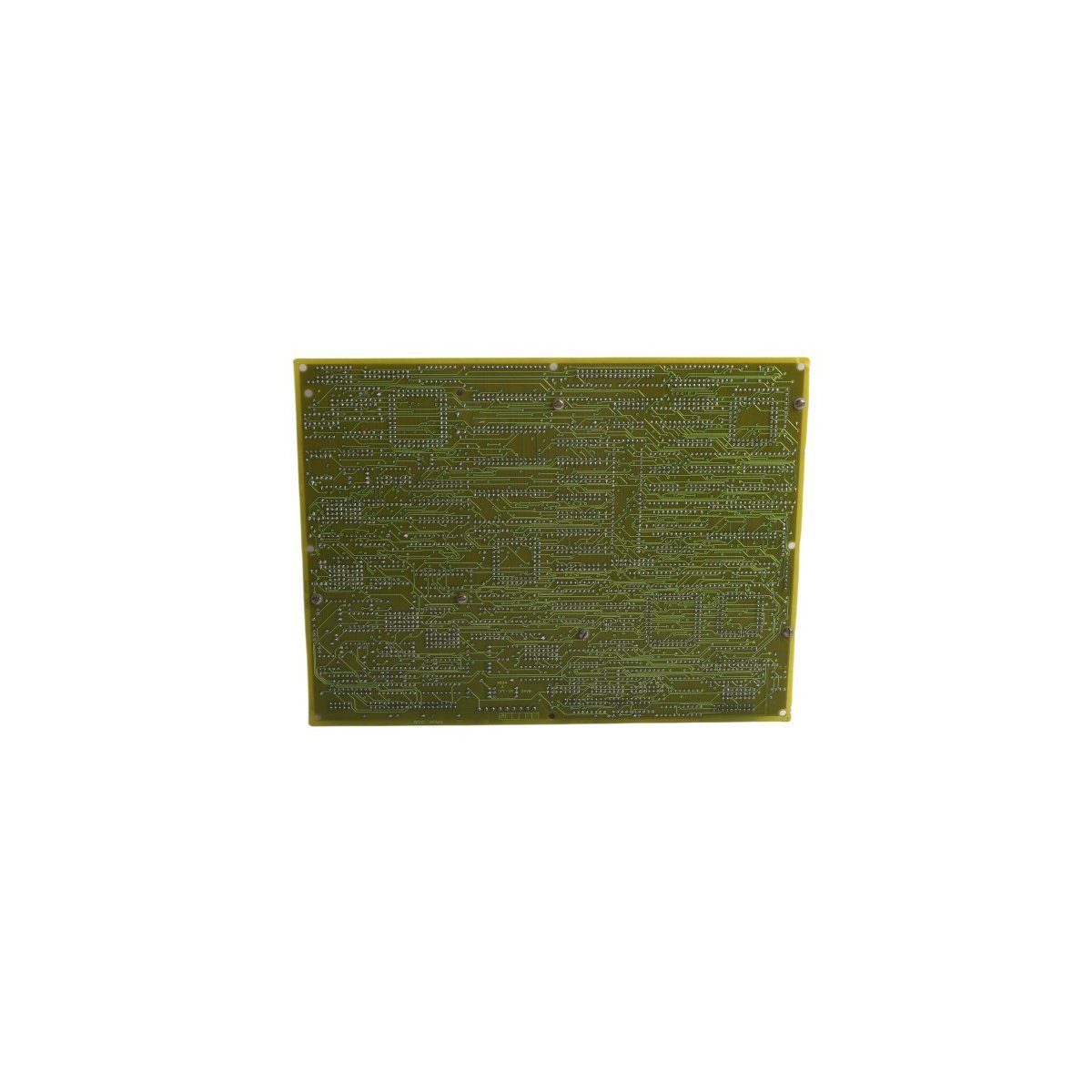

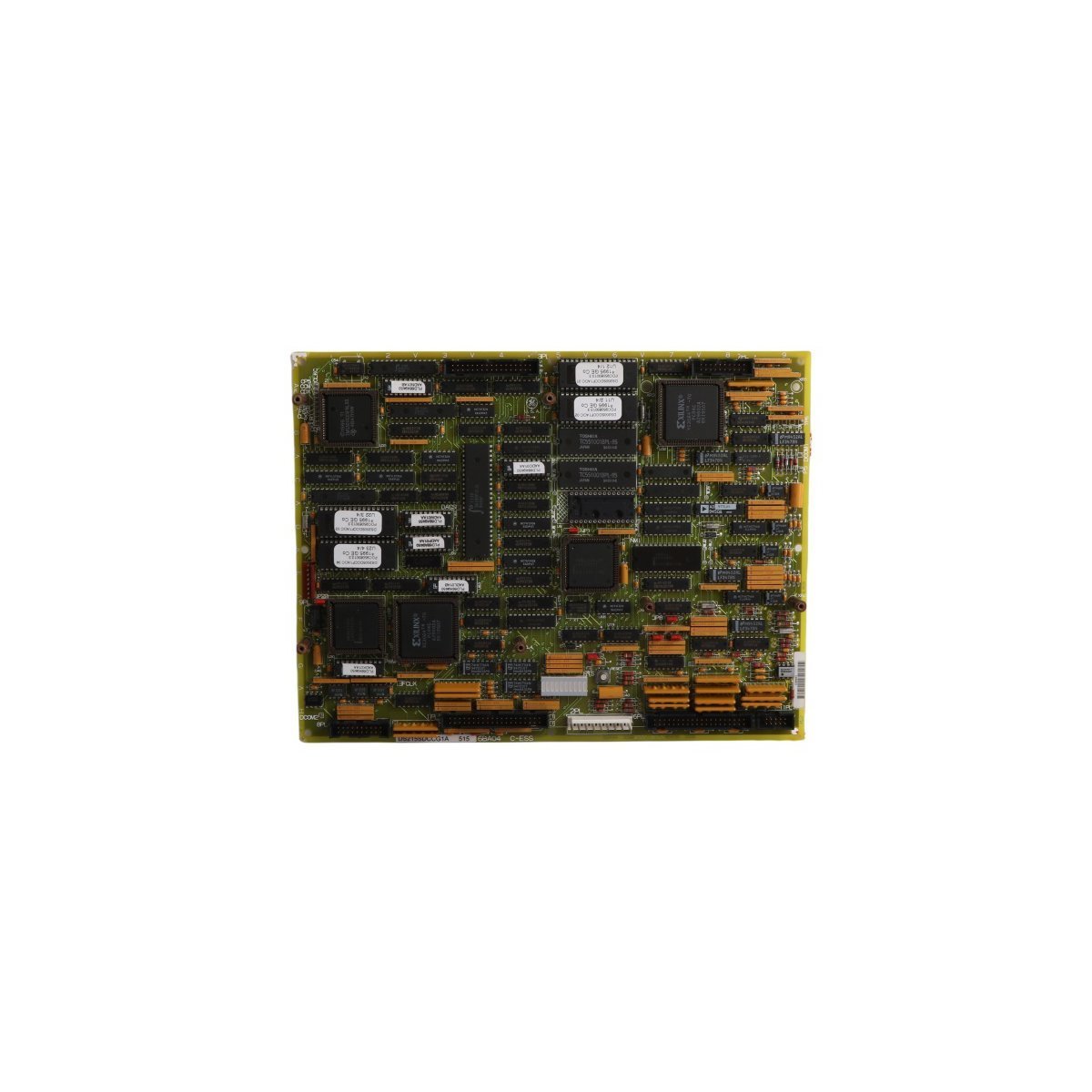

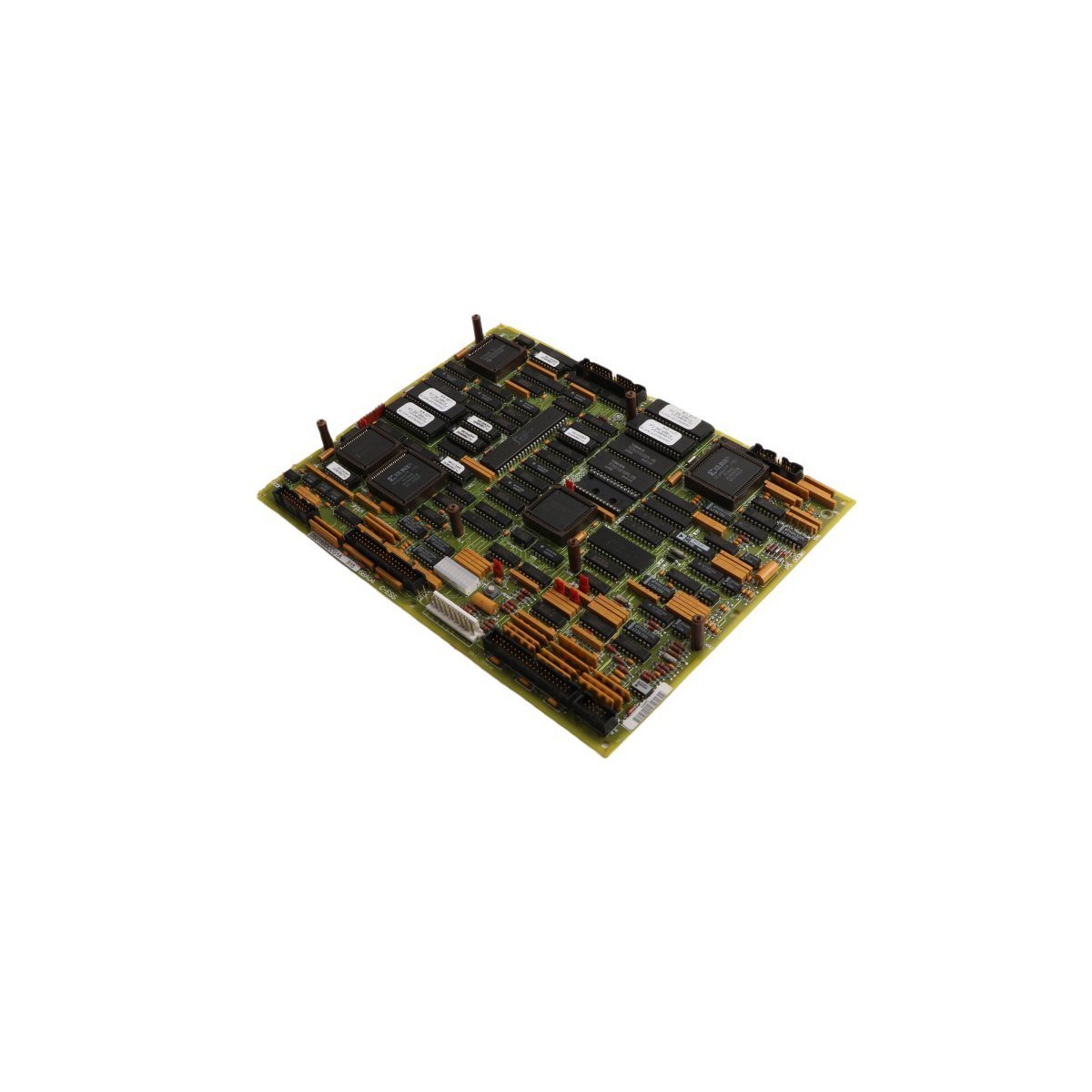

The GE DS200UPSAG1AGD operates as a specialized power supply board within the Speedtronic Mark V control system. This module provides essential voltage regulation for gas turbine control operations. It ensures that critical processor components receive steady and filtered power. Because it belongs to the M-frame interface category, it handles high-voltage distribution tasks effectively. The board supports the complex logic requirements of heavy-duty turbine environments. Consequently, it maintains system stability during varying load conditions.
Technical Construction and Components
This power supply unit features a robust architecture designed for long-term industrial durability. The assembly includes precision capacitors for ripple filtration and voltage smoothing. Internal fuses provide localized protection against overcurrent events. Furthermore, specialized connectors allow for secure integration with the Mark V backplane. The board uses advanced control circuitry to monitor power health in real-time. These high-grade materials prevent premature failure caused by thermal stress or electrical noise.
Core Technical Specifications
The following specifications define the electrical and physical profile of the DS200UPSAG1AGD:
- Manufacturer: General Electric (GE)
- Series: Speedtronic Mark V
- Model Number: DS200UPSAG1AGD
- Component Type: Power Supply / Interface Board
- Frame Compatibility: M-Frame Systems
- Weight: 0.7 kg
- Dimensions: 28 x 12.6 x 4 cm
- Application: Gas Turbine Control
- Manufacturing Origin: USA
