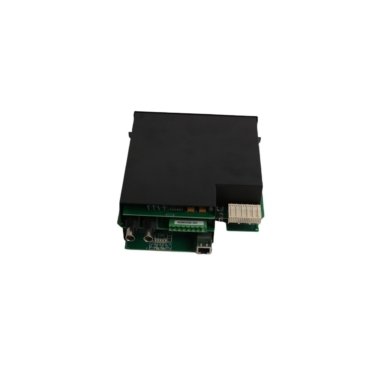

GE UR9NH Smart Ultrasonic Sensors

The GE UR9NH functions as the central processing unit for the Multilin Universal Relay (UR) platform. This high-performance module executes critical protection logic and advanced control algorithms. It manages all internal data traffic between peripheral modules and the primary system bus. Because it handles complex mathematical computations, the UR9NH ensures high-speed response times for utility-grade automation. Consequently, this processor serves as the brain of the protection system in power generation and distribution networks.

Advanced Connectivity and Communication

The UR9NH features versatile networking interfaces to facilitate seamless integration with local HMIs and SCADA systems. It includes both a traditional RS485 port and a high-speed 10/100BASE-T Ethernet connection. These ports allow for real-time data streaming and remote configuration management. Furthermore, the processor supports multiple industrial protocols for interoperability. This flexibility ensures that the relay can communicate effectively within diverse multi-vendor environments.

System Diagnostics and Reliability

GE integrated comprehensive self-testing routines into the UR9NH hardware. The module continuously monitors its own health and provides specific error codes during a failure. This diagnostic capability significantly reduces troubleshooting time for maintenance personnel. Additionally, the unique design eliminates the need for an external surge ground connection. This simplification reduces wiring complexity and potential points of failure during installation. The robust build quality guarantees long-term stability in electrically noisy substations.

Protection Synergy and Integration

This CPU module works in tandem with CT/VT and Digital I/O modules to provide localized protection. It analyzes incoming analog signals to detect faults or abnormal system conditions. Moreover, the modular nature of the UR series allows for easy hardware scaling. Technicians can replace or upgrade the processor without replacing the entire relay chassis. This modularity protects capital investments and extends the lifecycle of existing protection assets.

Technical Specifications
