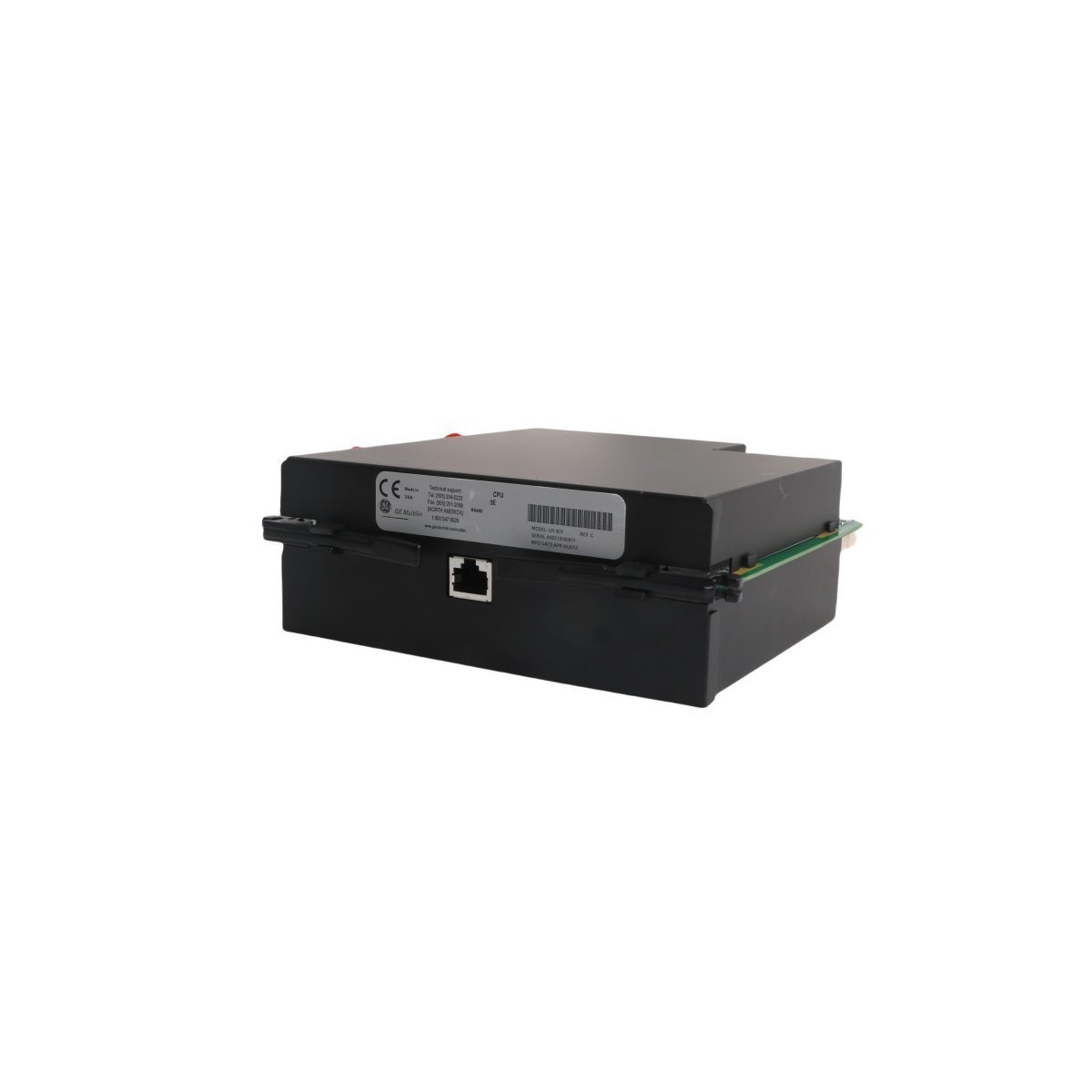

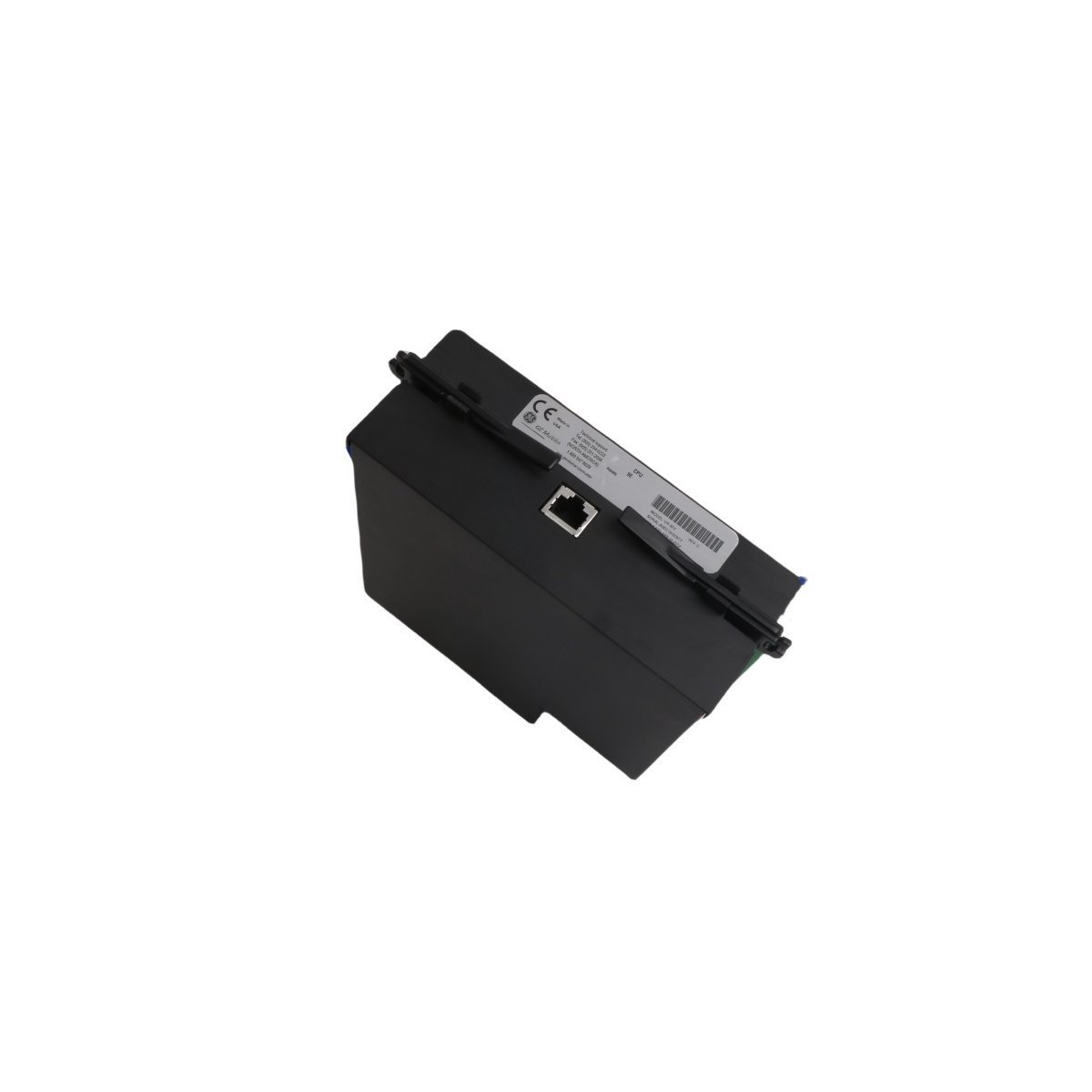

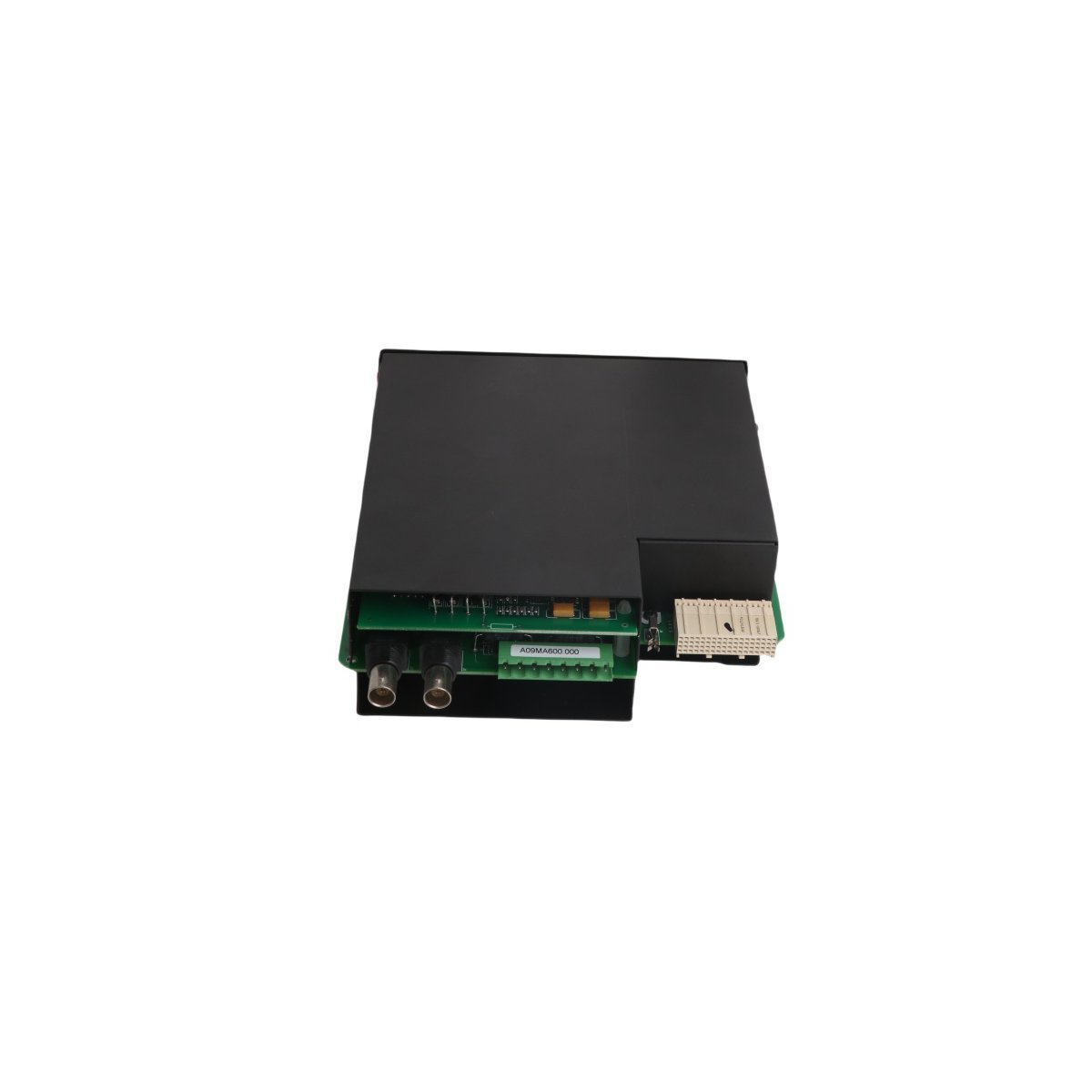

GE UR9EV Multilin Processor Module CPU

The GE UR9EV functions as a core processing and measurement unit for the Multilin Universal Relay family. This module manages critical AC power line monitoring through integrated current and voltage transformer interfaces. Furthermore, it provides the computational power necessary for complex protection algorithms. It ensures high-speed data acquisition for industrial power systems and utility grids.

Advanced Diagnostic and Safety Features

This processor module incorporates sophisticated algorithms to verify the integrity of all incoming analog signals. These diagnostic tools proactively identify sensor failures or signal noise. Consequently, the system prevents false trips and protects downstream equipment from electrical damage. The unit also supports Ethernet-based communication for seamless integration into a modern DCS or PLC environment.

The UR9EV serves as a versatile upgrade path for legacy Multilin relays. Engineers can use this module to introduce new protective functions into existing hardware chassis. Therefore, it extends the operational life of established power management systems.

Installation and System Integration

Installation requires adherence to specific torque and wiring standards found in GE universal relay manuals. Most applications utilize 12 AWG copper wire for secure connections. However, the terminal block supports larger 10 AWG wire for specific high-current requirements. The module slides easily into the relay frame to enable rapid field replacements.

Despite its discontinued status in 2018, the UR9EV remains a critical component for system maintenance. It supports diverse power line configurations through its flexible transformer ratios. This adaptability makes it suitable for both substation automation and large-scale industrial motor protection.
