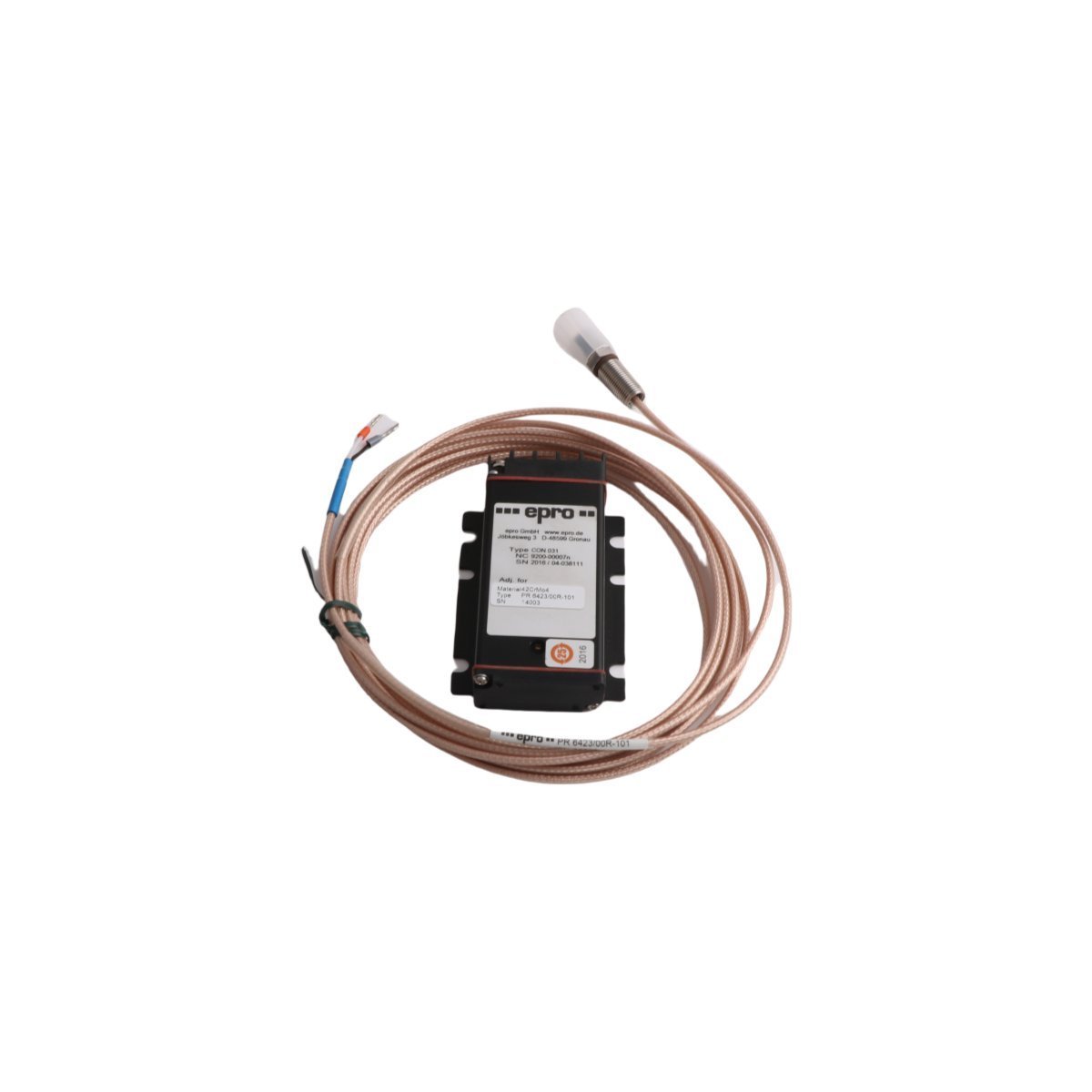

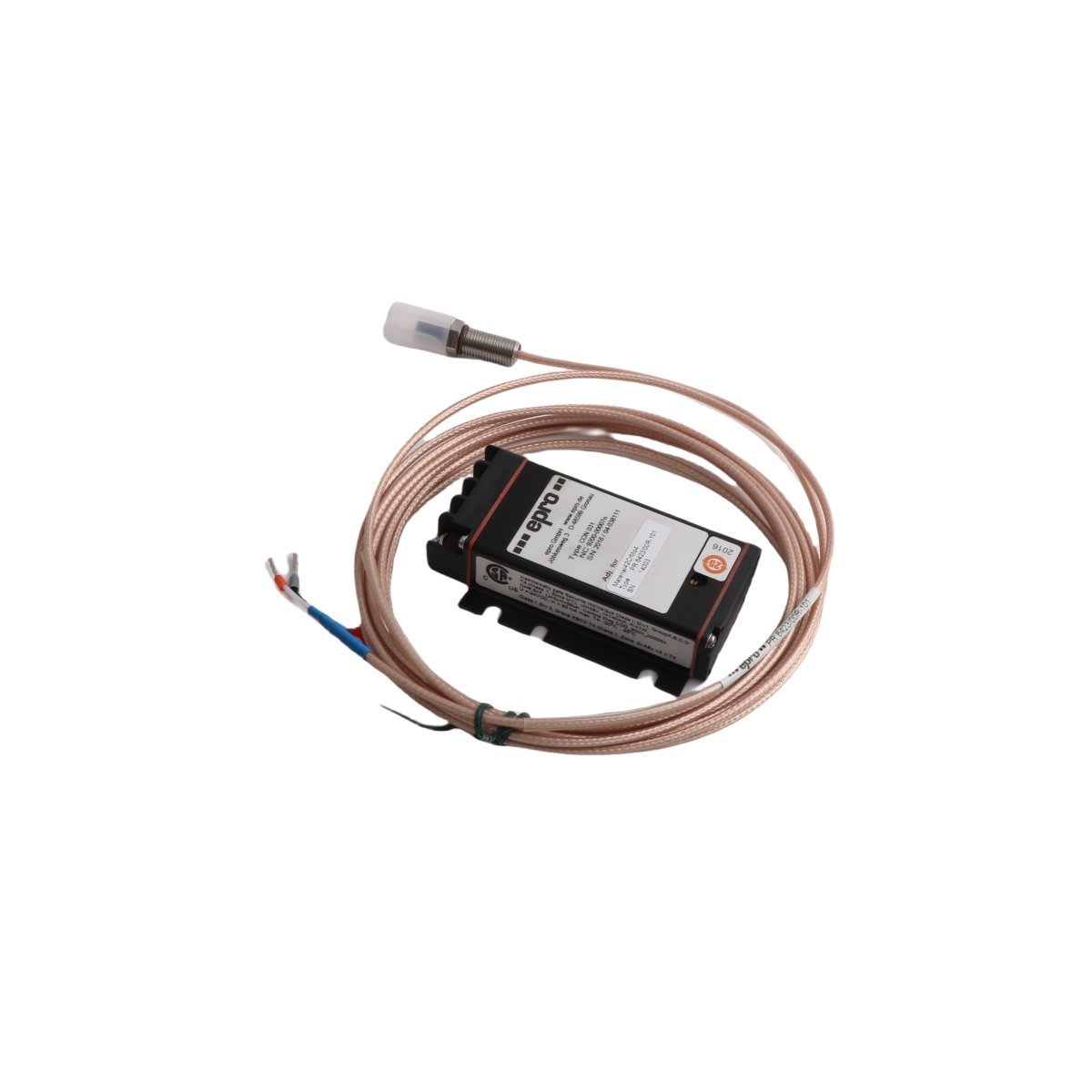

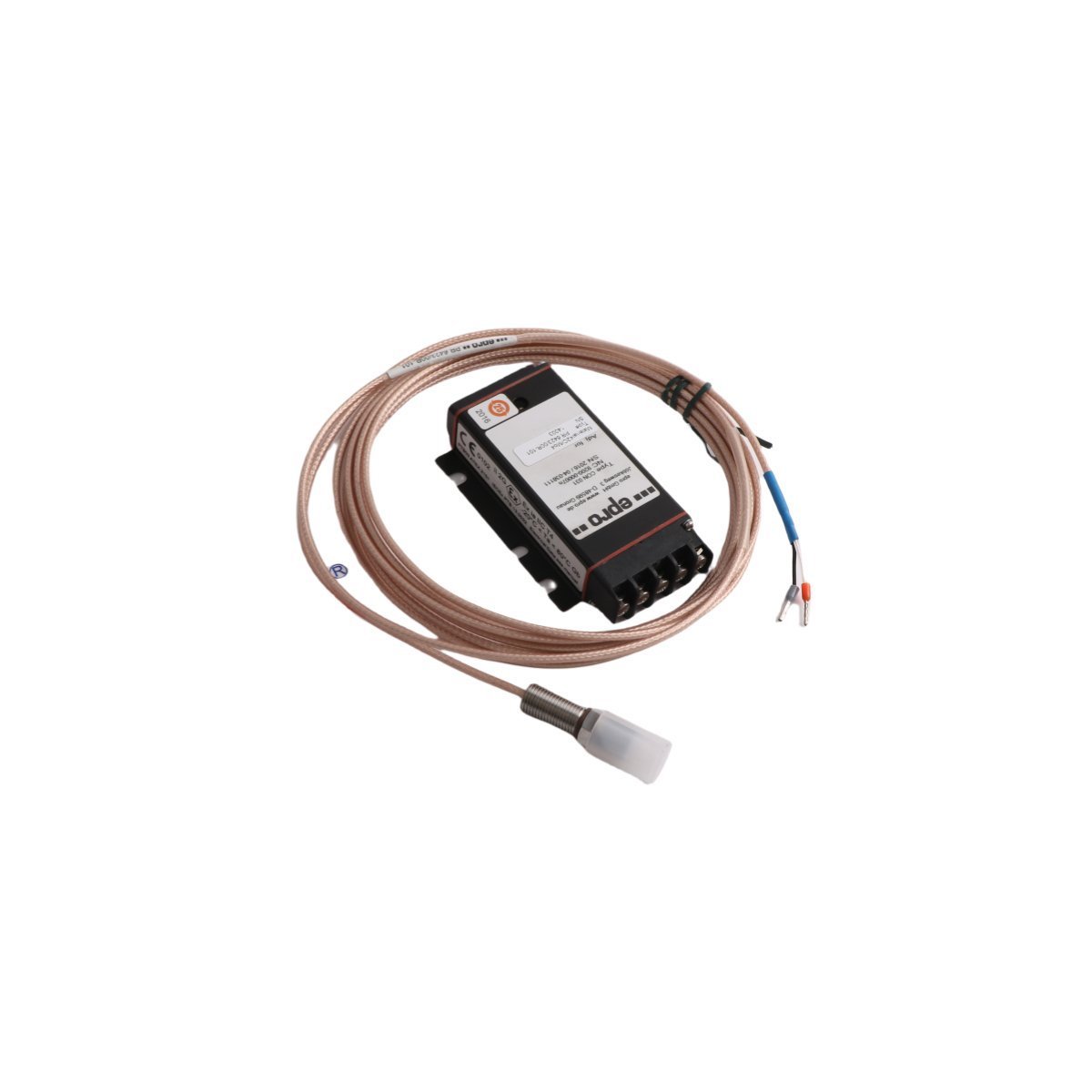

Emerson PR6423/00R-101 CON031 Eddy Current Sensor

The Emerson Epro PR6423/00R-101 functions as a high-precision sensor for monitoring rotating machinery. It operates in conjunction with the CON031 signal converter to detect shaft displacement. This system uses electromagnetic induction to measure the distance between the probe and a metallic target. Consequently, it captures real-time data regarding radial vibration, axial position, and shaft eccentricity.  These measurements remain critical for protecting high-speed assets like turbines and centrifugal compressors. Furthermore, the system provides instantaneous feedback to control logic for early fault detection.

Technical Signal Conditioning

The CON031 converter module processes raw signals from the PR6423/00R-101 probe into standardized voltage outputs. This conversion process effectively isolates the sensor from electrical noise commonly found in industrial plants. Additionally, the assembly features robust shielding to maintain signal integrity over long transmission distances. The hardware ensures high linearity and thermal stability throughout the entire measurement range. Because the design minimizes internal drift, the system delivers consistent monitoring results over extended service intervals. Operators therefore benefit from accurate, repeatable data without frequent recalibration.

Integration and Field Durability

Integration of this sensing system requires minimal configuration within existing Ovation or third-party protection platforms. The compact physical design allows for dense mounting in machinery monitoring cabinets. Moreover, the probe construction resists environmental hazards such as oil, heat, and mechanical vibration. Technicians install the system easily using standard mounting hardware and shielded cabling. By providing reliable diagnostics, this sensor assembly reduces unexpected downtime and optimizes plant maintenance strategies. It continues to be a trusted solution for critical machinery health monitoring programs worldwide.

Reliable Machinery Health Monitoring

Deploying the PR6423/00R-101 system enhances the operational safety of heavy industrial rotating equipment. Its proven technology allows for the continuous observation of internal mechanical clearances. Furthermore, the high-quality signal output supports advanced predictive analytics for better asset management. Facilities improve their reliability by standardizing on this robust Emerson Epro hardware. This system provides the precision data necessary for modern, automated industrial processes.
