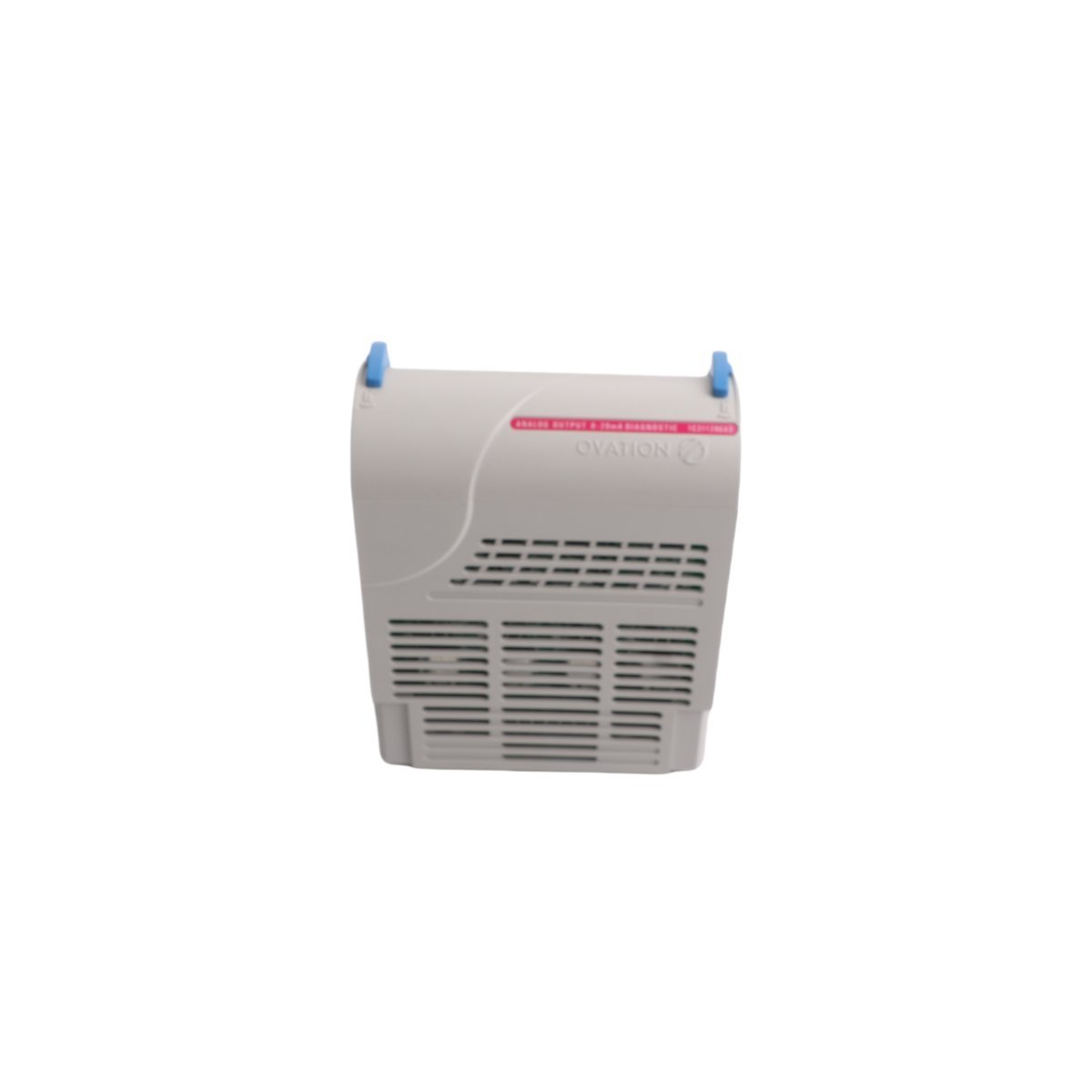

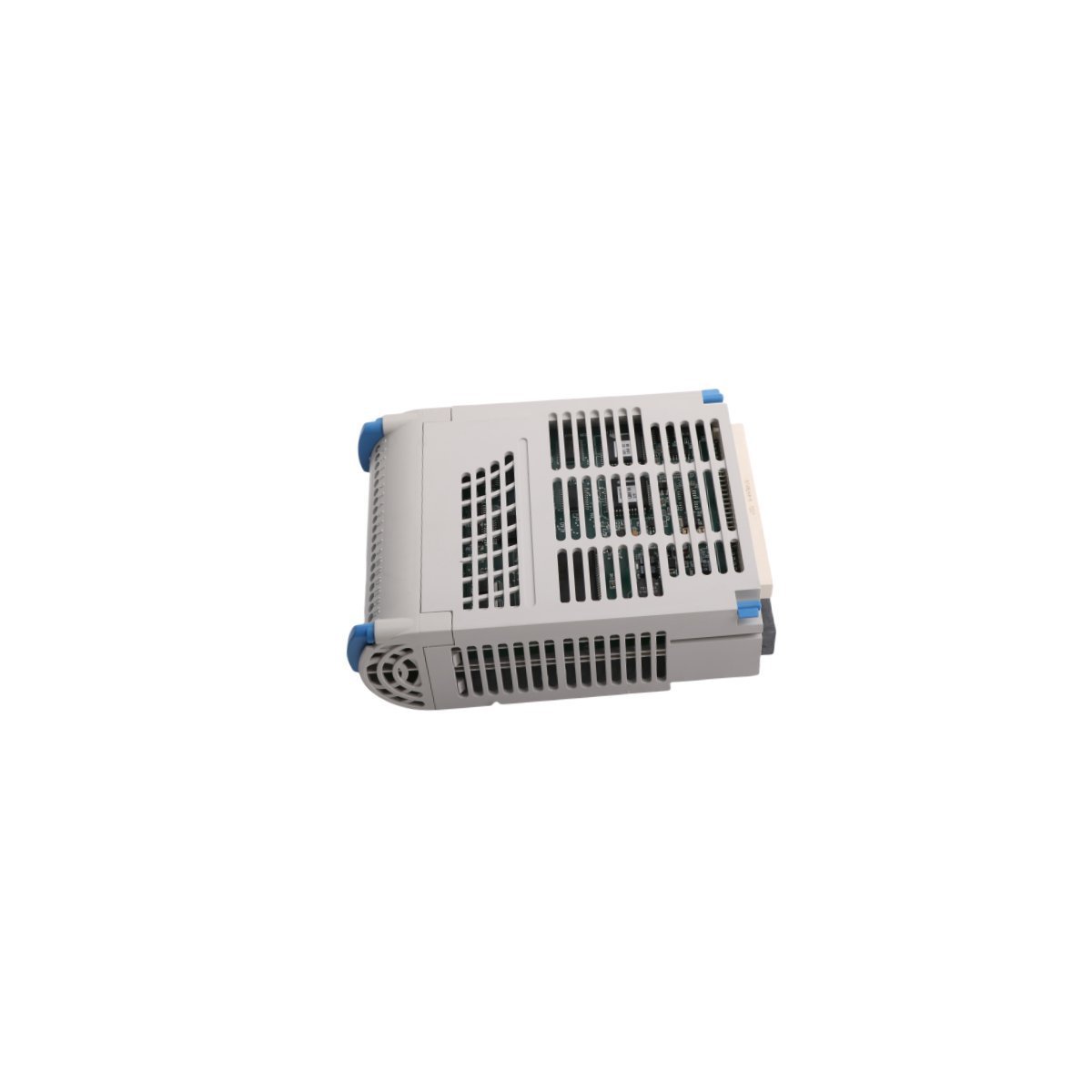

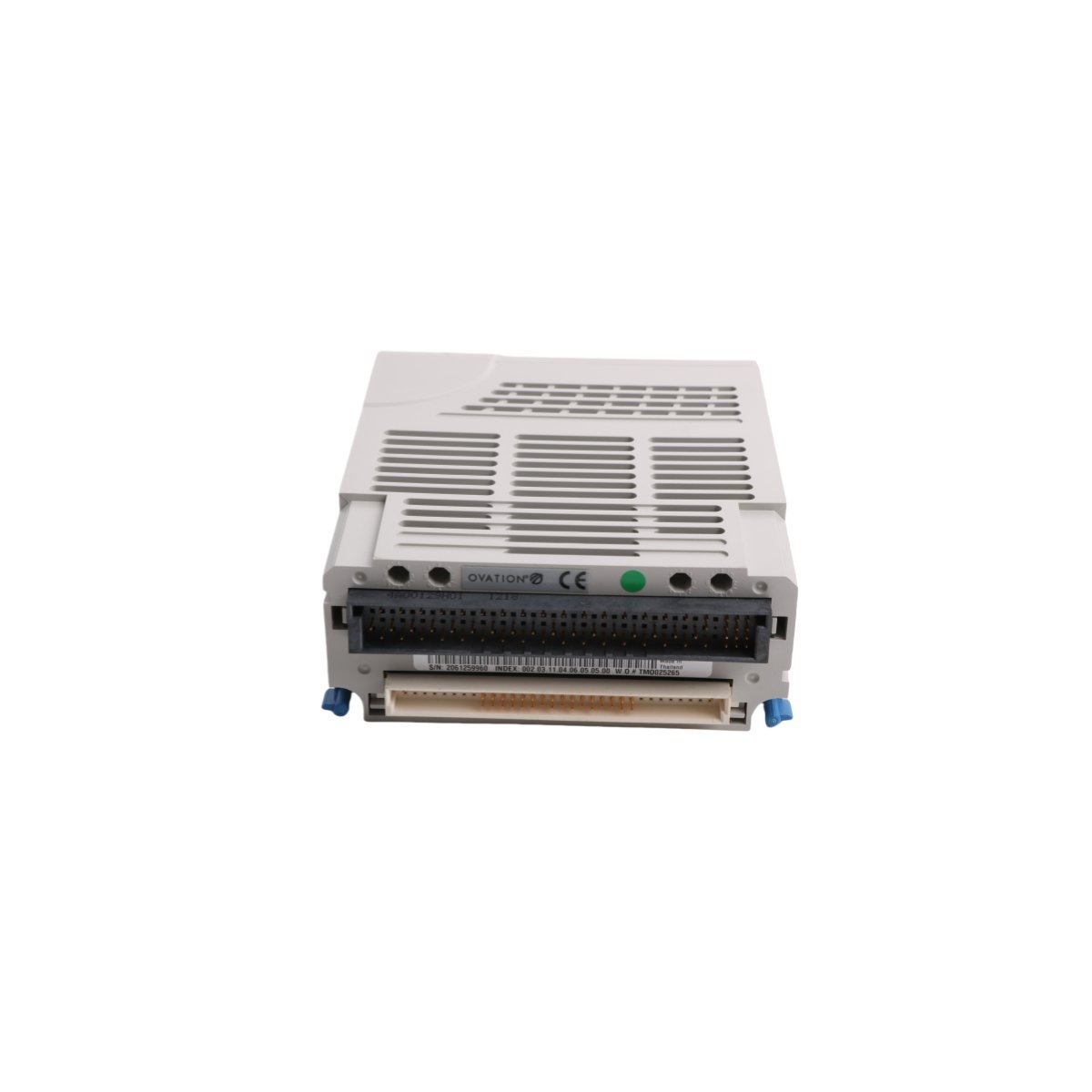

The Emerson 1C31129G03 is a high-performance analog output component designed for the Ovation Distributed Control System (DCS). Its primary function is to convert digital control logic from the DCS processor into precise analog current or voltage signals. These signals are used to modulate field devices such as variable frequency drives (VFDs), control valves, and actuators. By providing a 4–20 mA or 0–10V interface, the module ensures that process variables like flow, pressure, and temperature are maintained at their exact setpoints through continuous, proportional control.
Technical Specifications
| Parameter | Details |
| Manufacturer | Emerson Automation Solutions |
| Part Number | 1C31129G03 |
| Module Category | Analog Output (AO) |
| Standard Range | 4–20 mA / 0–10V (Configurable) |
| System Compatibility | Ovation DCS / Westinghouse Architecture |
| Weight | 0.6 kg |
| Dimensions | 12.1 x 2.5 x 7.0 cm |
| Product Origin | USA |
| Lifecycle Status | Discontinued (Service Spares Available) |
Key Industrial Applications
This module is typically deployed in mission-critical sectors including:
- Thermal Power Plants: Precise positioning of steam turbine control valves.
- Water Treatment: Regulating chemical dosing pump speeds and valve apertures.
- Manufacturing: Managing proportional speed controls in heavy machinery.
- Oil & Gas: Controlling modulation for pressure relief and process flow systems.
