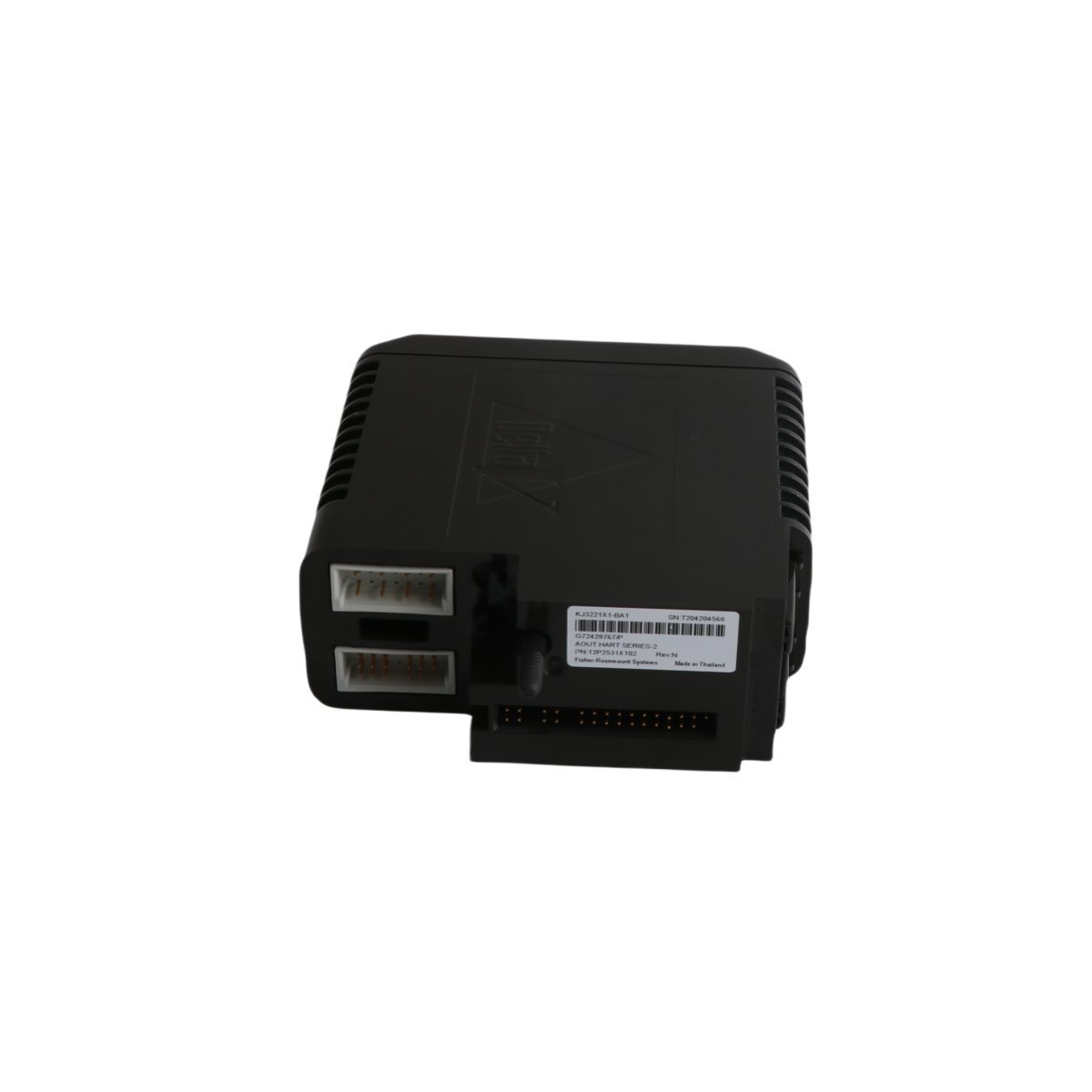

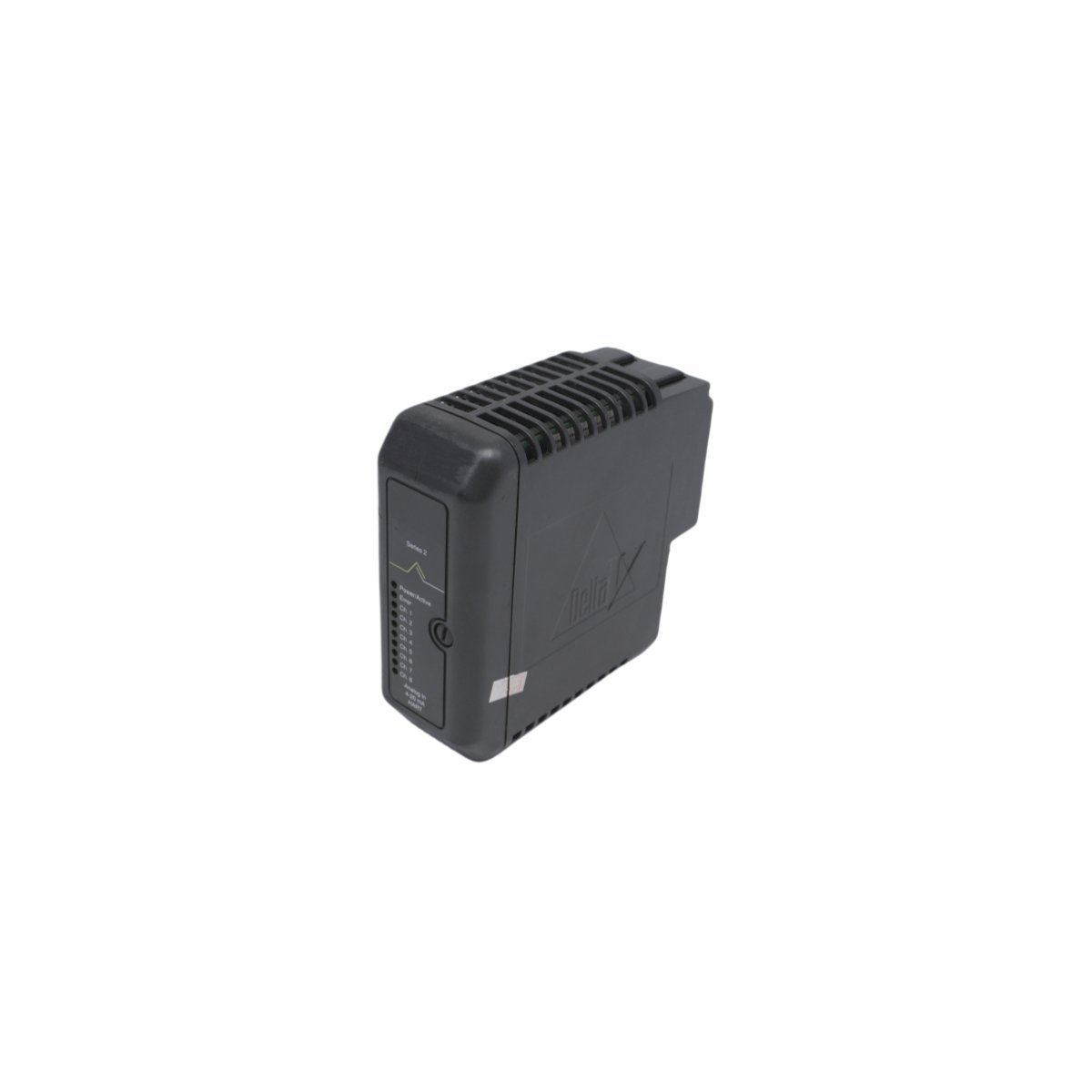

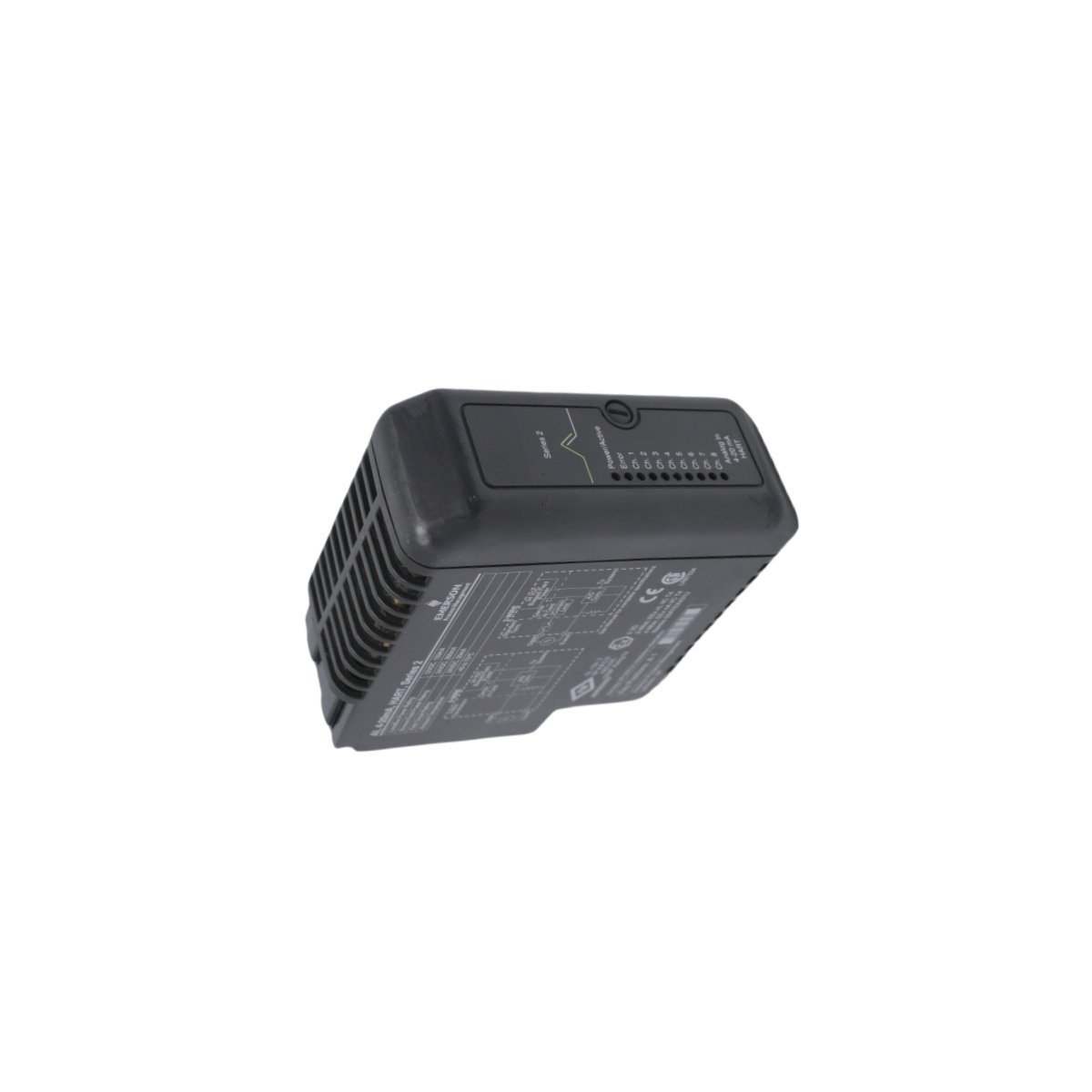

Emerson KJ3222X1-BA1 12P2533X152 Analog Input HART Module

The Emerson KJ3222X1-BA1, identified by part number 12P2533X152, is a specialized 8-channel Analog Input Module engineered for the DeltaV M-series Distributed Control System (DCS). This module provides the critical interface between field instruments and the process controller, specifically supporting 4-20 mA signals with integrated HART (Highway Addressable Remote Transducer) digital communication. By facilitating the transmission of both primary process variables and secondary diagnostic data, the module enables advanced asset management and real-time device monitoring. Its architecture focuses on high-resolution data acquisition, ensuring that process industries maintain tight control over variable fluctuations.

Enhanced Signal Integrity and Communication

A primary technical advantage of the 12P2533X152 module is its ability to process HART digital signals superimposed on the standard analog loop. This dual-layer communication allows operators to access calibration data, sensor health, and multivariable information without additional field wiring. Furthermore, the module incorporates robust electrical isolation for each channel, which effectively prevents ground loops and protects the internal DCS logic from external voltage surges. These features combined ensure that signal conversion remains accurate and consistent, even in environments with high electromagnetic interference.

System Integration and Environmental Durability

• Hot-Swappable Design: Maintenance teams can replace the module while the system remains powered, significantly reducing potential downtime during hardware refreshes.
• Compact Footprint: The hardware measures only 4.4 x 10.8 x 12.7 cm, allowing for high-density I/O configurations within standard DeltaV carriers.
• Automatic Configuration: The DeltaV software environment recognizes the card immediately upon installation, streamlining the commissioning phase through auto-sensing capabilities.
• Industrial Resilience: Built to withstand the rigors of continuous operation, the module performs reliably within harsh industrial climates typical of remote I/O cabinets.
• Precise Resolution: High-speed analog-to-digital converters provide the sensitivity required for critical pressure, temperature, and flow measurements.

Industrial Process Applications

The KJ3222X1-BA1 12P2533X152 module is a staple in high-stakes automation sectors such as petrochemical refining, pharmaceutical production, and power generation. Because these industries rely on smart field instruments, the module’s HART transparency becomes essential for predictive maintenance strategies. By capturing detailed instrument status, the system helps prevent unexpected failures and optimizes the calibration cycles of field transmitters. Consequently, this module serves as a cornerstone for facilities aiming to bridge the gap between basic process control and intelligent asset optimization.
