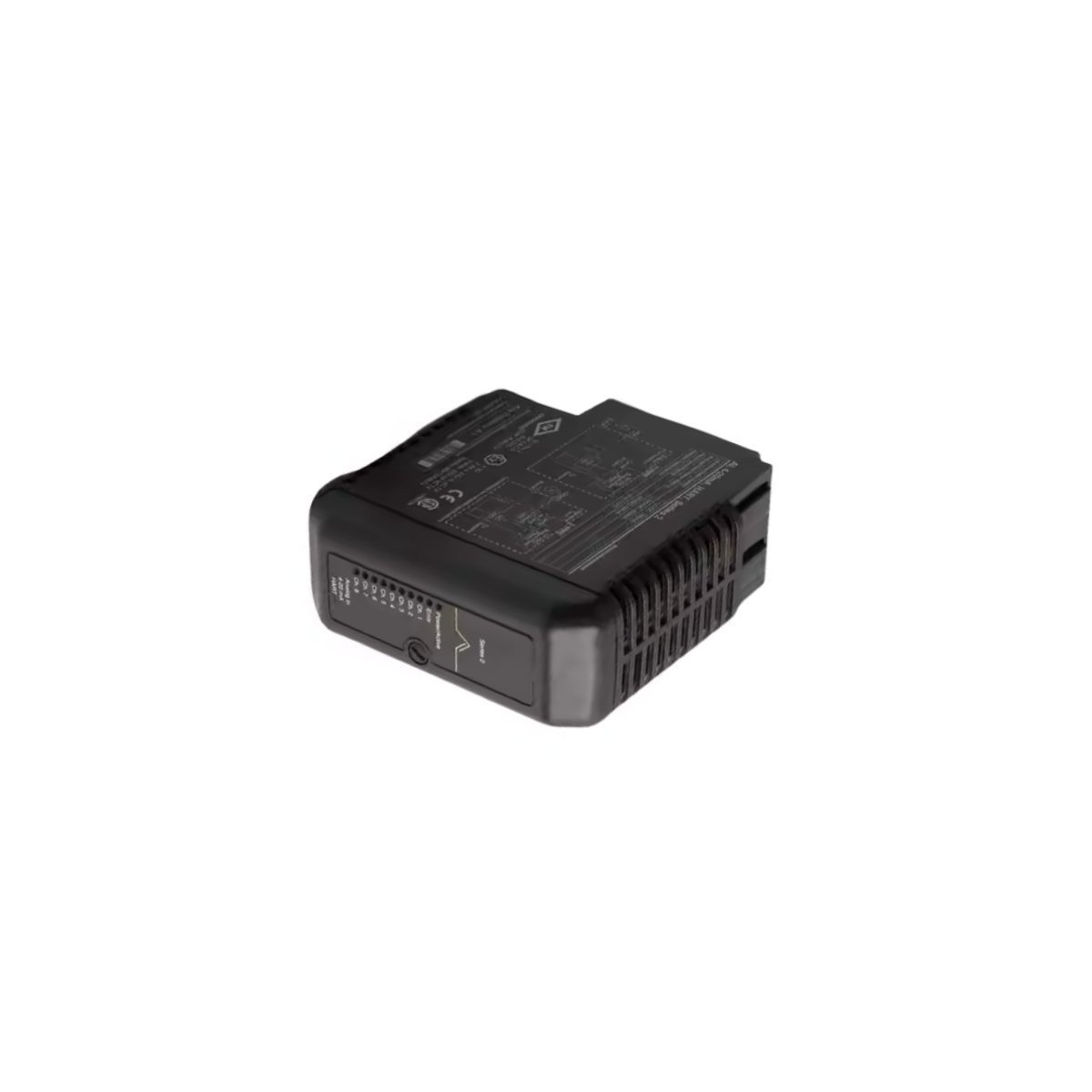

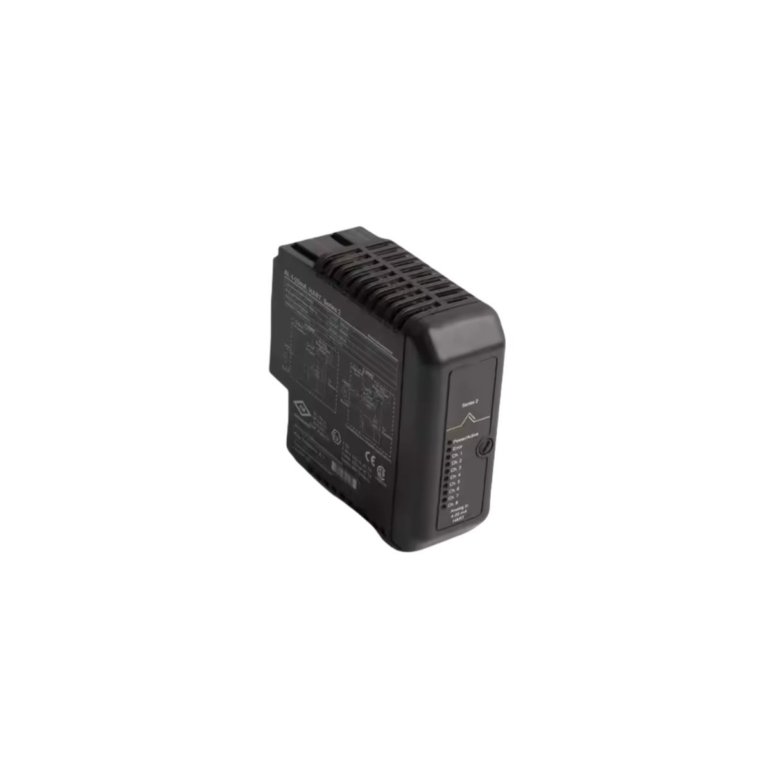

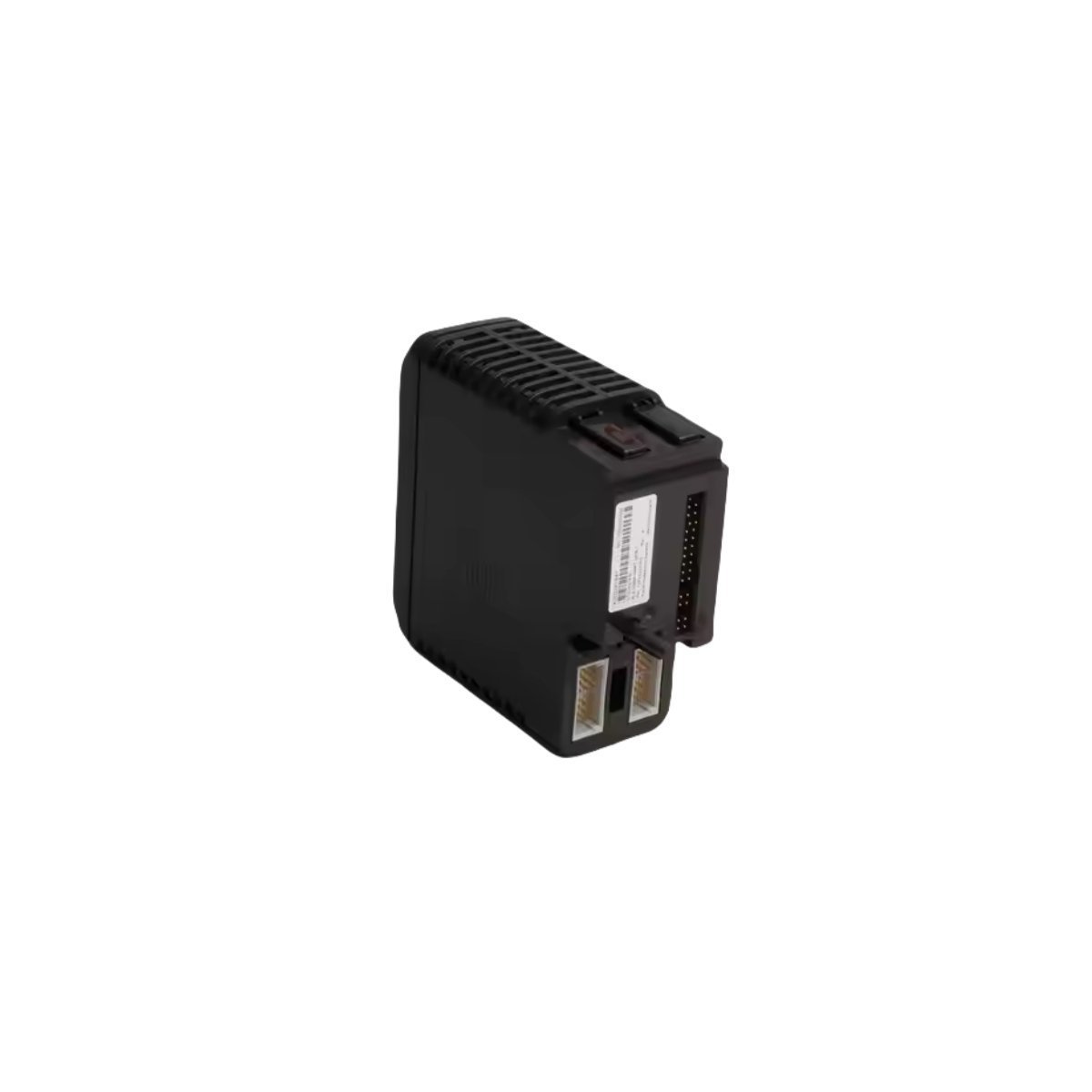

Emerson KJ3222X1-BA1 12P2532X092 VE4003S2B2 Analog Input Module

Core Specifications

The Emerson KJ3222X1-BA1 serves as a high-precision 4-20 mA HART analog input module designed for the DeltaV M-series Distributed Control System (DCS). This card processes field signals from transmitters and sensors, converting physical variables into digital data for the controller logic. By utilizing advanced Rosemount-based firmware, the 12P2532X092 configuration ensures accurate data acquisition even in electrically noisy industrial environments. Because it manages critical process feedback, this module remains a fundamental component for maintaining operational stability in complex automation loops.

Connectivity and System Integration

This module utilizes the VE4003S2B2 fused termination block to provide secure and protected wiring points for field instrumentation. The integration between the KJ3222X1-BA1 card and the DeltaV subsystem allows for hot-swappable replacement, which minimizes downtime during maintenance cycles. Furthermore, the hardware supports 8 channels of analog input, providing a dense and efficient footprint within the I/O carrier. This streamlined architecture enables engineers to scale control systems effectively while maintaining high-speed communication across the industrial Ethernet backbone.

Technical Performance and Environmental Resilience

• Signal Processing: Optimized for standard 4-20 mA inputs with integrated HART pass-through capabilities for instrument diagnostics.
• Circuit Protection: The VE4003S2B2 termination component includes fusing to safeguard the internal logic from field-side electrical faults.
• Thermal Management: The unit operates efficiently across standard industrial temperature ranges, ensuring long-term reliability in control rooms and remote cabinets.
• Plug-and-Play Architecture: The DeltaV controller automatically recognizes the card upon insertion, simplifying the commissioning and configuration process.
• HART Integration: Supports real-time access to secondary variable data and device status from smart field instruments.
