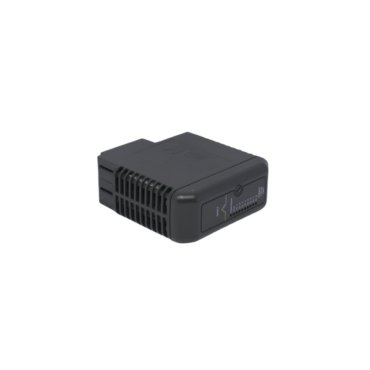

Emerson KJ3222X1-BA1 12P2532X072  VE4003S2B2 DeltaV PLC Module

The KJ3222X1-BA1 serves as a high-precision analog input interface within the Emerson DeltaV™ Distributed Control System (DCS). This M-series module specifically handles 4-20 mA signals while supporting integrated HART digital communication. It acts as a vital bridge between field-mounted transmitters and the central controller logic. Furthermore, the Series 2 redundant capability ensures continuous operation for mission-critical industrial loops. This hardware facilitates advanced process monitoring in sectors like power generation, oil and gas, and chemical refining.

Advanced HART Integration and Signal Processing

• Signal Type: 4-20 mA DC with HART Pass-through
• Input Quantity: 8-Channel High-Density Interface
• Redundancy: Supports Series 2 Redundant Configurations
• Resolution: 16-bit A/D conversion for precise measurements
• Input Filtering: Built-in digital filtering reduces electrical noise interference

Hardware Reliability and Fault Diagnostics

• Early Fault Detection: Identifies open circuits and transmitter failures instantly
• Isolation Protection: Galvanic isolation secures the system from field transients
• System Stability: Redundant architecture prevents process trips during module swaps
• Thermal Efficiency: Low power consumption design reduces cabinet heat buildup

Field Connectivity and Maintenance

Using the VE4003S2B2 module simplifies long-term maintenance cycles. The hot-swappable design allows technicians to replace units without interrupting the control loop. Additionally, the integrated HART capabilities enable remote instrument calibration and configuration. This functionality significantly reduces the need for manual field inspections. This module remains a cornerstone for modernizing automated process plants.

Technical Specifications and Installation
