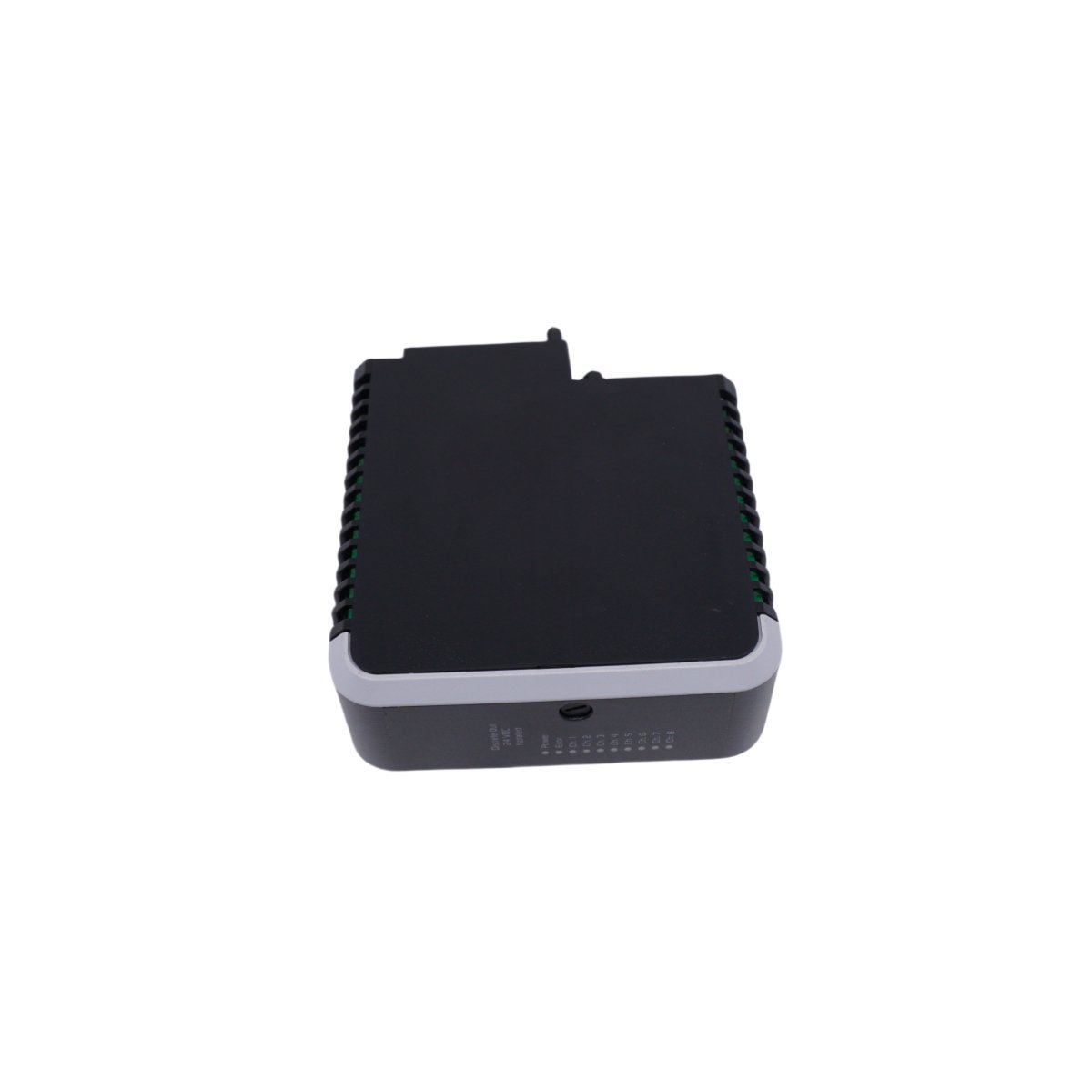

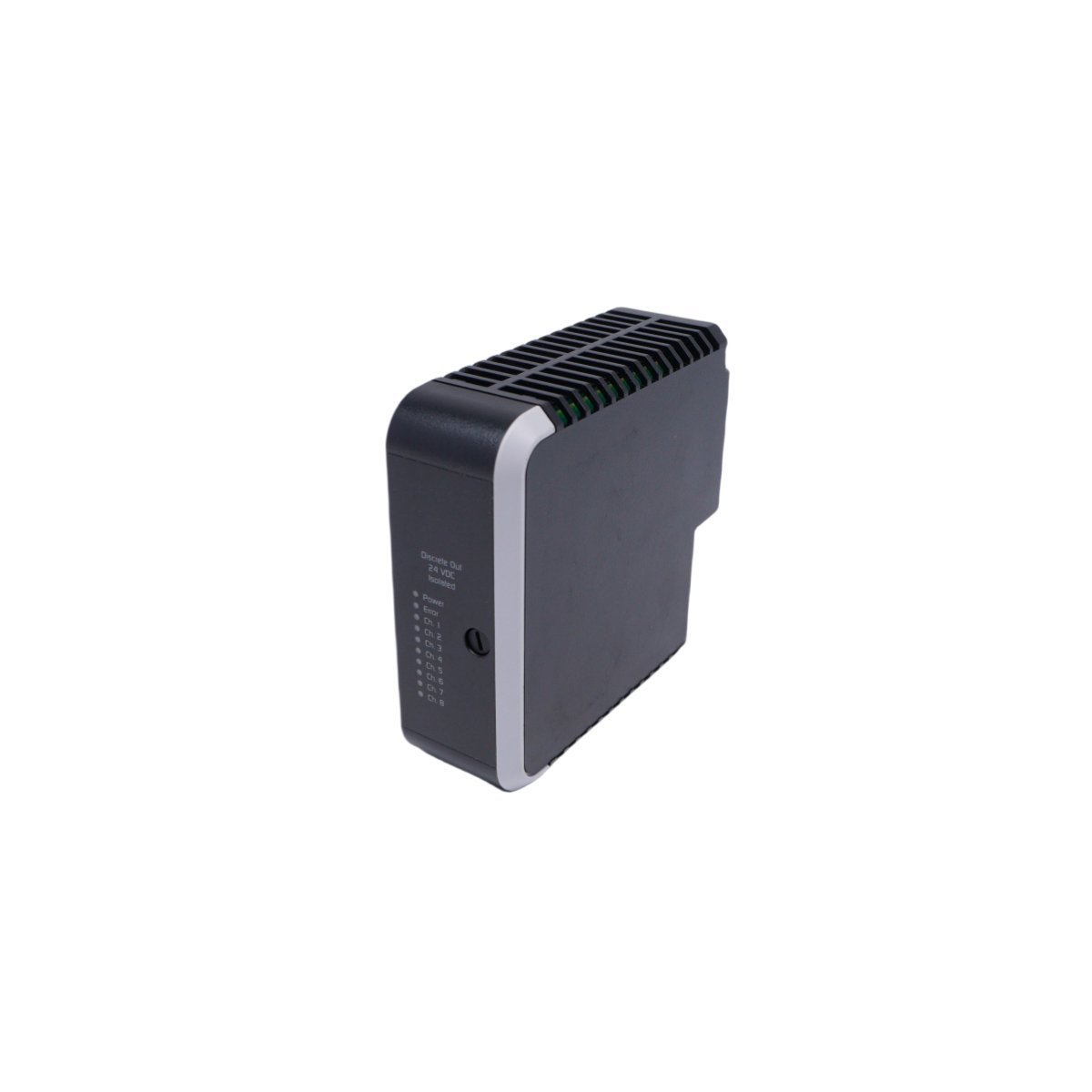

Emerson KJ3208X1-BA2 13P0105X012 DeltaV PLC Module

The KJ3208X1-BA2 serves as a critical interface for the DeltaV™ M-series I/O subsystem. This 8-channel analog input module captures 4-20mA signals from field instruments. It translates these physical measurements into digital data for the distributed control system. The hardware supports high-speed data acquisition for real-time process monitoring. Furthermore, integrated HART communication allows for advanced instrument asset management. Industries such as chemical processing and power generation rely on this module for precision control. The modular architecture facilitates rapid system scaling as facility requirements grow.

Performance Optimization and Maintenance

Implementing the KJ3208X1-BA2 significantly reduces manual field inspections. The digital HART layer provides secondary variables and calibration data directly to the workstation. Consequently, maintenance teams can prioritize repairs based on actual device health. This proactive approach lowers operational costs over the plant lifecycle. The module remains an essential component for high-availability automation environments.

Advanced Signal Intelligence and Diagnostics

This module features sophisticated diagnostic capabilities to ensure maximum uptime. It continuously monitors the health of each connected loop.

• HART Pass-through: Enables remote configuration of field transmitters
• Fault Detection: Identifies open circuits and shorted loops automatically
• Real-time Monitoring: Provides instant feedback on signal integrity
• Data Accuracy: High-resolution A/D conversion ensures process precision

Robust Engineering for Industrial Environments

• Galvanic Isolation: Prevents electrical noise from affecting the controller
• Thermal Management: Low-heat design extends the lifespan of adjacent components
• Hot-Swappable: Supports module replacement while the system remains powered
• Secure Mounting: Snaps firmly into standard DeltaV M-series carriers

Hardware Technical Specifications
